EPS HIGH TORQUE HIGH PRECISION PLANETARY GEARBOX

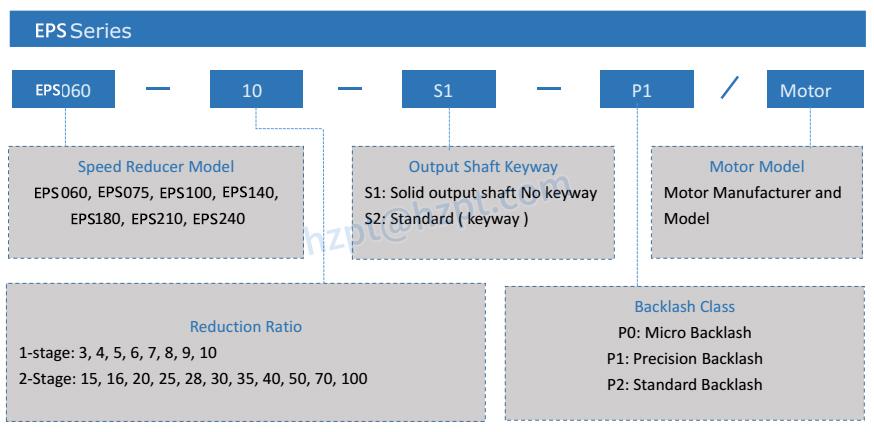

Indication of Model Numbers of EPS Speed Reducers

Description of EPS High Precision Servo GearboxesOur company's famous EPS high-precision planetary gearbox is a compact and high-precision in-line reducer. EPS series planetary gearboxes have two optional backlashes: miniature precision backlash P0 (1~3 arcmin) and precision backlash P1 (3~5 arcmin) without standard backlash P2. EPS series planetary gear reducers have excellent load capacity and are ideal for high-speed and continuous-duty applications.The use of tapered roller bearings on the output side of the gearbox enables EPS flanged helical planetary gearboxes to handle larger radial and thrust loads. This special internal structure design contributes to smooth and quiet operation.Application of EPS Planetary ReducersAs a recommended precision planetary servo gearbox, it is a perfect solution for extreme duty operation for servo applications, including gantries, printing equipment, packaging machinery, linear slides, loader robot, injection molding machines, food processing machinery, turret head, auto packing sealing machine, dispenser robot, or any other servo application that require high precision and large radial and thrust loading capacity.

edited by CX

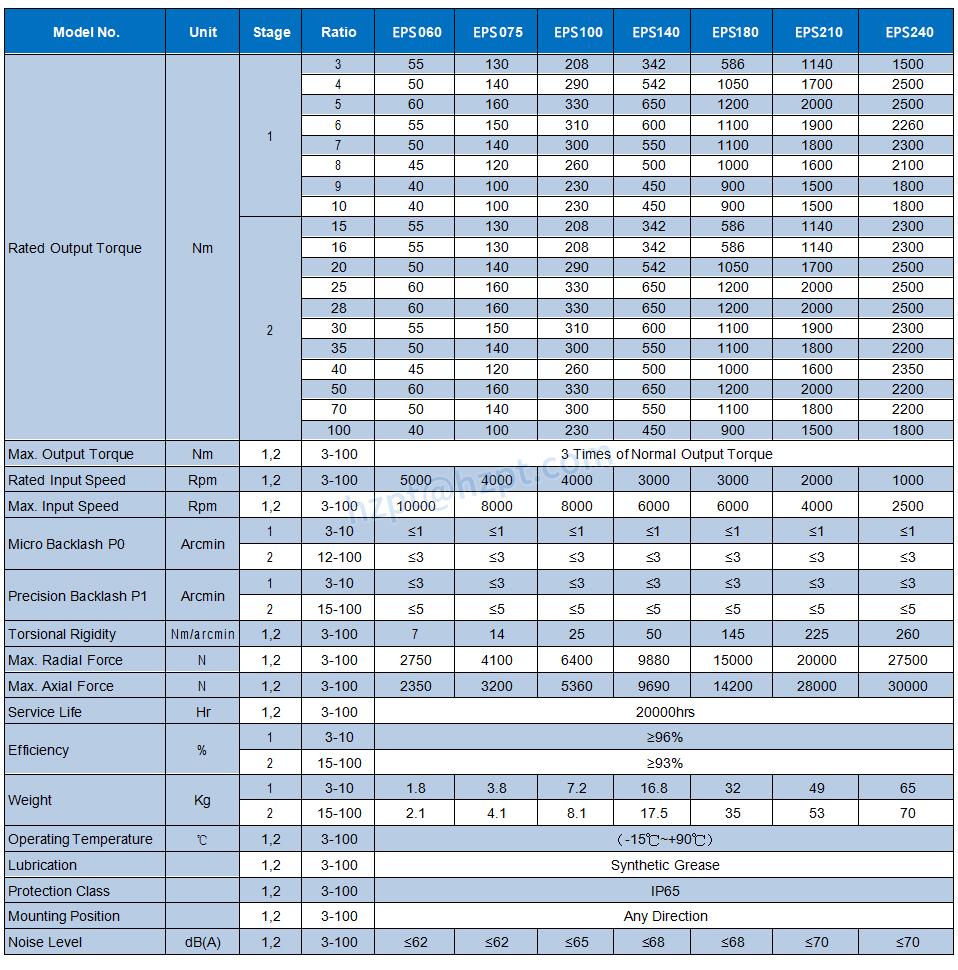

Specification Table of EPS Planetary Gear Reducer

Specification Table of EPS Planetary Gear Reducer
