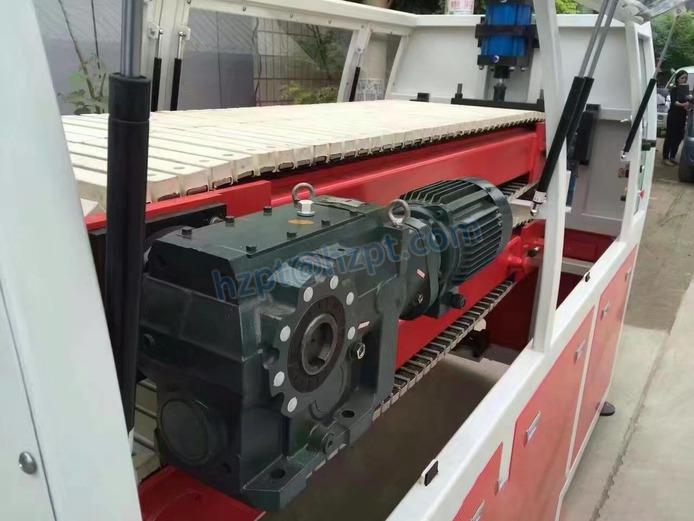

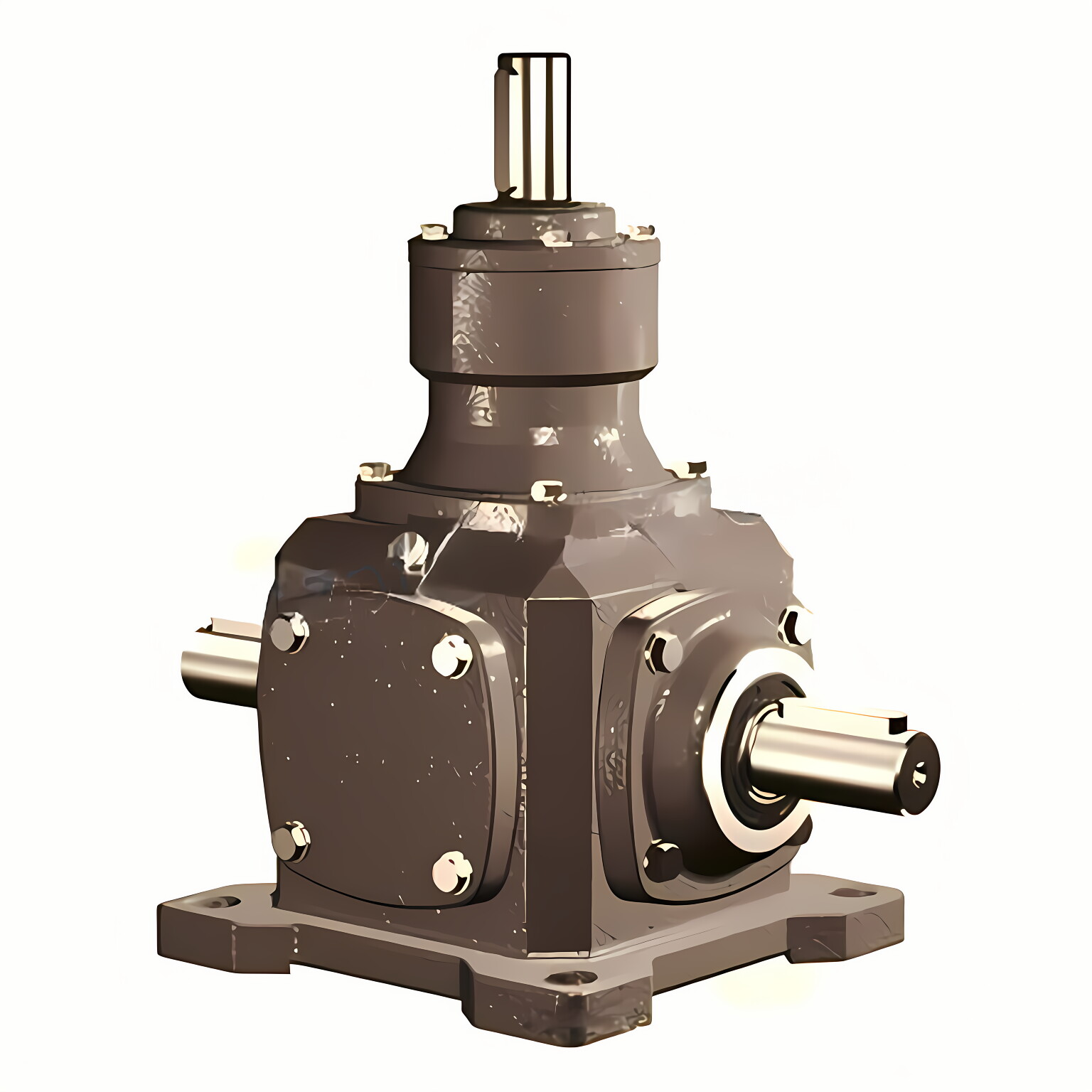

EPZ-T series spiral bevel gear reducer

Working principle:

Our motor reducer spiral cone type adopts gear transmission at all levels to achieve the purpose of deceleration. Our motor reducer spiral cone type isIt consists of gear pairs at all levels. For example, a gear can be driven by a pinion to achieve a certainSlow down, then adopt a multi-stage structure. , which can greatly reduce the speed

Performance:

1. The gears are made of high-quality alloy steel carburized and quenched. Tooth surface hardness up to 60±2 HRC, and the grinding accuracy of the tooth surface can reach 5-6 grades.2. The use of computer shaping technology to pre-reform the gear greatly improves the bearing capacity of our spiral cone reducer.3. From the box to the internal gear, it adopts a completely modular structure design, which is suitable for mass production andFlexible options.4. The spiral cone type of the motor reducer is divided according to the form of decreasing torque, which avoids the waste of electric energyTraditional equalization method.5. Adopt cad/cam design and manufacture to ensure the stability of quality.6. Various sealing structures are used to prevent oil leakage.7. Multi-directional noise reduction measures ensure the excellent low noise performance of our spiral cone reducer.

Click and check out more products you're looking for.

Why choose us

1. Wide selection of reducers

Our company offers the widest range of standard and custom solutions for applications in motion control and mechanical transmission. We provide precision inline planetary gearboxes and right angle planetary gearboxes, 90 degree right angle servo motor gearboxes, harmonic drive gearboxes, RV reducers for robots, ground precision racks, and pinions, servo motors, stepper motors, brushless motor,s, etc. The company can also provide worm gear reducers, gear motors, screw jacks, steering gears, and other related reducer gearboxes and accessories. This means you can get what you want right here and benefit from our one-stop service, saving you time and money.

2. Attractive price and top brand quality

We offer our customers very attractive prices with good quality. Compared with other companies' gearboxes, our precision planetary gearboxes feature low backlash (2-8 arcmin), high efficiency (≥95%), and low noise (60dBA). All servo gearboxes produced by our famous brand will be strictly inspected and tested before leaving the factory. In addition, we provide customers with a one-year warranty and lifetime after-sales service.

3. All-round professional technical support

Don't worry if you don't know how to choose the right transmission for your machine. We have a professional technical team to serve you. As long as you follow our steps, you'll know how to choose the right size. After selecting the matching gearbox for your motor, we will send you the corresponding CAD drawing for your inspection to avoid any mistakes. We also offer 24-hour technical support if you have any other issues that need urgent resolution.

4. Provide customized service

If you need a custom gearbox for a unique application, we can provide custom service according to your requirements. We will provide you with reliable, high-performance custom gearboxes from small to large output torques. Please tell our sales engineer your detailed requirements and all the necessary dimensions you want. The more information you provide us, the more suitable we can design a custom transmission for you.

5. Fast delivery time

For most of the standard reducers, we have sufficient stock, which can be delivered to customers in a very short time, solve the problem of urgent replacement of damaged gearboxes on working machines, and save costs for customers. Also, if a customer needs a gearbox of a certain size urgently and we do not have it in stock, we can arrange priority production, especially for you.

6. Professional

As one of the leading bevel gearbox manufacturers, mechanical product suppliers, and factories, we supply angular contact worm gearbox, planetary gearbox, and many other products.
