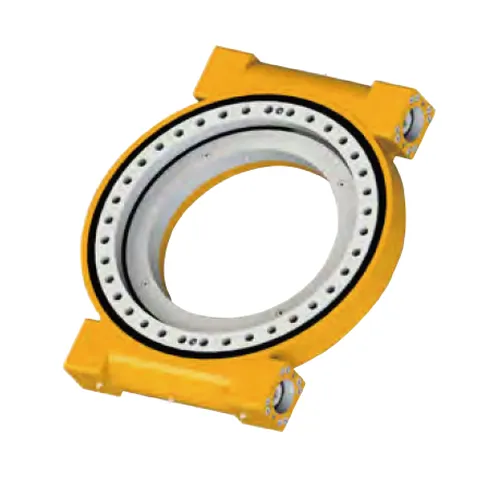

EWA21-2 Series Slewing Drive

The dual-worm slewing drive achieves the goal of linear contact between the rolling elements and the raceway by setting the double row raceway and the double row cylindrical roller. And the raceway has a certain inclination angle, thereby increasing the load carrying capacity so that the bearing can support axial and radial loads and significant overturning moments. Because the outer teeth are set in the middle of the height of the outer circle of the inner ring, the worm gear can be installed on the outer circle of the inner ring, which is comparable to the existing double row four with external teeth.In this device, two worms are used to drive the external ring gear of the slewing ring. The inner circle is fixed above the seat ring of the base, and the first shaft shell and the second shaft shell are symmetrically arranged on the base's outer side of the seat ring. The axis lines are perpendicular to each other in space; the first worm is installed in the first shaft housing; the second worm is installed in the second shaft housing. The first worm and the second worm are both meshed with the outer gear ring. The translational forces of the two worms offset each other. At the same time, the gap between the worm and the outer ring gear can be "eliminated" to achieve precise positioning of the rotation angle of the external ring gear. The dual-worm slewing drive has a simple structure and practical design and can be widely used in engineering machinery, construction machinery, solar photovoltaic, and other industries.

Performance Parameters

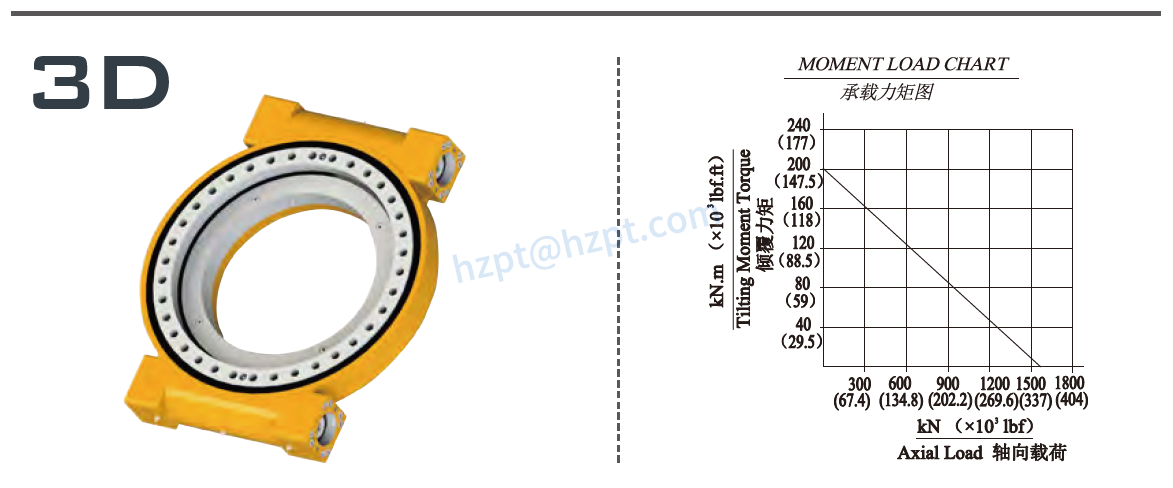

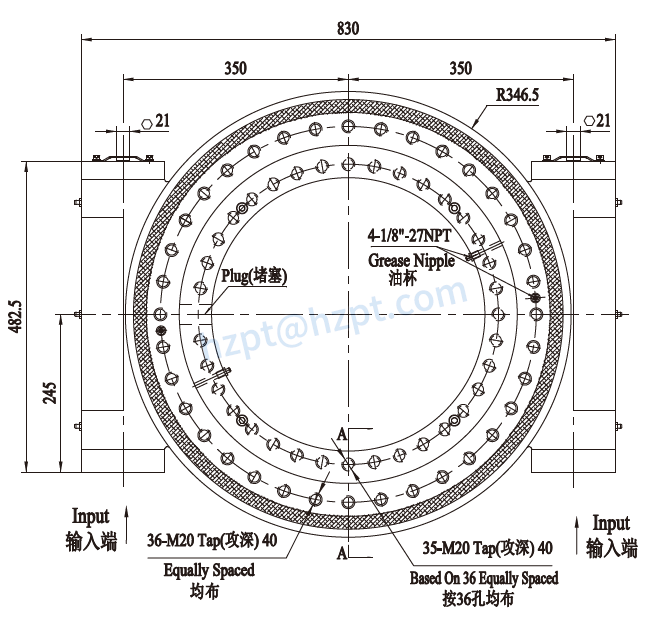

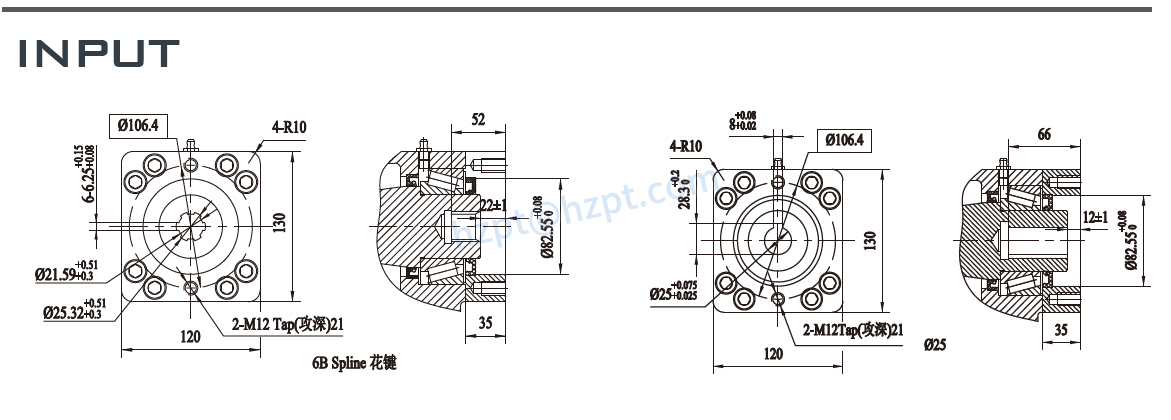

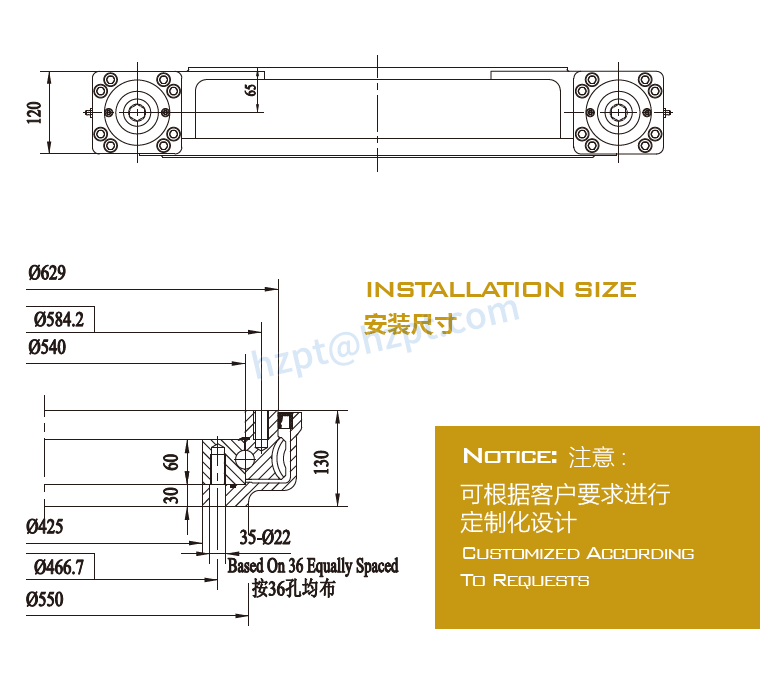

Front View	Top View



Output torque	Tilting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
输出转矩	倾覆力矩	保持力矩	轴向承载力	径向承载力	速比	精度	重量
48 kN.m	203 kN.m	181 kN.m	1600 KN	650 KN	90:1	<= 0.13 °	200Kg
35400 Lbf.ft	150000  Lbf.ft	141000 Lbf.ft	359700 Lbf	146000 Lbf

Characteristics of Slewing Drive

1, closed structure design, sealing and dustproof better;2, using the worm gear pair, which can transfer bigger torque and run more smoothly;3, the installation is convenient and can be directly through the bolt and the basis of connected;4, ring surface worm drive can provide greater torque.Note:1, with size and performance parameters, refer to the rotary drive sample;2, according to customer needs matching different hydraulic motor;3, we can also, according to your requirements for you to customize;
