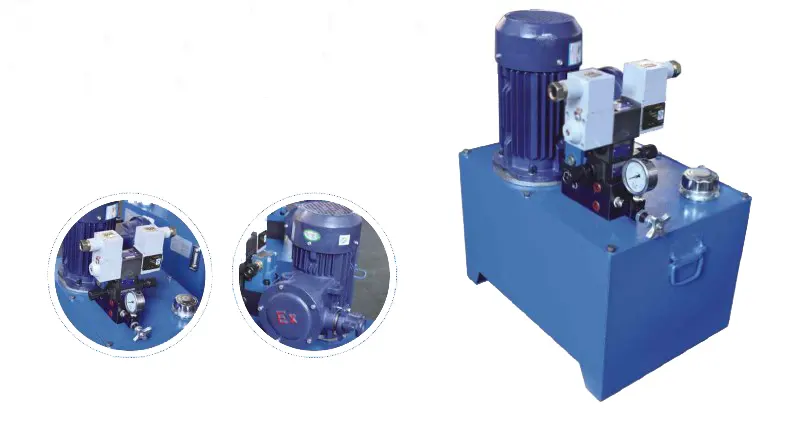

Explosion Proof Hydraulic System

Explosion Proof Hydraulic System

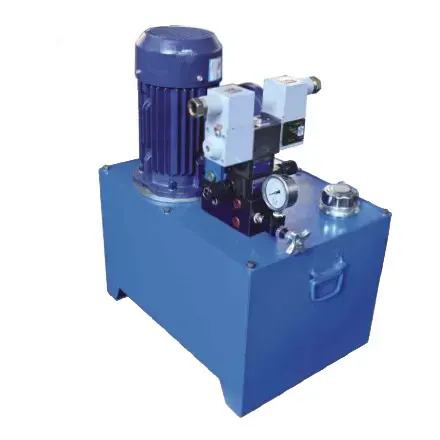

The Explosion-Proof Hydraulic System is a state-of-the-art solution to the unique challenges of operating hydraulic machinery in hazardous environments. This specialized system combines the power of hydraulic technology with explosion-proof design features, guaranteeing the safety of both personnel and equipment while maximizing operational efficiency. Let's delve into the key characteristics, usage methods, maintenance requirements, and other crucial aspects of the Explosion-Proof Hydraulic System.The production and processing of explosion-proof hydraulic systems, the use of explosion-proof motors, and solenoid valves are often used in coal mine equipment.Explosion-proof hydraulic system features:1. An imported oil pump (variable piston pump, variable vane pump) is used together with an explosion-proof motor, significantly improving the system's reliability.2. Adopt an imported explosion-proof solenoid valve with an imported superposition valve, which is easy to operate and improves production efficiency.3. The laser cutting and bending process is used to ensure the strength and beauty of the equipment.

Explosion Proof Hydraulic System For Mine Equipment Parameter:

Motor Power:1.5KWOil Tank:60L

Characteristics of the Explosion-Proof Hydraulic System For Mine Equipment:

1. Robust Explosion-Proof Design

• Meticulously engineered to meet the stringent safety standards of hazardous environments.
• Incorporates explosion-proof features that mitigate the risk of ignition from flammable gases, dust, and other hazardous substances.
• Ensures compliance with industry regulations and guidelines to maintain a safe working environment.

2. Enhanced Safety Features

• Flameproof enclosures, pressure relief valves, and spark-resistant materials minimize the potential for fire, explosions, and electrical hazards.
• Fail-safe components and redundant systems provide continuous operation and emergency shutdown capabilities during critical situations.
• Comprehensive safety mechanisms protect personnel and equipment from harm, reducing the risk of accidents and injuries.

3. High Performance and Efficiency

• Delivers exceptional performance, enabling powerful and precise operation of hydraulic machinery.
• Provides reliable force and motion control for hydraulic actuators, valves, and other components.
• Optimizes efficiency and productivity while ensuring smooth and efficient movement of machinery.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed based on a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

How Does A Hydraulic Clutch System Work?

A hydraulic clutch system is a mechanism that enables the operation of a clutch in a vehicle using hydraulic pressure instead of a mechanical linkage. It provides a smoother and more precise clutch engagement than traditional cable-operated or mechanical clutch systems. Here's a simplified explanation of how a hydraulic clutch system works:

1. Master Cylinder:The hydraulic clutch system begins with a master cylinder, typically located near the clutch pedal in the driver's compartment. When the driver depresses the clutch pedal, it pushes a piston inside the master cylinder.
2. Hydraulic Fluid:The master cylinder is filled with hydraulic fluid, usually brake fluid, responsible for transmitting the hydraulic pressure. The fluid is stored in a reservoir and drawn into the master cylinder when the pedal is depressed.
3. Slave Cylinder:Connected to the master cylinder by hydraulic lines or hoses, the slave cylinder is located near the clutch assembly. It contains a piston that moves in response to the hydraulic pressure from the master cylinder.
4. Clutch Release Bearing:The slave cylinder is connected to a release bearing, also known as a throwout bearing. When the slave cylinder piston moves, it pushes the release bearing against the clutch pressure plate, disengaging the clutch.
5. Clutch Assembly:The clutch assembly consists of a clutch plate, pressure plate, and flywheel. When the clutch is engaged, the pressure plate applies pressure to the clutch plate, creating friction and transferring power from the engine to the transmission.
6. Clutch Engagement:When the driver depresses the clutch pedal, hydraulic pressure from the master cylinder is transmitted to the slave cylinder. The slave cylinder piston moves, pushing the release bearing against the pressure plate. This action releases the pressure on the clutch plate, disengaging it from the flywheel. As a result, power from the engine is no longer transmitted to the transmission, allowing the driver to shift gears smoothly.
7. Clutch Disengagement:Releasing the clutch pedal allows the hydraulic pressure to be relieved. The return spring in the slave cylinder pushes the piston back, retracting the release bearing from the pressure plate. This re-engages the clutch and reestablishes power transmission between the engine and transmission.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
