The Hydraulic System for Metallic Equipment is a robust and reliable solution designed to meet the hydraulic needs of various metallic equipment in industrial applications. This advanced hydraulic system offers exceptional performance, efficiency, and versatility, making it essential for powering and controlling metallic machinery. From metal fabrication to heavy-duty equipment, the Hydraulic System for Metallic Equipment delivers reliable power delivery, precise control, and enhanced productivity.

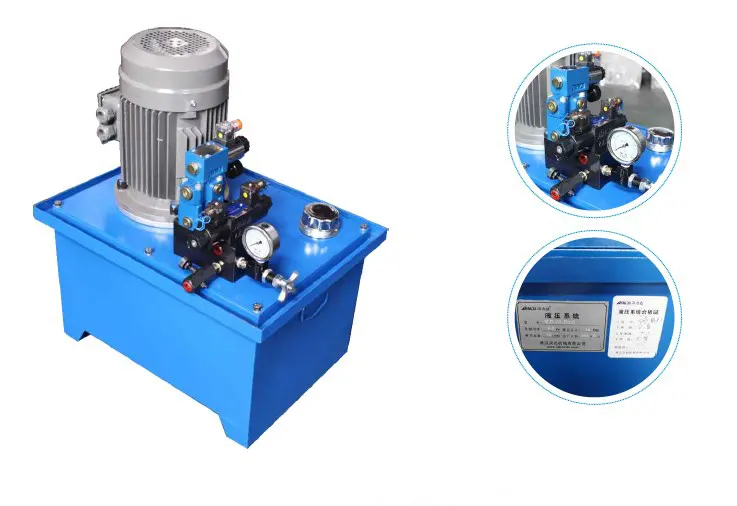

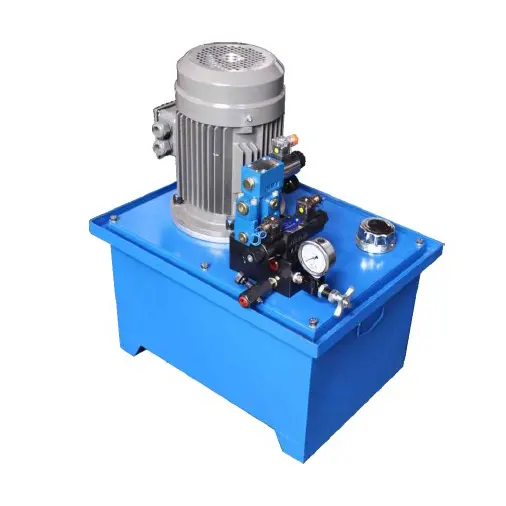

Hydraulic System For Metallic Equipment:

Motor Power:4KWOil Tank:60LSystem Pressure:14MpaSystem Flow:14/min

Maintenance Of Hydraulic System For Metallic Equipment Parameter:

• The Hydraulic System for Metallic Equipment is highly versatile and can be integrated into various metallic equipment, including presses, shears, bending machines, etc.
• Its adaptability makes it suitable for various industries, such as metal fabrication, automotive manufacturing, and heavy machinery.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed on the basis of a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

How Does A One Way Hydraulic Cylinder Work?

A one-way, single-acting hydraulic cylinder uses a hydraulic system to generate linear motion in one direction. It consists of a cylinder barrel, piston, piston rod, and hydraulic fluid. Here's how it works:

1. Hydraulic Fluid Supply:
   • The hydraulic system supplies pressurized fluid, typically oil, to the cylinder through a hydraulic pump or power source.
2. Cylinder Extension:
   • When hydraulic fluid is supplied to the cylinder, it enters the cylinder barrel through an inlet port.
   • The pressurized fluid pushes against the piston, causing it to move in the desired direction (typically extending the piston rod).
   • As the fluid pressure increases, it overcomes the resistance or load on the piston, resulting in the extension of the piston rod.
3. Sealing Mechanism:
   • The cylinder barrel is sealed to prevent fluid leakage. It typically incorporates seals around the piston and piston rod, such as O-rings or lip seals.
   • These seals ensure that the pressurized fluid acts only on one side of the piston, creating a pressure imbalance that drives the piston in the desired direction.
4. Return Stroke:
   • After the extension stroke, the hydraulic fluid is released or vented from the cylinder.
   • The hydraulic system may use gravity, a spring, or an external force to retract the piston and piston rod to their initial positions.
   • During the return stroke, the hydraulic fluid flows out of the cylinder through an outlet port.
5. Load Support:
   • The piston rod of the hydraulic cylinder is often connected to a load or mechanism that requires linear motion or force.
   • As the piston extends or retracts, it provides the necessary force to move or support the load.
6. Control and Valves:
   • To control the extension and retraction of the one-way hydraulic cylinder, the hydraulic system incorporates valves, such as check valves or directional control valves.
   • These valves regulate the flow of hydraulic fluid, allowing it to enter and exit the cylinder in the desired direction.
7. Application Specifics:
   • One-way hydraulic cylinders are commonly used in applications where force or motion is required in only one direction, such as lifting, pushing, or clamping.
   • They are often found in hydraulic jacks, hydraulic presses, dump trucks, and other industrial and mobile equipment.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
