The Hydraulic System for Machine Tool is a cutting-edge solution designed to optimize the performance of machine tools in the manufacturing industry. With its advanced hydraulic technology, this system offers precise control, increased power, and improved efficiency, making it an essential component for a wide range of machining operations. From milling and turning to grinding and drilling, the Hydraulic System for Machine Tool delivers exceptional performance and reliability, enabling manufacturers to achieve superior precision and productivity.

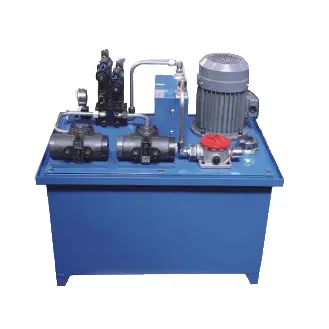

Hydraulic System For Combined Machine Tool Parameter:

Motor Power:1.5KWOil Tank:120L

Characteristics of the Hydraulic System For Combined Machine Tool:

1. High-Performance Hydraulic Components:

• Reliable and Durable: This system incorporates high-quality hydraulic components, such as pumps, valves, and actuators, known for their reliability, durability, and precision.
• Designed for Demanding Conditions: These components are specifically designed to withstand the demanding conditions of machine tool applications, ensuring long service life and minimal downtime.

2. Intelligent Control Features:

• Advanced Control Technologies: The Hydraulic System for Machine Tool often integrates intelligent control features, such as proportional valves, servo systems, and feedback mechanisms.
• Precise Control Parameters: These advanced control technologies enable precise control over speed, pressure, and positioning, enhancing the overall performance and versatility of the machine tool.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed on the basis of a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

What Does An Accumulator Do In A Hydraulic System?

In a hydraulic system, an accumulator serves as a storage device for hydraulic fluid under pressure. It plays a crucial role in maintaining system performance, enhancing efficiency, and providing additional energy when needed. Here are the primary functions and benefits of an accumulator in a hydraulic system:

1. Energy Storage:
   • An accumulator stores hydraulic energy in the form of pressurized fluid. It acts as a temporary reservoir, allowing excess fluid to be stored when the demand for hydraulic power is low.
   • This stored energy can be released rapidly when the demand for power increases, providing an additional power source to supplement the hydraulic pump during peak periods or high-demand operations.
2. Pulsation Dampening:
   • Hydraulic systems can experience pressure pulsations or surges due to the reciprocating action of cylinders, quick valve movements, or other dynamic factors.
   • An accumulator helps dampen these pulsations by absorbing and smoothing out pressure fluctuations. It acts as a shock absorber, reducing stress on system components, and stabilizing the hydraulic system.
3. Leakage Compensation:
   • Over time, hydraulic systems may experience minor internal and external leakages. These leaks can result in a loss of fluid and pressure, impacting system performance.
   • An accumulator compensates for these leakages by maintaining the required pressure level. When the system pressure drops due to leakage, the accumulator releases stored fluid to maintain the desired pressure, ensuring uninterrupted operation.
4. Emergency Power Source:
   • In critical situations such as power failures or sudden pump failures, an accumulator can act as an emergency power source.
   • The stored energy in the accumulator can be used to operate critical functions, such as emergency stopping, safety mechanisms, or controlled system shutdowns, preventing potential damage or hazards.
5. Volume Compensation:
   • Hydraulic fluid volume changes with temperature variations. As temperatures rise, fluid expands, potentially causing pressure spikes or system damage.
   • An accumulator compensates for these volume changes by accommodating the excess fluid volume, preventing pressure buildup and maintaining system stability.
6. Efficiency Enhancement:
   • By utilizing an accumulator, hydraulic systems can optimize energy usage and reduce the load on the hydraulic pump.
   • During periods of low demand, the accumulator stores excess energy that would otherwise be wasted. This stored energy can be used during peak demand, reducing the load on the pump and improving overall system efficiency.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
