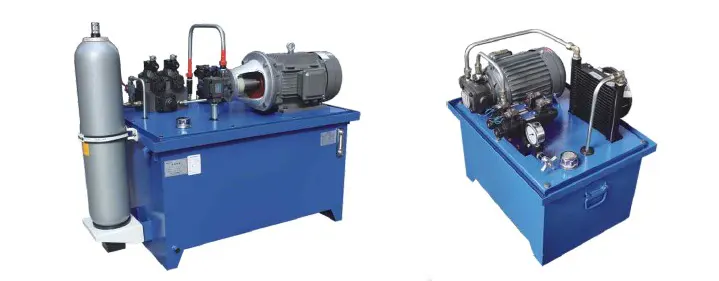

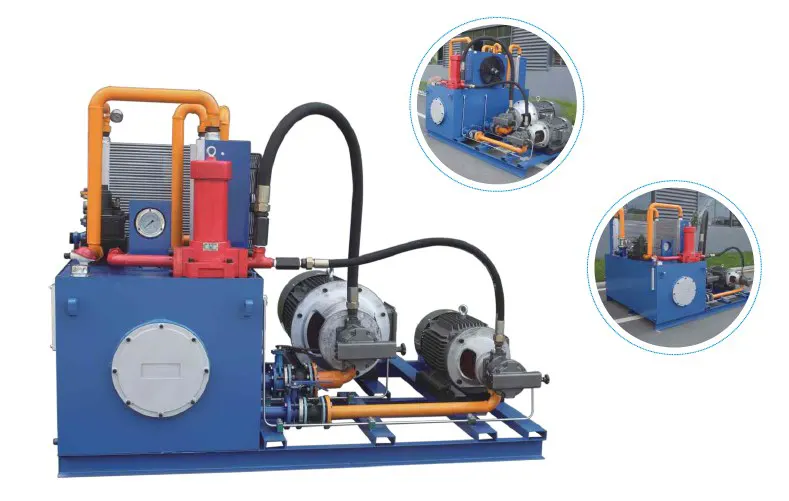

Engineering Hydraulic System

Engineering Hydraulic System

The Engineering Hydraulic System is a cutting-edge solution designed to deliver superior power and control in a variety of engineering applications. This advanced hydraulic system is widely used in construction, manufacturing, and transportation industries, where precise force and motion control are crucial. With its exceptional capabilities, the Engineering Hydraulic System empowers engineers and operators to achieve enhanced efficiency, accuracy, and productivity.

Engineering Hydraulic System Parameter:

Motor Power:3KWOil Tank:40LSystem Pressure:10MpaSystem Flow:14L/minMotor Power:2.2KWOil Tank:60L

Unleashing Hydraulic Power:

• The Engineering Hydraulic System harnesses the power of hydraulic fluid to generate controlled force and motion. It is designed to handle heavy loads and perform in demanding operating conditions.
• With its high-performance hydraulic pumps and actuators, the system provides reliable and consistent power, enabling engineers to tackle challenging tasks easily.

Precise Force and Motion Control:

• The Engineering Hydraulic System offers precise control over force and motion, allowing engineers to perform intricate operations accurately.
• Operators can achieve the desired speed, position, and force required for various engineering tasks by adjusting the hydraulic pressure and flow rate.

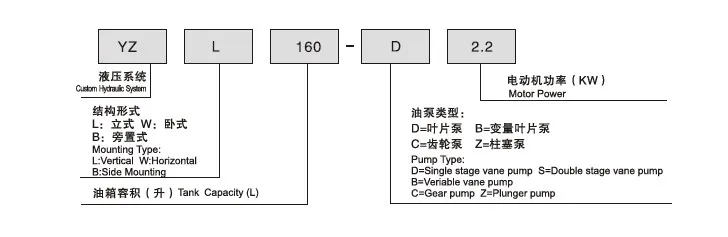

Custom Hydraulic System Model Description:

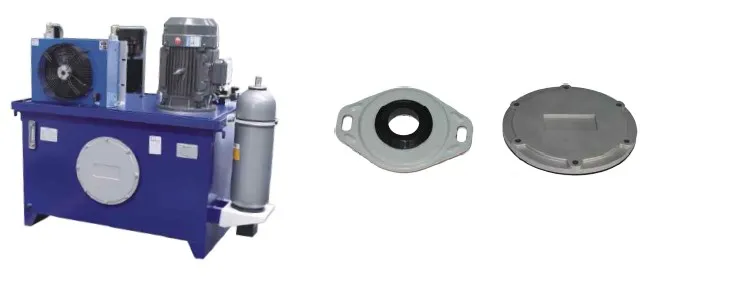

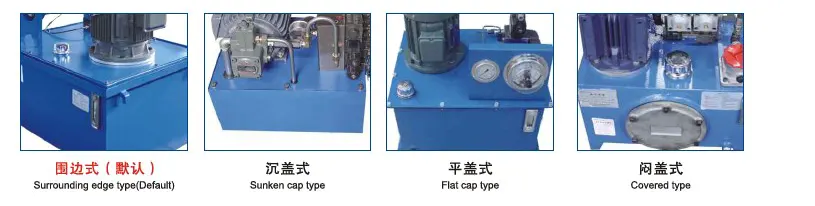

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

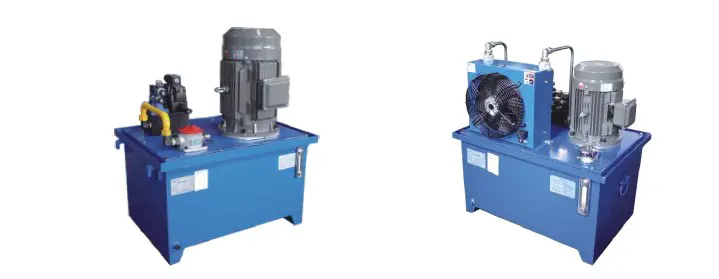

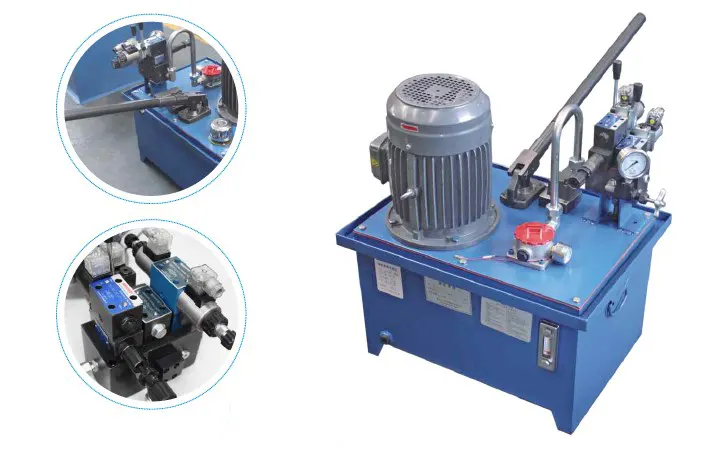

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

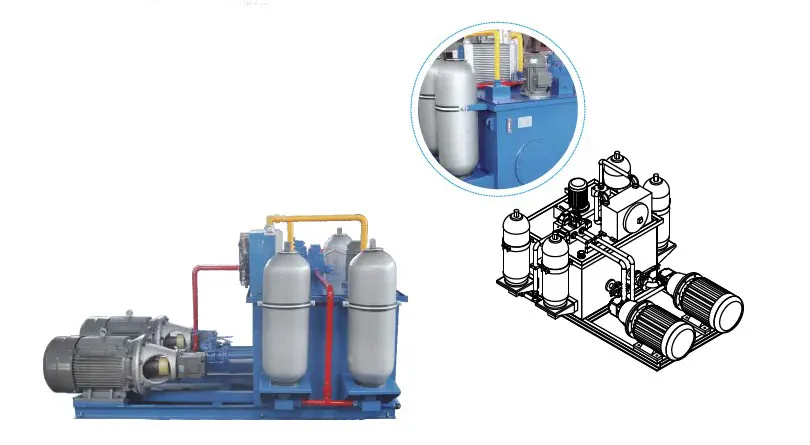

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed on the basis of a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

How A Hydraulic System Works?

Getting water out of a tractor hydraulic system is crucial to prevent damage and ensure the system's optimal performance. Here's a step-by-step guide on how to remove water from a tractor hydraulic system:

1. Identify Drain Points:
   • Familiarize yourself with the hydraulic system of your tractor and locate the drain points. These are typically drain plugs or valves positioned at the lowest points of the system.
2. Prepare the System:
   • Ensure that the tractor is turned off and the hydraulic system is depressurized. This is important for safety reasons.
3. Position a Drain Container:
   • Place a suitable drain container or bucket underneath the drain point to collect the drained hydraulic fluid.
4. Loosen the Drain Plug or Valve:
   • Using the appropriate wrench or tool, carefully loosen the drain plug or open the drain valve at the designated drain point. Loosen it enough to allow the water-contaminated hydraulic fluid to flow out.
5. Drain the Hydraulic Fluid:
   • Slowly and gradually open the drain plug or valve to allow the water-contaminated hydraulic fluid to drain out. The fluid may appear milky or have visible water droplets.
6. Flush with Fresh Hydraulic Fluid:
   • Once the majority of the water-contaminated fluid has drained out, close the drain plug or valve.
   • Fill the hydraulic reservoir with fresh, clean hydraulic fluid to flush out any remaining water and contaminants from the system.
7. Operate the Hydraulic System:
   • Start the tractor and activate the hydraulic system. Engage the hydraulic functions, such as raising and lowering attachments or operating the hydraulic controls, to circulate the fresh hydraulic fluid throughout the system.
8. Repeat the Flushing Process:
   • Open the drain plug or valve again to allow the fresh hydraulic fluid to flush out any remaining water and contaminants.
   • Close the drain plug or valve once the fluid appears clean and free of water.
9. Check Fluid Level:
   • Verify the hydraulic fluid level in the reservoir and top it up if necessary to maintain the recommended level.
10. Regular Maintenance:
    • Monitor the hydraulic fluid regularly for signs of water contamination or other impurities. Perform routine fluid analysis to ensure the hydraulic system remains free of water and contaminants.

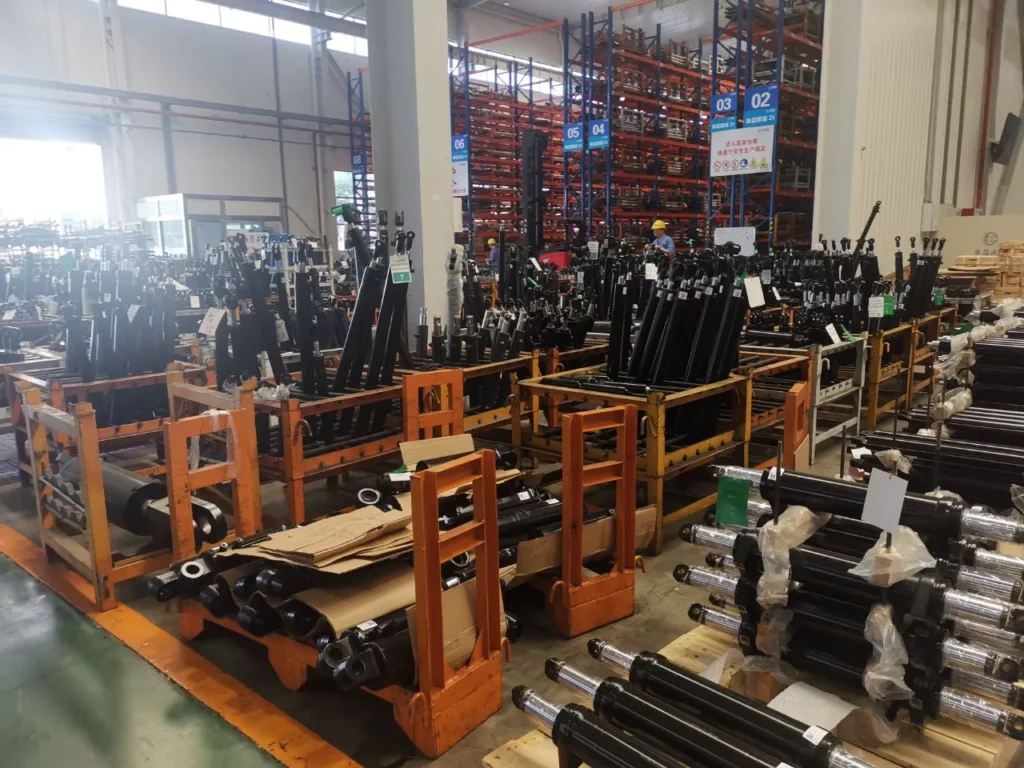

China Hydraulic Cylinder Manufacturers:

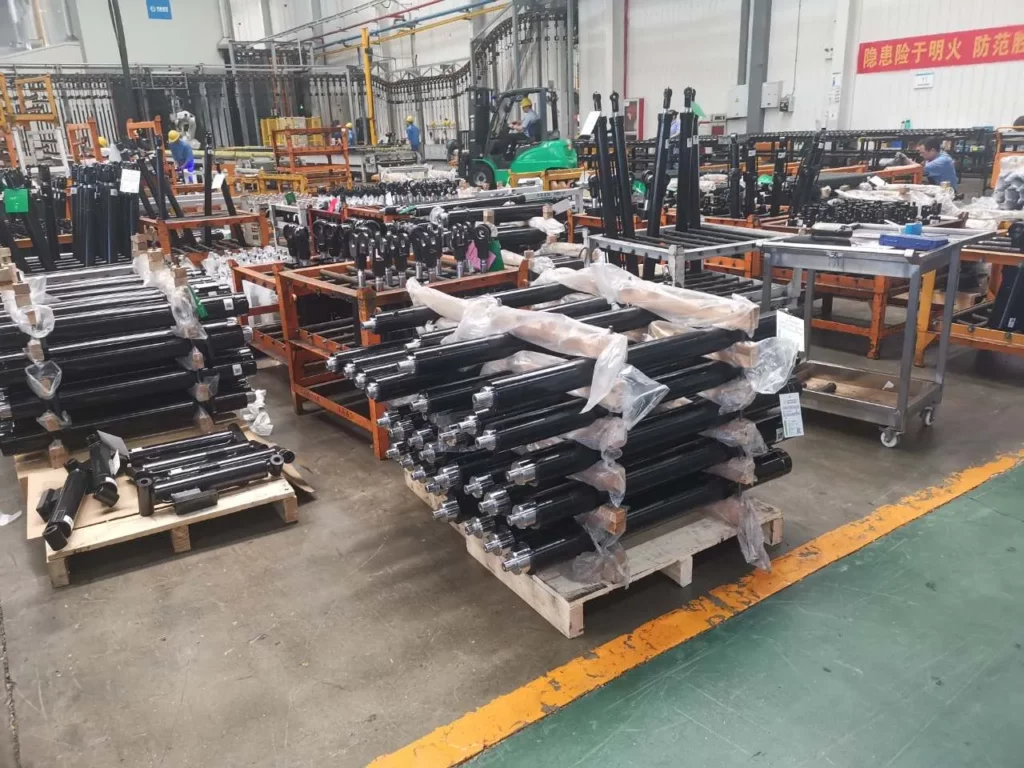

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
