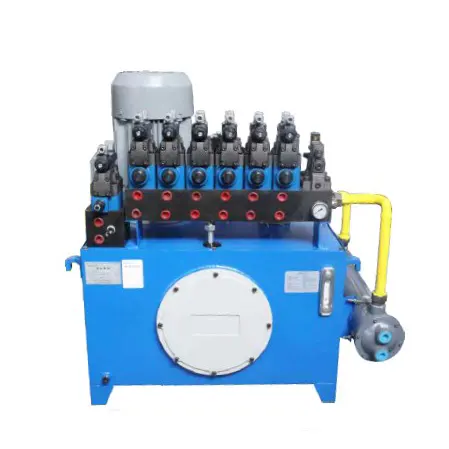

Hydraulic System For Machine Tool

The Hydraulic System for Machine Tool is an innovative solution designed to optimize the performance of machine tools in the manufacturing industry. This advanced hydraulic system offers precise control, increased power, and improved efficiency, making it an indispensable component for a wide range of machining operations. From milling and turning to grinding and drilling, the Hydraulic System for Machine Tool delivers exceptional performance and reliability, enabling manufacturers to achieve superior precision and productivity.

Hydraulic System For Machine Tool Parameter:

Motor Power:1.5KWOil Tank:120L

Characteristics of the Hydraulic System for Machine Tool:

1. High-Performance Hydraulic Components:
   • The system incorporates high-quality hydraulic components, such as pumps, valves, and actuators, known for their reliability, durability, and precision.
   • These components are designed to withstand the demanding conditions of machine tool applications, ensuring long service life and minimal downtime.
2. Intelligent Control Features:
   • The Hydraulic System for Machine Tool often integrates intelligent control features, such as proportional valves, servo systems, and feedback mechanisms.
   • These advanced control technologies enable precise control over speed, pressure, and positioning, enhancing the overall performance and versatility of the machine tool.
3. Modular and Customizable Design:
   • The system's modular design allows for flexibility and customization to meet the specific requirements of different machine tools and machining processes.
   • Manufacturers can select and configure the hydraulic components and control features that best suit their application, ensuring optimal performance and efficiency.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed on the basis of a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

How To Get Air Out Of A Hydraulic System?

To remove air from a hydraulic system, commonly referred to as "bleeding" the system, follow these step-by-step instructions:

1. Preparation:
   • Ensure the hydraulic system is powered off and depressurized. This step is crucial for safety and prevents accidental movement or fluid discharge during the bleeding process.
   • Put on appropriate personal protective equipment (PPE), such as safety glasses and gloves, to protect yourself from potential fluid spray.
2. Locate Bleeder Valves:
   • Identify the bleeder valves in the hydraulic system. These valves are typically located on or near hydraulic cylinders, actuators, or components prone to air entrapment.
   • Consult the system's documentation or manufacturer's guidelines to locate specific bleeder valves for your system.
3. Positioning:
   • Position a suitable catch container or absorbent material beneath the bleeder valve to collect any fluid that may be discharged during the bleeding process.
4. Opening the Bleeder Valve:
   • Using an appropriate wrench or tool, slowly and partially open the bleeder valve. Take care not to fully remove the valve at this stage.
   • Opening the valve allows trapped air to escape while allowing hydraulic fluid to flow out in a controlled manner.
5. Purging Air from the System:
   • Activate the hydraulic system, typically by operating the associated machinery or actuating the components connected to the bleeder valve.
   • As the system operates, the hydraulic fluid flow will push air bubbles towards the open bleeder valve, helping to purge the air from the system.
   • Allow the system to cycle several times to ensure thorough purging of the air from the hydraulic system.
6. Fluid Discharge:
   • Monitor the fluid discharging from the bleeder valve. Initially, you may observe air bubbles, followed by a steady flow of hydraulic fluid without air.
   • Continue the bleeding process until all air bubbles are eliminated, and only a consistent flow of fluid is discharged from the valve.
7. Closing the Bleeder Valve:
   • Once air is completely purged from the system, carefully close the bleeder valve using the appropriate wrench or tool.
   • Ensure the valve is tightened securely to prevent any fluid leakage.
8. System Verification:
   • Verify the hydraulic system's operation to ensure it functions properly without any abnormal noises, vibrations, or performance issues.
   • Monitor the system for any signs of air re-entry, such as spongy or inconsistent actuation, and repeat the bleeding process if necessary.
