FA Front Flange Type Heavy Rod Hydraulic Cylinder

FA Front Flange Type Heavy Rod Hydraulic Cylinder

The FA front flange type heavy rod hydraulic cylinder is a high-performance component that delivers exceptional power, durability, and reliability in demanding industrial applications. With its robust construction, precise engineering, and advanced features, this hydraulic cylinder is a trusted solution for heavy-duty tasks that require reliable force output and precise control. From heavy machinery to material handling equipment, the FA front flange type heavy rod hydraulic cylinder is engineered to excel in challenging environments, ensuring optimal performance and productivity.Key Characteristics Of Heavy Rod Hydraulic Cylinder:Robust Construction: The FA Front Flange Type Heavy Rod Hydraulic Cylinder is built with a sturdy design and high-quality materials, such as steel or alloy, to withstand heavy loads, extreme pressures, and harsh operating conditions. Its rugged construction ensures long-lasting durability and resistance to wear, corrosion, and damage.High Force Output: With its large piston diameter and high-pressure capabilities, this hydraulic cylinder delivers impressive force output, making it ideal for applications that require heavy lifting, pushing, or pulling. It ensures efficient performance and enables operators to tackle demanding tasks with ease.Precise Control: The FA Front Flange Type Heavy Rod Hydraulic Cylinder offers precise control over linear motion, allowing operators to achieve accurate positioning and smooth operation. Its advanced design and engineering ensure minimal internal friction and transparent and responsive movement.

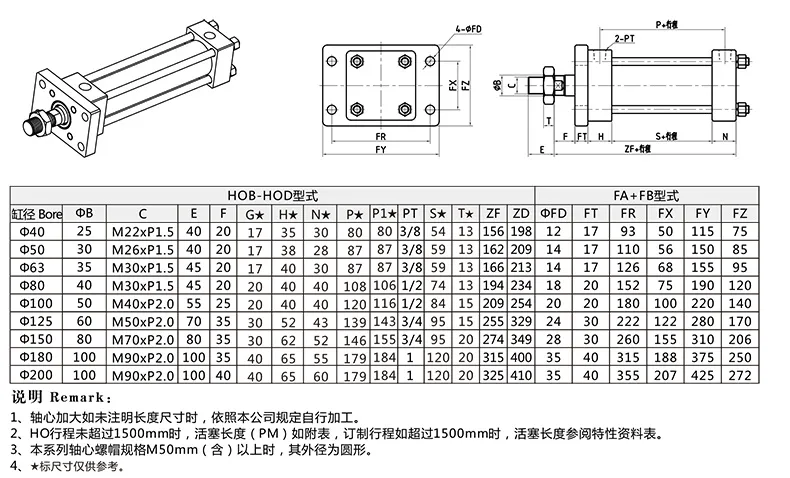

FA Front Flange Type Heavy Rod Hydraulic Cylinder Parameter:

Usage Method Of FA Front Flange Type Heavy Rod Hydraulic Cylinder:

1. Mounting: Begin by securely mounting the FA Front Flange Type Heavy Rod Hydraulic Cylinder to the designated location using appropriate mounting brackets or fixtures. Ensure proper alignment and stability during installation to prevent any misalignment or stress on the cylinder.
2. Hydraulic System Integration: Connect the hydraulic lines to the cylinder's ports, following the manufacturer's instructions and guidelines. Integrate the cylinder into the hydraulic system by connecting it to a suitable pump or power unit. Ensure compatibility with the cylinder's specifications and operating requirements.
3. Control and Operation: Utilize the control valves in the hydraulic system to regulate the flow of hydraulic fluid into and out of the cylinder. Adjust the control settings according to the desired linear motion and force output. Test the cylinder's movement to verify its functionality and responsiveness.

Maintenance Of FA Front Flange Type Heavy Rod Hydraulic Cylinder:

To maximize the lifespan and performance of the FA Front Flange Type Heavy Rod Hydraulic Cylinder, regular maintenance is essential. Here are some maintenance guidelines:

1. Regular Inspection: Conduct routine inspections to identify any signs of wear, damage, or leaks. Inspect the cylinder body, piston rod, seals, and other components for abnormalities. Address any issues promptly to prevent further damage or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for lubrication intervals and the appropriate lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, promptly replace the seals using genuine manufacturer-approved parts. Damaged or worn seals can compromise the cylinder's performance and may lead to hydraulic fluid leaks.
4. Cleaning: Keep the cylinder clean by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dried before reassembly. Regular cleaning promotes optimal performance and prevents premature wear or damage.

How To Disassemble A John Deere Hydraulic Cylinder？

To disassemble a John Deere hydraulic cylinder, follow these general steps. Remember that specific procedures may vary depending on the model and design of the cylinder. It is always recommended to consult the manufacturer's documentation or seek professional assistance for your specific cylinder model.

1. Safety Precautions: Before starting any work on hydraulic cylinders, ensure the system is depressurized, and the equipment is safely secured to prevent accidental movement. Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.
2. Identify the Cylinder: Determine the type and model of the John Deere hydraulic cylinder you are working with. Different cylinders may have specific disassembly procedures, so refer to the manufacturer's documentation or guidelines for your particular cylinder model.
3. Cylinder Removal: Disconnect any hydraulic lines connected to the cylinder. Remove any external components, such as mounting brackets or covers that may obstruct access to the cylinder.
4. Drain Hydraulic Fluid: Place a suitable container beneath the cylinder to catch any hydraulic fluid draining during disassembly. Carefully drain the fluid by loosening the fittings or removing the drain plugs.
5. Disassemble End Caps: Identify the cylinder's end caps, usually located at each end of the cylinder. Remove any retaining bolts, screws, or fasteners securing the end caps in place. Gently tap the end caps with a rubber mallet to loosen them if necessary.
6. Separate End Caps: Once the end cap fasteners are removed, carefully pry off the end caps using a pry bar or a soft-faced mallet. Take note of the orientation and order of any components inside the cylinder as you disassemble it.
7. Remove Piston Assembly: With the end caps removed, the piston assembly should be accessible. Slide the piston out of the cylinder bore not damaging the piston or cylinder walls. If the piston is stubborn, apply a suitable lubricant and use gentle force to facilitate its removal.
8. Inspect and Clean Components: Inspect all disassembled components for signs of wear, damage, or contamination. Clean each piece using a suitable cleaner or solvent to remove dirt, debris, or hydraulic fluid residue. Dry the components thoroughly before further inspection or reassembly.
9. Replace Worn or Damaged Parts: If any components show signs of excessive wear or damage, they should be replaced with new ones. Consult the manufacturer's guidelines or seek professional advice to ensure you select the correct replacement parts.
10. Reassembly: To reassemble the John Deere hydraulic cylinder, follow the reverse order of disassembly. Ensure all components are correctly aligned and that any seals or O-rings are lubricated with hydraulic oil or a compatible lubricant before installation. Tighten fasteners and fittings to the manufacturer's recommended torque specifications.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of heavy rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle heavy rod hydraulic cylinders, Aerial work vehicle heavy rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The heavy rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
