Fabrica China Especializada En Producci??n. Rastra De Discos Agricola

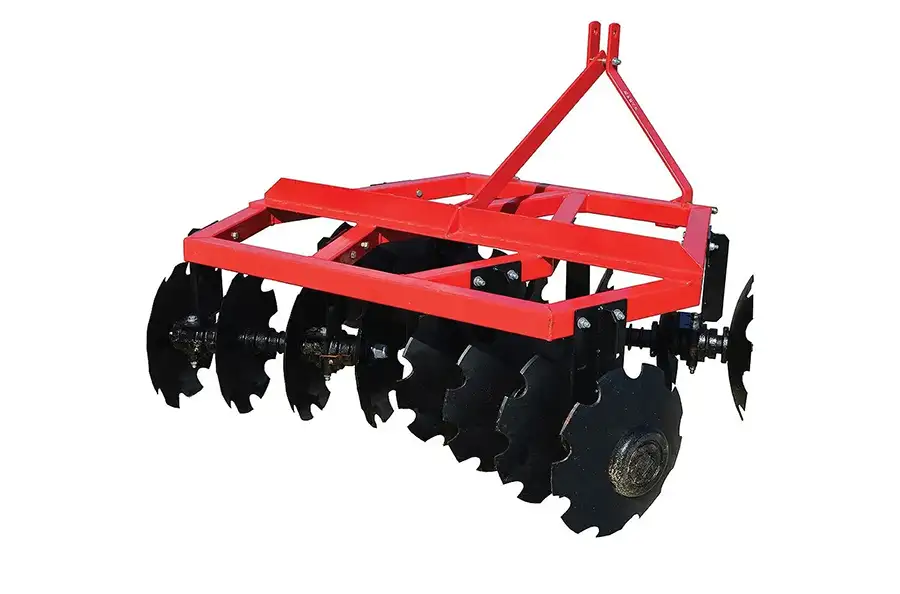

Introducing our product, the Fabrica China Especializada En Producci??n. Rastra De Discos Agricola, a high productivity Disc Harrow machine. This diesel-powered farm cultivator is brand new with a year-long warranty. Weighing 240 KG, it is designed for breaking the hardened field surface. The machine features a dimension of 1750*1440*830mm. It stands as a new product of 2020, with a Machinery Test Report and video outgoing-inspection provided. The warranty of core components is also a year. Core components include Bearing, disc blade, square shaft. It finds application mainly in farms.

The Disc Harrow, Model: 1BQX-1.5, is a highly efficient farming tool used primarily to cultivate the soil where crops are to be planted. It works by breaking up the clods of soil into smaller fragments, enhancing the overall soil structure and nutrient mixing. The harrow is simple to install and uninstall. To install, simply attach the harrow to the tractor using the three-point suspension linkage. For uninstalling, reverse the process. Regular maintenance is crucial to prolong the lifespan of the Disc Harrow. Always ensure the disc blades are sharp and the bearings are well lubricated. Remember to store in a cool, dry place when not in use.

At Raydafon, we are proud to present our top-of-the-line agricultural disc harrow products, including the Fabrica China Especializada En Producci??n. Rastra De Discos Agricola. We assure the highest quality, as we manufacture all the disc harrow parts ourselves. Our product offers the best value for money with its high productivity and durability. Don't miss out on this opportunity to upgrade your farming operations. Contact us today to learn more about our products and make your purchase. We look forward to serving you.

• Machine Type: Disc Harrow
• Power Type: Diesel
• Condition: New
• Warranty: 1 Year
• Use: Breaking the hardened field surface
• Weight: 240 KG
• Dimension(L*W*H): 1750*1440*830mm
• Model: 1BQX-1.5
• Working width: 1500mm
• Working depth: 10-18CM
• Diameter of harrow disc: 18''(460mm)
• No. of harrow disc: 16pcs
• Matched power: 30-45hp
• Bearing pedestal: sealed
• Linkage: Three-point Suspension

Factory name: Raydafon Group Co., Ltd.

Factory address: Ningbo City, Zhejiang province, China

• Wide space operation
• Narrow space transportation
• Reasonable structure
• Durable service
• Convenient to operate and maintain
• Disc blades: 460mm x 3mm
• Material of disc: 65Mn Spring Steel
• Hardness of disc: 38-46HRC
• Bearing: sealed bearing
