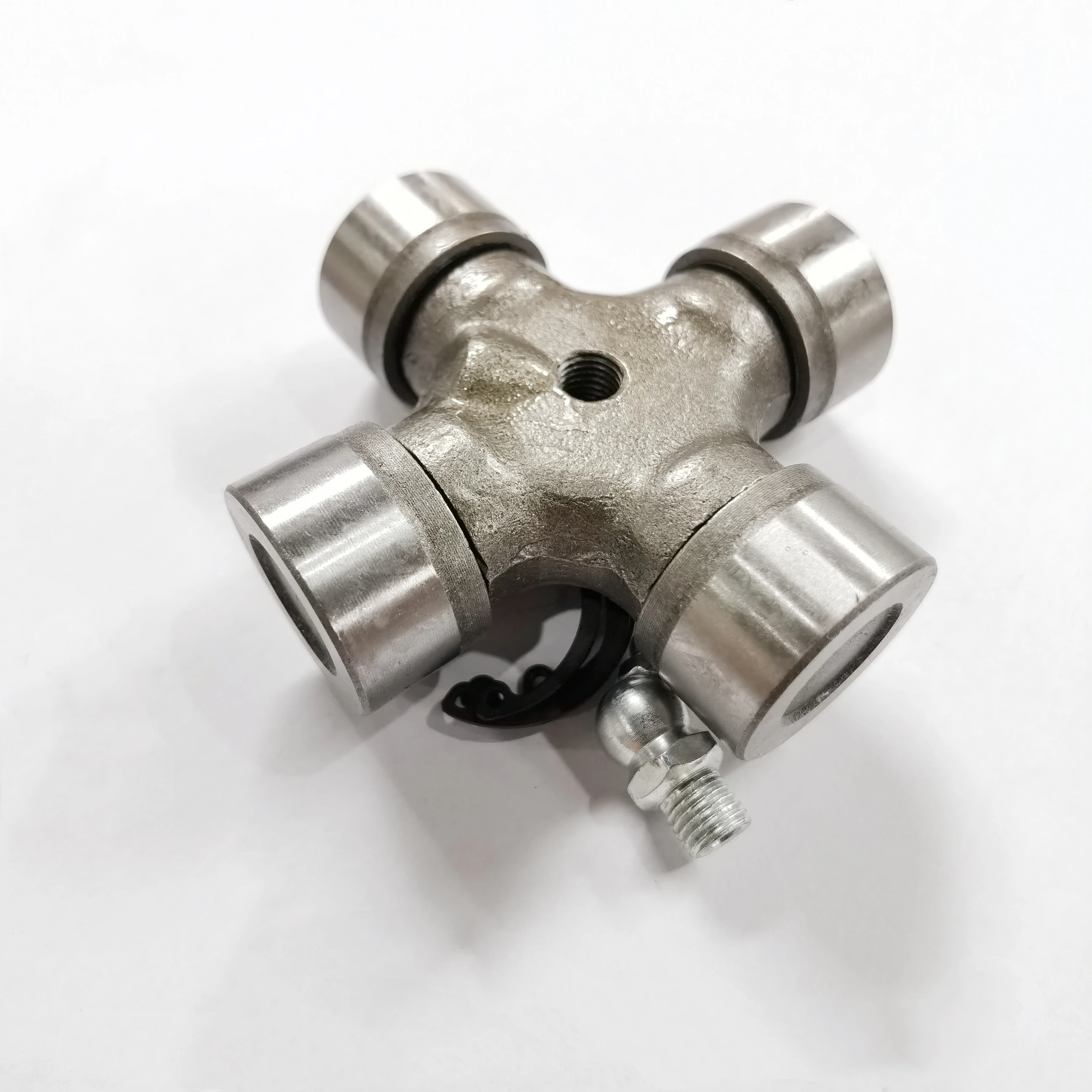

Factory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery Equipment
  • Factory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery EquipmentFactory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery Equipment

Factory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery Equipment

Upgrade your agricultural machinery with Raydafon Group's Factory Direct Sell Cardan White Single Box 28*80 Cross Kits. This durable, high-precision equipment ensures smooth, efficient power transmission for farming operations, ideal for farmers and agribusinesses. Built with premium materials and innovative design, it reduces downtime and boosts productivity, offering unmatched reliability. Experience seamless performance and enhanced durability—choose Raydafon Group for superior machinery solutions.

Directly sourced from the factory, the Cardan White Single Box 28*80 Cross Kits are a premium choice for a wide range of industries. They come with a one-year warranty and are applicable to numerous sectors, including hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, and more. These kits are customized to support OEM and are made of 20Cr material. With an operating angle that works both clockwise and counter clockwise, these kits are the perfect addition to your agricultural machinery equipment.

Key Features of Agricultural PTO Shaft U-Joints

Agricultural Power Take-Off (PTO) shaft universal joints, commonly known as U-joints, are critical components in the transfer of power from a tractor to various implements. These U-joints enable the PTO shaft to transmit power at an angle, accommodating the movement and alignment changes between the tractor and the implement. Here are some key features of agricultural PTO shaft U-joints:

  • Flexibility in Motion: U-joints allow the PTO shaft to flex and bend while transmitting power, accommodating the varying angles and movements between the tractor and the implement. This flexibility is crucial for efficient power transfer, especially when the tractor and implement are not perfectly aligned.
  • Durability and Strength: Typically made from high-strength steel, U-joints are designed to withstand the high torque and heavy loads associated with agricultural work. They are built to resist wear and tear, ensuring longevity even under harsh working conditions.
  • Lubrication System: Most agricultural U-joints have grease fittings that allow for regular lubrication, which is essential for maintaining their functionality and extending their life. Some U-joints are sealed and require no maintenance, while others are serviceable and need regular greasing.
  • Compatibility and Standardization: U-joints are designed to fit standard PTO spline sizes, ensuring compatibility with a wide range of tractors and implements. Many U-joints are designed with interchangeable parts, making repairs and replacements easier.
  • Safety Features: Some U-joints incorporate safety features like a shear pin or a breakaway clutch to protect the tractor and implement from damage if the PTO shaft encounters excessive resistance.
  • Ease of Connection and Disconnection: U-joints often feature designs that allow for quick and easy coupling and uncoupling, enhancing convenience and efficiency in changing implements.
  • Factory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery Equipment

At Raydafon, we can produce these U-joints to match your specific requirements. Our products are a perfect replacement for corresponding parts that are damaged on PTO shaft parts.

Applications of PTO Shaft U-Joints

Agricultural PTO shaft U-joints are widely used in various applications within the agricultural industry. Here are some common applications where PTO shaft U-joints are utilized:

  • Power Transmission to Implements: The primary application of PTO shaft U-joints is to transmit power from the tractor's PTO to various implements. These implements can include rotary mowers, hay balers, tillers, seeders, sprayers, and many others. The U-joints allow for the smooth transfer of rotational power, enabling the implements to perform their intended functions effectively.
  • Mowing and Cutting Operations: Agricultural PTO shaft U-joints are extensively used in mowing and cutting operations. This includes tasks such as mowing grass, cutting crops, shredding vegetation, and maintaining pastures. The U-joints connect the tractor's PTO to rotary cutters, flail mowers, and other cutting implements, enabling efficient and precise cutting action.
  • Harvesting and Forage Operations: PTO shaft U-joints play a vital role in harvesting and forage operations. They are utilized in equipment such as combine harvesters, forage harvesters, and balers. These U-joints facilitate the transfer of power between the tractor and the harvesting equipment, allowing for efficient crop harvesting, forage processing, and baling.
  • Soil Preparation and Tillage: Agricultural PTO shaft U-joints are commonly employed in soil preparation and tillage tasks. They connect the tractor's PTO to implements like plows, disc harrows, cultivators, and rotary tillers. The U-joints ensure the smooth transmission of power, enabling the implements to break up soil, mix amendments, and prepare seedbeds for planting.
  • Seeding and Planting Operations: PTO shaft U-joints are used in seeding and planting operations, where they connect the tractor's PTO to seeders, planters, and transplanters. These U-joints facilitate the transfer of power required for accurate seed or plant placement, ensuring proper spacing and depth for optimal crop establishment.
  • Spraying and Fertilizing Applications: Agricultural PTO shaft U-joints are utilized in equipment involved in spraying and fertilizing operations. They connect the tractor's PTO to sprayers, fertilizer spreaders, and other similar implements. The U-joints enable the efficient transfer of power, allowing for the precise application of pesticides, herbicides, fertilizers, and other agrochemicals.

Factory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery Equipment

How to Replace Universal Joint on PTO Shaft

Replacing a universal joint on a PTO shaft requires careful attention and adherence to safety procedures. Here's a general step-by-step guide on how to replace a universal joint on a PTO shaft:

  1. Ensure Safety: Before starting any work, make sure the tractor is turned off, and the PTO shaft is disengaged. Engage the parking brake and chock the wheels to prevent any accidental movement.
  2. Access the Universal Joint: Locate the universal joint on the PTO shaft that needs to be replaced. It is typically situated at the connection point between the tractor's PTO and the implement.
  3. Remove Retaining Clips or Bolts: Depending on the design of the universal joint, it may be held in place by retaining clips or bolts. Use the appropriate tools to remove these fasteners and set them aside carefully.
  4. Separate the Yokes: Once the retaining clips or bolts are removed, you can separate the yokes of the universal joint. This may require tapping the yokes gently with a rubber mallet or using a suitable tool to pry them apart.
  5. Remove the Old Universal Joint: With the yokes separated, the old universal joint should be free to remove. Take note of its orientation for proper installation of the new joint.
  6. Clean and Inspect: Before installing the new universal joint, thoroughly clean the yokes and other components to remove any dirt, debris, or old grease. Inspect the yokes and the PTO shaft for any signs of damage or wear that may require further attention.
  7. Install the New Universal Joint: Take the new universal joint and align the yokes with the corresponding slots. Ensure that the joint is oriented correctly, matching the old joint's position. Carefully press or tap the joint into place until it is fully seated in the yokes.
  8. Test the PTO Shaft: After replacing the universal joint, carefully reassemble the PTO shaft and engage the PTO. Rotate the shaft manually to ensure that the joint operates smoothly and without any unusual noises or vibrations.

Factory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery Equipment

How to Install U Joint to Tractor PTO Shaft?

Installing a universal joint (U-joint) to a tractor's Power Take-Off (PTO) shaft is an important maintenance task. U-joints are critical for transmitting power from the tractor to an implement, allowing for flexibility in the shaft's movement. Here's a step-by-step guide on how to install a U-joint to a tractor PTO shaft:

  1. Select the Correct U-joint: Ensure that you have the correct U-joint that matches the specifications of your tractor's PTO shaft. Consider factors such as the shaft diameter, yoke size, and joint type to ensure compatibility.
  2. Prepare the PTO Shaft: Thoroughly clean the PTO shaft and yokes to remove any dirt, debris, or old grease. Inspect the shaft for any signs of damage or wear that may require further attention. Ensure that the shaft is properly aligned and straight.
  3. Lubricate the U-joint: Apply grease or lubricant to the U-joint and its bearings according to the manufacturer's recommendations. This will ensure smooth operation and longevity of the joint.
  4. Align the Yokes: Take the U-joint and align the yokes with the corresponding slots on the PTO shaft. Ensure that the joint is oriented correctly, matching the direction of the PTO rotation and the yoke positions.
  5. Insert the U-joint: Carefully insert the U-joint into the yokes, making sure that the bearings are properly seated. Apply gentle pressure to push the joint into place, ensuring that it is fully inserted.
  6. Secure the U-joint: Once the U-joint is inserted, secure it in place using the retaining clips or bolts provided with the U-joint. Ensure that the retaining clips are properly seated in the grooves or that the bolts are tightened to the manufacturer's specifications.
  7. Test the PTO Shaft: After installing the U-joint, carefully rotate the PTO shaft manually to ensure that the joint operates smoothly and without any unusual noises or vibrations. Check for proper engagement and disengagement of the PTO.
Factory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery Equipment

Maintenance and Care of PTO Shaft U-Joints

Maintaining agricultural Power Take-Off (PTO) shaft universal joints (U-joints) is crucial for the efficient and safe operation of farm machinery. These U-joints play a vital role in transmitting power from a tractor to various implements, and their proper functioning is essential. Here??s a guide on how to maintain PTO shaft U-joints:

  1. Regular Inspection: Regularly inspect the U-joint for signs of wear, rust, or damage. Pay special attention to the condition of the bearing caps and the cross. Check for any play or wobbling in the U-joint, which can indicate wear or damage.
  2. Lubrication: U-joints typically have grease fittings for lubrication. Use a grease gun to apply grease until it begins to seep out from the seals of the bearing caps. Use a high-quality grease that's suitable for agricultural equipment. It should be thick enough to withstand heavy loads and protect against moisture and dirt.
  3. Factory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery Equipment
  4. Cleaning: Keep the U-joint area free from dirt, debris, and excess grease, as these can attract more dirt and lead to premature wear. Clean off any rust and apply a rust inhibitor if the U-joint is exposed to harsh conditions.
  5. Tightening and Adjustments: Ensure that all bolts and fasteners related to the U-joint and PTO shaft are tightened to the correct specifications. Make sure the U-joint is properly aligned with the PTO shaft and the implement??s input shaft.
  6. Use and Operational Practices: Do not exceed the recommended torque limits of the PTO shaft and U-joint. Ensure the PTO shaft is the correct length and the operating angles are within recommended limits to avoid excessive strain on the U-joint.
  7. Storage: When not in use, store the PTO shaft in a dry and clean environment to prevent rust and corrosion. Always ensure the tractor is turned off and the PTO is disengaged before performing any maintenance.

Why Choose Raydafon's PTO Shaft U Joints?

Raydafon Drive Shaft Co., Ltd., located in Ningbo Zhejiang City, two hours to the Pudong Airport and one hour to the Xiaoshan Airport & the East of Ningbo Station, Covered more than 12,000 m2 with over 100 people on staff. We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft yokes, PTO shaft tubes, PTO shaft torque limiters, PTO shaft universal joints, PTO shaft safety shield, PTO shaft safety pin, industrial cardan shafts, car driveshafts, and u-joint coupling shafts, etc. The annual turnover is 60 million RMB, 9 Million Dollars, and It??s increasing year by year. Our products gained a great reputation from European, American, Asia, Australian, and North American customers. We are the top professional OEM supplier for many agricultural implement factories in the domestic market. Raydafon Driveshaft insisted on our principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing types of equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, Raydafon continues its activities with the aim of becoming a global company in the fields it works.

Factory Direct Sell Cardan White Single Box 28*80 Cross Kits Agriculture Machinery Equipment

About Raydafon

At Raydafon, we are committed to providing top-notch products and services. Our dedicated team of professionals works tirelessly to ensure that each product we produce meets the highest standards of quality and performance. Our state-of-the-art production facilities enable us to maintain consistently high levels of product quality. Our after-sales service team is always on hand to address any queries or concerns that our customers might have. We are proud holders of international certifications, including CE, TS/16949, and ISO9001, which bear testament to our commitment to quality and customer satisfaction. We also offer customized services to meet the unique needs of our diverse clientele. With Raydafon, you can be confident that you are getting the best products and services in the market.
