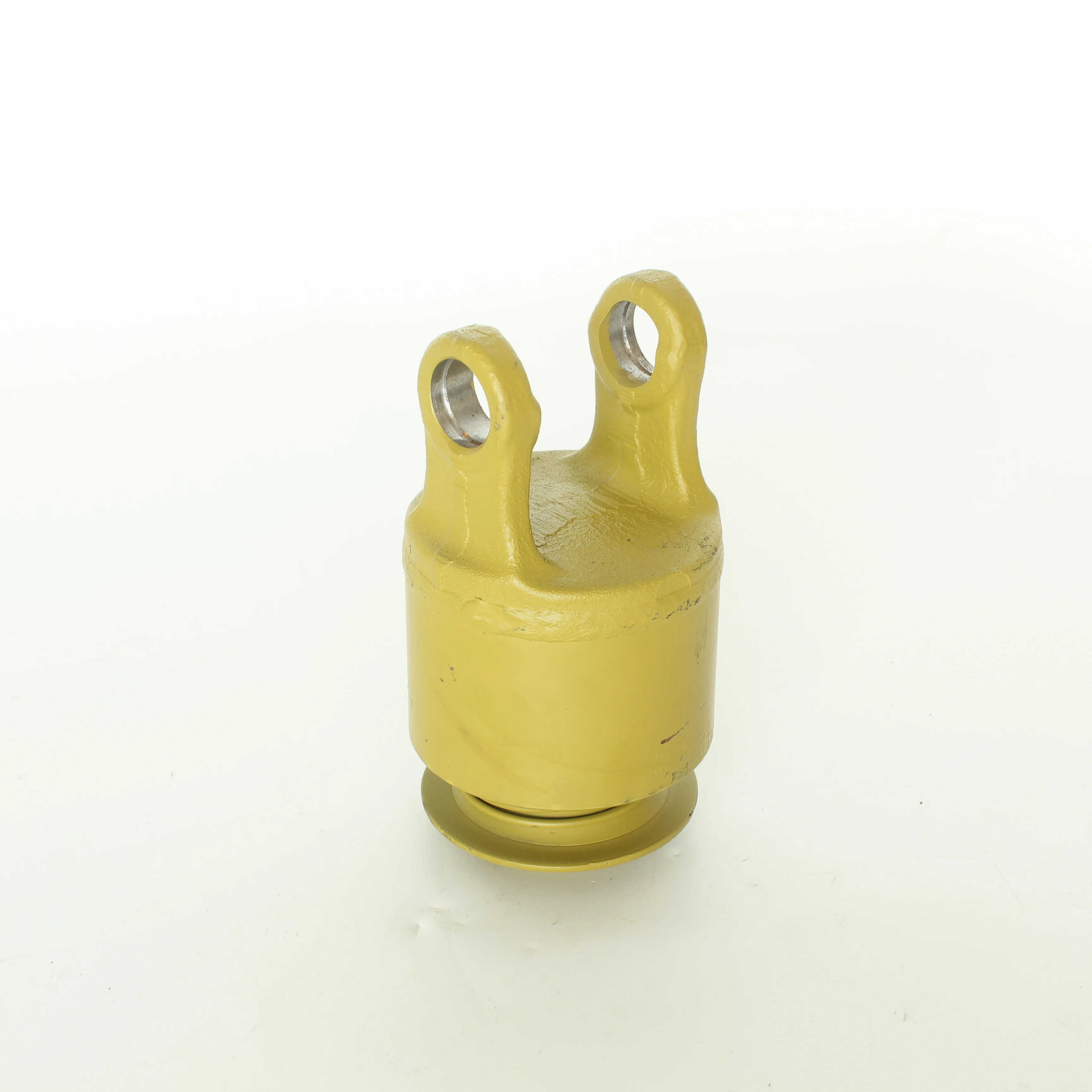

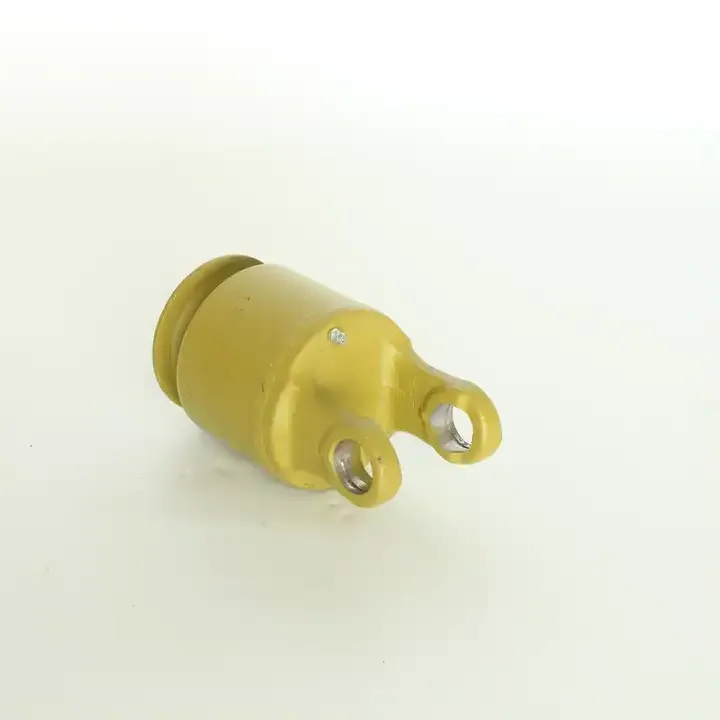

Factory Supply Customizable Overrunning Clutch Simple Structure Torque Adapter for Tractor

[embed]https://youtu.be/pMGaJF8HxEE[/embed]Experience the advantages of high-quality and customizable overrunning clutches, designed and manufactured by Raydafon Drive Shaft Co., Ltd. This product is a highly efficient torque adapter designed for tractors, offering a simple structure and superior performance. The clutch, made from top-notch materials, is a testament to our commitment to providing high-quality products to our customers.

PTO Overrunning Clutch Specifications

Model Number	RA Overunning Clutch 4RA2
Function	Drive Shaft Parts & Power Transmission
Use	Kinds of Tractors & Farm Implements
Brand Name	EP
Yoke Type	Double push pin,Bolt pins,Split pins,Push pin,Quick release,Ball attachment,Collar.....
Processing Of Yoke	Forging
Plastic Cover	YW;BW;YS;BS;Etc
Color	Green;Orange;Yellow;Black Ect.
Series	T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Type	Lemon,Trianglar,Star,Square,Hexangular,Spline,Special Ect
Processing Of Tube	Cold drawn
Spline Type	1 1/8" Z6;1 3/8" Z6; 1 3/8" Z21 ;1 3/4" Z20; 1 3/4" Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;
Place of Origin	Haining, China (Mainland)

Advantages of the RA Overrunning Clutch

An RA overrunning clutch is a specialized mechanical device. It is often used in conjunction with tractor PTO shafts for its several advantages:

• Prevents Driveline Damage: The RA overrunning clutch disconnects the PTO shaft when the implement's speed surpasses the tractor's PTO. This feature is designed to prevent potential driveline damage.
• Safety Enhancement: By allowing the implement to overrun freely, the clutch enhances operational safety. This feature is crucial when the tractor is slowing down or stopped.
• Smooth Operation: The clutch ensures smoother operation of both the tractor and the implement, reducing shock loads on the PTO shaft and transmission.
• Increased Efficiency: The RA overrunning clutch allows for more efficient power transmission, driving the implement using the tractor's power rather than overcoming the inertia of the implement's movement.
• Versatility: This clutch type is suitable for a wide range of agricultural implements, making it a valuable component in various farming operations.

Applications of the RA Overrunning Clutch

The PTO overrunning clutch for tractors finds its use in various agricultural and mechanical applications. Here are some key applications:

• Mowing and Cutting Equipment: The PTO overrunning clutch allows cutting blades to continue spinning freely when the tractor is slowing down or stopped, ensuring consistent cutting performance.
• Hay Balers: In hay balers, the clutch enables continuous operation of the baling mechanism even when the tractor's PTO is not engaged.
• Rotary Tillers: The overrunning clutch improves soil cultivation efficiency and reduces strain on the tractor's transmission when used with rotary tillers.
• Harvesting Equipment: Harvesters benefit from the PTO overrunning clutch by allowing continuous operation of the harvesting mechanism for consistent and efficient crop collection.
• Seeders and Planters: The clutch ensures the seeding mechanism can continue operating independently for uniform seed distribution.

Agricultural PTO Shaft Torque Limiter Types

PTO shaft torque limiters are crucial for protecting equipment from damage due to torque overload. Here's an overview of common types:

• Shear Bolt Torque Limiter: Utilizes a shear bolt that breaks under excessive torque, disconnecting the drive between the tractor and implement.
• Friction Clutch Torque Limiter: Friction clutch limiters slip when the torque exceeds a preset level, allowing it to absorb the excess force without breaking.
• Ratchet Torque Limiter: Features a ratcheting mechanism that allows rotation in one direction and locks or slips in the opposite direction when overloaded.
• Overrunning Clutch Torque Limiter: Allows free rotation in one direction and engages the clutch in the other. It can also incorporate a torque-limiting feature to disconnect under overload.

How Does the Overrunning Clutch for Tractor PTO Shaft Work?

The overrunning clutch for a tractor's PTO shaft is designed to allow the shaft to rotate freely in one direction and lock in the opposite direction. Here's how it works:

• Free Rotation in One Direction: The overrunning clutch allows the PTO shaft to rotate freely in one direction, allowing the implement to spin freely if moving faster than the PTO shaft.
• Locking in the Opposite Direction: In the opposite direction, the clutch engages, locking the PTO shaft and the implement together.
• Ramp and Roller Design: The mechanism typically involves ramps and rollers. The rollers roll up the ramps and disengage, allowing the implement to overrun when the PTO shaft tries to drive at a lower speed.
• Engagement During Normal Operation: When the tractor's PTO shaft is driving the implement at a higher speed, the rollers create a lock against the ramps, transmitting the power from the tractor to the implement.
• Automatic Disengagement: This disengagement process happens automatically when the tractor slows down or the implement's inertia causes it to rotate faster than the PTO shaft.

How to Install the Overrunning Clutch to PTO Shaft?

Installing an overrunning clutch to a tractor's PTO shaft is a straightforward process. Here's a step-by-step guide:

1. Clean the PTO Shaft: Clean any dirt, debris, or grease from the PTO shaft to ensure a clean connection point for the overrunning clutch.
2. Align the Clutch: Slide the overrunning clutch onto the PTO shaft, ensuring it aligns correctly. The shaft and clutch splines should fit snugly.
3. Secure the Clutch: Once aligned, secure the clutch onto the shaft. This may involve tightening a set screw or bolt, depending on the clutch design.
4. Lubrication: Apply a suitable grease to the PTO shaft and the internal parts of the clutch as per the manufacturer's recommendations.
5. Attach Implement: After the clutch is secured, attach the implement to the other end of the overrunning clutch.
6. Safety Check: Perform a visual inspection to ensure everything is secured correctly.
7. Test Run: Start the tractor and engage the PTO at a low speed initially to ensure the clutch is functioning correctly.

Maintenance of the Overrunning Clutch

Regular maintenance is necessary to ensure the proper functioning and longevity of the overrunning clutch. Here are some maintenance tips:

• Clean and inspect regularly: Remove any dirt, debris, or buildup from the clutch assembly. Inspect the components for wear or damage.
• Lubrication: Apply a suitable lubricant to the clutch components as recommended by the manufacturer.
• Regular testing: Test the overrunning clutch periodically to ensure proper operation.
• Replace worn or damaged parts: Replace the affected parts promptly if significant wear or damage is noticed during inspection or testing.

Why Choose Raydafon's Overrunning Clutch for PTO Shaft?

Raydafon Drive Shaft Co., Ltd., located in Ningbo Zhejiang City, specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, and more. Our products have gained a great reputation from customers worldwide. We are a top professional OEM supplier for many agricultural implement factories in the domestic market. Our principles are Quality first, Deliver quickly, and Price Competitive. We have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing equipment and a QC team to guarantee our quality and delivery.We are dedicated to maintaining high levels of professionalism, international certifications, customized services, production facilities, and after-sales services. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Our company exports its products to valued customers in more than 50 countries in 5 continents of the world. We aim to become a global company in the fields we work.Author: Yjx
