Farm Equipment 135 Disc Mowers for Hay
  • Farm Equipment 135 Disc Mowers for HayFarm Equipment 135 Disc Mowers for Hay

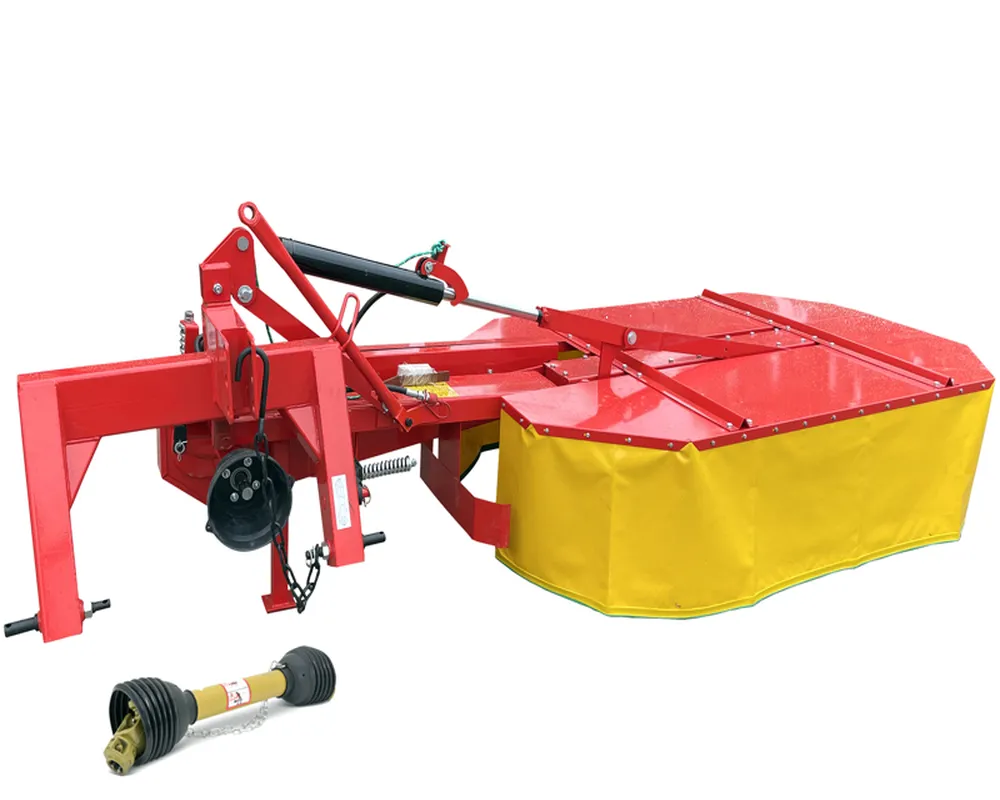

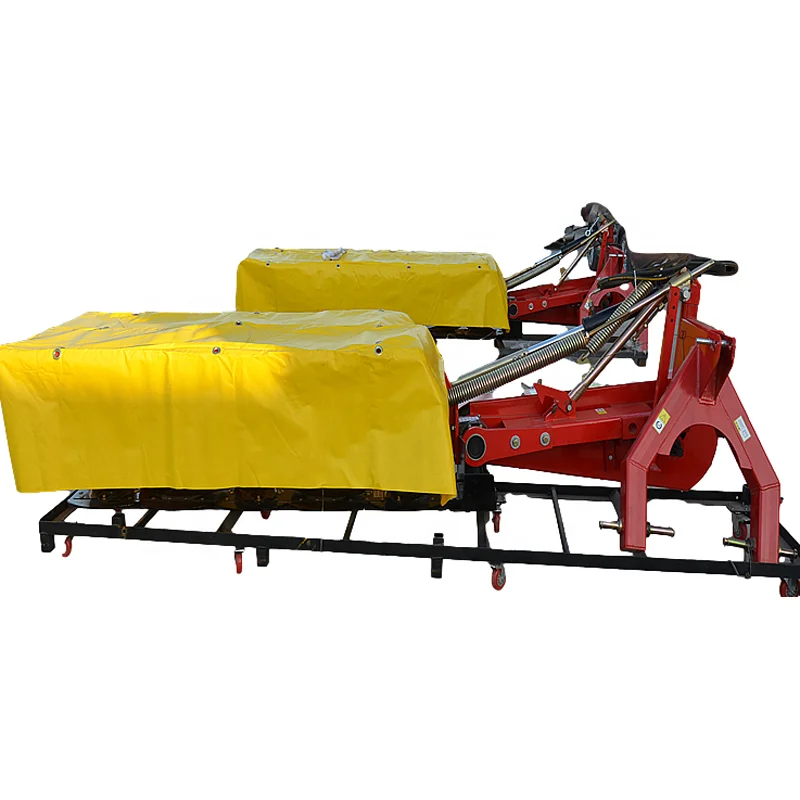

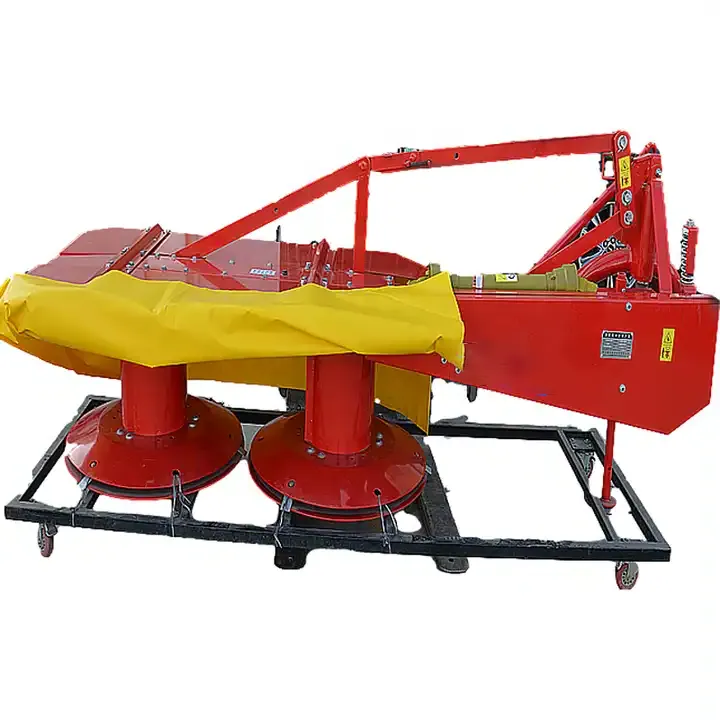

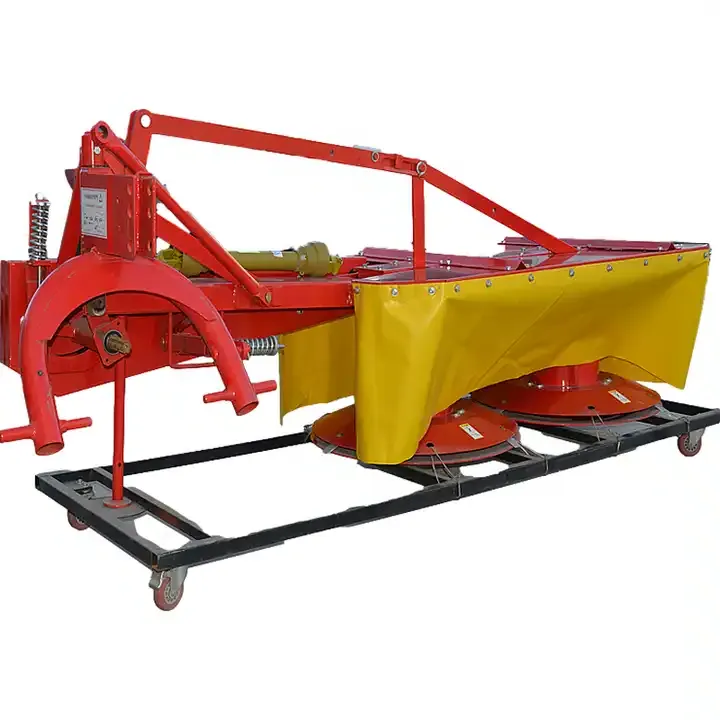

Farm Equipment 135 Disc Mowers for Hay

Raydafon Group's Farm Equipment 135 Disc Mowers for Hay efficiently cut and condition hay with durable steel discs and smooth cutting action, ideal for farmers and agricultural professionals seeking reliable, high-performance equipment that boosts productivity and simplifies harvesting.
[embed]https://youtu.be/H7-7kBC6MpI[/embed] A disc drum mower is a specialized agricultural implement used for cutting hay or similar crops. It consists of a series of rotating discs, typically three to five, that are mounted horizontally on a bar. These discs rotate at high speeds when connected to a tractor's power take-off (PTO), enabling efficient cutting of standing crops. Each disc on the mower contains multiple cutting blades or knives arranged radially. These blades move rapidly, slicing through the vegetation as the mower is drawn across the field. The design of the disc drum mower allows it to operate smoothly over uneven terrain, ensuring a consistent cutting height and quality. This type of mower is particularly effective in areas where the ground may be rough or contains obstacles, as it can pivot and adjust to the contours of the land. Disc drum mowers are known for their durability and ability to handle heavy workloads, making them popular among farmers and agricultural contractors who need to harvest large quantities of hay efficiently. After cutting, the hay is left in rows to dry before being baled or collected for storage. The efficient cutting action and robust construction of disc drum mowers contribute to their reputation as essential equipment for modern hay production. The Farm Equipment 135 Disc Mowers for Hay, a new product for 2022. This drum mower boasts high productivity and is ideal for farm cutting grass. It's built with a robust gearbox, one of its core components, and offers a 1-year warranty on these components. The DRM 135 model has a working width of 1350mm and weighs 350kg. It requires a matched power of 30-70hp and is designed for three-pointed mounted linkage. Farm Equipment 135 Disc Mowers for Hay

DRM 135 Disc Mowers Specifications

Product name
Farm equipment 135 disc mowers for hay
Model
DRM 135
working width
1350mm
No. of knife plate
2pcs
No. of knife
6pcs
PTO speed
540rpm/min
drum rotate speed
1620rpm/min
Weight
350kg
Matched power
30-70hp
Linkage
three pointed mounted

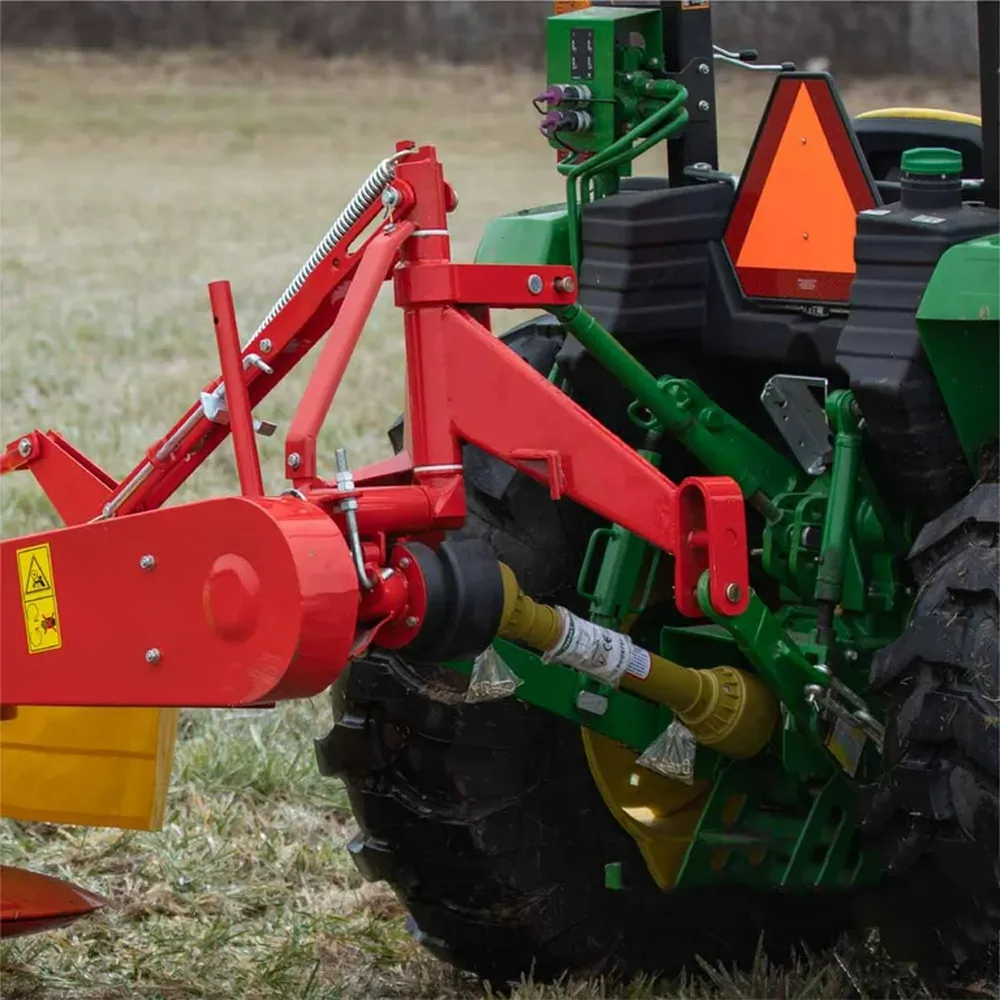

Advantages of Tractor 3-Point Mounted Disc Mower for Hay

A tractor 3-point mounted disc mower offers several advantages for hay cutting and agricultural operations: 1. Efficiency: These mowers are designed to operate efficiently behind a tractor, utilizing the tractor's power take-off (PTO) to drive the cutting discs. This setup allows for a continuous and smooth cutting operation, minimizing downtime and increasing productivity. 2. Versatility: They are highly versatile and can be easily adjusted to different cutting heights and angles, accommodating various types of crops and field conditions. This adaptability makes them suitable for different stages of crop growth and various types of vegetation. 3. Quality of Cut: Disc mowers typically provide a clean and precise cut due to their fast-spinning discs equipped with sharp cutting blades. This results in minimal damage to the remaining crop, promoting faster regrowth and better quality hay. 4. Durability: Constructed from robust materials such as high-strength steel, these mowers are built to withstand the rigors of continuous use in tough agricultural environments. They are designed for longevity, requiring less frequent maintenance compared to other types of mowers. 5. Maneuverability: Being mounted on the tractor's 3-point linkage system, these mowers offer excellent maneuverability. They can easily navigate around obstacles and tight corners, reducing the need for manual adjustments and allowing for efficient field coverage. 6. Time-Saving: The efficient cutting and wide swath capabilities of disc mowers contribute to significant time savings during haymaking operations. They can cover large areas quickly, ensuring timely harvesting and reducing the risk of crop loss due to weather conditions. 7. Cost-Effectiveness: While initial costs may be higher compared to some other mower types, the efficiency, durability, and quality of cut provided by disc mowers often result in long-term cost savings. Reduced labor costs and increased operational efficiency contribute to the overall economic benefits of using these mowers. Farm Equipment 135 Disc Mowers for Hay

Common Applications:

Drum mowers find widespread application across various agricultural contexts due to their efficiency, reliability, and ability to handle diverse conditions. Some common applications include: 1. Hay Production: One of the primary uses of disc drum mowers is in hay production. They are ideal for cutting grasses, legumes, and other forage crops used for haymaking. The fast-spinning discs with sharp blades ensure a clean cut, which is crucial for hay quality and subsequent drying and baling processes. 2. Pasture Management: Disc drum mowers are essential tools for maintaining pastures and ensuring optimal grazing conditions for livestock. By efficiently cutting and managing pasture grasses, these mowers help control weed growth, promote healthy regrowth of desirable species, and improve overall pasture productivity. 3. Silage Production: Farmers use disc drum mowers to harvest crops destined for silage, such as corn, sorghum, and various grasses. Efficient cutting and processing of these crops ensure that they are harvested at the correct stage of maturity, preserving their nutritional value for livestock feed. 4. Crop Residue Management: After harvesting cereal crops like wheat, barley, or oats, disc drum mowers can be used to manage crop residues left in the field. By chopping and evenly distributing these residues, the mowers facilitate better soil health, reduce soil erosion, and contribute to improved seedbed preparation for subsequent crops. 5. Wildflower and Conservation Areas: In conservation and wildlife management areas, disc drum mowers are employed to maintain grasslands and wildflower meadows. They help control invasive species, promote biodiversity by encouraging diverse plant growth, and support habitat restoration efforts. 6. Roadside Maintenance: Municipalities and highway departments use disc mowers for maintaining roadside vegetation. These mowers efficiently trim grasses and brush along roadways, improving visibility for drivers, enhancing road safety, and reducing fire hazards. 7. Specialty Crops: Drum mowers are also used in specialty crop production, such as cutting herbs, medicinal plants, and small-scale vegetable fields. Their ability to handle different vegetation types and cutting heights makes them versatile tools in diversified farming operations. Farm Equipment 135 Disc Mowers for Hay

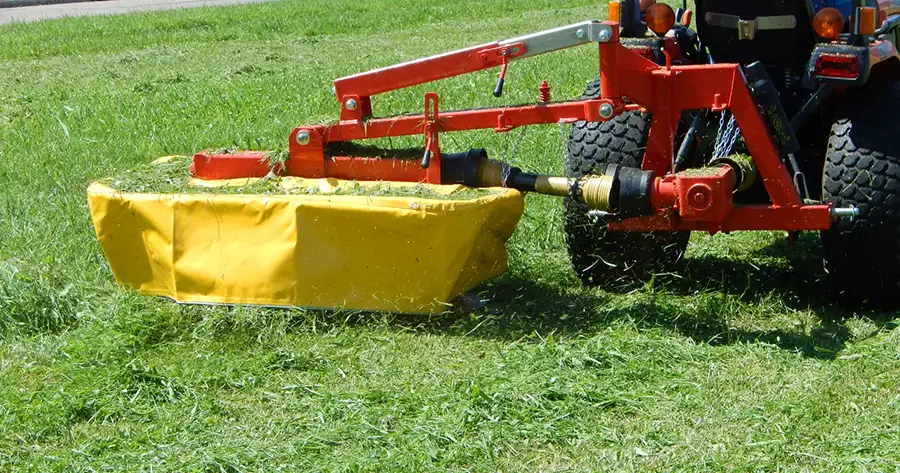

Working Principle of Tractor PTO Driven Drum Mower for Hay Cutting

A tractor PTO driven drum mower operates on a straightforward yet effective principle designed for efficient hay cutting: 1. Power Source: The mower is connected to the tractor's PTO shaft, which transmits power from the tractor's engine to the mower's cutting mechanism. This connection allows the mower to operate independently of the tractor's movement, relying solely on the rotational power generated by the PTO. 2. Discs and Blades: The heart of the disc drum mower consists of multiple horizontally mounted discs, typically three to five in number. Each disc is equipped with several sharp cutting blades or knives arranged radially along its circumference. These blades are designed to rotate at high speeds when the PTO shaft engages, creating a powerful cutting action. 3. Cutting Action: As the tractor moves forward and the PTO shaft spins, the rotating discs on the mower also spin rapidly. The sharp blades on each disc slice through the standing crop or vegetation, cleanly cutting it at the desired height. The cutting action is smooth and efficient, ensuring minimal damage to the remaining crop, which is crucial for hay quality. 4. Adjustability: Tractor-mounted disc drum mowers are typically equipped with mechanisms for adjusting cutting height and angle. This adjustability allows farmers to adapt the mower to different types of crops, field conditions, and desired hay lengths. It ensures flexibility in hay cutting operations, catering to varying growth stages of crops and terrain unevenness. 5. Swathing: After cutting, the mower deposits the cut vegetation in a swath behind the machine. This swath is left to dry in the sun, a critical step in haymaking before the hay can be further processed into bales or collected for storage. Farm Equipment 135 Disc Mowers for Hay

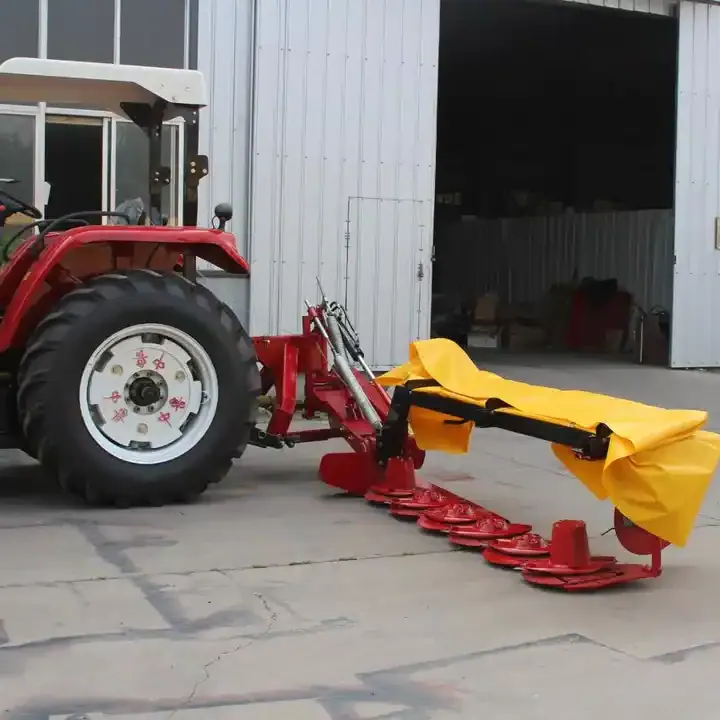

Installation Steps:

Installing a 3-point mounted disc mower onto a tractor involves several systematic steps to ensure proper alignment, safety, and functionality. Here’s a detailed guide to the installation process: 1. Aligning the Mower: Position the mower behind the tractor, ensuring it is aligned centrally with the tractor's 3-point hitch. The hitch arms should be extended and ready to accept the mower's mounting pins or hooks. 2. Attaching Lower Link Arms: Lower the tractor's 3-point hitch mechanism to align the lower link arms with the mower's mounting points. Adjust the lift arms to match the height of the mower's mounting frame. Ensure the lift arms are securely connected to the mower's lower hitch points. 3. Securing Top Link Connection: Attach the top link of the mower to the tractor's top link bracket or ball end. Adjust the top link length to achieve the desired angle and height of the mower relative to the ground. Ensure the top link is securely fastened to prevent excessive movement during operation. 4. Connecting PTO Shaft: Align the tractor's PTO shaft with the mower's input shaft or gearbox. Slide the safety shields over the PTO shaft and engage the locking mechanism to secure the connection. Ensure the PTO shaft is correctly aligned and not under tension when attached. 5. Adjusting Cutting Height: Adjust the mower's cutting height using the adjustment mechanism provided. This may involve setting the height control lever to the desired cutting position or adjusting individual wheel heights if the mower is equipped with height-adjustable skids or wheels. 6. Checking Safety Features: Verify that all safety features, such as safety shields on the PTO shaft and guards around rotating components, are in place and functioning correctly. Ensure all nuts, bolts, and fasteners are tightened securely to prevent loosening during operation. 7. Testing Operation: Start the tractor's engine and engage the PTO according to the manual's instructions. Observe the mower's operation to ensure smooth rotation of the discs and blades. Check for any unusual noises or vibrations that may indicate mechanical issues. 8. Final Adjustments: Make final adjustments as necessary, including fine-tuning the cutting height or angle based on field conditions. Ensure all hydraulic hoses and electrical connections (if applicable) are properly connected and functioning. Farm Equipment 135 Disc Mowers for Hay

Choosing the Right Tractor 3-Point Mounted Drum Mower for Hay

Choosing the right tractor 3-point mounted drum mower for hay cutting involves considering several key factors to ensure optimal performance and efficiency: 1. Size and Capacity: Select a mower size that matches your tractor's horsepower and the size of your fields. Ensure the mower's cutting width is suitable for your operational needs, balancing between productivity and maneuverability. 2. Durability and Build Quality: Opt for a mower constructed from durable materials such as high-strength steel to withstand the demands of frequent use in agricultural conditions. A robust build ensures longevity and reduces maintenance costs over time. 3. Cutting Mechanism: Evaluate the cutting mechanism, focusing on the design of the discs and blades. Look for mowers with sharp, durable blades that provide a clean cut, promoting faster drying and better hay quality. 4. Adjustability: Choose a mower with adjustable cutting height options to accommodate different types of crops and varying field conditions. Adjustable skids or wheels can also help in achieving uniform cutting heights across uneven terrain. 5. Ease of Maintenance: Consider mowers that are designed for easy maintenance, with accessible grease points, blade replacement systems, and straightforward PTO shaft maintenance. This reduces downtime and enhances overall efficiency. 6. Safety Features: Ensure the mower is equipped with adequate safety features, such as PTO shaft shields, blade guards, and sturdy safety chains. These features protect both the operator and the equipment during operation. Farm Equipment 135 Disc Mowers for Hay

Agricultural PTO Shaft for Rotary Drum Mower

The agricultural PTO shaft and rotary drum mower are integral components in modern farming practices, particularly in haymaking and crop management. The PTO shaft serves as a vital link between the tractor's power source and various implements, including the Rotary Drum Mower. It transfers mechanical power from the tractor's engine to the mower's cutting mechanism via a rotating shaft. This enables the mower to operate independently while being powered by the tractor's engine, facilitating efficient and effective hay cutting and crop management. The rotary drum mower, often mounted on the tractor's 3-point linkage system and driven by the PTO shaft, is specifically designed for cutting and harvesting hay, grass, and other forage crops. It consists of multiple rotating drums equipped with sharp cutting blades or knives. As the PTO Shaft spins, it drives these drums, allowing the blades to cut through standing crops in a clean and precise manner. Firstly, it enables farmers to mechanize and streamline hay harvesting processes, reducing manual labor and increasing operational efficiency. The Rotary Drum Mower's ability to swiftly and evenly cut large swathes of vegetation ensures timely harvesting, which is crucial for preserving forage quality. Secondly, the PTO-driven mechanism provides consistent power transmission to the Rotary Drum Mower, ensuring reliable operation across various field conditions. This reliability contributes to enhanced crop management, allowing farmers to maintain optimal pasture health and manage crop residues effectively. Moreover, the combination of the PTO shaft and rotary drum mower supports sustainable farming practices by improving crop yield and quality. By efficiently cutting and managing hay and forage crops, farmers can optimize feed production for livestock, enhancing overall farm productivity. The agricultural PTO shaft and rotary drum mower form an essential linkage in modern agricultural machinery, facilitating efficient hay cutting, crop management, and sustainable farming practices. Their integrated functionality underscores their importance in enhancing farm efficiency, productivity, and the overall management of agricultural resources. Farm Equipment 135 Disc Mowers for Hay

Why Choose Raydafon's Drum Mower?

Founded on a commitment to excellence, Raydafon specializes in the manufacturing and sales of drum mowers, establishing itself as a leader in the agricultural machinery industry. With a robust infrastructure and advanced technological capabilities, our company operates on a global scale, serving a diverse clientele. Our drum mowers stand out as ideal replacements for renowned brands such as Kuhn, Claas, Krone, New Holland, John Deere, Kubota, Case IH, Vicon, Fella, Lely, Kverneland, Massey Ferguson, Taarup, BCS, Samasz, Zetor, Penta, Niemeyer, and others. This compatibility ensures versatility and reliability in various farming applications. Designed for efficiency and durability, our drum mowers feature precision-engineered components that deliver superior performance in hay cutting and forage harvesting. They excel in diverse agricultural landscapes, providing clean and consistent cutting results while enhancing productivity. At Raydafon, we pride ourselves on our expertise and influence in the drum mower sector, backed by international certifications and a commitment to quality. We offer tailored solutions, ensuring our products meet specific customer requirements with precision and reliability. Our dedication extends beyond manufacturing excellence to encompass comprehensive customer support, including efficient after-sales service. With state-of-the-art production facilities and a wide range of agricultural machinery offerings—from PTO shafts, agricultural gearboxes, large round balers, mini round balers, diesel wood chippers, corn seeders, disc mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvesters, wheat seeders, vegetable seeders, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, snow blower, road sweeper—we cater to the evolving needs of modern farming practices worldwide. Farm Equipment 135 Disc Mowers for Hay Author: Yjx.
