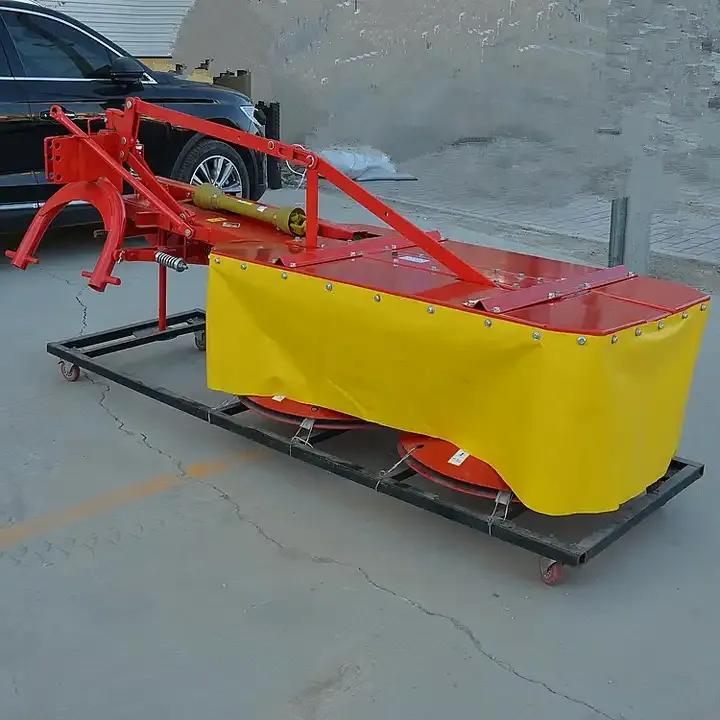

Farm Tractor Rear Link 135 Disc Mower with Conditioner

Introducing the Farm Tractor Rear Link 135 Disc Mower with Conditioner, a high-performance solution for your farming and agricultural needs. This innovatively designed mower is not just a piece of machinery but a productivity powerhouse that is set to revolutionize your farming operations. With a robust build and a wide array of features, it is the ideal tool for efficient and effective grass cutting on farms. Our Farm Tractor Rear Link 135 Disc Mower with Conditioner is equipped with a 1350mm working width, 6 cutting knives, and a 540 rpm PTO speed. The drum mower rotates at a speed of 1620 rpm, delivering a powerful performance to make quick work of your mowing needs. With a weight of 350kg and a matched power range of 30-70hp, this farm equipment is built to handle all your mowing needs with ease and efficiency.

Advantages of Using our Tractor 3-point Drum Mower

Using a tractor 3-point drum mower offers several advantages for farmers and agricultural operations. Here are some of the key benefits:

1. Easy attachment: Tractor 3-point drum mowers are specifically designed to be attached to the rear of a tractor using the standard 3-point hitch system. This makes it easy to connect and disconnect the mower, allowing for quick setup and efficient use of the equipment.
2. Versatility: The 3-point hitch design provides flexibility in terms of height adjustment and cutting angles. Farmers can easily adjust the cutting height of the drum mower to suit their specific needs and crop conditions. This versatility allows for efficient cutting of different types of crops, including hay, grass, and other forage materials.
3. Increased productivity: Drum mowers have wider cutting widths compared to many other types of mowers. This means that more crop can be cut in a single pass, reducing the number of passes required to cover a field. The increased productivity translates to time and labor savings, enabling farmers to accomplish more in less time.
4. Efficient cutting performance: Drum mowers are equipped with sharp, high-speed rotating blades that deliver a clean and precise cut. The cutting action of the drum mower ensures minimal crop damage and promotes faster drying and curing of the harvested material. The clean cut also contributes to improved forage quality, making it more desirable for livestock consumption.
5. Durability and reliability: Tractor 3-point drum mowers are built to withstand the demands of agricultural use. They are constructed with sturdy materials that can withstand rough field conditions and repetitive use. Their robust design and reliable components minimize downtime and maintenance requirements, allowing farmers to focus on their work without worrying about frequent repairs or replacements.
6. Compatibility with existing equipment: Tractor 3-point drum mowers are designed to be compatible with a wide range of tractors that feature a 3-point hitch system. This means that farmers can often utilize their existing tractors without the need for additional specialized machinery, saving on equipment costs and maximizing the utility of their current fleet.

Our company has the capability to produce this high-quality product, ensuring its durability, reliability, and efficiency.

Applications of the Tractor 3-point Drum Mower

The tractor 3-point drum mower is a versatile agricultural implement that finds numerous applications in farming and land management. Here are some common applications:

1. Hay and Forage Harvesting: Drum mowers are extensively used for cutting and harvesting hay and forage crops. They efficiently cut standing crops, such as grasses, alfalfa, clover, and other forage materials, preparing them for drying, curing, and baling. Drum mowers are particularly beneficial in large-scale hay production operations, where they enable farmers to cover substantial areas quickly.
2. Pasture Management: Maintaining healthy pastures is crucial for livestock grazing. Tractor 3-point drum mowers are used to control the height of grasses in pastures, preventing overgrowth and promoting desirable forage growth. By mowing pastures, farmers can ensure a consistent and nutritious food source for their grazing animals.
3. Silage Production: Silage is a popular method of preserving forage crops for livestock feed. Drum mowers play a vital role in the production of silage by efficiently cutting crops at the optimal stage of maturity. The clean and precise cut provided by drum mowers ensures uniform particle size, which is critical for proper fermentation and the production of high-quality silage.
4. Roadside and Landscape Maintenance: Tractor 3-point drum mowers are also employed for roadside maintenance and landscape management. They are used to mow grass and vegetation along roadways, ditches, and other public or private areas. Drum mowers provide efficient and precise cutting, ensuring a neat and well-maintained appearance.
5. Land Clearing and Brush Control: When it comes to land clearing and brush control, drum mowers are valuable tools. They can efficiently cut and clear overgrown areas, dense brush, and woody vegetation. Drum mowers help in preparing land for cultivation, maintaining right-of-ways, or managing invasive plant species.

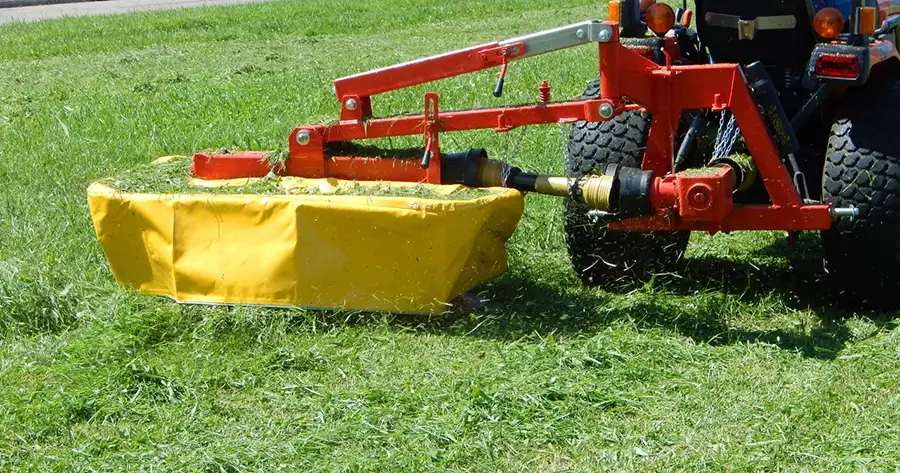

How Does the Agricultural Drum Mower Work?

The tractor 3-point drum mower operates by utilizing the power and motion of a tractor's power take-off (PTO) system. Here is a step-by-step explanation of how it works:

1. 1. Attachment to the Tractor: The drum mower is connected to the tractor's 3-point hitch system, which allows for easy attachment and detachment. The lower hitch arms of the tractor are connected to the corresponding attachment points on the drum mower, securing it in place.
   2. Power Transfer: The drum mower is powered by the tractor's PTO shaft. The PTO shaft connects to the mower's gearbox, which transfers the rotational power from the tractor to the cutting mechanism of the drum mower.
   3. Cutting Mechanism: The cutting mechanism of the drum mower consists of a rotating drum or cylinder that is equipped with cutting blades. The rotating drum is powered by the PTO shaft and spins at high speeds. The cutting blades, attached to the drum, make contact with the standing crop as the mower is towed behind the tractor.
   4. Cutting Action: As the tractor moves forward, the rotating drum spins rapidly, causing the cutting blades to slice through the vegetation. The sharp blades deliver a clean and precise cut, effectively harvesting the crops or mowing the grass in its path. The cut material is then discharged to the side or rear of the drum mower, depending on its design.
   5. Height Adjustment: Many tractor 3-point drum mowers offer height adjustment options. This allows the operator to set the desired cutting height based on the crop or vegetation being mowed. The height adjustment can usually be controlled hydraulically or manually, depending on the specific model.
   6. Operator Control: The operation of the tractor 3-point drum mower is controlled by the tractor operator. The operator drives the tractor forward, maintaining a suitable ground speed for efficient cutting. They may also adjust the cutting height and monitor the performance of the mower during operation.

How to Install the Agricultural Drum Mower to Tractor?

Installing an agricultural drum mower to a tractor is a process that involves several steps to ensure proper attachment, functionality, and safety. Here is a general guide for installing a tractor 3-point drum mower:

1. Position the Tractor: Park the tractor on a level surface and engage the parking brake. Ensure that the tractor is turned off and the keys are removed from the ignition for safety.
2. Adjust the 3-Point Hitch: Lower the 3-point hitch of the tractor to its lowest position using the hydraulic controls. This will make it easier to align the attachment points of the drum mower with the tractor's hitch arms.
3. Align the Mower and Tractor: Position the drum mower behind the tractor, aligning the attachment points of the mower with the hitch arms of the tractor. The lower hitch arms of the tractor should line up with the corresponding attachment points on the drum mower.
4. Connect the Hitch Pins: Insert the hitch pins through the attachment points on the drum mower and the hitch arms of the tractor. Ensure that the pins are securely inserted and that any safety clips or locks are properly engaged to prevent accidental detachment.
5. Secure the Top Link: Attach the top link of the 3-point hitch to the top attachment point on the drum mower. Adjust the length of the top link, if necessary, to ensure that the mower is level when attached to the tractor.
6. Connect the PTO Shaft: Locate the PTO shaft on the drum mower and the PTO output on the tractor. Align the splines on both ends of the PTO shaft and slide it onto the PTO output shaft of the tractor. Make sure the PTO shaft is securely connected and locked in place.
7. Check Clearance and Adjustments: Once the drum mower is attached, check for any potential clearance issues between the mower and the tractor. Ensure that there is sufficient clearance for turning and maneuvering without interference.
8. Test the Attachment: Start the tractor and engage the PTO to test the attachment. Observe the rotation of the drum mower and listen for any unusual noises or vibrations. Make sure the PTO is operating smoothly and that the drum mower is functioning properly.

Maintenance of the Tractor 3-point Drum Mower

Proper maintenance of a tractor 3-point drum mower is essential to ensure its longevity, performance, and safe operation. Here are some maintenance tasks to consider:

1. Regular Cleaning: After each use, clean the drum mower thoroughly to remove debris, grass, and other materials that may have accumulated. Pay attention to the cutting blades, the cutting chamber, and other moving parts. Use a brush or compressed air to clean hard-to-reach areas.
2. Blade Maintenance: Inspect the cutting blades regularly for damage, wear, or dullness. Replace any damaged or excessively worn blades promptly. Sharpen the blades as needed to maintain their cutting effectiveness. Follow the manufacturer's guidelines for blade replacement and sharpening procedures.
3. Lubrication: Ensure that all moving parts, such as bearings, joints, and pivot points, are properly lubricated. Refer to the operator's manual for the recommended lubricants and intervals. Regularly grease the mower's fittings and make sure to keep them free from dirt and debris.
4. Driveline Maintenance: The driveline of the drum mower, including the PTO shaft, should be inspected periodically for any signs of damage or wear. Check for loose or missing bolts, damaged guards, and smooth operation of the shaft. Replace any damaged or worn components and ensure that the driveline guards are properly installed and secure.
5. Storage: When not in use, store the drum mower in a dry and secure location to protect it from the elements. If possible, cover the mower to prevent dust, moisture, and sunlight exposure. Proper storage helps prevent rust, corrosion, and other damage.
6. Safety Checks: Before each use, perform a safety check. Ensure that all guards, shields, and safety features are in place and functioning correctly. Check for any signs of wear or damage that may affect the safe operation of the drum mower.

Why Choose Raydafon's Agricultural Drum Mower?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, sickle bar mowers, rotary mowers, flail mowers, lawn mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Our company prides itself on its professional approach and commitment to delivering high-quality agricultural machinery. We hold international certifications, proving our adherence to the highest quality standards. We also offer customized services to meet the unique needs of our clients, ensuring that they receive the best possible products. Our state-of-the-art production facilities are equipped with the latest machinery and technology, enabling us to manufacture products with precision and efficiency. In addition to our superior products, we also offer excellent after-sales services, providing our clients with support and assistance even after their purchase. We are dedicated to ensuring the satisfaction of our clients and the success of their agricultural operations. Experience the difference with Raydafon's Agricultural Drum Mower. Connect with us today and let us help you amplify your farming productivity. Author: Yjx
