Feed Mixer Machines Gearboxes - Replacement of Comer Code PGA-1602

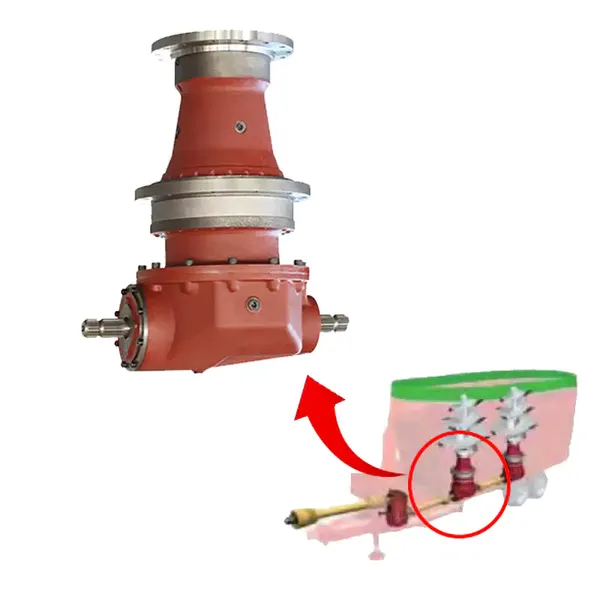

PGA1602VM Mixing Wagon Gearbox - Replacement of Comer Code PGA-1602

The Feed Mixer Machine Gearbox PGA-1602 is a specialized piece of equipment used in the agricultural industry for mixing animal feed. It is designed to blend various ingredients and components efficiently to create a consistent and balanced feed for livestock. The gearbox plays a crucial role in the operation of the feed mixer machine. It is responsible for transmitting power from the input shaft to the mixing chamber, where the feed ingredients are combined. The PGA-1602 gearbox is specifically designed to handle the high torque and heavy-duty requirements of feed mixing applications. Our gearboxes are perfect replacements for Replacement of Comer brand PGA-1602 gearboxes.

Feed Mixer Machines Gearbox PGA-1602 Specifications

Description	Feed Mixer Machines Gearboxes - Replacement of Comer Code PGA-1602
Specifications	Has a special bearing complete where the screw spindle can be directly connected.
Benefits	No separate bearing complete required for the winch
Application	Mixing wagon Suitable for: Single mixer 10–14 cubic metres Double mixer 16–24 cubic metres
Consists of	Gearbox Order oil separately
Model	PGA 1602
Max. output rotation speed	29 r/min
Max. output torque	15700 nm
Max. output torque	1570 daNm
Contains oil	No
Oil SAE viscosity grade	90EP
Weight	265 kg
Gear ratio	16.1:1
Input power KW / HP Reducing	88.7 kW/HP
Ratio Reducing	16,2:1
Shaft type	2 x 1.3/4 (Z20)

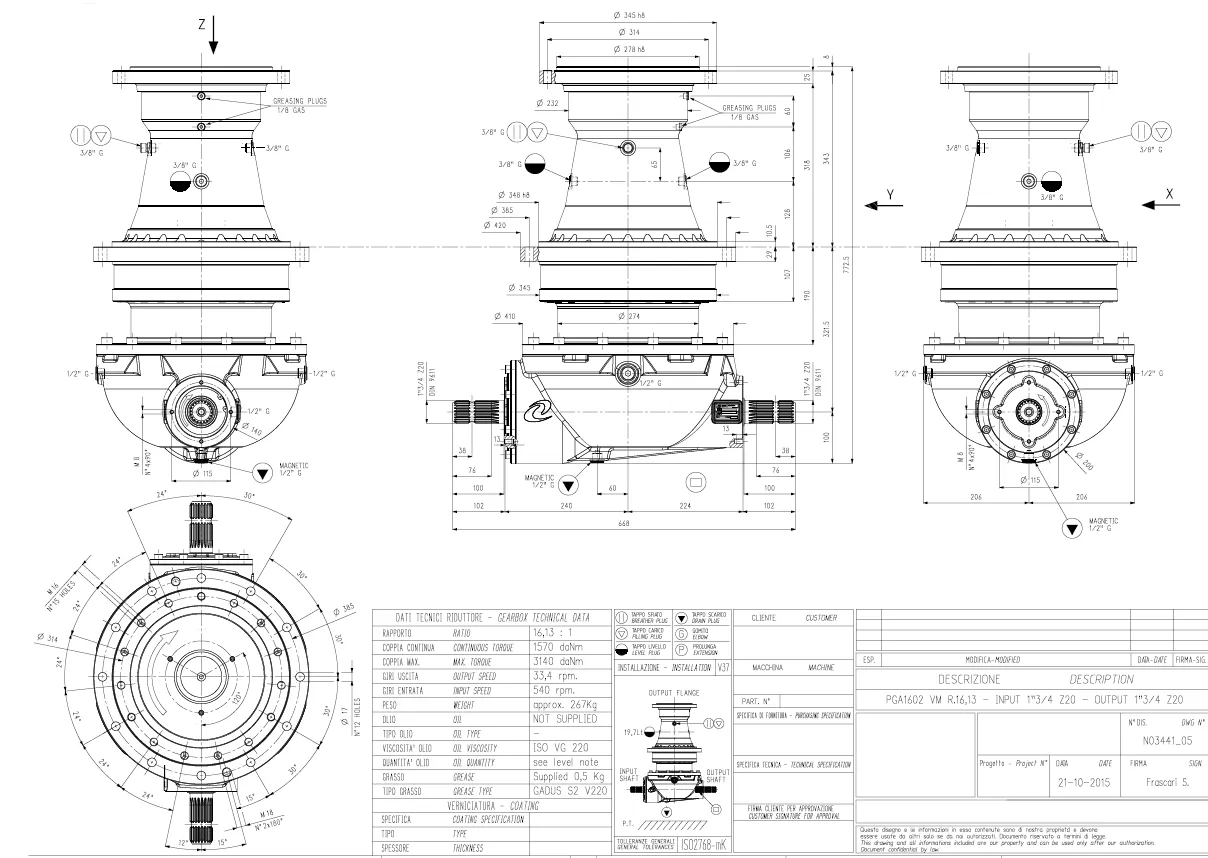

Feed Mixer Machines Gearbox PGA-1602 Dimensions

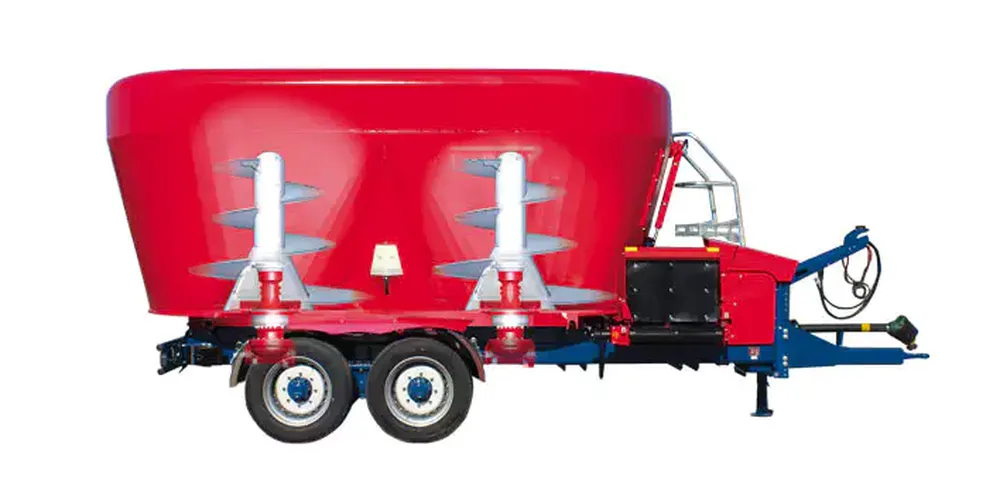

Features of Feed Mixer Machines Gearbox PGA-1602 for Mixing Wagon

The Feed Mixer Machine Gearbox PGA-1602, specifically designed for mixing wagons, offers several features that enhance its performance and efficiency in the feed mixing process. Here are some key features:1. High Torque Capacity: The PGA-1602 gearbox is designed to handle high torque loads, which are crucial for mixing heavy and dense feed ingredients in the wagon. It provides the necessary power to ensure thorough blending of the feed components.2. Variable Speed Control: The gearbox offers variable speed control, allowing operators to adjust the mixing speed according to the specific requirements of the feed mixture. This feature enables precise control over the mixing process, ensuring consistent and homogeneous feed output.3. Heavy-Duty Construction: The PGA-1602 gearbox is built with a heavy-duty design to withstand the demanding conditions of mixing wagons. It is constructed using durable materials and robust components, ensuring long-lasting performance in rugged agricultural environments.4. Smooth Operation: The gearbox is equipped with precision gears and bearings, enabling smooth and efficient operation. This reduces noise, vibrations, and energy loss during the mixing process, resulting in optimal performance and minimal wear and tear.5. Easy Maintenance: The gearbox is designed for easy maintenance and servicing. It incorporates features such as accessible inspection points, lubrication ports, and removable covers, facilitating routine checks and lubrication to keep the gearbox in good working condition.6. Safety Features: The PGA-1602 gearbox includes safety features to protect both the equipment and the operators. These features can include overload protection mechanisms, emergency stop buttons, and safety guards to prevent accidents and equipment damage.7. Compatibility: The gearbox is designed to be compatible with mixing wagons of various sizes and capacities. It can be integrated with different models and brands of mixing wagons, making it a versatile choice for feed mixing operations.

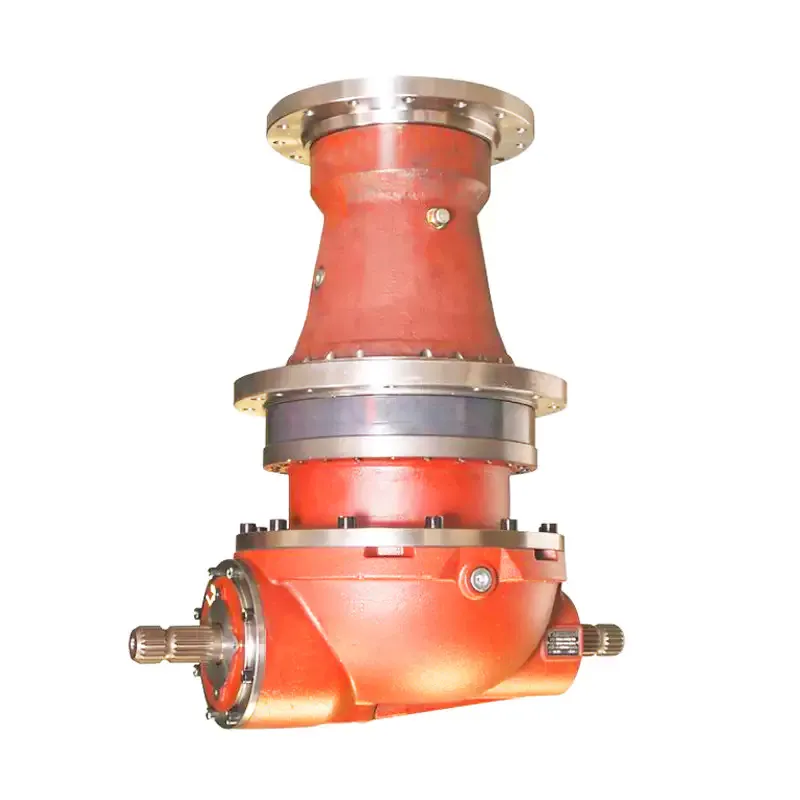

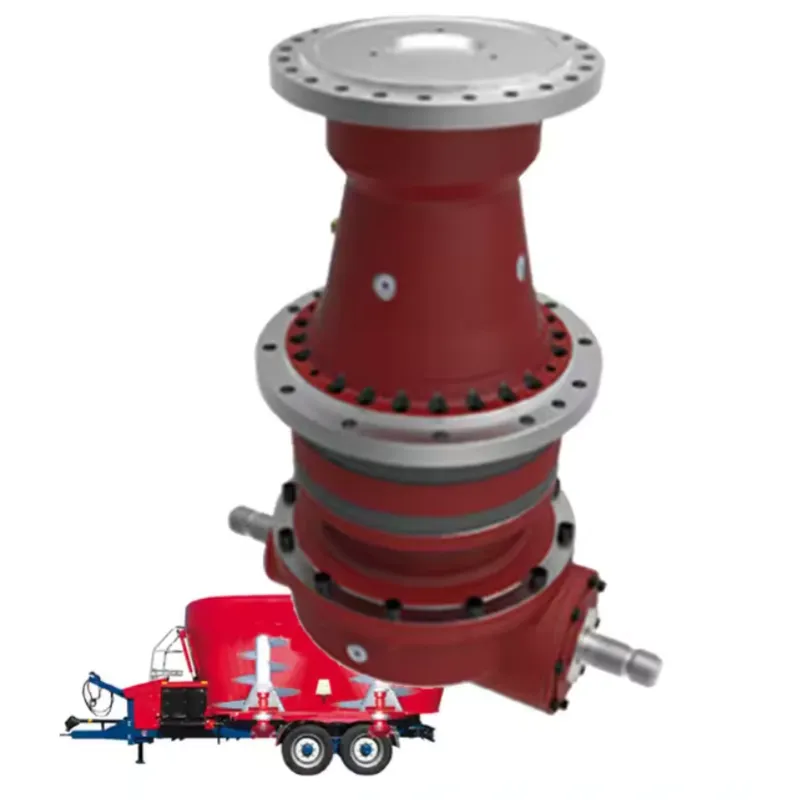

Working Principle of Feed Mixer Gearbox PGA-1602 for Mixing Wagon

The Feed Mixer Gearbox PGA-1602 is designed to facilitate the mixing process in a mixing wagon. It operates based on the following working principle:(1) Power Input: The gearbox receives power from an external power source, such as a tractor's power take-off (PTO) shaft or an electric motor. The input power is transmitted to the gearbox's input shaft.(2) Speed Reduction: The gearbox contains a series of gears with different sizes and tooth configurations. These gears work together to reduce the speed of the input shaft while increasing the torque output. The specific gear ratio can be adjusted to achieve the desired mixing speed for the feed ingredients.(3) Torque Transmission: As the input power is transmitted through the gears, the torque output is increased. This increased torque is crucial for effectively mixing the heavy and dense feed ingredients present in the mixing wagon.(4) Mixing Chamber Connection: The output shaft of the gearbox is connected to the mixing chamber of the mixing wagon. This connection allows the gearbox to transfer the torque and rotational motion to the mixing mechanism inside the wagon.(5) Mixing Process: With the gearbox connected to the mixing chamber, the rotational motion is transferred to the mixing augers or paddles present in the wagon. These mixing elements work to agitate and blend the feed ingredients thoroughly. The gearbox's torque and speed control capabilities allow operators to adjust the mixing intensity and duration as needed for optimal feed mixing.(6) Safety and Control: The gearbox may include safety features such as overload protection mechanisms, emergency stop buttons, or sensors to ensure safe operation. Additionally, the gearbox may have controls or levers that enable operators to adjust the mixing speed and direction.

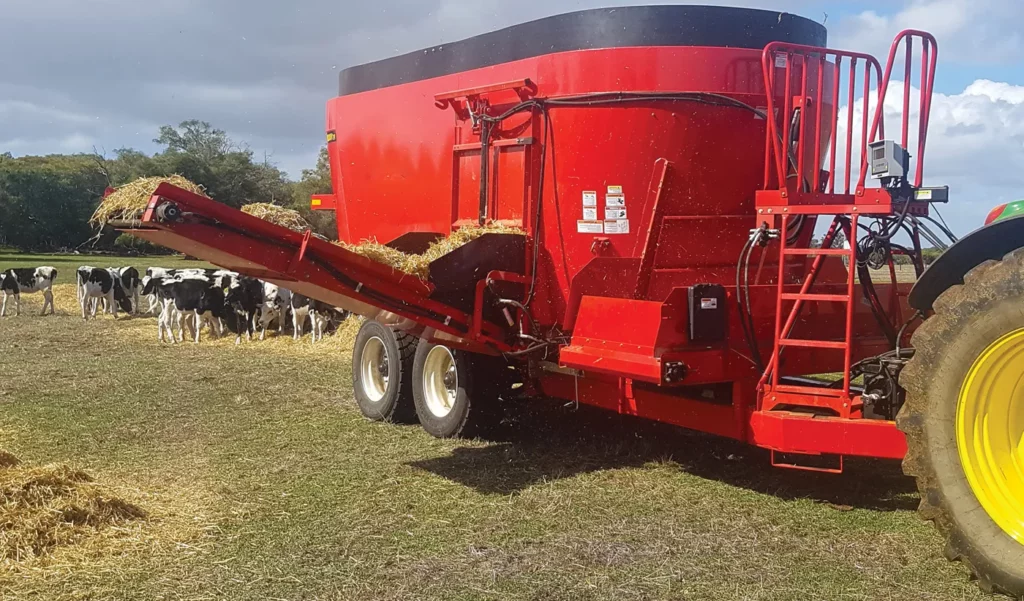

Applications of Feed Mixer Gearbox PGA-1602 for Mixing Wagon

The Feed Mixer Gearbox PGA-1602 is specifically designed for mixing wagons and finds applications in the agricultural industry for efficient and effective feed mixing. Here are some of the key applications of the PGA-1602 gearbox:

• Livestock Feed Production: The PGA-1602 gearbox is widely used in livestock feed production facilities. It is employed in mixing wagons to blend various ingredients, such as grains, forages, additives, and minerals, to create a balanced and nutritious feed for livestock, including cattle, poultry, pigs, and more.
• Dairy Farms: In dairy farming operations, the PGA-1602 gearbox is utilized in mixing wagons to prepare TMR (Total Mixed Ration) feed. TMR ensures that dairy cows receive a balanced diet with the right combination of forages, grains, and supplements. The gearbox enables thorough mixing of these components, ensuring uniform nutrition for the cows.
• Poultry Farms: Poultry farms often use mixing wagons with the PGA-1602 gearbox to produce high-quality feed for chickens, turkeys, and other poultry. The gearbox helps in blending grains, protein sources, vitamins, and minerals, creating a consistent feed that meets the nutritional requirements of the birds.
• Swine Farms: Swine farms utilize the PGA-1602 gearbox in mixing wagons to produce custom feed blends for pigs. The gearbox ensures the proper mixing of ingredients, including grains, protein sources, fats, and additives, resulting in a well-balanced diet that promotes healthy growth and development in the swine.
• Feed Manufacturing Plants: Large-scale feed manufacturing plants employ the PGA-1602 gearbox in their mixing wagons to facilitate the efficient production of commercial animal feed. The gearbox enables precise control over the mixing process, ensuring consistent feed quality and meeting the specific nutritional requirements of different animal species.
• Custom Feed Blending: The PGA-1602 gearbox is also used in custom feed blending operations, where feed mixtures are created according to the specific needs of individual farmers or livestock producers. The gearbox allows for flexibility in adjusting mixing speed, duration, and intensity to achieve the desired feed composition.

We also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.

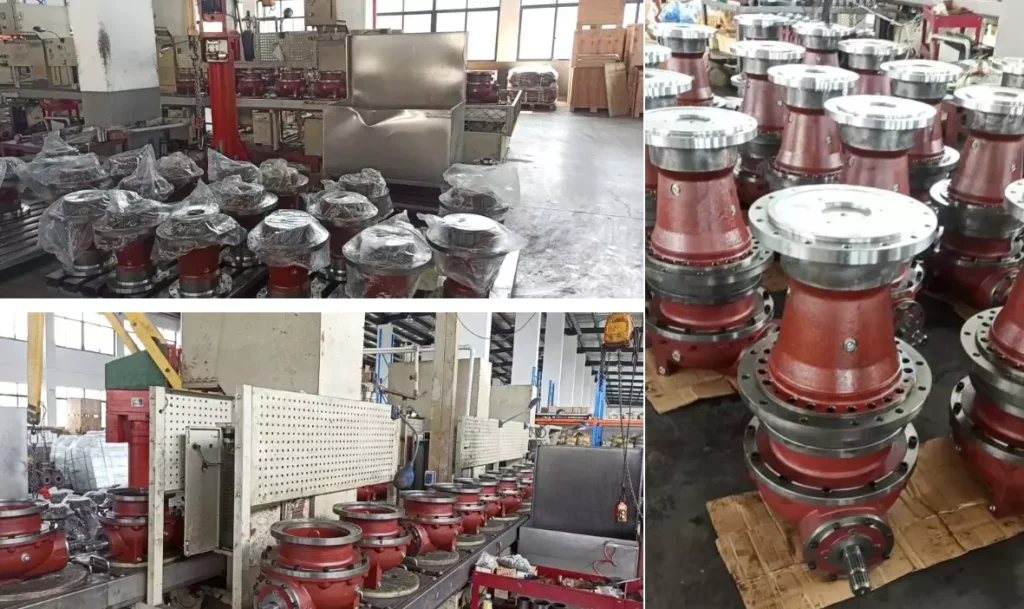

Why Choose Raydafon?
