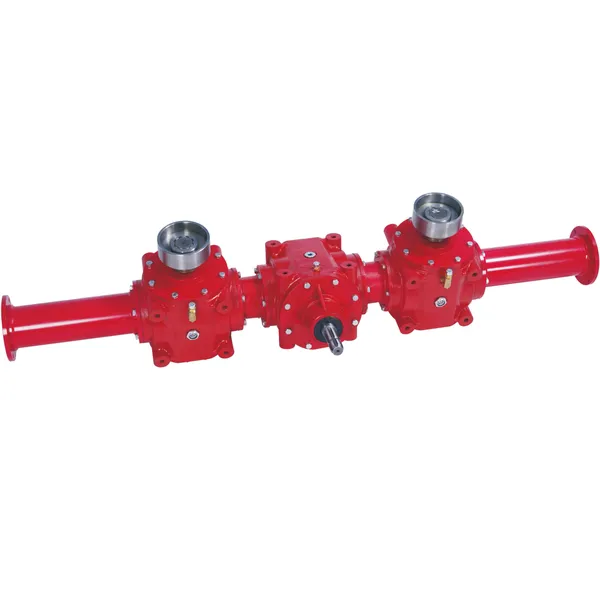

Fertilizer Seeder Gearbox RDF-SF230 for Fertilizer Broadcaster

Fertilizer Seeder Gearbox RDF-SF230 for Fertilizer Broadcaster

The Fertilizer Seeder Gearbox RDF-SF230 is a crucial component of a fertilizer broadcaster, which is used in agricultural operations to evenly distribute fertilizers and seeds onto fields. The gearbox plays a key role in controlling the speed and direction of the spreading mechanism, allowing for precise and efficient application of fertilizers. The RDF-SF230 gearbox is designed specifically for fertilizer broadcasters and is built to withstand the demanding conditions of agricultural use. It is typically made from durable materials such as cast iron or steel to ensure longevity and resistance to wear and tear.

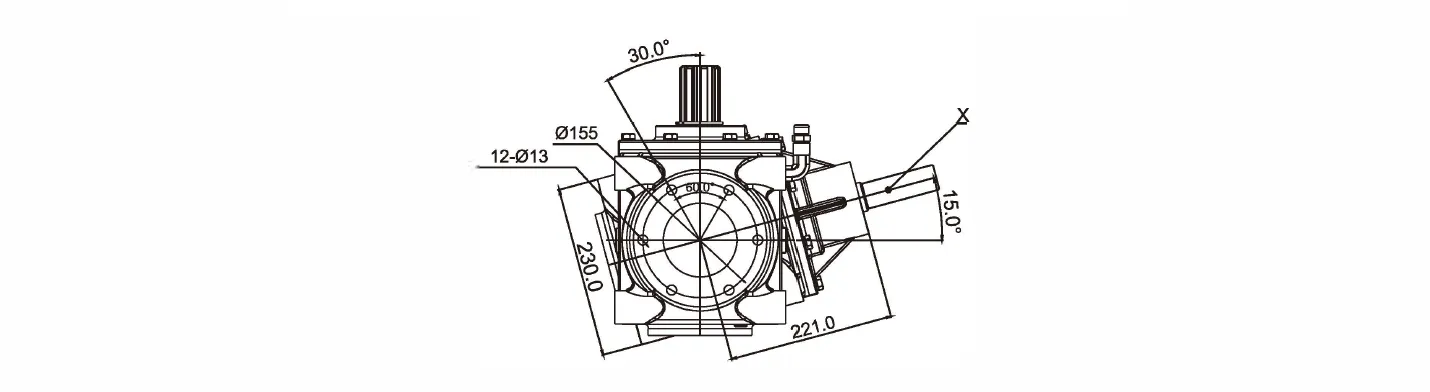

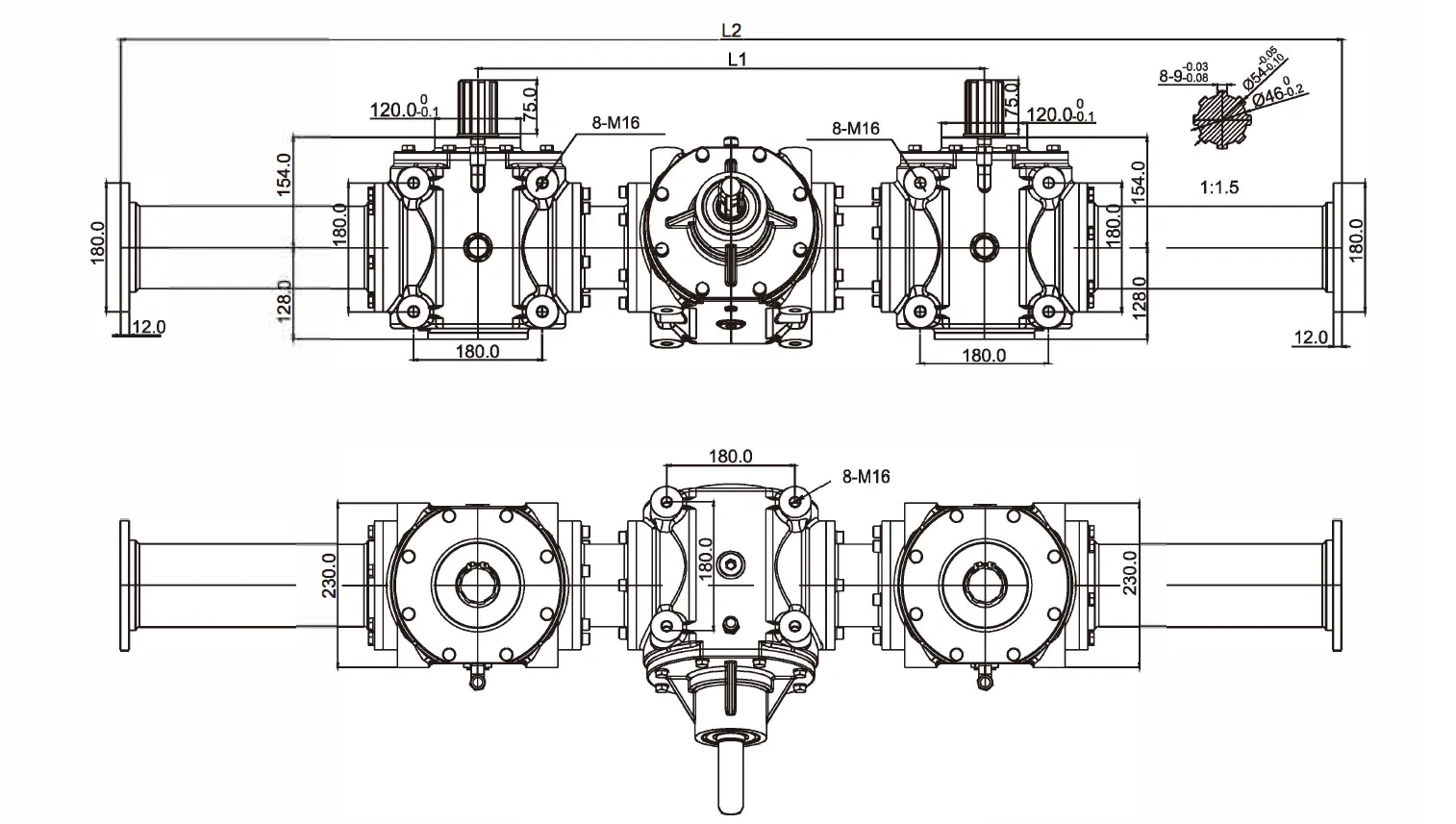

Fertilizer Seeder Gearbox RDF-SF230 Dimensions

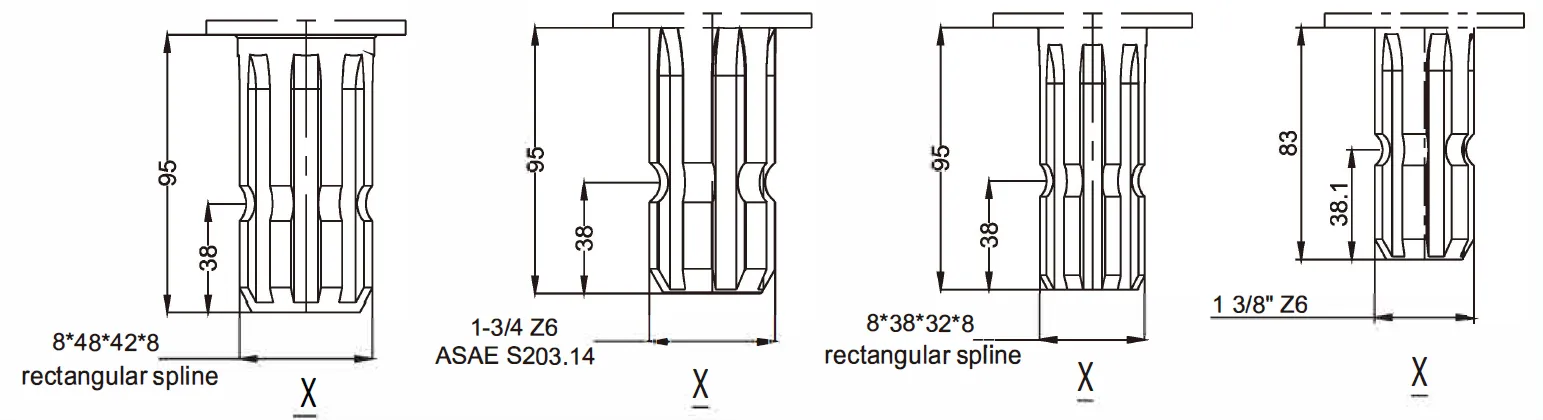

Fertilizer Seeder Gearbox RDF-SF230 Shaft Dimensions

Fertilizer Seeder Gearbox RDF-SF230 Technical Data

i		Suitable	Rpm input	Rpm output	Power		Toothing
			r/min	r/min	Kw	Hp
Decelerate	2.36:1	Fertilizer broadcaster, etc	1000	423	120	160	Gleason Helical Teeth
Remark: If you have any special require feel free let me know, we also accept custom.

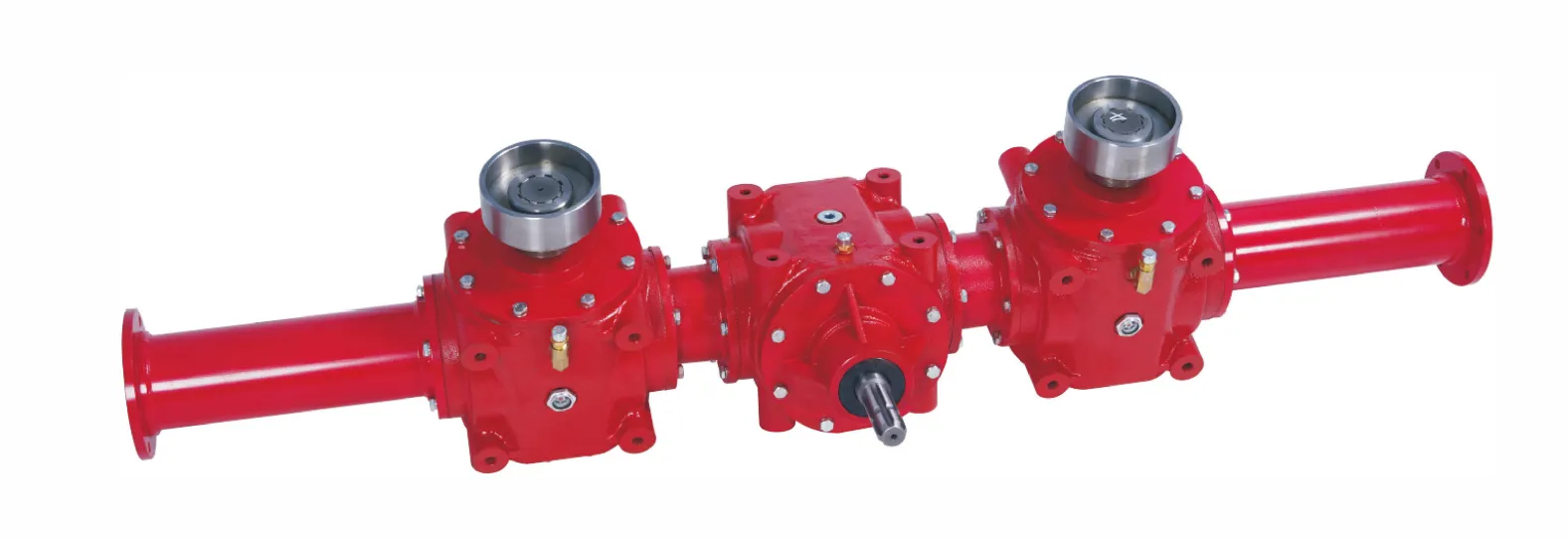

Key Features of the Fertilizer Seeder Gearbox RDF-SF230

The Fertilizer Seeder Gearbox RDF-SF230 is a specialized component designed for use in agricultural machinery, particularly in fertilizer broadcasters. It plays a pivotal role in the efficient and effective distribution of fertilizer in farming operations. Here are the key features of the fertilizer seeder gearbox RDF-SF230: 1. Speed Control: The fertilizer seeder gearbox allows for adjustable speed settings, enabling farmers to regulate the rate at which fertilizers are spread. This feature ensures accurate coverage and prevents over-application or under-application of fertilizers. 2. Directional Control: The gearbox facilitates the rotation of the spreading mechanism in different directions. This control allows farmers to adjust the spread pattern according to the specific requirements of their field, ensuring uniform coverage across the entire area. 3. Durability: The fertilizer seeder gearbox RDF-SF230 is built to withstand the rigors of agricultural use, including exposure to dust, moisture, and varying weather conditions. Its robust construction ensures reliable performance over an extended period, reducing the need for frequent maintenance or replacement. 4. Easy Maintenance: The gearbox is designed for ease of maintenance, with accessible components that can be serviced or replaced as needed. Regular maintenance helps to keep the gearbox in optimal condition, ensuring its longevity and consistent performance. 5. Compatibility: The RDF-SF230 fertilizer seeder gearbox is designed to be compatible with a range of fertilizer broadcaster models. It can be easily integrated with different types of spreading mechanisms, making it a versatile option for farmers using various equipment setups.

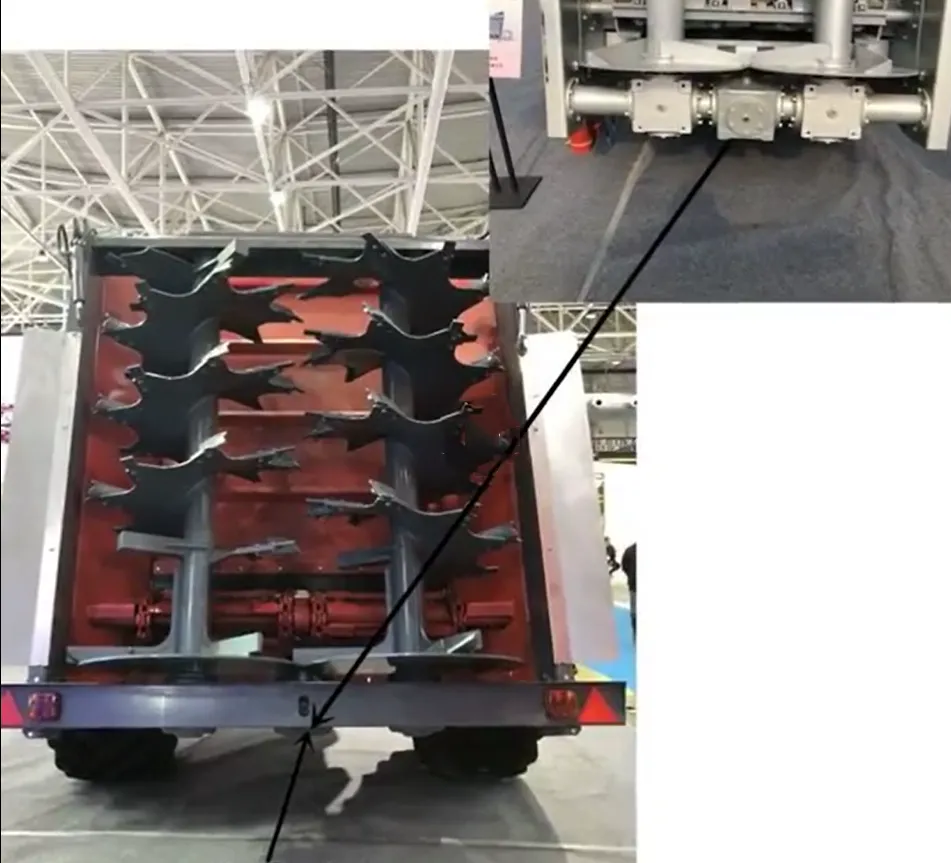

Fertilizer Seeder Gearbox RDF-SF230 Working Principle

The Triple Shaft Fertilizer Seeder Gearbox RDF-SF230 is a specialized gearbox designed for manure spreaders, which are agricultural machines used to evenly distribute manure onto fields. This gearbox operates on the principle of converting rotational motion from a power source, such as a power take-off (PTO), into the desired speed and direction for the spreading mechanism. Here is a step-by-step explanation of the working principle of the RDF-SF230 gearbox in a triple shaft fertilizer seeder: (1) Power Input: The gearbox receives rotational power from a PTO shaft connected to a tractor or another power source. The PTO transfers the rotational energy to the gearbox. (2) Input Shaft: The rotational energy from the PTO is transmitted to the input shaft of the gearbox. The input shaft rotates at the same speed and direction as the PTO. (3) Gear Train: Inside the fertilizer seeder gearbox, a system of gears and shafts forms a gear train. The gear train consists of different-sized gears that mesh with each other to transfer and modify the rotational speed and torque. (4) Primary Shaft: One of the output shafts of the gearbox is known as the primary shaft. It receives rotational motion from the gear train and transfers it to the primary beater, which is responsible for breaking up and agitating the manure. (5) Secondary Shafts: The RDF-SF230 fertilizer seeder gearbox has two additional output shafts, known as the secondary shafts. These shafts are connected to secondary beaters or augers, which help in spreading the manure evenly across the field. (6) Speed Control: By utilizing gears of different sizes in the gear train, the gearbox allows for speed control. The gear ratio determines the speed at which each output shaft rotates. By adjusting the gear ratio, farmers can control the speed at which the primary beater and secondary beaters or augers operate. This speed control ensures the manure is spread at the desired rate. (7) Directional Control: The gearbox also incorporates a mechanism to control the direction of rotation for the primary shaft and secondary shafts. This mechanism can be a set of gears or a clutch system that allows the output shafts to rotate in either a clockwise or counterclockwise direction. By changing the direction of rotation, farmers can adjust the spread pattern and coverage of the manure. (8) Output Connection: The output shafts of the gearbox are connected to the respective beaters or augers of the manure spreader. They transfer the rotational motion and power from the gearbox to the spreading mechanism, which effectively spreads the manure across the field.

Applications of Fertilizer Seeder Gearbox RDF-SF230 for Fertilizer Broadcaster

A triple-shaft fertilizer seeder gearbox RDF-SF230 is a type of gearbox commonly used in agricultural equipment known as fertilizer seeders. Fertilizer seeders are designed to distribute animal manure or other organic materials onto fields as a form of fertilizer. The triple shaft gearbox is an integral component of the fertilizer seeder, providing power transmission and control for various functions. Here are some common agriculture applications where a triple shaft fertilizer seeder is used: 1. Manure Spreading: The primary application of a triple-shaft fertilizer seeder gearbox RDF-SF230 is in manure spreading operations. The gearbox helps control the speed and torque required to distribute the manure uniformly across the field. It is responsible for driving the various mechanisms within the manure spreader, such as the apron chain, beaters, or spinners, which ensure even and accurate distribution. 2. Crop Fertilization: A fertilizer seeder equipped with a triple shaft gearbox can also be used for crop fertilization. By spreading organic materials like animal manure, the gearbox assists in delivering essential nutrients to the soil, enhancing soil fertility, and promoting healthy crop growth. 3. Soil Amendment Application: In addition to manure, a triple shaft fertilizer seeder gearbox can be used to distribute other soil amendments or organic materials, such as compost or lime. This allows for the targeted application of these materials to improve soil quality, pH levels, or add beneficial organic matter. 4. Organic Farming: Triple shaft fertilizer seeder gearboxes are commonly utilized in organic farming practices, where the use of natural fertilizers and soil amendments is prioritized. These gearboxes enable efficient and controlled spreading of organic materials, supporting sustainable and environmentally friendly farming methods.

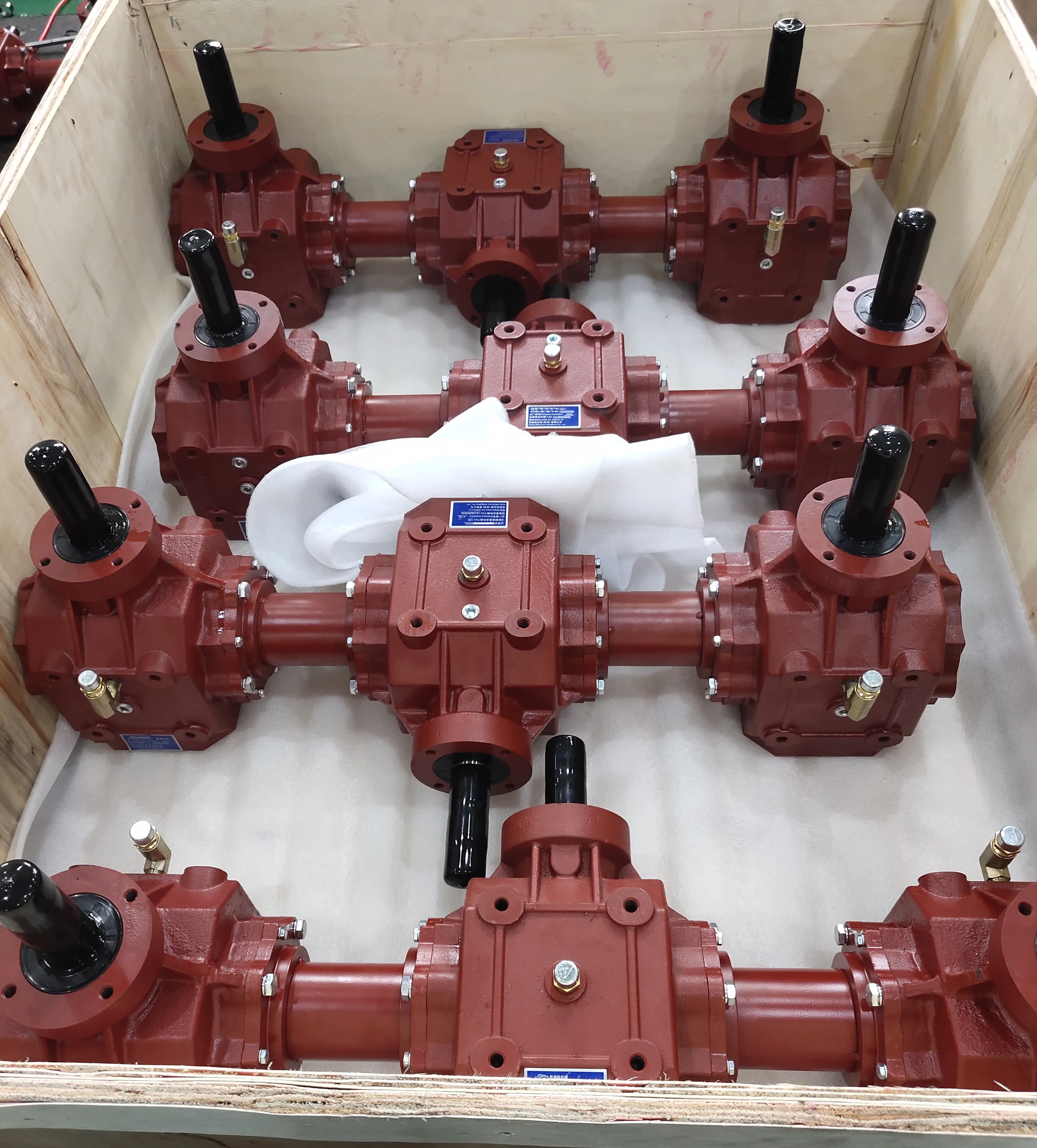

Maintainance of Fertilizer Seeder Gearbox RDF-SF230

To properly maintain the Fertilizer Seeder Gearbox RDF-SF230, here are some maintenance tips to consider: 1. Regular Inspections: Conduct regular inspections to check for any signs of wear, damage, or leaks. Look for loose or damaged components, such as seals, bearings, or gears. Inspect the gearbox housing, shafts, and connections for any signs of wear or corrosion. 2. Lubrication: Proper lubrication is crucial for the smooth operation of the gearbox. Follow the manufacturer's recommendations for the type of lubricant to use and the recommended intervals for lubrication. Ensure the gearbox is adequately lubricated, and regularly check the oil level to ensure it is within the recommended range. 3. Cleaning: Keep the gearbox clean from dirt, debris, and residue. Regularly clean the exterior of the gearbox using a soft brush or cloth. Avoid using high-pressure water, as it can force water into the gearbox and cause damage. Clean the gear teeth and shafts to remove any buildup or contaminants that could affect the gearbox's performance. 4. Replacement of Wear Parts: Over time, certain parts of the gearbox may wear out and require replacement. Inspect the gearbox for any worn or damaged components, such as seals, bearings, or gears. Replace any worn or damaged parts promptly to prevent further damage to the gearbox and ensure optimal performance. 5. Proper Use and Operation: Operate the Fertilizer Seeder Gearbox RDF-SF230 within its specified limits. Avoid overloading the gearbox or operating it at excessive speeds or torques. Improper use can lead to premature wear and failure.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
