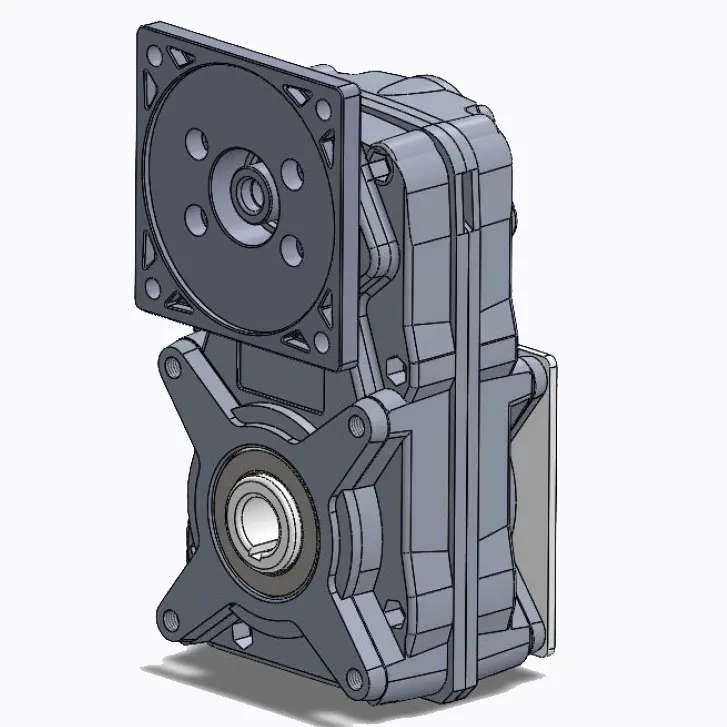

FGV105 Series Helical Gear Reducer for High Precision Equipment

FGV105 Series Helical Gear Reducer for High Precision Equipment

The FGV105 series is mainly used for high-precision equipment, such as AGV equipment, with high transmission efficiency.Enhance the performance and precision of your high-precision equipment with the FGV105 series helical gear reducer. This advanced gear reducer is specifically designed to optimize the functionality of high-precision machinery, offering exceptional accuracy, smooth operation, and reliability. Whether you need to enhance the precision of robotics, CNC machines, or other precision equipment, the FGV105 series is the perfect solution to elevate the performance and productivity of your operations.

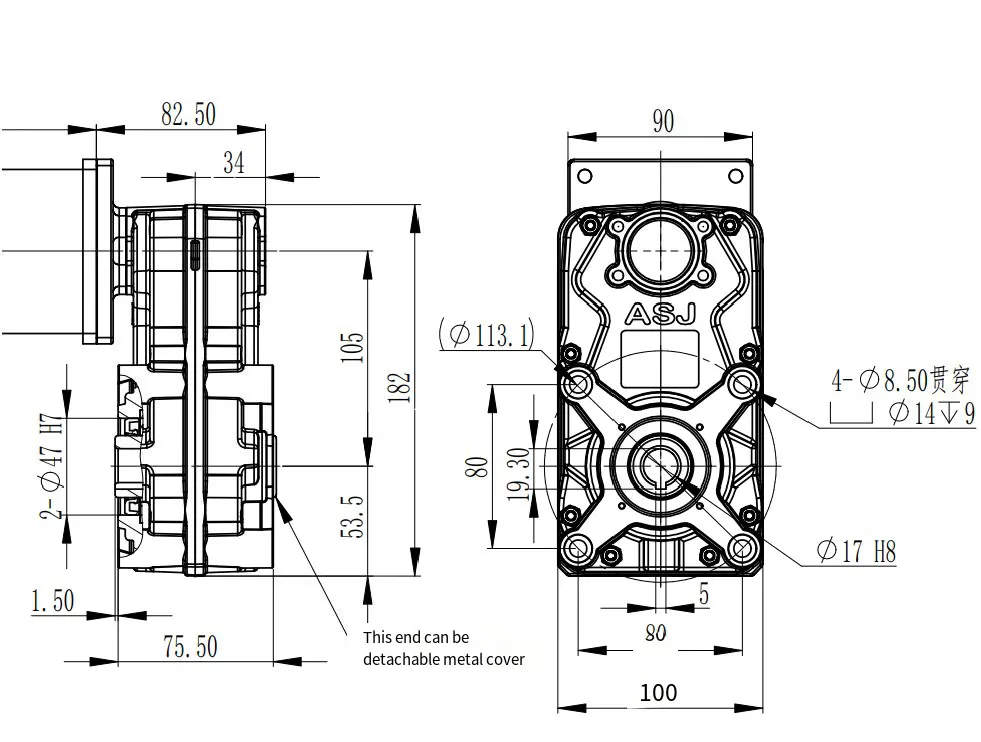

External Dimensions:

Technical Parameter:

Speed ratio: 5—100

Usage Method of FGV105 Series Helical Gear Reducer for High Precision Equipment:

Using the FGV105 Series Gear Reducer is straightforward and seamless. Follow these steps for proper installation and operation:Preparation: Gather the necessary tools and equipment for installation. Review the manufacturer's instructions and guidelines to ensure proper installation and operation.Mounting: Securely mount the gear reducer to the high-precision equipment, following the recommended specifications and alignment guidelines. Ensure a stable and rigid connection to minimize vibration and maintain precision.Alignment and Calibration: Align the gear reducer with the corresponding components of the high-precision equipment, such as the motor, shafts, or spindles. Follow the manufacturer's guidelines for alignment and calibration to optimize performance and accuracy.Testing and Adjustment: Once installed, perform thorough testing to ensure the gear reducer functions correctly. Make any necessary adjustments to fine-tune performance and achieve optimal precision.

Maintenance Tips of FGV105 Series Helical Gear Reducer for High Precision Equipment:

Proper maintenance is essential to maximize the lifespan and performance of the FGV105 series gear reducer. Here are some essential maintenance tips:Regular Lubrication: Follow the manufacturer's recommendations for lubrication intervals and use high-quality lubricants suitable for high-precision machinery. Apply the lubricant to the designated points to ensure smooth operation and reduce friction and wear.Inspection and Cleaning: Regularly inspect the gear reducer for any signs of wear, damage, or contamination. Clean the exterior surfaces using a soft cloth or brush to remove dust and debris that may affect performance. Ensure that the gear reducer is free from contaminants that could compromise precision.Environmental Considerations: Protect the gear reducer from extreme temperatures, excessive moisture, and corrosive substances. Ensure proper ventilation and implement additional sealing if necessary. Maintain a clean and controlled environment to preserve the precision and performance of the gear reducer.

FGV105 Series Helical Gear Reducer Application:

How Does The FGV105 Series Helical Gear Reducer For High Precision Equipment Achieve Exceptional Precision And Accuracy Compared To Standard Gear Reducers?

The FGV105 Series Helical Gear Reducer for High Precision Equipment achieves exceptional precision and accuracy through several key design features and engineering considerations. Here are the factors that contribute to its superior performance compared to standard gear reducers:Helical Gear Design: The FGV105 Series utilizes a precision-crafted helical gear design. Unlike standard gear reducers that often use spur gears, the helical gears feature teeth that are cut at an angle. This design reduces backlash, which is the play or clearance between gear teeth, resulting in improved accuracy and precision in motion control applications.High-Quality Materials and Manufacturing: The FGV105 Series is constructed with high-quality materials and undergoes meticulous manufacturing processes. The gears are precision-machined to tight tolerances, ensuring consistent tooth profiles and accurate gear meshing. This attention to detail minimizes variations and irregularities that can negatively impact precision.Rigid and Sturdy Construction: The gear reducer is engineered with a rigid and sturdy construction. It features a robust housing and components that minimize flexing or deformation during operation. This rigidity enhances the stability and repeatability of the gear reducer, allowing for precise and accurate movement.Reduced Vibration and Noise: The helical gear design of the FGV105 Series reduces vibration and noise compared to standard gear reducers. The angled teeth engage gradually, resulting in smoother and quieter operation. Minimizing vibration is crucial for high precision equipment as it helps to maintain accurate positioning and reduces unwanted disturbances that can affect precision.Advanced Lubrication System: The FGV105 Series incorporates an advanced lubrication system. Proper lubrication is crucial for reducing friction, wear, and heat generation in gear reducers. The efficient lubrication system of the FGV105 Series ensures optimal lubrication distribution, promoting smooth gear operation and enhancing precision.Precision Alignment and Calibration: The FGV105 Series requires meticulous alignment and calibration during installation. Proper alignment ensures the precise meshing of gears and minimizes misalignment-induced errors. Calibration fine-tunes the gear reducer to achieve optimal performance and accuracy in specific high precision applications.

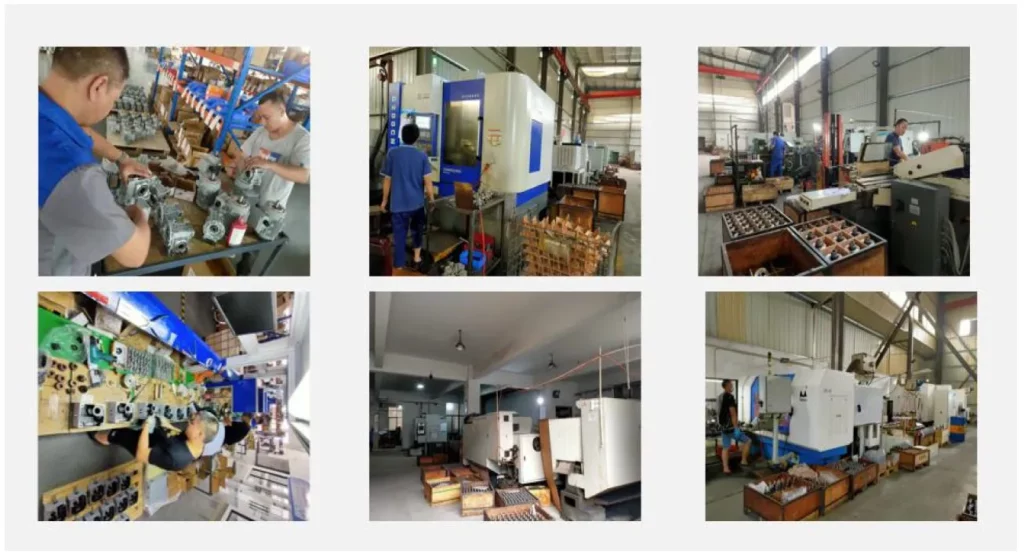

Working Area:

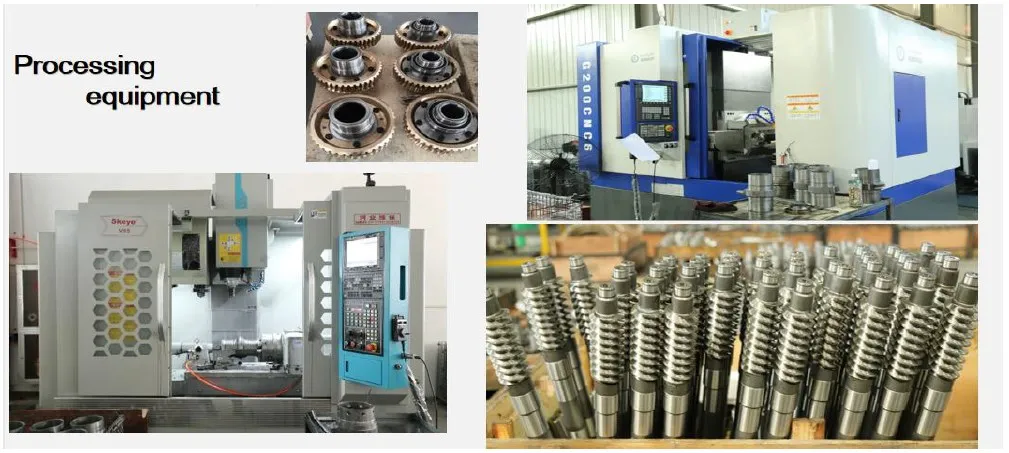

Processing Equipment:

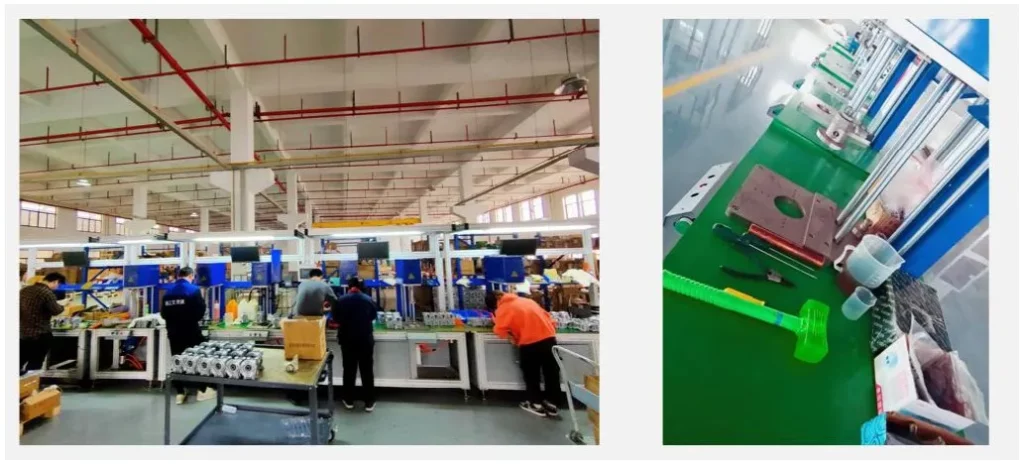

Semi-automatic Assembly Line:

Our Company:

The company has introduced advanced production and testing equipment at home and abroad, hired professional and technical personnel in the industry to carry out innovative research and development and manufacturing, adopted standardized production management, strictly control every link of reducer production, and has been providing customers with high quality, high energy efficiency, and high stability products for many years. A research and development center in China has also been established to increase research and innovation in the transmission field to make transmission more efficient and reliable! To better provide customers with transmission solutions.The main products are MRV series worm gear reducer, GV series gear reducer, RT series solar gear reducer, XV series planetary gear reducer, BD series harmonic gear reducer, and another non-standard gear reducer. We also provide another helical gear reducer, welcome you to order. Products are widely used in the equipment, food, car washing, packaging, transmission, automation, and solar energy industries.
