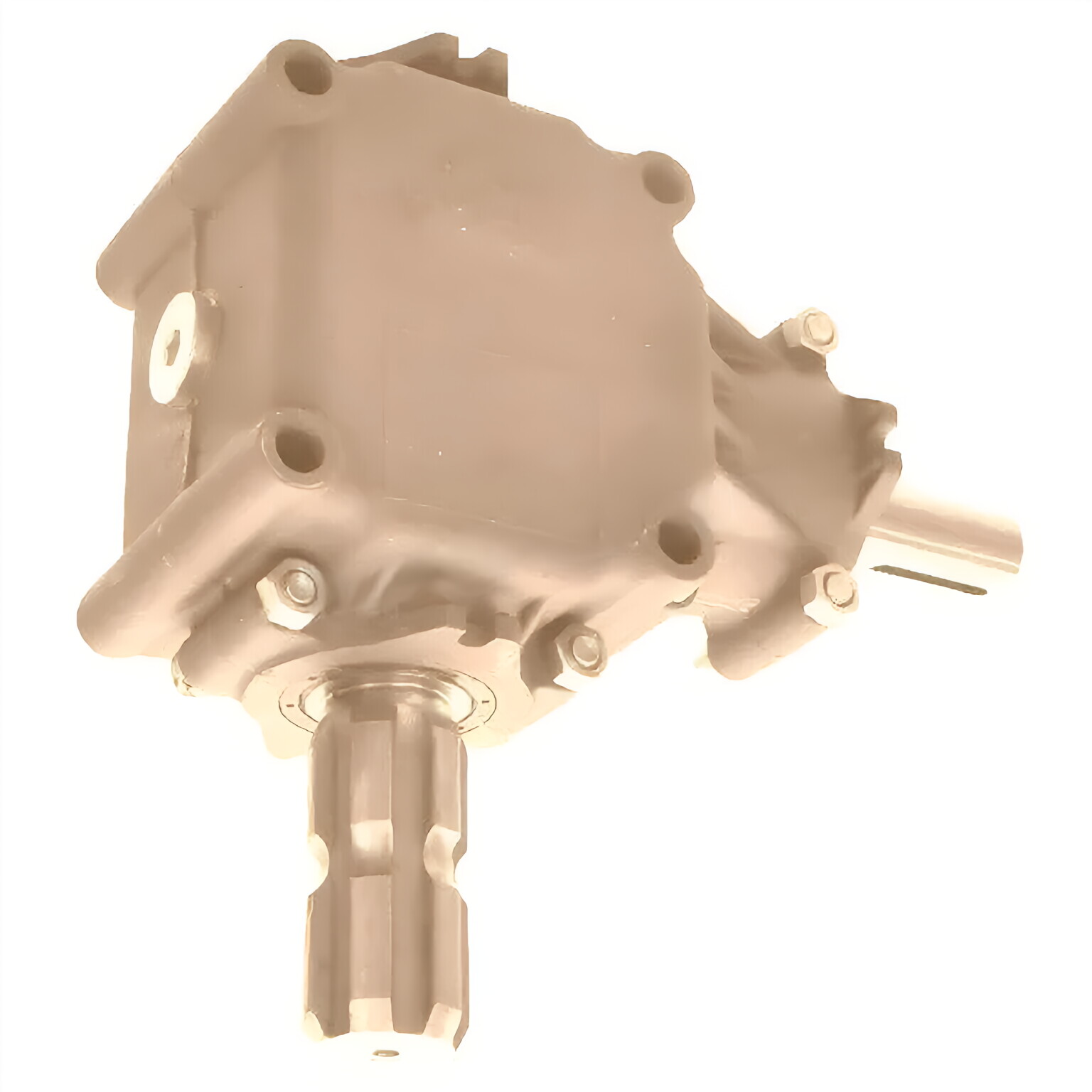

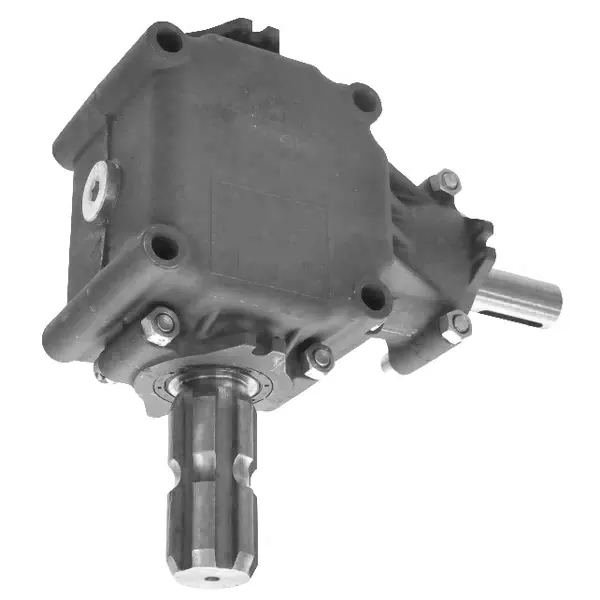

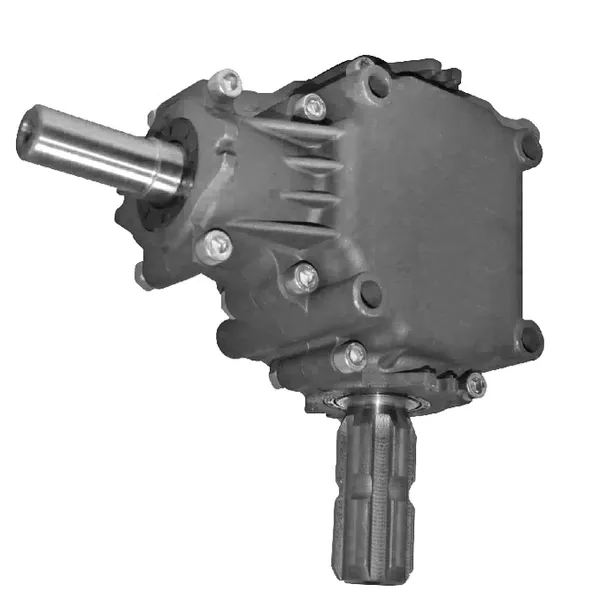

Flail Mower Gearbox - Replacement of Comer Code L25J 1:1.9

Flail Mower Gearbox - Replacement of Comer Code L-25J 1:1.9

Flail mower gearbox L-25J is a specific model of gearbox designed for use in flail mower applications. The flail mower gearbox L-25J is designed to be compact yet durable, with cast iron housing and precision-machined gears that can withstand the stresses of flail mower use. It's capable of handling up to 90 horsepower and can operate at speeds up to 540 RPM.The flail mower gearbox L-25J is designed for use with a range of flail mowers, from small garden tractors to larger agricultural equipment. It's also designed to work with a PTO (Power Take-Off) shaft to transfer power from the tractor to the flail mower blades. Overall, the flail mower gearbox L-25J is a reliable and effective solution for flail mowing applications, designed with quality materials and precision engineering to provide reliable, long-lasting performance in the field.

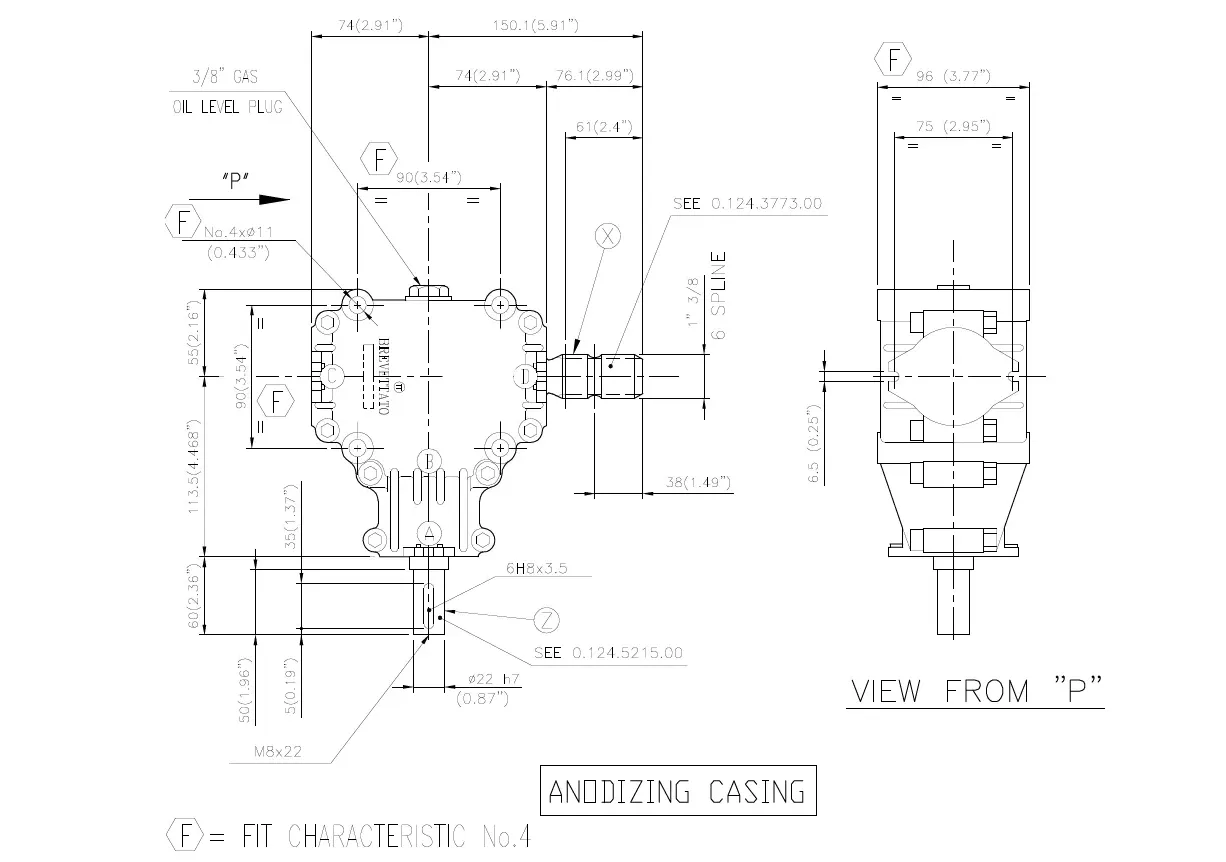

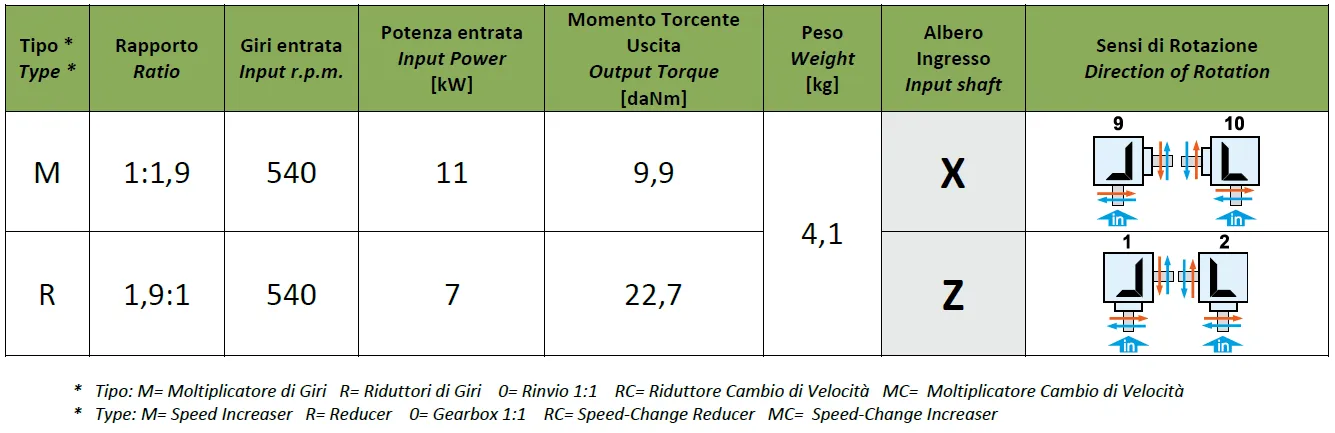

▍Specifications of Flail Mower Gearbox L-25J (1:1.9)



Description	Flail Mower Gearbox - Replacement of Comer Gearbox L-25J 1:1.9
Product details	All gearboxes are supplied without oil. First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year. Contact us for power at a different RPM.
Application range	Various (agricultural) applications Mowers Chemical fertilizer spreaders Band saws
Consists of	Gearbox Without oil
Max. output torque	22.7 daNm
Contains oil	No
Max. oil capacity	0.35 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Aluminium
Weight	4.1 kg
Gear arrangement Reducing	1 - 2
Input power kW / HP Increasing	11 / 15 kW/HP
Input shaft Increasing	X
Input shaft Reducing	Z
Input power KW / HP Reducing	7 / 9.5 kW/HP
Output Torque DaNm Increasing	9.9 daNm
Ratio Increasing	1: 1.9
Ratio Reducing	1.9: 1
Shaft X	1 3/8" (6) (A)
Shaft Z	22 (D)

▍Advantages of Flail Mower Gearbox L-25J (1:1.9)

There are several advantages of using a flail mower gearbox L-25J in flail mowing applications, including:1. Durable construction: The flail mower gearbox L-25J is constructed of high-quality materials, including cast iron housing and precision-machined gears, which provide excellent durability and resistance to wear and tear.2. High torque capacity: The flail mower gearbox L-25J is designed to handle high levels of torque, allowing it to power through tough mowing conditions and handle heavy loads.3. Smooth operation: The precision-machined gears of the flail mower gearbox L-25J provide a smooth and quiet operation, reducing vibration and stress on the flail mower and tractor.4. Easy maintenance: The flail mower gearbox L-25J is designed for easy maintenance, with simple oil change procedures and easy access to internal components.5. Versatility: The flail mower gearbox L-25J is designed to work with a variety of flail mowers and can be used with a range of tractors, making it a versatile solution for different mowing applications.Overall, the flail mower gearbox L-25J provides reliable and efficient performance, making it a great choice for flail mowing applications where durability, high torque capacity, and smooth operation are important considerations.

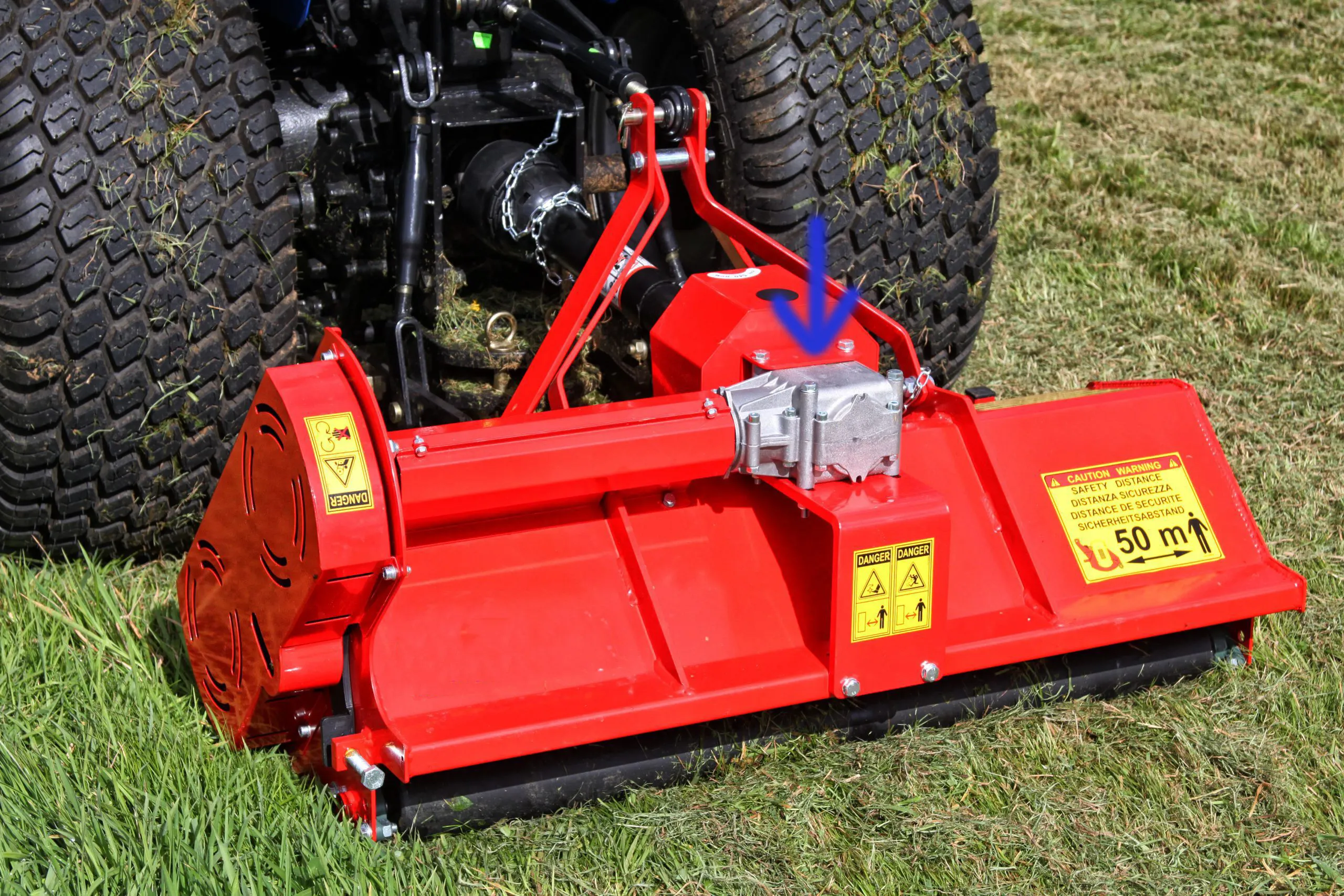

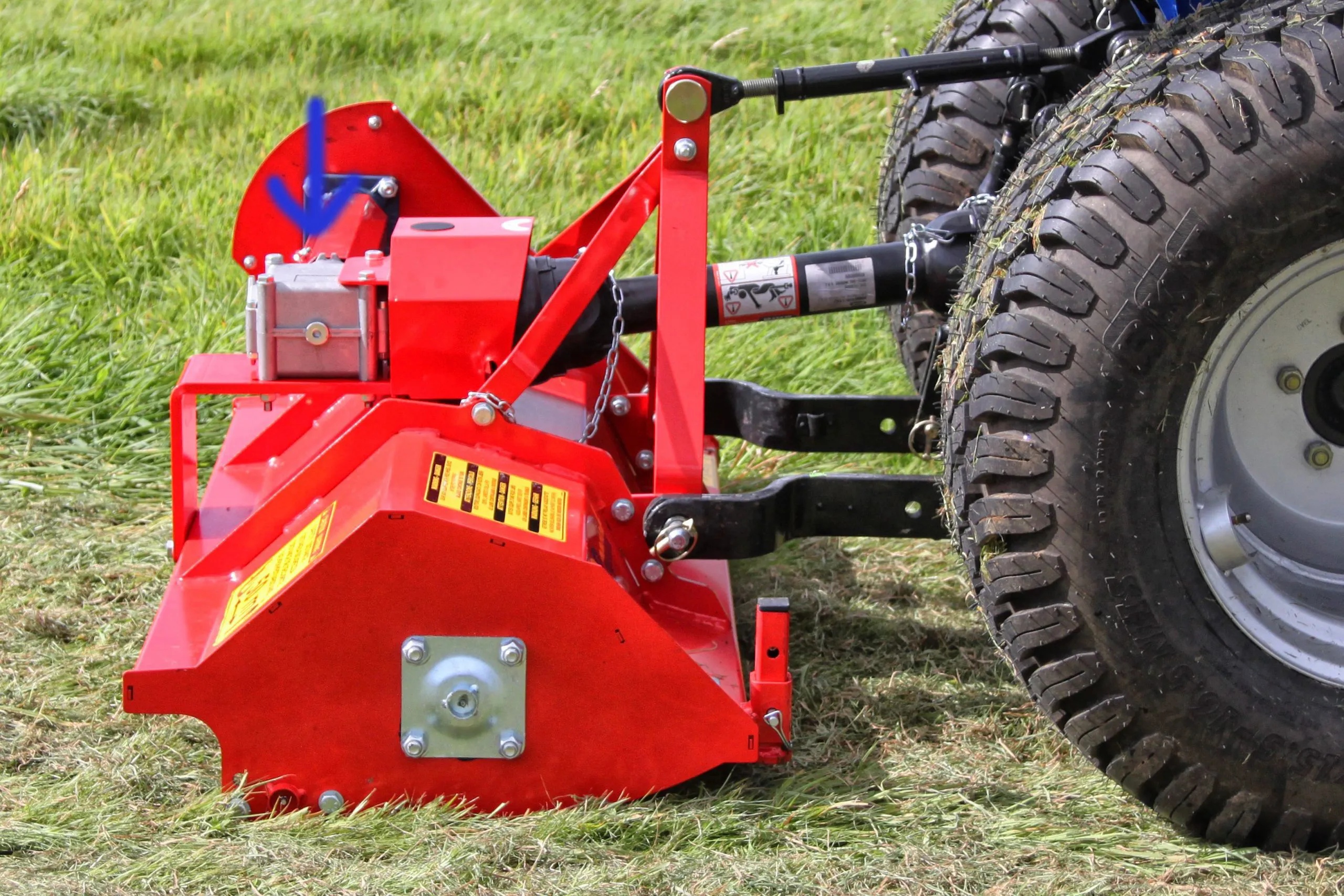

▍How Does the Flail Mower Gearbox Work?

A flail mower gearbox is a type of gearbox that is used to power a flail mower. Flail mowers are used to cut down brush, weeds, and other vegetation. They are typically used in agricultural and landscaping applications.The flail mower gearbox works by transferring power from the tractor's power takeoff (PTO) shaft to the flail mower's cutting head. The gearbox has a number of gears that are arranged in a specific way. The gears multiply the torque of the PTO shaft, which allows the flail mower to cut through tough vegetation.The flail mower gearbox is an important component of the flail mower. It provides the power and speed necessary to cut through tough vegetation. The flail mower gearbox is also responsible for protecting the flail mower's internal components from wear and tear.Here are the steps on how the flail mower gearbox works:

1. The tractor's PTO shaft is connected to the input shaft of the flail mower gearbox.
2. The input shaft turns the gears in the flail mower gearbox.
3. The gears multiply the torque of the PTO shaft, which allows the flail mower to cut through tough vegetation.
4. The output shaft of the flail mower gearbox is connected to the flail mower's cutting head.
5. The flail mower's cutting head rotates, which cuts through the vegetation.

The flail mower gearbox is a complex piece of machinery that is essential for the operation of a flail mower. It is important to keep the gearbox in good condition to ensure that the flail mower operates properly.

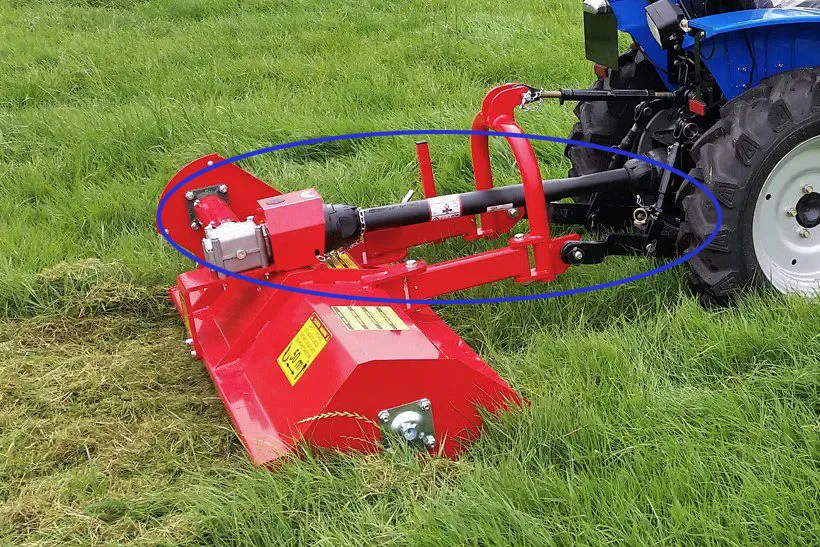

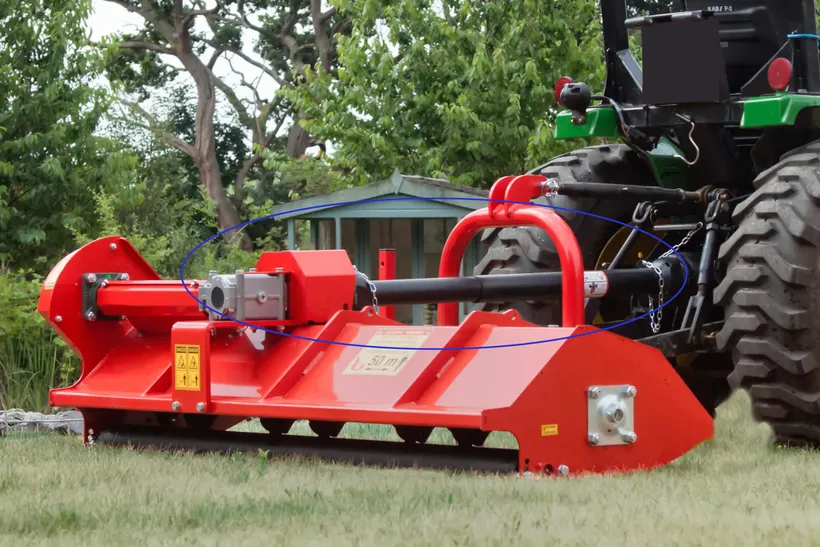

▍Agricultural PTO Shaft for Flail Mower Gearbox

An agricultural PTO (Power Take Off) shaft is a mechanical device that transmits power from the tractor to an attached implement, such as a flail mower. It is a vital component of the overall system, as it ensures that the implement receives the necessary power to function properly.The PTO shaft for a flail mower gearbox typically consists of three parts: the yoke, the universal joint, and the telescopic tube assembly. The PTO shaft yoke is the part that attaches to the tractor PTO, while the PTO shaft universal joint allows for flexibility and movement between the tractor and the flail mower. The PTO shaft telescopic tube assembly is responsible for varying the length of the PTO shaft to accommodate changes in the position of the implement.When selecting a PTO shaft for a flail mower gearbox, it is important to consider its overall length, as well as its torque rating. The torque rating should be compatible with the output of the tractor's PTO shaft to ensure that the flail mower receives sufficient power to operate effectively.Proper maintenance and safety measures must be followed when using an agricultural PTO shaft for a flail mower gearbox to avoid damage or injury. This includes regular greasing and inspection of the shaft, ensuring the correct installation and alignment of the components, and wearing appropriate protective gear while operating the equipment.

▍How to Choose the Right PTO Shaft for Flail Mower Gearbox?

Choosing the right PTO shaft for a flail mower gearbox is crucial for ensuring the efficient and safe functioning of the equipment. Here are some factors that you should consider when making your selection:1. Shaft Length: The length of the PTO shaft should match the distance between the tractor PTO shaft and the flail mower gearbox. A shaft that is too long or too short can cause mechanical problems and reduce efficiency.2. Torque Capacity: The PTO shaft must be able to handle the torque produced by the tractor's engine. In order to figure out the necessary torque capacity, you need to know the horsepower of the tractor and the operating speed of the PTO shaft. Make sure that the torque capacity of the PTO shaft is equal to or greater than the tractor's output.3. Shielding: A properly shielded PTO shaft for a flail mower gearbox ensures that you and those around the equipment remain safe from moving parts in case of accidental detachment or disconnection. Make sure that the PTO shaft is fitted with a shielding system that meets current safety standards.4. Durability: Look for a PTO shaft that is made of high-quality materials that are resistant to wear and tear, and match the rating of the flail mower gearbox.5. Brand Compatibility: Choose a PTO shaft that is manufactured by a company that has the right specifications to match your flail mower gearbox.By considering these factors, you can better ensure that you purchase the right PTO shaft for your flail mower gearbox that will provide you with safe and efficient operation.

▍Flail Mower Gearboxes Troubleshooting

Flail mower gearboxes can sometimes experience issues that require troubleshooting. Here are some common problems and solutions to consider:Leakage: If you notice oil leaking from the flail mower gearbox, it could be due to worn-out seals or gaskets. Replacing these components should stop the leakage.Noise: Excessive noise from the flail mower gearbox often indicates damaged or worn-out gears. It may need a replacement.Poor Cutting Performance: If the mower isn't cutting well, the issue may be due to improper blade adjustment or a dull blade. Check the blade adjustment and sharpen the blades if necessary.Overheating: If the flail mower gearbox is overheating, it may indicate a lack of lubrication. Check the gearbox oil level and add more if necessary or replace it altogether.Stuck Gears: If the flail mower gearbox gears get stuck, it may indicate that they're improperly aligned or have too much play. This can cause the gears to wear out and become damaged. Check the alignment and make the necessary adjustments or replace the gears.Remember to always follow the manufacturer's instructions when troubleshooting a flail mower gearbox problem. Regular maintenance and care can also help prevent flail mower gearbox issues from occurring in the first place.

▍We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearbox, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. If you want to buy flail mower gearboxes, please get in touch with us.
