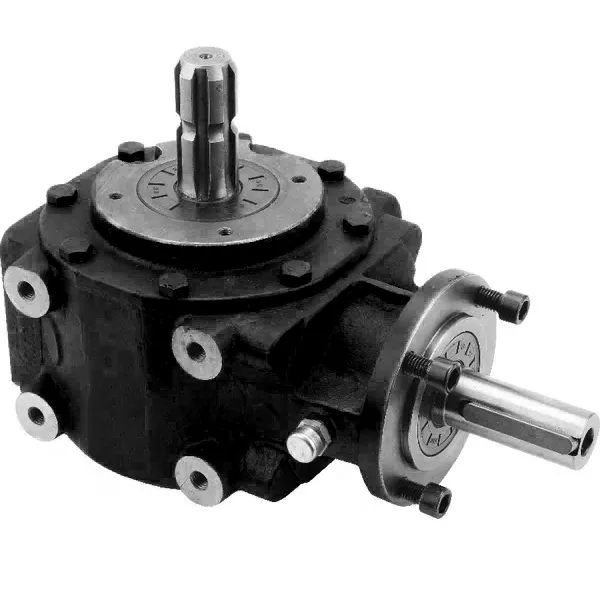

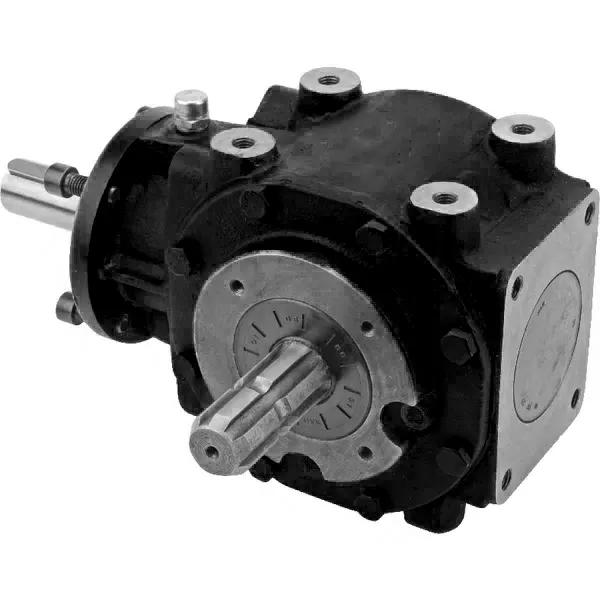

Flail Mower Gearbox - Replacement of Comer Code T-311J 1:3

Flail Mower Gearbox - Replacement of Comer Code T-311J 1:3

Flail mower gearbox T-311J is a type of gearbox used in a flail mower, which is a type of agricultural equipment used for cutting and shredding grass or vegetation. The gearbox is compatible with several models of flail mowers and is responsible for transferring power from the tractor's PTO shaft to the mower's blades.The flail mower gearbox T-311J is made of high-quality materials and is designed to withstand the high demands of agricultural work. It has a compact design, making it easy to install and maintain. The gearbox features spiral bevel gears that help reduce noise and improve the overall efficiency of the mower.The flail mower gearbox T-311J has a 1:3 gear ratio, allowing it to generate significant power to drive the flail mower's blades while maintaining the required speed. This feature makes the gearbox ideal for use on rugged terrain or when working with tough vegetation.Overall, the flail mower gearbox T-311J is a reliable and efficient choice for those in the agricultural industry who require high performance and durability from their equipment.

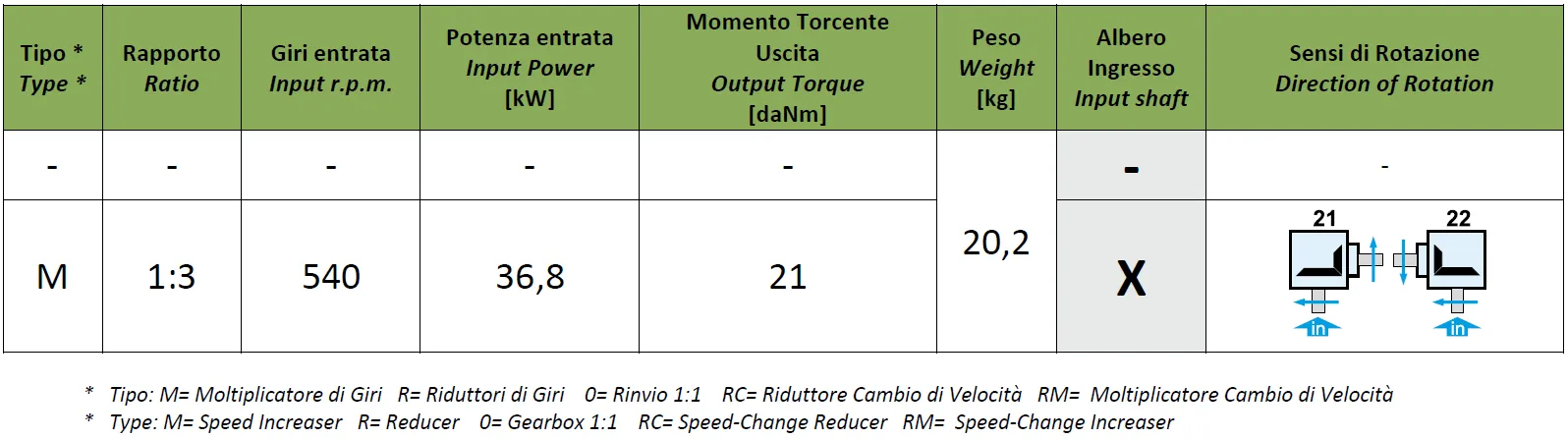

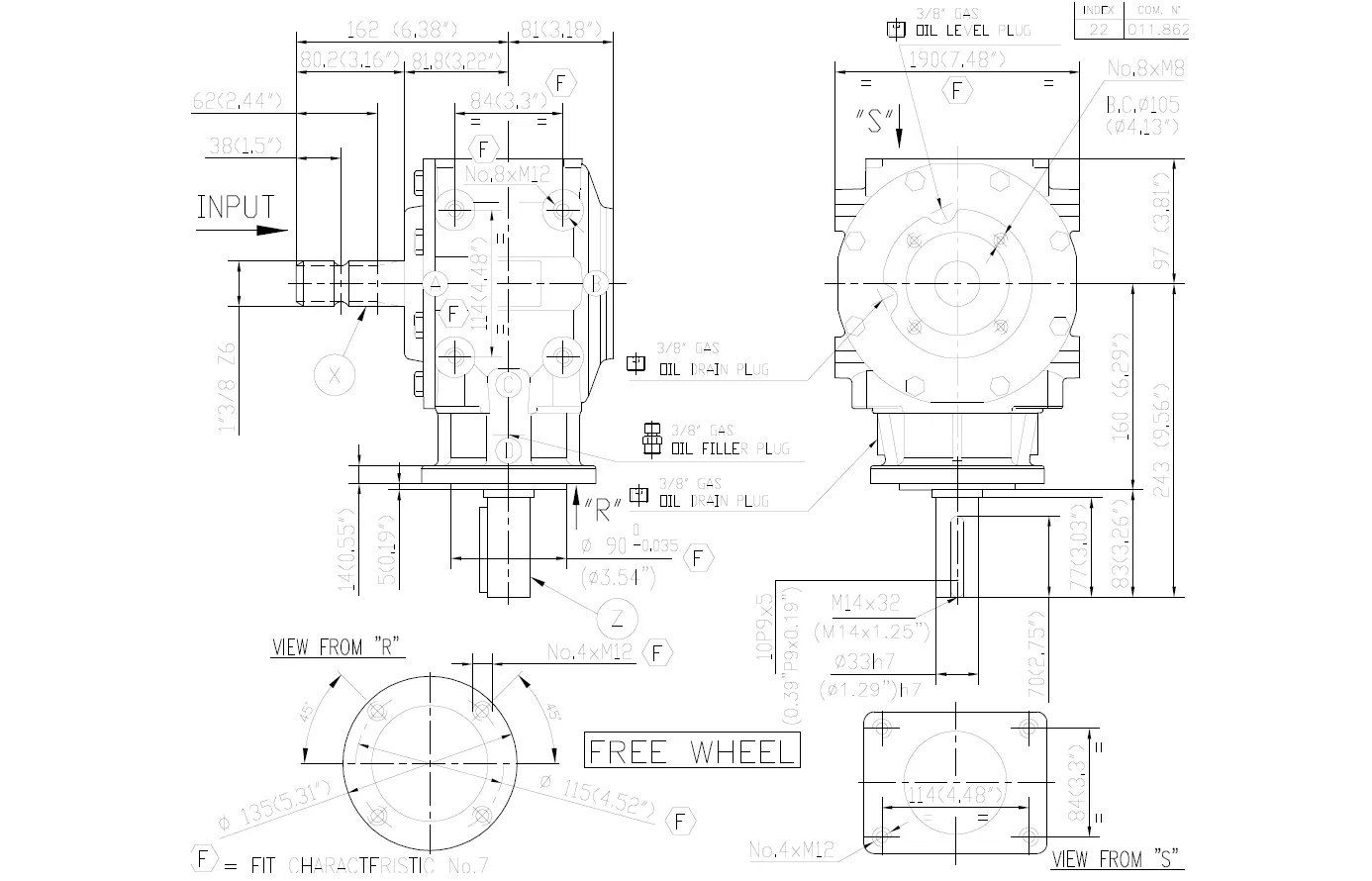

▍Specifications of Flail Mower Gearbox T-311J (1:3)

Product Name	Flail Mower Gearbox - Replacement of Comer Gearbox T-311J (1:3)
Long description	Gearbox with freewheel and only apply as an accelerator in the specified direction.
Product details	Housing material: cast iron Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range	Various (agricultural) applications Rotary tiller
Consists of	Gearbox Order oil separately
Contains oil	No
Max. oil capacity	1.2 l
Oil SAE viscosity grade	80W-90
Weight	20.5 kg
Gear arrangement Increasing	21-22
Input power kW / HP Increasing	36.8 / 50 kW/HP
Input shaft Increasing	X
Output Torque DaNm Increasing	21 daNm
Ratio Increasing	1 : 3
Shaft X	1 3/8 Z6
Shaft Z	33H7

▍Characteristic of Flail Mower Gearbox T-311J

A flail mower gearbox is designed to transfer power from the mower's engine to the cutting head. It typically consists of housing, bearings, gears, and shafts. The T-311J model of flail mower gearbox includes the following features:High-speed gears: The flail mower gearbox may have high-speed gears that help to maintain the flail mower's cutting quality and efficiency.Durable construction: The flail mower gearbox T-311J may be made of high-quality materials that can withstand the rigors of continuous use, including heavy-duty cutting and rough terrain.Easy maintenance: The flail mower gearbox may be designed for easy and convenient maintenance, making it simple to repair or replace individual components as needed.Multiple speed settings: The flail mower gearbox T-311J could have multiple speed settings to choose from, allowing the user to adjust the flail mower's cutting speed as per requirement.Enhanced performance: The flail mower gearbox may come with features like anti-vibration mounts and improved cooling systems to deliver better performance.Overall, a good flail mower gearbox should be reliable, durable, easy to maintain, and capable of delivering efficient cutting performance in a range of different conditions.

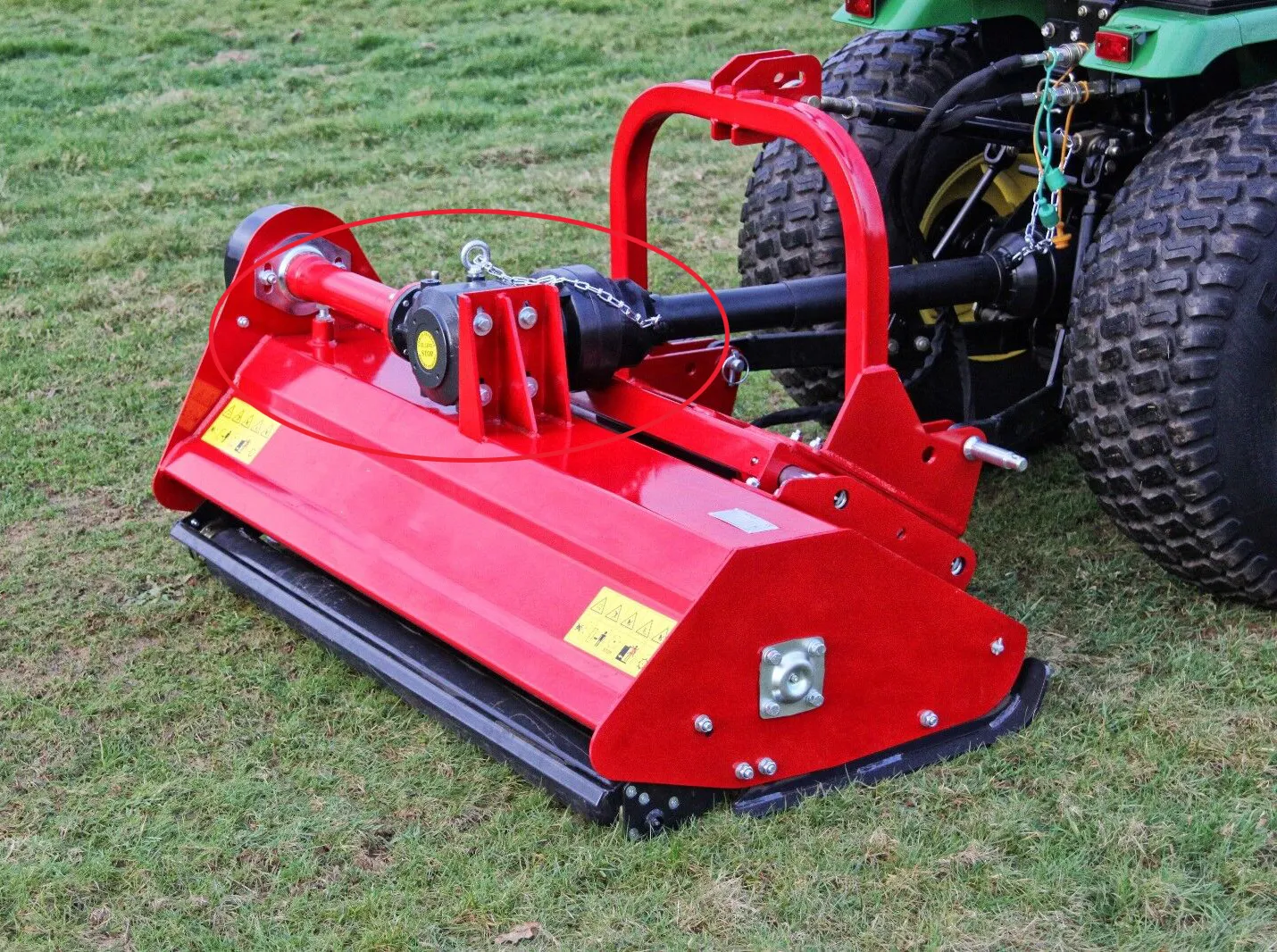

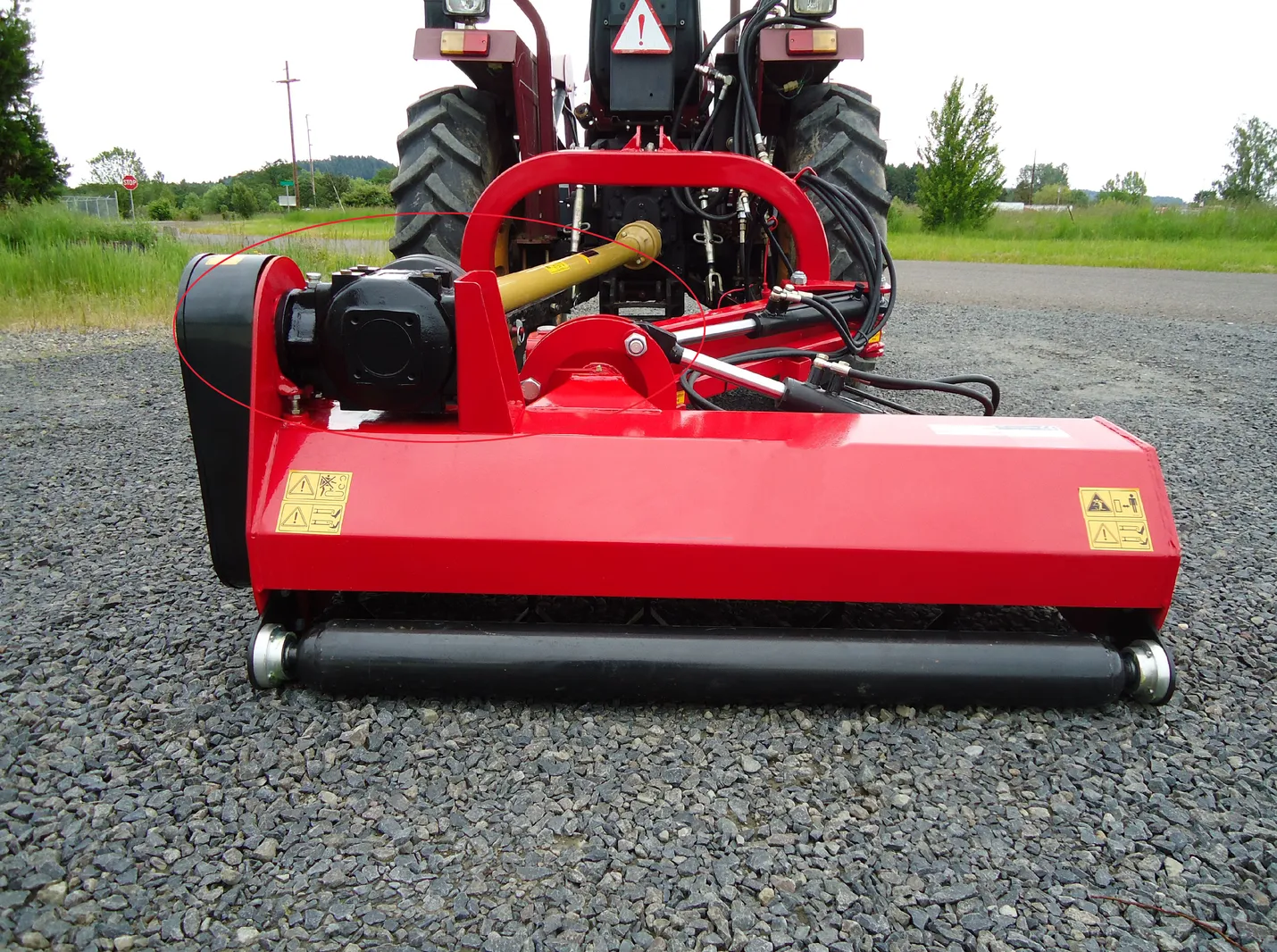

▍Applications of Flail Mower Gearbox T-311J

Flail mower gearboxes are used in agriculture, landscaping, and forestry industries for cutting grass, weeds, crop residues, and brush. Below are some of the common applications of flail mower gearboxes:Agricultural uses: The flail mower gearbox is commonly used in agriculture to maintain a variety of crops, such as pasture, hay, and silage fields. They are also used in orchards and vineyards to keep the weeds under control and maintain a clean and healthy environment.Landscaping and grounds care: A flail mower gearbox is an essential tool for landscaping and grounds care professionals. They are used to mow parks, golf courses, sports fields, and other public spaces.Forestry: In forestry, flail mower gearboxes are used to clear undergrowth and small trees. They are also used for land reclamation and for clearing roadside vegetation.Road maintenance: The flail mower gearbox is also used for maintaining roadsides, highways, and other infrastructure projects. They can efficiently cut weeds and vegetation alongside sidewalks, medians, and curbs.Overall, flail mower gearboxes are versatile tools that offer many applications across various industries. They are ideal for maintaining large areas and ensuring safe and healthy environments.

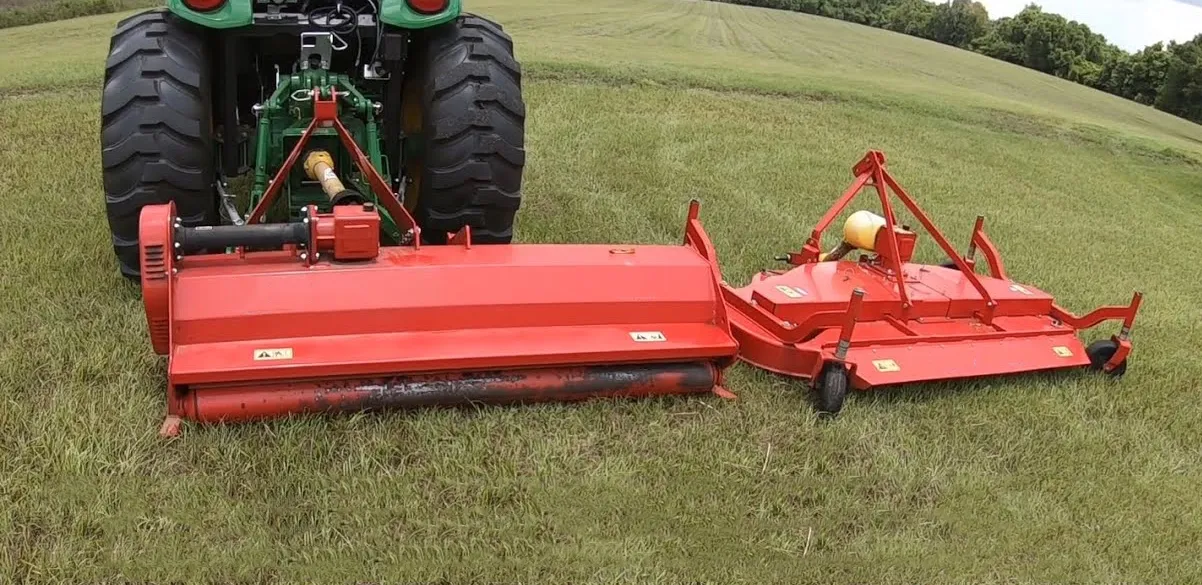

▍The Difference Between Flail Mower Gearbox and Rotary Mower Gearbox

The flail mower gearbox and rotary mower gearbox are not the same. While they both have the same function of transmitting power from the engine to the cutting blades, the flail mower gearbox is designed to withstand the heavier loads and stress generated by the flail blades, which strike the vegetation at high speeds. Flail mower gearboxes are generally larger, heavier, and more durable than those rotary mowers. On the other hand, rotary mower gearboxes are usually smaller, lighter, and less complex since rotary mower blades rotate horizontally and work on a less dense and softer material, such as grass. The type of gearbox that is needed will depend on the type of mower, the cutting application, and the terrain.Flail mower gearboxes and rotary mower gearboxes are both used to power mowers, but they have some key differences. Flail mower gearboxes are typically used for heavier-duty applications, such as cutting through brush and weeds. Rotary mower gearboxes are typically used for lighter-duty applications, such as cutting grass. Here is a table that summarizes the key differences between flail mower gearboxes and rotary mower gearboxes:In general, flail mower gearboxes are more expensive than rotary mower gearboxes. However, they are also more durable and can handle heavier-duty applications. Rotary mower gearboxes are less expensive and are better suited for lighter-duty applications.

▍PTO Shaft for Flail Mower Gearbox

The PTO (power take-off) shaft is an essential component in the linkage between the tractor and flail mower gearbox. The PTO shaft transfers power from the tractor engine to the gearbox, which drives the flail mower. A good quality PTO shaft ensures the smooth and efficient transfer of power from the tractor to the flail mower, resulting in better performance and longevity of the machine.When selecting a PTO shaft for a flail mower gearbox, a few key factors should be considered, including the length of the shaft, the diameter of the shaft, the number of splines, and the type of connection. The length of the shaft should be compatible with the distance between the tractor PTO and the flail mower gearbox. The diameter of the shaft must be strong enough to handle the power transmitted by the tractor. The number of splines on the shaft should match the gearbox input shaft to ensure proper fit and operation.It's essential to inspect the PTO shaft regularly to ensure it's in good working condition. Any signs of damage, wear, or tear, such as cracks or broken components, should be addressed immediately. Proper maintenance of the PTO shaft, including greasing and lubrication, can help extend its lifespan and ensure the uninterrupted performance of the flail mower gearbox.

▍Flail Mower Gearbox Oil Lubrication

Lubricating the flail mower gearbox in the flail mower is crucial for keeping the gearbox operating smoothly and prolonging its lifespan. Here are some tips for lubricating the flail mower gearbox:Use the right oil: Always use the oil recommended by the manufacturer to ensure that the oil provides the necessary protection against wear and tear, as well as the extreme pressures that the flail mower gearbox may experience.Check the oil level: Check the oil level before each use of the machine and make sure that it is at the recommended level. Overfilling or underfilling the flail mower gearbox can cause damage to the unit and create unnecessary wear on the gears.Change the oil: Change the oil at regular intervals, as recommended by the manufacturer. Old or contaminated oil can cause wear to the gears and other components, which can cause the flail mower gearbox to fail prematurely.Use a manual oil pump: Use a manual oil pump to lubricate the gearbox, as this will help ensure that the oil is distributed evenly throughout the flail mower gearbox.Use a dedicated oil pump: Some flail mowers have a dedicated oil pump that automatically lubricates the flail mower gearbox. If your model has this feature, follow the manufacturer's instructions for using it.Inspect and replace the oil filter: Some flail mowers have an oil filter included in the oil lubrication system. Inspect the oil filter frequently to ensure it is not clogged, and replace it regularly as recommended.By following these tips for lubricating the flail mower gearbox, you can ensure that your flail mower operates efficiently and has a long service life.

▍We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearbox, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy flail mower gearboxes, please get in touch with us.
