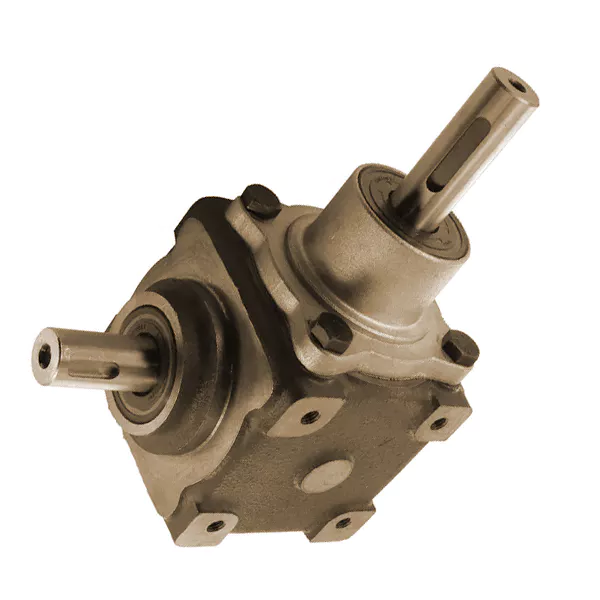

Flail Mower Gearboxes - Replacement of Comer Code L-5A 1:1.89

Flail Mower Gearboxes - Replacement of Comer Code L-5A 1:1.89

The flail mower gearbox L-5A is a type of gearbox that is used in flail mowers. Flail mowers are a type of lawn mower that use a series of rotating blades to cut grass. The flail mower gearbox is responsible for transmitting power from the engine to the rotating blades. The flail mower gearbox L-5A is a heavy-duty gearbox that is designed to withstand the rigors of use in a flail mower. It is made of cast iron and has a gear ratio of 1:1.89. The gearbox is also equipped with a safety clutch that will disengage the blades if the engine stalls or if the operator releases the throttle. The flail mower gearbox L-5A is a popular choice for flail mowers because it is durable, reliable, and easy to maintain. It is also available at a reasonable price.

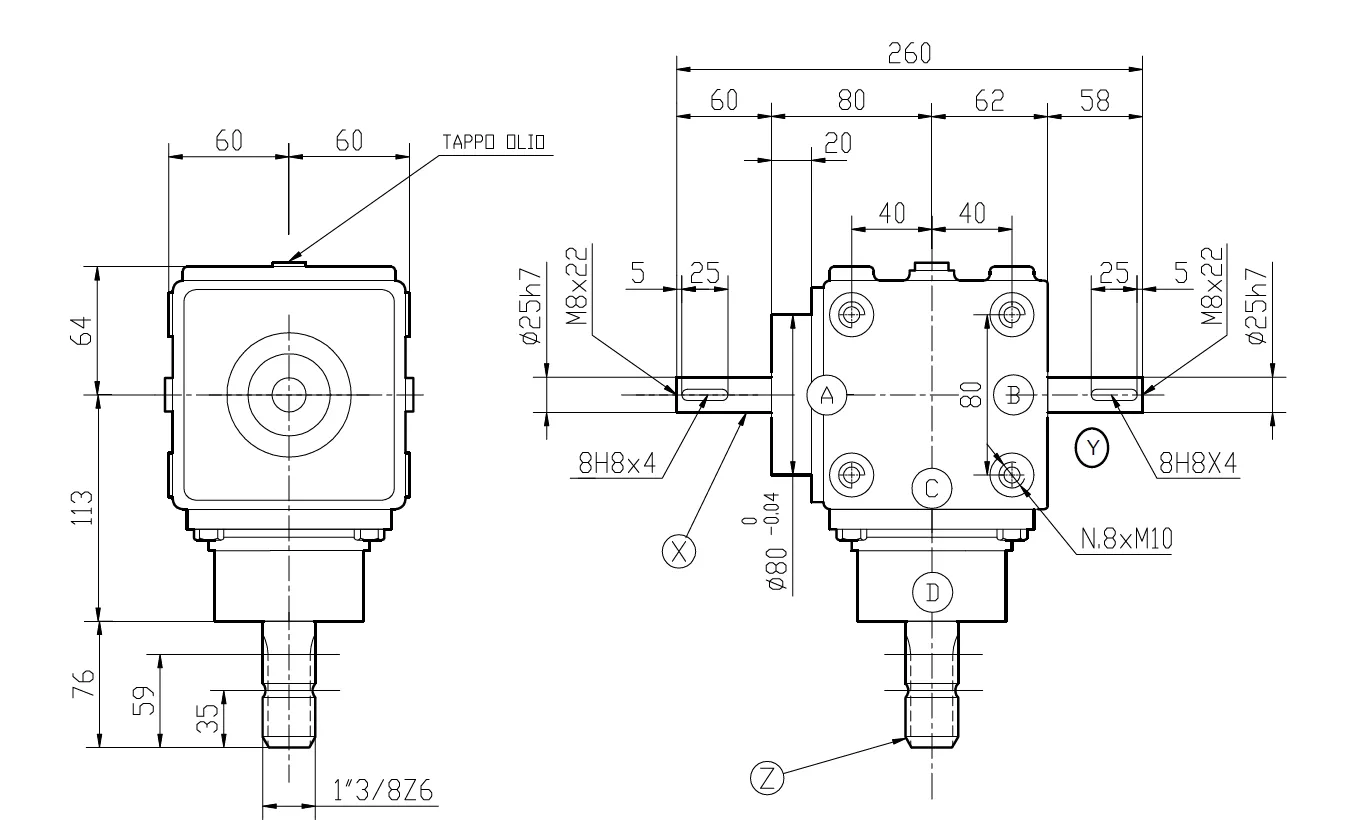

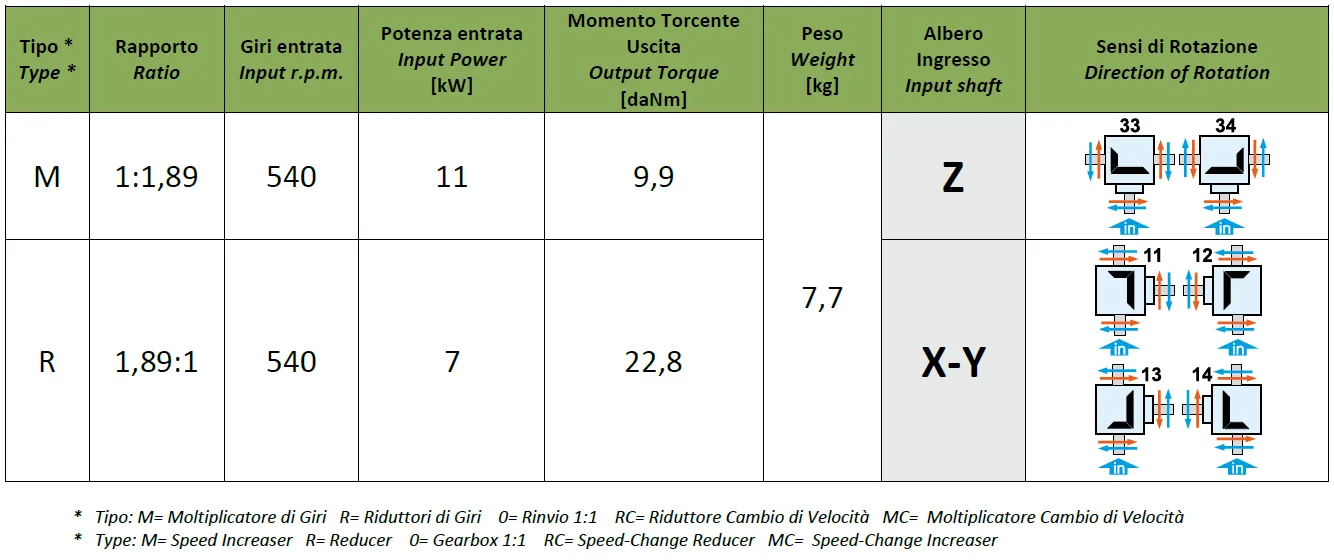

Specifications of Flail Mower Gearbox L-5A (1:1.89)

Product Description	Flail Mower Gearboxes - Replacement of Comer Gearbox L-5A 1:1.89
Product details	Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range	Various (agricultural) applications Mowers Band saws
Consists of	Gearbox Without oil
Max. output torque	22.8 daNm
Contains oil	No
Max. oil capacity	0.4 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GG20
Weight	7.7 kg
Gear arrangement Increasing	13 - 14
Gear arrangement Reducing	1 - 2
Input power kW / HP Increasing	11 / 15 kW/HP
Input shaft Increasing	X
Input shaft Reducing	Z
Input power KW / HP Reducing	7 / 9.5 kW/HP
Output Torque DaNm Increasing	9.9 daNm
Ratio Increasing	1: 1.89
Ratio Reducing	1.89: 1
Shaft X	25 (M)
Shaft Z	25 (D)

Benefits of Flail Mower Gearbox L-5A (1:1.89)

The flail mower gearbox L-5A is a high-quality gearbox designed specifically for use with flail mowers. Here are some benefits of using the flail mower gearbox L-5A:High Durability: The flail mower gearbox L-5A is made of high-quality materials designed to provide long-term durability and withstand heavy use.Smooth Performance: The flail mower gearbox L-5A has a high gear ratio that ensures smooth and efficient blade operation, resulting in a uniform and clean cut.Easy maintenance: The flail mower gearbox L-5A has an easy-to-reach oil fill plug, making it easy to add or replace oil when necessary. Additionally, it has a drain plug that makes it easy to change and dispose of used oil.High Compatibility: The flail mower gearbox L-5A is compatible with a wide range of flail mower models from different manufacturers, making it an ideal choice for those looking for a versatile and compatible gearbox.Cost-effective: The flail mower gearbox L-5A is affordably priced, making it an excellent value for those looking for a quality gearbox at a reasonable price.Efficient Power Transfer: The flail mower gearbox L-5A has an efficient power transfer mechanism, ensuring that the power of the tractor is transferred to the mower blades effectively, resulting in a cleaner and more efficient cut.Overall, the flail mower gearbox L-5A is an excellent choice for those looking for a durable, efficient, and high-performing gearbox for their flail mower.

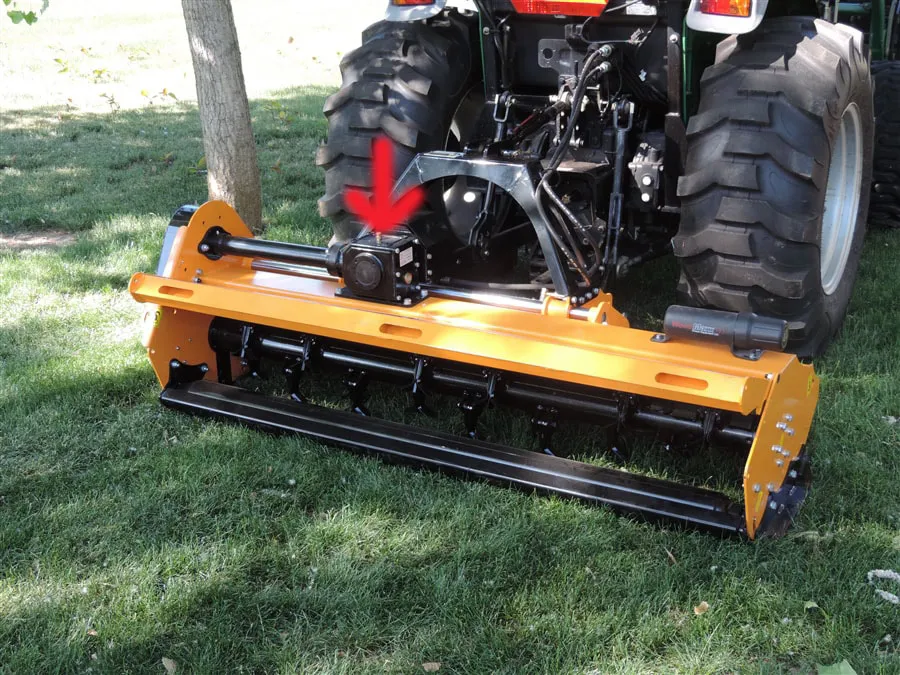

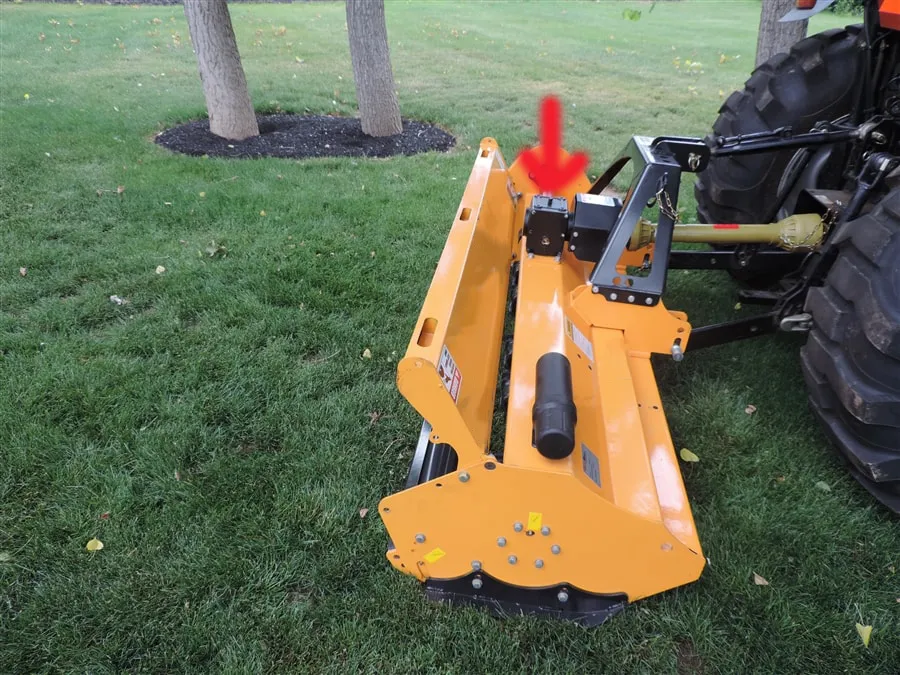

Installation of Flail Mower Gearboxes Precautions

Proper installation of a flail mower gearbox is critical to ensure optimal performance and longevity of the equipment. Here are some precautions to consider when installing a flail mower gearbox:1. Read the manufacturer's instructions carefully: Before installation, carefully read the manufacturer's instructions and guidelines to ensure proper installation and use of the equipment.2. Inspect the equipment: Inspect the flail mower gearbox to ensure that all components are in good condition before installation. Check for signs of damage, such as cracks or dents, and ensure that all fasteners are tight.3. Align the gearbox: Proper alignment of the flail mower gearbox is necessary for efficient operation. Ensure that the gearbox and driveline are aligned with the PTO output shaft to prevent excessive wear and damage to the equipment.4. Use the correct PTO shaft: Always use the correct PTO shaft for your machine and ensure that it is properly sized and rated for the application. An undersized or incorrectly rated PTO shaft can cause equipment damage or pose a safety risk.5. Lubricate the gearbox: Proper lubrication of the flail mower gearbox is essential for optimal performance and longevity of the equipment. Use the recommended lubricants and follow the manufacturer's guidelines for periodic lubrication.6. Check the rotation: Ensure that the flail mower gearbox is rotating in the correct direction, as specified by the manufacturer. Incorrect rotation can result in damage to the equipment and compromised performance.7. Test the equipment: After installation, test the flail mower gearbox to ensure that it is operating correctly and smoothly. If any issues are detected, refer to the manufacturer's instructions or consult with a professional to resolve them before using the equipment.Following these precautions during installation can help ensure that your flail mower gearbox operates efficiently and safely.

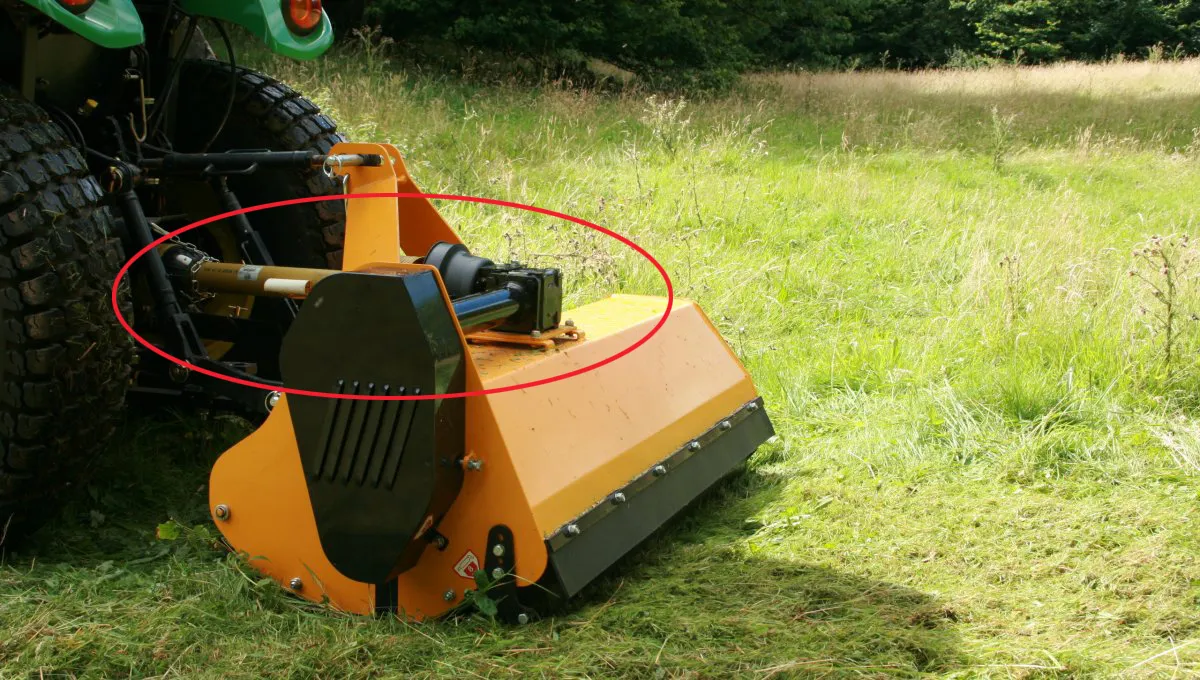

Agricultural PTO Shaft for Flail Mower Gearbox

An agricultural PTO (Power Take-Off) shaft is a rotating shaft that transfers power from a tractor to an attached implement or machine, such as a flail mower. The PTO shaft is connected to the tractor's flail mower gearbox and rotates at high speed to provide the necessary power to run the flail mower or other implements. There are many different types of agricultural PTO shafts and flail mower gearboxes available. The type of gearbox that is best for a particular application will depend on the size of the tractor, the type of flail mower, and the amount of power that is needed.The flail mower gearbox is the component that connects to the PTO shaft and provides the necessary power and speed to the flail mower blades to operate effectively. The flail mower gearbox's speed and torque output are dependent on the gear ratio and power rating of the gearbox, which must be carefully matched to the flail mower's requirements.The PTO shaft and flail mower gearbox work together to transfer power from the tractor to the flail mower, resulting in the efficient operation of the mower blades. Proper maintenance of the PTO shaft and gearbox is essential to ensure the safe and reliable operation of the flail mower.Regular maintenance tasks include checking and replenishing oil levels, checking for any leaks or signs of damage, and maintaining the proper alignment of the flail mower gearbox and PTO shaft. It's important to follow the manufacturer's instructions for maintenance and use to ensure the longevity and performance of both the PTO shaft and flail mower gearbox.

Flail Mower Gearbox Oil Lubrication and Maintainance

Proper lubrication and maintenance are essential for the optimal operation and longevity of a flail mower gearbox. Here are some guidelines for flail mower gearbox oil lubrication and maintenance:1. Use the right oil: Always use the type of oil recommended by the manufacturer for your specific flail mower gearbox model. The recommended oil viscosity, consistency, and performance enhancements are essential for optimal gear protection.2. Check oil levels regularly: Check the flail mower gearbox oil level regularly, and top up if necessary, using only the manufacturer's recommended oil. Overfilling can cause oil buildup inside the gearbox, leading to oil contamination and blockages.3. Monitor oil condition: Monitor the oil condition regularly, looking for signs of contamination, excessive wear, or damage. If the oil becomes contaminated with water or debris, it should be changed immediately to avoid a decrease in lubrication performance.4. Change the oil regularly: Change the flail mower gearbox oil at the intervals specified by the manufacturer. Regularly replacing the oil can help to remove built-up contaminants and ensure that the gearbox operates at peak efficiency.5. Inspect gears and bearings: Regularly inspect the gears and bearings for wear, cracks, or damage. Worn gears or bearings can cause excessive heat and noise production, decreased fuel efficiency, and eventual flail mower gearbox failure.6. Address any issues promptly: If any issues are detected during regular maintenance, address the issue promptly. Prompt replacement of faulty components or gears can help minimize further damage and prevent gear failure with a drop in efficiency.By following these guidelines, you can help to ensure that your flail mower gearbox performs optimally and lasts for a long time. Regular maintenance and lubrication can help to minimize downtime, reduce maintenance costs and improve equipment performance.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearbox, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. If you want to buy flail mower gearboxes, please get in touch with us.
