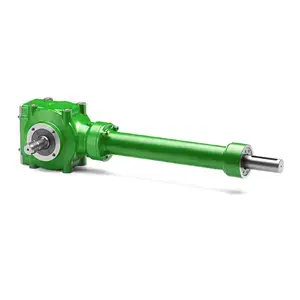

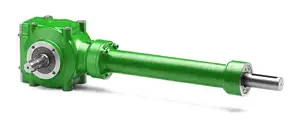

Flail Mower Gearboxes – Replacement of Comer Code TL281E

Flail Mower Gearboxes – Replacement of Comer Code TL281E

The flail mower gearbox is an essential component of a flail mower, a type of agricultural machinery used for cutting grass, weeds, and other vegetation. This type of agricultural gearbox is responsible for transferring power from the tractor to the mower's flail blades, which rotate rapidly to chop up the vegetation. It is designed to withstand the high stresses and strains of heavy-duty mowing operations and is typically made of durable materials like cast iron or steel. The flail mower gearbox includes features like oil seals, bearings, and gears to ensure smooth and efficient operation.

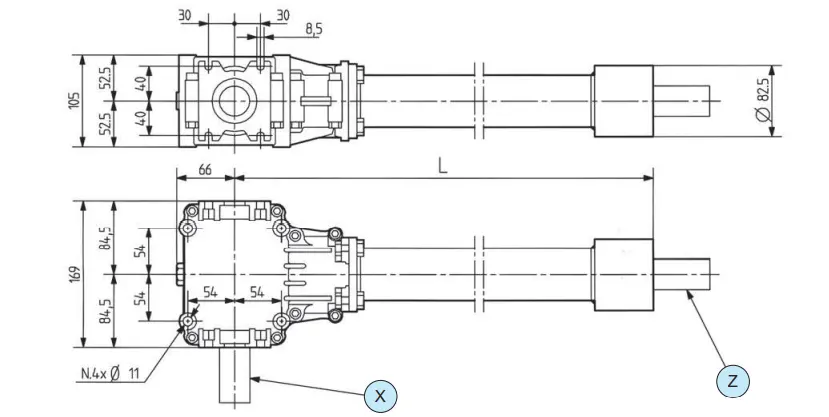

Specifications of Flail Mower Gearboxes TL281E

i	2.91/1.85
N1[rpm]	540
P1[kW]	8.1-14.7
M2[Nm]	48-136
Shaft X	1'' 3/8 Z6
Shaft Z	Φ25/Φ30
Input	X



Characteristics of Flail Mower Gearbox

The flail mower gearbox is characterized by its ability to transfer high levels of power from the tractor to the flail blades, which enables efficient cutting of tough vegetation. It is built with durable materials and designed to withstand heavy loads and harsh environments. The gearbox typically includes features like bearings, oil seals, and gears, which allow for smooth and reliable operation. Additionally, some models may have adjustable settings, allowing operators to customize the cutting height and intensity. Overall, the flail mower gearbox is an essential component for effective and efficient land maintenance.

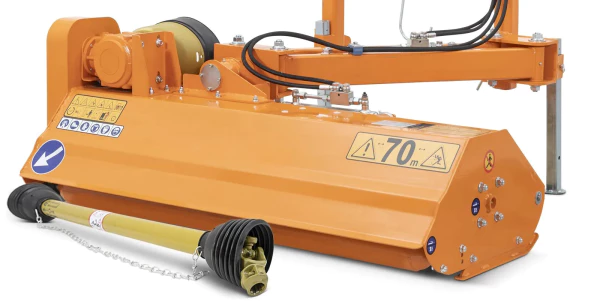

PTO Shafts for Flail Mower Gearbox

A power take-off (PTO) shaft is an essential component of a flail mower gearbox. It's responsible for transmitting power from the tractor to the flail mower, allowing it to operate efficiently.Here are some things to consider when selecting a PTO shaft for your flail mower gearbox:

1. Shaft size: Make sure that the PTO shaft you choose is the correct size for your flail mower gearbox. The most common sizes for PTO shafts are 1 3/8 inches and 1 3/4 inches.
2. Length: The length of the PTO shaft should be appropriate for your tractor and flail mower. It should be long enough to allow the tractor to turn without binding but not so long that it becomes difficult to handle.
3. Quality: Look for a PTO shaft made from high-quality materials that can withstand the rigors of heavy use. A good quality shaft will also have durable universal joints and protective guards to prevent accidents.
4. Compatibility: Ensure that the PTO shaft you choose is compatible with both your tractor and your flail mower gearbox. Some PTO shafts may not be suitable for certain tractors or gearboxes, so be sure to check the specifications before purchasing.

Thus, selecting the right PTO shaft is crucial for the proper operation of your flail mower gearbox. Taking the time to choose the correct size, length, quality, and compatibility will help ensure that your equipment runs smoothly and lasts for years to come. If you need help, Raydafon is always here to help! Contact us for more information about our PTO shafts for sale.
