Flared Tube Unions for 37° Flared Tube Fittings

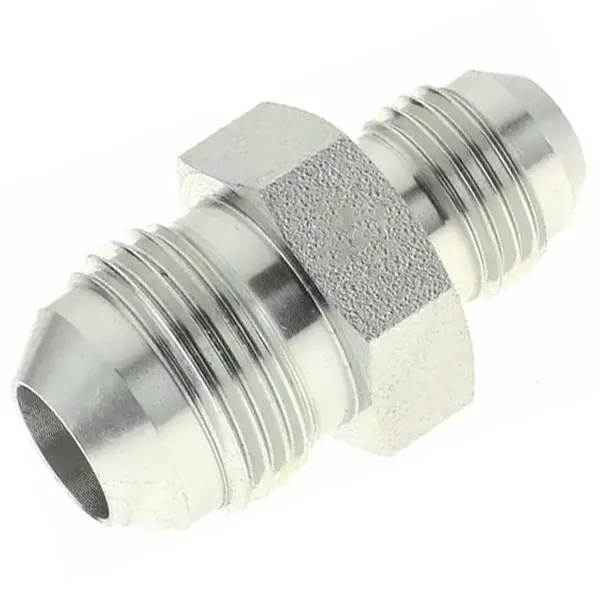

Flared Tube Unions

Flared tube unions are a type of fitting used in plumbing and hydraulic systems to connect pipes or tubes together securely. They are commonly used in applications where a leak-free connection is required, such as in automotive, aerospace, and industrial systems.The design of a flared tube union consists of two main components: the flared fitting and the flare nut. The fitting has a flared end, which is a cone-shaped expansion at the end of the pipe or tube. The flare nut is a threaded nut that screws onto the fitting, compressing it against the receiving fitting or component.The flared end of the fitting is created by using a specialized tool called a flaring tool. This tool is used to shape the end of the pipe or tube into a 45-degree cone. The cone-shaped flare provides a larger surface area for the seal to be made, ensuring a tight and reliable connection.To assemble a flared tube union, the flared end of one pipe or tube is inserted into the receiving fitting or component. The flare nut is then threaded onto the fitting and tightened by hand or with a wrench. As the nut is tightened, it compresses the flared end of the fitting against the receiving component, forming a seal. This compression creates a strong and leak-free connection between the two parts.One of the advantages of using flared tube unions is their resistance to vibration and mechanical stress. The compression created by the flare nut helps to absorb and distribute forces, reducing the likelihood of loosening or leaking under dynamic conditions.

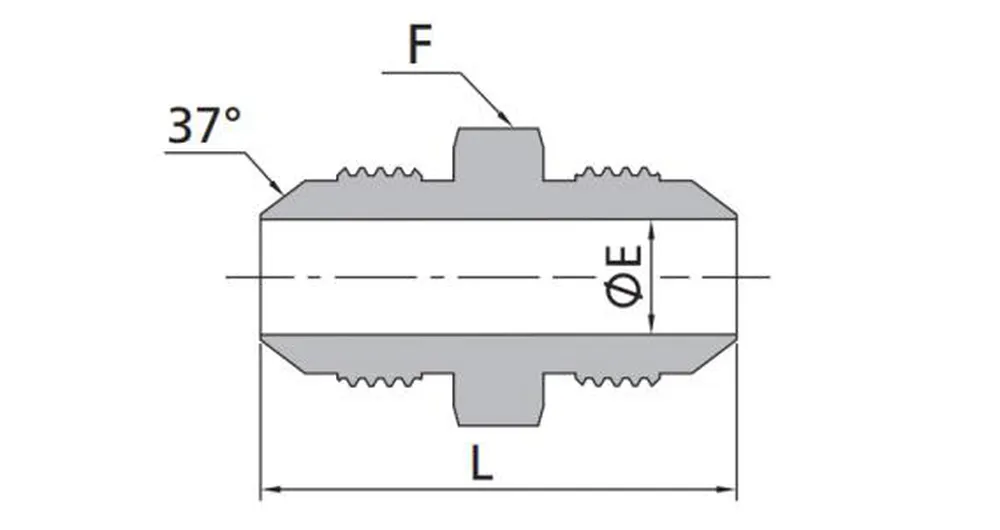

Flared Tube Unions Size Chart:

T-Tube O.D		Basic OrderingNumber	Dimension，in .(mm)
In	mm		L	E	F (Hex)
1/8	3	-JU-AN2	1.17 (29.7)	0.06(1.6)	0.44 (11.1)
3/16	4	-JU-AN3	1.23 (31.2)	0.13(3.2)	0.44 (11.1)
1/4	6	-JU-AN4	1.37 (34.8)	0.17 (4.4)	0.50 (12.7)
5/16	8	-JU-AN5	1.37 (34.8)	0.24 (6.0)	0.56 (14.3)
3/8	10	-JU-AN6	1.41 (35.8)	0.30 (7.5)	0.63 (15.9)
1/2	12	-JU-AN8	1.62 (41.1)	0.39 (9.9)	0.81 (20.6)
5/8	16	-JU-AN10	1.88 (47.8)	0.48 (12.3)	0.94 (23.8)
3/4	18	-JU-AN12	2.16 (54.9)	0.61 (15.5)	1.13 (28.6)
7/8	22	-JU-AN14	2.21 (56.1)	0.72(18.0)	1.25 (31.8)
1	25	-JU-AN16	2.25 (57.2)	0.85 (21.5)	1.37 (34.9)
1 1/4	32	-JU-AN20	2.43 (61.7)	1.08 (27.5)	1.69 (42.9)
1 1/2	38	-JU-AN24	2.75 (69.8)	1.30 (33.0)	2.00 (50.8)
2	50	-JU-AN32	3.40 (86.4)	1.77 (45.0)	2.63 (66.7)

Typical Applications of Flared Tube Unions:

Flared tube unions find application in various industries and systems where reliable and leak-free connections are required. Here are some typical applications of flared tube unions:(1) Automotive Industry: Flared tube unions are commonly used in automotive brake systems. They provide a secure and leak-free connection between brake lines, ensuring the safe and efficient transfer of hydraulic fluid.(2) Refrigeration and Air Conditioning: Flared tube unions are used in refrigeration and air conditioning systems to connect refrigerant lines. The tight seal provided by the flared connection helps maintain the integrity of the system and prevent refrigerant leaks.(3) Hydraulic Systems: Flared tube unions are widely employed in hydraulic systems, such as those found in heavy machinery, construction equipment, and industrial machinery. They connect hydraulic lines, allowing the transfer of pressurized fluids without leakage.(4) Aerospace Industry: Flared tube unions are utilized in aircraft hydraulic systems, fuel lines, and other critical applications where reliable connections are essential. They help ensure the safe and efficient operation of various aircraft systems.(5) Plumbing and Gas Systems: Flared tube unions are used in plumbing and gas systems to connect pipes carrying water, gas, or other fluids. They provide a secure and leak-free connection, especially in applications involving high-pressure fluids.(6) Oil and Gas Industry: Flared tube unions are employed in oil and gas pipelines and processing facilities. They facilitate the connection of pipes and tubes carrying oil, gas, and other hydrocarbon products, ensuring the integrity of the system and preventing leaks.(7) Industrial Applications: Flared tube unions are utilized in various industrial applications, including chemical processing plants, power generation facilities, and manufacturing processes. They provide reliable connections for fluid transfer, ensuring operational safety and efficiency.(8) Laboratory Equipment: Flared tube unions can be found in laboratory equipment, such as chromatography systems and analytical instruments. They enable the connection of fluid lines, maintaining the integrity of the sample or reagent flow.
