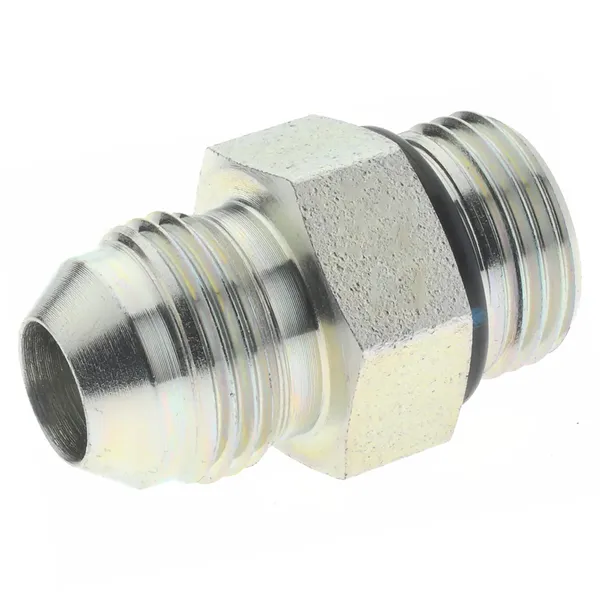

When working with hydraulic and pneumatic systems, the components you use to connect tubes and hoses are critical to the functionality and safety of the system. One common type of fitting used in these applications is the Male Connectors-SAE Flared Tube Fittings. Within this category, male connectors play an indispensable role.A male connector typically refers to a fitting that has an external thread and is designed to mate with a corresponding female fitting. In the context of SAE flared tube fittings, a male connector would have a flared end that provides a metal-to-metal seal with a flared female fitting. The term "SAE" stands for the Society of Automotive Engineers, which sets standards for many automotive components, including hydraulic fittings. SAE flared tube fittings are known for:

• Their 45-degree flare angle.
• Ability to handle high pressures.
• Resistance to vibration.
• Offering a tight, reliable seal due to their metal-to-metal contact.

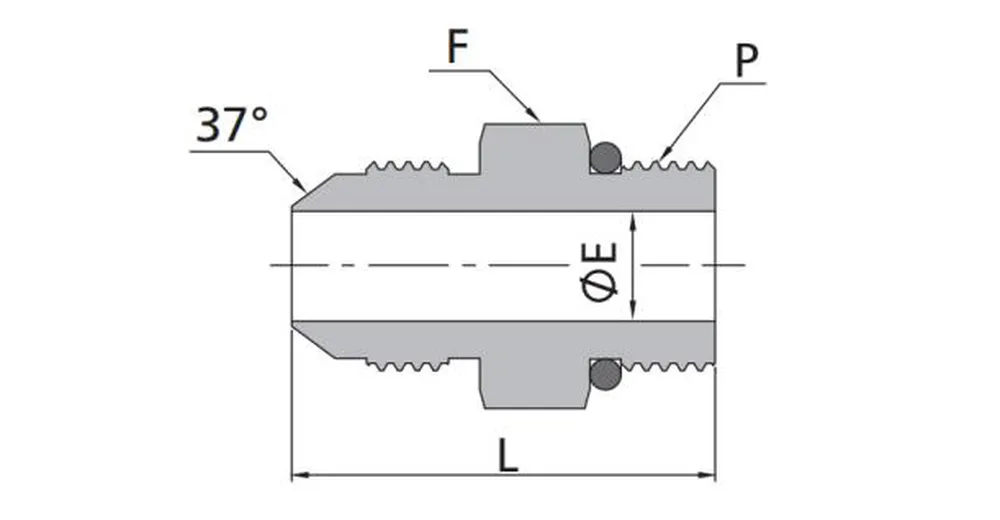

Male Connectors-SAE Flared Tube Fittings Size Chart:

T-Tube O.D		P-SAEThread Size	Basic OrderingNumber	Dimension, in. (mm)
In.	mm			L	E	F (Hex)
1/8	3	5/16-24	-JMC-AN2-ST5	1.06(26.9)	0.06(1.6)	0.44(11.1)
3/16	4	3/8-24	-JMC-AN3-ST6	1.10(27.9)	0.13(3.2)	0.50(12.7)
1/4	6	7/16-20	-JMC-AN4-ST7	1.23(31.2)	0.17 (4.4)	0.56(14.3)
1/4	6	1/2-20	-JMC-AN4-ST8	1.23(31.2)	0.17 (4.4)	0.63 (15.9)
1/4	6	9/16-18	-IMC-AN4-ST9	1.30(33.0)	0.17 (4.4)	0.69 (17.5)
1/4	6	3/4-16	-JMC-AN4-ST12	1.37(34.8)	0.17 (4.4)	0.87 (22.2)
5/16	8	1/2-20	-JMC-AN5-ST8	1.23(31.2)	0.24(6.0)	0.63 (15.9)
3/8	10	9/16-18	-JMC-AN6-ST9	1.30(33.0)	0.30 (7.5)	0.69 (17.5)
3/8	10	3/4-16	-JMC-AN6-ST12	1.38(35.1)	0.30 (7.5)	0.87 (22.2)
3/8	10	7/8-14	-JMC-AN6-ST14	1.50(38.1)	0.30(7.5)	1.00 (25.4)
1/2	12	9/16-18	-JMC-AN8-ST9	1.44(36.6)	0.30(7.5)	0.81 (20.6)
1/2	12	3/4-16	-JMC-AN8-ST12	1.48(37.6)	0.39(9.9)	0.87 (22.2)
1/2	12	7/8-14	-JMC-AN8-ST14	1.60(40.6)	0.39(9.9)	1.00 (25.4)
1/2	12	1 1/16-12	-JMC-AN8-ST17	1.76(44.7)	0.39(9.9)	1.25 (31.8)
5/8	16	3/4-16	-JMC-AN10-ST12	1.60(40.6)	0.42(10.7)	0.94 (23.8)
5/8	16	7/8-14	-JMC-AN10-ST14	1.70(43.1)	0.48(12.3)	1.00 (25.4)
5/8	16	1 1/16-12	-JMC-AN10-ST17	1.86(47.2)	0.48(12.3)	1.25 (31.8)
3/4	18	3/4-16	-JMC-AN12-ST12	1.78(45.2)	0.42(10.7)	1.13 (28.6)
3/4	18	7/8-14	-JMC-AN12-ST14	1.83(46.4)	0.50(12.7)	1.13 (28.6)
3/4	18	1 1/16-12	-JMC-AN12-ST17	1.97(50.0)	0.61(15.5)	1.25 (31.8)
3/4	18	1 5/16-12	-JMC-AN12-ST21	2.00(50.8)	0.61(15.5)	1.50(38.1)
7/8	22	1 3/16-12	-JMC-AN14-ST19	1.99(50.5)	0.72(18.3)	1.37 (34.9)
7/8	22	1 5/16-12	-JMC-AN14-ST21	2.02(51.3)	0.72(18.3)	1.50(38.1)
1	25	1 1/16-12	-JMC-AN16-ST17	2.01(51.1)	0.66(16.7)	1.37 (34.9)
1	25	1 3/16-12	-JMC-AN16-ST19	2.04(51.8)	0.72(18.3)	1.37 (34.9)
1	25	1 5/16-12	-JMC-AN16-ST21	2.04(51.8)	0.85(21.5)	1.50(38.1)

Applications of Male Connectors-SAE Flared Tube Fittings:

Male Connectors-SAE flared tube fittings, commonly known as JIC (Joint Industry Council) fittings, are widely used due to their reliability and leak-free nature in high-pressure applications. These fittings typically have a 37-degree flare seating surface. Here are some common applications of male connectors that utilize SAE flared tube fittings:1. Hydraulic Systems: Perhaps the most prevalent use, these SAE flared tube fittings are ubiquitous in hydraulic systems found in industrial machinery, construction equipment, agricultural machinery, and more.2. Pneumatic Systems: While not as common as hydraulic applications, flared tube fittings can also be used in certain high-pressure pneumatic systems.3. Fuel Delivery Systems: In certain aerospace and automotive applications, flared tube fittings are used for fuel delivery to ensure a leak-free connection under varying conditions.4. Chemical Processing: The flared design can be used in chemical processing industries where there's a need for leak-free and reliable connections, especially when dealing with corrosive substances.5. Refrigeration Systems: Male Connectors-SAE flared tube fittings can be found in some refrigeration systems to connect components like compressors, condensers, and evaporators.6. Oil and Gas Industry: These SAE flared tube fittings are employed in oil and gas exploration and processing operations, especially in high-pressure situations or where there's a need for easy disconnection and reconnection.7. Instrumentation: In applications that involve the monitoring and measurement of pressure, temperature, and flow, Male Connectors-SAE flared tube fittings are often used to connect instruments to systems.8. Test Benches: These Male Connectors-SAE flared tube fittings are common on test benches where systems are frequently connected and disconnected or where pressure tests are conducted.9. Marine Applications: Due to their resistance to vibrations and their ability to form a reliable seal, they're often used in marine environments, especially in hydraulic systems on ships or offshore platforms.10. Automotive Braking Systems: Some high-performance or specialized vehicles might use flared tube fittings in braking systems due to their reliability under high pressure.It's important to note that while these fittings are versatile and reliable, they must be properly installed and torqued to ensure a leak-free connection. Over-tightening or under-tightening can lead to leaks or damage to the fitting or the mating part. Proper flaring tools and techniques are essential for ensuring the longevity and performance of these connections.
