Flexible Ball joint Right-Hand Steering Cylinder Torque Rod End Assembly Replacement for John Deere Harvester 1188

Product Overview

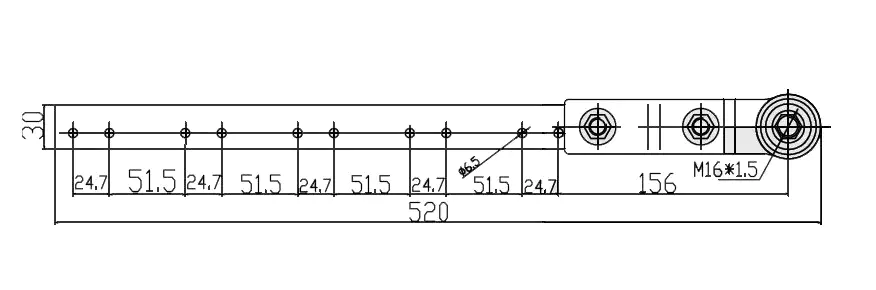

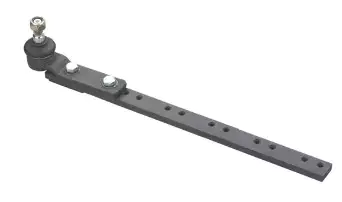

• 4B1013 Sickle Knife head

	Item Name	Sickle Knife head
	No.	4B1013
	Ref. OEM No.	670120.1+676231.0
	Application	CL AAS MEGA series

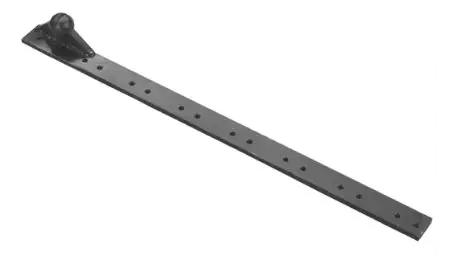

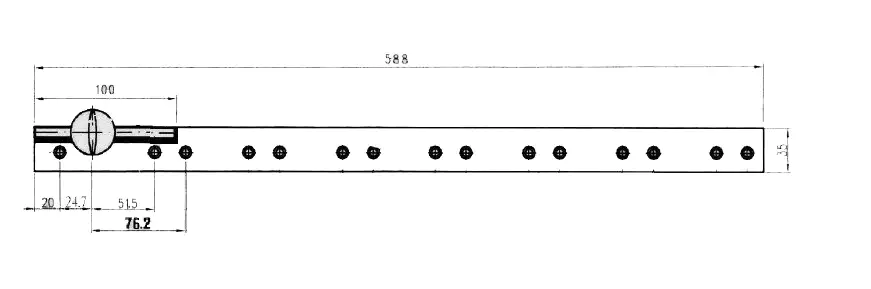

• 4B1014 Sickle Knife head

	Item Name	Sickle Knife head
	No.	4B1014
	Ref. OEM No.	611217.0611218.0613304.2
	Application	CL AAS COMPACT 20, 25, 30, MERCATOR 50

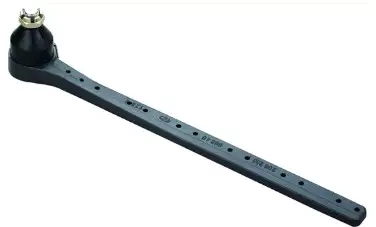

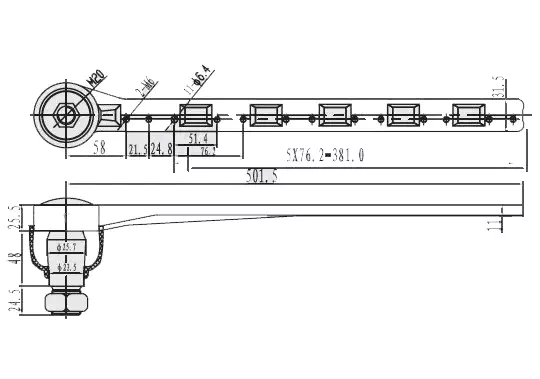

• 4B1015 Sickle Knife head

	Item Name	Sickle Knife head
	No.	4B1015
	Ref. OEM No.	616411.1
	Application	CL AAS LEXION / MEGA / MEDION / DOMINATOR series

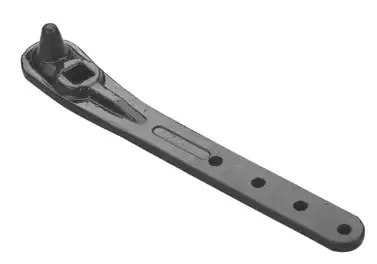

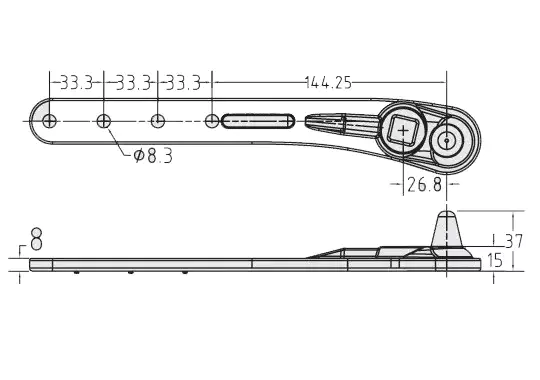

• 4B1016 Sickle Knife head

	Item Name	Sickle Knife head
	No.	4B1016
	Ref. OEM No.	110033001
	Application

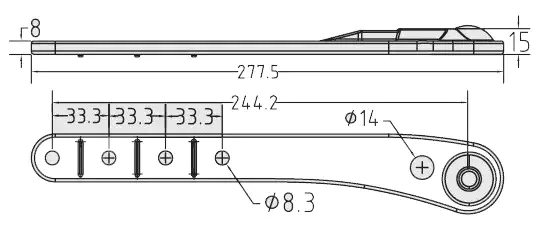

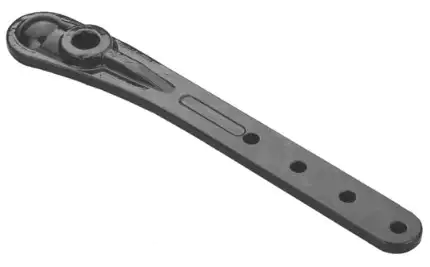

	Item Name	Sickle Knife head
	No.	4B1017
	Ref. OEM No.	110033101
	Application

PRODUCT SPECIFICATIONS

No	No.	Ref. No.	Description	Application
1	4B1009	84998148	Including: Bearing: SGE35ES/K Bolt: M16*1-60
2	4B1010	84996264	Including: Bearing: SGE35ES/K Bolt: M16*1-61
3	4B1011	807538628443377984437437	Including: Bearing: SGE35ES/K Bolt: M16*1-60
4	4B1012	1316161C95	Including: Flange: 1313797C2 Mounting holes: 16*Φ6	CA*SE 1010,1020
5	4B1024	462378R1156692C91	Including: Plug Bushing
6	4B1057	824594C91		MOWER CONDITIONERS 1190. WINDROWERS 210,230,4000,5000,5500
7	4B1053	87561157C132896	Including: Bearing: B2020	N*H 82C, 83C, 86C
8	4B1060	84275285	Thread: M20X1.5 Mounting holes Dia.:6.5 Mounting holes NO.: 17	740CF/760CG/3050/3020 Case-IH 3020-20, 3020-25, 3020-30, 3020-35, 3050-16FT, 3050-18FT, 3050-20FT, 3050-22FT, 3050-25FT H,3050-25FT L, 3050-30FT, 3050-35FT
9	4B1018	28283011		CA*SE 151
10	4B1003-5.5	AH89498-5.5	Three kinds of bore diameter available: 7*Φ6.5mm 7*Φ5.5mm 7*Φ5.8mm WT (kg/pc): 2	J&D 200 series, 900 series
11	4B1003-6.5	AH89498-6.5	Three kinds of bore diameter available: 7*Φ6.5mm 7*Φ5.5mm 7*Φ5.8mm WT (kg/pc): 2	J&D 200 series, 900 series
12	4B1004	AZ50341AZ41726	WT (kg/pc): 1.765	J&D 810, 812, 814, 816, 818, 820
13	4B1005-5.5	AH121075-5.5	WT (kg/pc): 1.489	J&D 3300, 4400, 6600, 7700, 900 series, 200 series
14	4B1005-6.5	AH121075-6.5	WT (kg/pc): 1.489	J&D 3300, 4400, 6600, 7700, 900 series, 200 series
15	4B1006	AH21346	WT (kg/pc): 1.735	J&D 530/630, 730, 925, 935, 945, 930/940, 932/942, 950/960/970, 952, 955, 965/965H/968H, 975, 985, 1032/1042/1052, 1055,1065/1068H, 1072/1075
16	4B1007	AH220051H178599	WT (kg/pc): 1.100	J&D 600R&F, 600 series
17	4B1008	H212086AH212050	WT (kg/pc): 1.030	J&D 600, 614, 615, 618, 620, 622, 625, 630
18	4B1059	AH231842	With sleeve H157812 Mounting holes Dia.:6.2 Mounting holes NO.:9 WT(kg/pc):1.42	J&D 630FD, 635FD, 645FD
19	4B1056	AH75308AZ502562	WT (kg/pc): 1.900	J&D 6601, 6602, 6622
20	4B1018	28283011	Knife head: 28283011 Half section 44104000 & 44103800 Knife section:44103700 101pcsWT(kg/pc): 17.6	CA*SE 151 M&F 7274 7278
21	4B1022	3469524+3099334M2	3469524 & 3099334M2 riveted together WT(kg/pc): 1.010
22	4B1049	059509P1	Matching with 4B2003 Thread: 1"-12 UNF WT(kg/pc): 0.990
23	4B1020	4804850	Matching with 4B2008 Thread: 1"-12 UNF WT(kg/pc): 1.200
24	4B1021	4804851	Matching with 4B2008 Thread: 1"-12 UNF WT(kg/pc): 1.200
25	4B1053	132896	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO.:13 WT(kg/pc):1.235	MacDon D50, D60, D65, FD70, FD75
26	4B1054	132897	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO..:13 WT(kg/pc):1.235	MacDon D50, D60, D65, FD70, FD75
27	4B1055	132897	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO.:13 WT(kg/pc):1.235	MacDon D50, D60, D65, FD70, FD75
28	4B1055	120832	Bores:5.5 Mounting holes Dia.:5.5 Mounting holes NO.: 9 WT(kg/pc):1.1	MacDon 7000 9000 LH
29	4B1027	1261000	Bores:M22*1.5 Mounting holes Dia.:6.5 Mounting holes NO.:15 WT(kg/pc):1.28
30	4B1028	1507030	Bores:51 Mounting holes Dia.:M6 Mounting holes NO.: 9 WT(kg/pc):1.7
31	4B1029	16665	Bores:51 Mounting holes Dia.:M6 Mounting holes NO. :9 WT(kg/pc):1.56

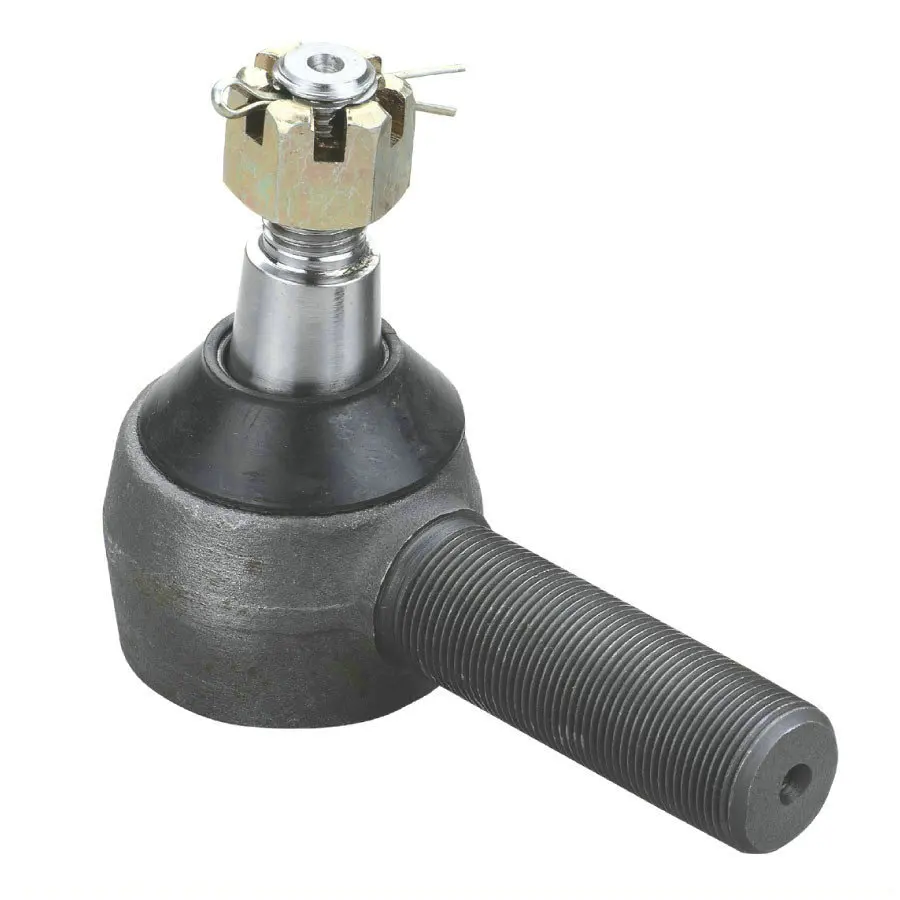

Flexible Ball joint Right-Hand Steering Cylinder torque rod End Assembly replacement for John Deere harvester 1188

Product Introduction

The Flexible Ball joint Right-Hand Steering Cylinder torque rod End Assembly is an important component that helps to steer the John Deere harvester 1188. It provides flexibility and stability while the harvester is in use.

Usage & Function

This component is located in the steering system of the harvester and plays a crucial role in ensuring proper steering. It works by connecting the steering cylinder and the torque rod, allowing for smooth and flexible movement of the steering mechanism.

Our Advantages

• We produce this product ourselves and can replace most commonly used models of parts.
• We offer customizable options to fit specific needs.
• Our components are made of high-quality materials and are built to last.

Compatible Brands & Models

Please refer to the table below for some common harvester brands and models that our product is compatible with:

Brand	Model
John Deere	1188
Claas	Lexion 780
New Holland	CR10.90

Other Agricultural Machinery Parts

In addition to the Flexible Ball joint Right-Hand Steering Cylinder torque rod End Assembly, we also offer a wide range of other agricultural machinery parts such as agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more. Whatever agricultural machinery part you need, you can find it here.

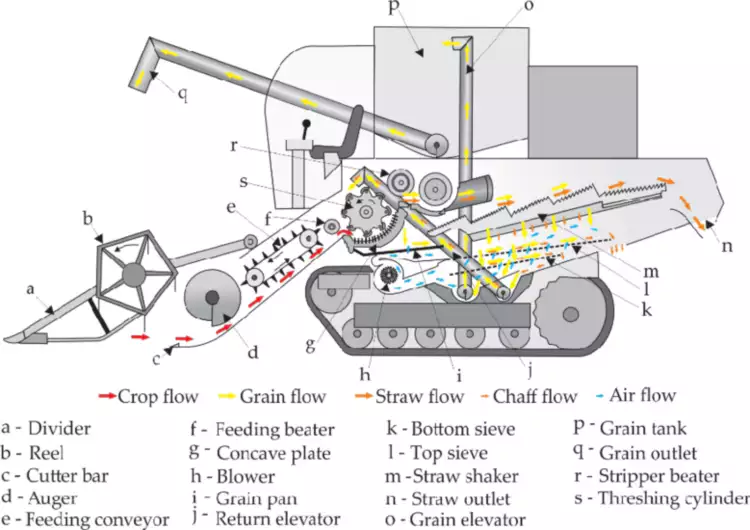

Commonly Worn Parts in Harvesters

Harvesters have several parts that are prone to wear and tear. Here are some of the most commonly worn parts and what they do:

1. Blades/Cutting Parts: includes main cutting blades, guard plates, and cutting blade drive belts.
2. Threshing Drum and Concave: wear on these parts can cause poor crop separation and increased residue levels.
3. Separation Screens and Cleaning Fan Blades: wear on these parts can cause decreased efficiency in cleaning operations.
4. Conveyor Chain and Sprockets: wear on these parts can cause crop loss and decreased efficiency in crop transfer.
5. Rubber Tracks or Tires: wear on these parts can cause decreased traction and reduced movement efficiency.
6. Hydraulic Components: includes hydraulic cylinders, hoses, and seals. Wear on these parts can cause decreased lifting or steering ability.
7. Bearings: wear on these parts can cause increased friction and decreased efficiency in moving parts.
8. Filters: includes air filters, fuel filters, and oil filters. Clogged filters can cause decreased engine performance and increased wear on moving parts.

When to Replace Parts in Harvesters

Here are some signs that indicate it's time to replace worn parts in a harvester:

1. Poor Harvesting Results: excessive crop residue or poor grain separation may indicate worn threshing drum and concave.
2. Power Reduction or Overheating: could be due to clogged air filters or cooling system malfunction.
3. Decreased Efficiency: slow operation or decreased crop transfer speed may be due to worn drive belts or chains.
4. Difficult Movement or Increased Noise: worn rubber tracks or tires may cause difficulty in movement, while worn bearings may cause increased noise.
5. Unstable Hydraulic System: decreased lifting or steering ability may be due to worn hydraulic components.
6. Leaking Fluids: leaking oil, hydraulic fluid, or fuel may be due to worn seals or damaged components.

Author: Miya
