Forklift Tilt Hydraulic Cylinder

Forklift Tilt Hydraulic Cylinder

A forklift tilt hydraulic cylinder is a double-acting hydraulic cylinder that is used to tilt the mast of a forklift. It is typically located on the left and right sides of the forklift and is connected to the mast and the frame of the forklift.

The tilt cylinder works by using hydraulic fluid to push and pull the piston inside the cylinder. When the hydraulic fluid is pumped into the cylinder, the piston moves forward and tilts the mast forward. When the hydraulic fluid is pumped out of the cylinder, the piston moves backward and tilts the mast backward.

Tilt cylinders are an important part of the safety features of a forklift. They allow the operator to tilt the mast to unload or load materials from the forks. Tilt cylinders also help to prevent the forklift from tipping over.

Here are some of the key features of forklift tilt hydraulic cylinders:

• Double-acting: This means that the cylinder can push and pull, making it versatile and efficient.
• Durable: Forklift tilt hydraulic cylinders are made from high-quality materials that can withstand the wear and tear of daily use.
• Reliable: Forklift tilt hydraulic cylinders are designed to provide years of trouble-free operation.
• Adjustable: Many forklift tilt hydraulic cylinders are adjustable, which allows them to be customized to the specific needs of the forklift.

The main difference between a lift cylinder and a tilt cylinder is that a lift cylinder is used to raise and lower the forks, while a tilt cylinder is used to tilt the mast. Lift cylinders are typically larger and more powerful than tilt cylinders. Tilt cylinders are an important part of the safety features of a forklift. They allow the operator to tilt the mast to unload or load materials from the forks. Tilt cylinders also help to prevent the forklift from tipping over.

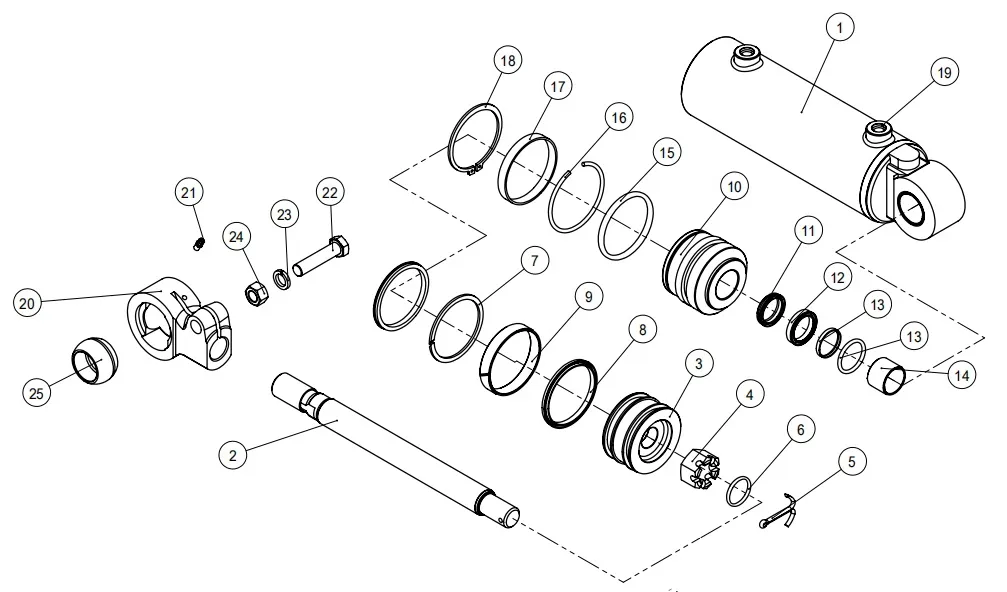

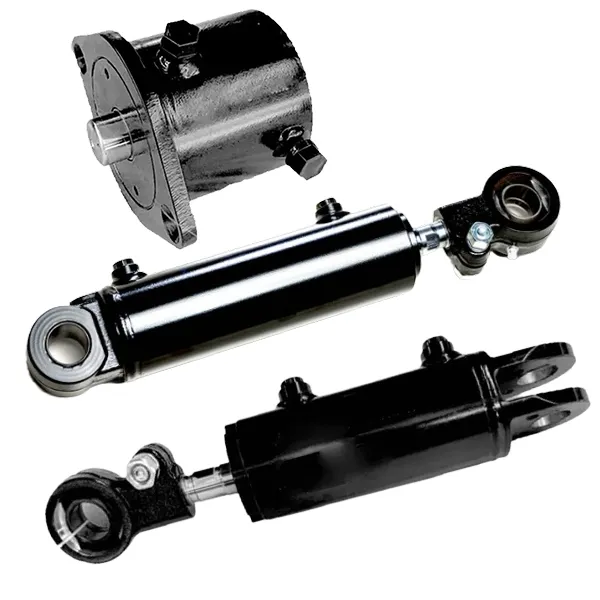

Forklift Tilt Hydraulic Cylinder Parts:

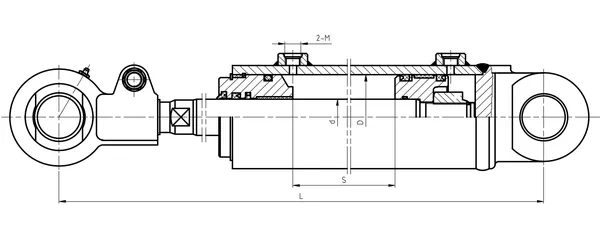

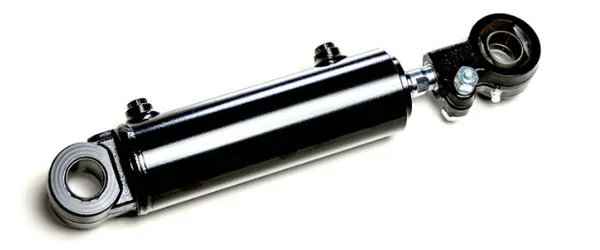

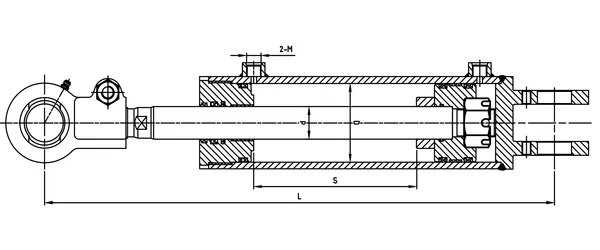

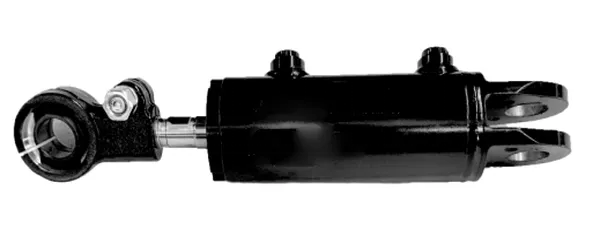

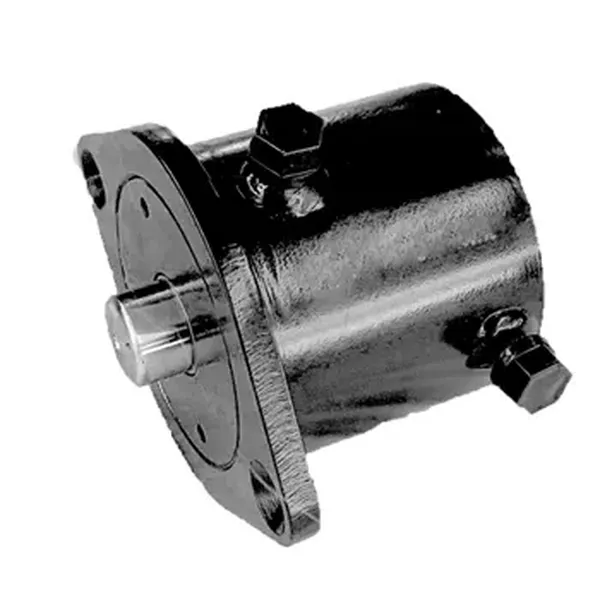

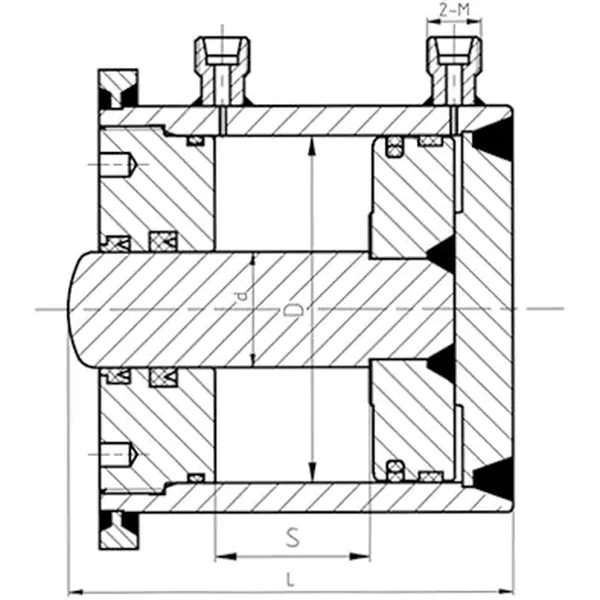

Forklift Tilt Hydraulic Cylinder Dimensions:

Cylinder Name	drawing number	bore diameter (D)	rod diameter (d)	stroke (S)	Installation distance (L)	working pressure	Interface dimensions (M)	weight
TILT CYLINDER	QA20V500-405000-000	Φ60	Φ30	32	109	18MPa	2-M14*1.5	3.4kg

Cylinder Name	drawing number	bore diameter (D)	rod diameter (d)	stroke (S)	Installation distance (L)	working pressure	Interface dimensions (M)	weight
TILT CYLINDER	S16N450-600000-001Z	Φ63	Φ25	55	368	18.1MPa	2-G1/4	8.2kg
TILT CYLINDER	RTE35M300-600000-500	Φ85	Φ35	180	565	18.1MPa	2-M16*1.5	17kg
TILT CYLINDER	A15N450-600000AZ	Φ65	Φ25	109	514	18.1MPa	2-G1/4	11.6kg

Cylinder Name	drawing number	bore diameter (D)	rod diameter (d)	stroke (S)	Installation distance (L)	working pressure	Interface dimensions (M)	weight
TILT CYLINDER	A30M300-600000-000B	Φ70	Φ30	156	453	18.1MPa	2-G1/4	12kg
TILT CYLINDER	A35M300-600000-000C	Φ80	Φ30	156	456.5	18.1MPa	2-G1/4	13kg
TILT CYLINDER	A45M300-600000Z	Φ100	Φ40	193	498	18.1MPa	2-M16*1.5	22kg

Forklift Tilt Hydraulic Cylinder Advantages:

There are many advantages to using forklift tilt hydraulic cylinders. Here are some of the most important ones:

1. Versatility: Tilt cylinders are double-acting, which means they can push and pull. This makes them very versatile and efficient. They can be used to tilt the mast forward or backward or to raise or lower the forks.2. Durability: Forklift tilt hydraulic cylinders are made from high-quality materials that can withstand the wear and tear of daily use. They are also designed to be corrosion-resistant, so they can be used in harsh environments.3. Reliability: Forklift tilt hydraulic cylinders are designed to provide years of trouble-free operation. They are built with high-quality components and are carefully assembled to ensure accuracy and longevity.4. Adjustability: Many forklift tilt hydraulic cylinders are adjustable, which allows them to be customized to the specific needs of the forklift. This can be helpful in ensuring that the tilt cylinder is properly aligned and that it has the right amount of force to operate the mast properly.5. Safety: Tilt cylinders are an important part of the safety features of a forklift. They allow the operator to tilt the mast to unload or load materials from the forks. Tilt cylinders also help to prevent the forklift from tipping over.

Overall, forklift tilt hydraulic cylinders offer many advantages over other types of tilt cylinders. They are versatile, durable, reliable, adjustable, and safe. If you are looking for a tilt cylinder for your forklift, a forklift tilt hydraulic cylinder is the best option.
