Frame Scaffolding Accessories Guard Rail Post for Construction

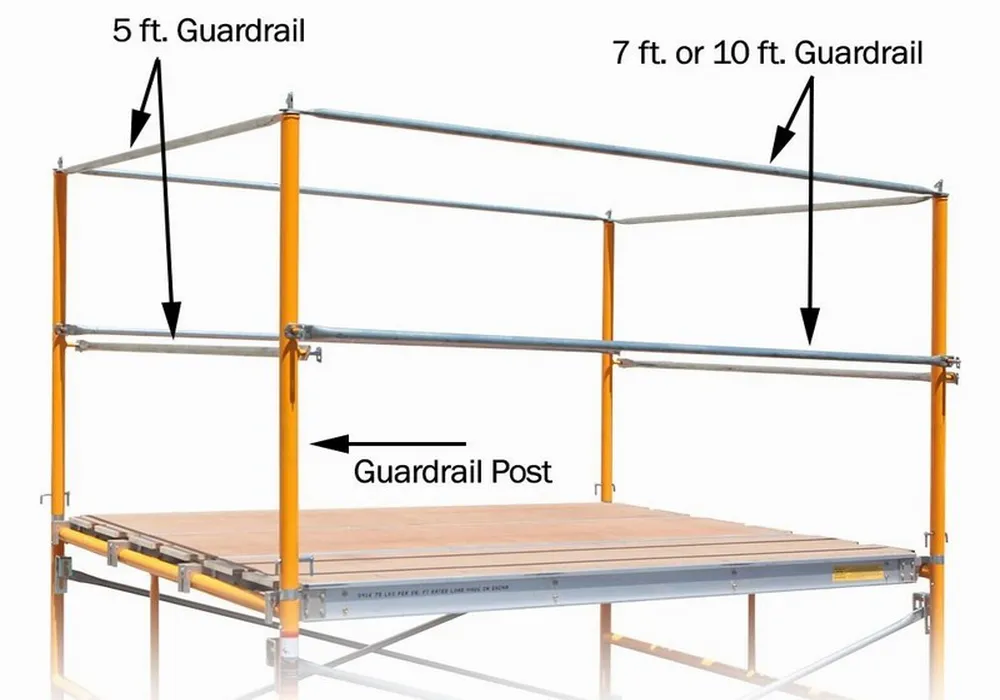

Frame scaffolding guardrail post having hooks connected to it for securing guard rails to the post. The post comprises a longitudinal rod, and each clip consists of a longitudinal leg portion connected to the rod and an arm portion.IntroductionScaffolding Guardrail Post is one of the components used for the ledgers, so it creates a guardrails system.Frame scaffolding guardrail post is usually used with a guardrail and fixed barriers to protect the safety of workers.

Technical Information

SpecificationMaterial: Q235 steelSize: Φ42 pipeSurface treatment: Galvanized or Painted (powder coated)

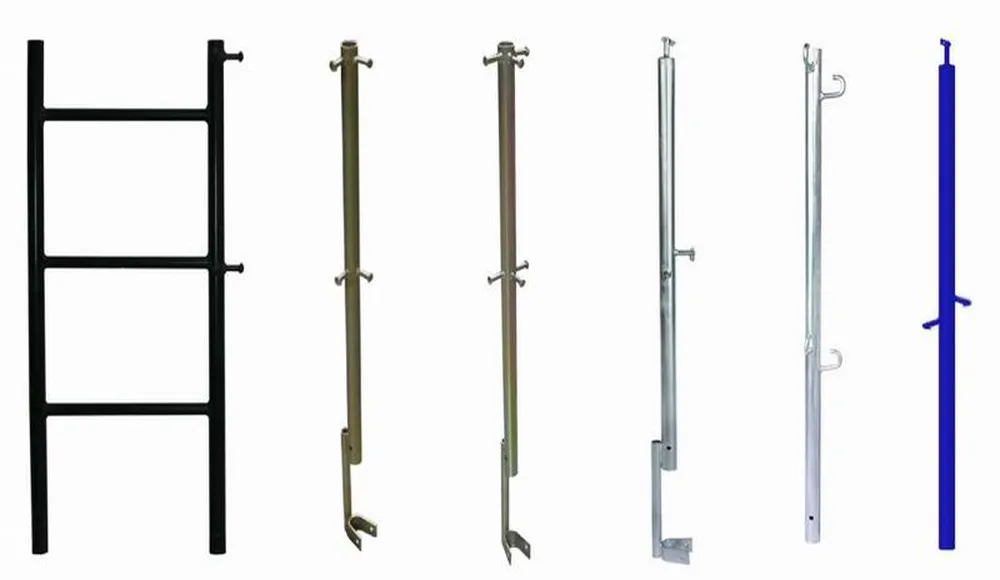

Code	Description	Weight(kg)	Weight(lbs)
GRP.SO.18L	Guard Rail Post with 18" Ladder Snap On	6.34	13.98
GRP.SO.22R	Guard Rail Standard Post 2 Rivets Snap On	3.25	7.17
GRP.SO.23R	Guard Rail Corner Post 3 Rivets Snap On	3.35	7.39
GRP.FL.12R	Guard Rail Post 1x2 Rivets Flip Lock with kicker	3.20	7.06
GRP.FL.13R	Guard Rail Post 1x3 Rivets Flip Lock with kicker	3.03	6.68
GRP.DL.12R	Guard Rail Post with 1x2 Rivets Drop Lock with kicker	3.67	8.09
GRP.DL.13R	Guard Rail Post with 1x3 Rivets Drop Lock with kicker	3.51	7.74
GRP.FL.12RF	Guard Rail Post Female with 1x2 Rivets Flip Lock	2.90	6.39

Features

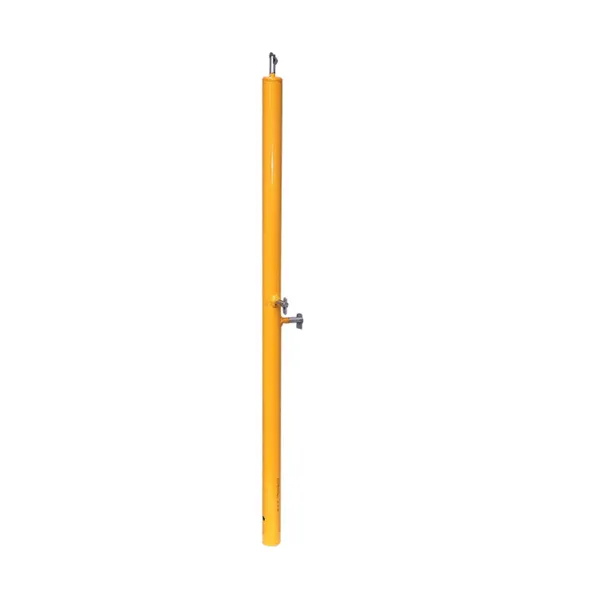

• Description: Guard Rail Post
• Weight: 6.0 lbs.
• Product Code: 140091
• Outside Diameter: 1-7/16"
• Overall Height: 48"
• Height to Top Lock: 42" (from bottom)
• Height to Mid-Lock: 21" (from bottom)
• It can be used as a Corner Post or Line Post!
• Blue powder coat prevents rust and protects against scratches.
• Satisfies OSHA's requirement for fall protection and Guard Rails when installed and used correctly.
• Drill hole in the bottom designed to attach to a Coupling Pin with a Toggle Pin, Span Pin, or Pig Tail Pin.

Quality control1. Checking raw materials before producing.2. Checking one by one before the assembling3. Checking one by one during the production4. Have a random inspection before the delivery.

Product Display

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory has 10 production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]
