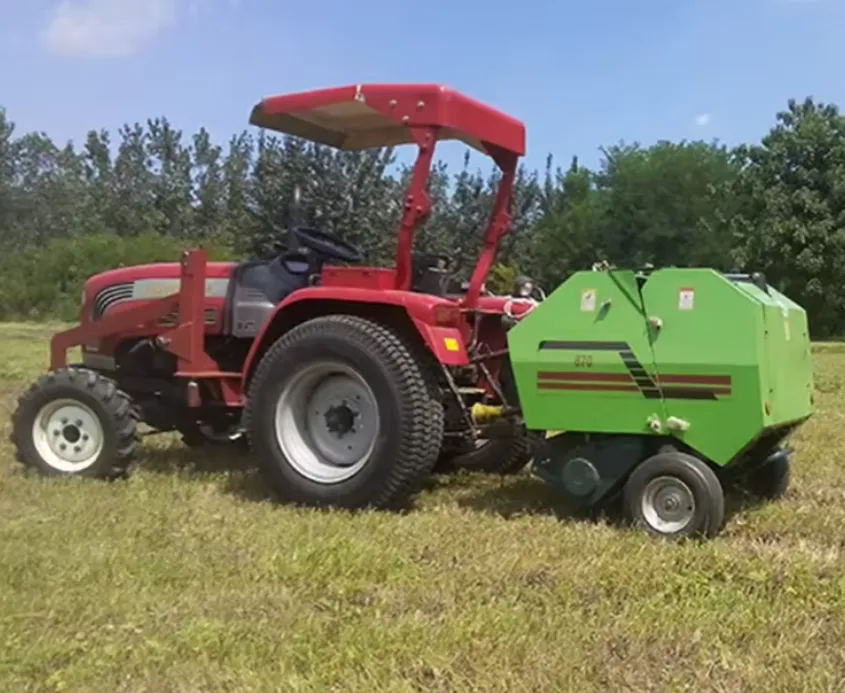

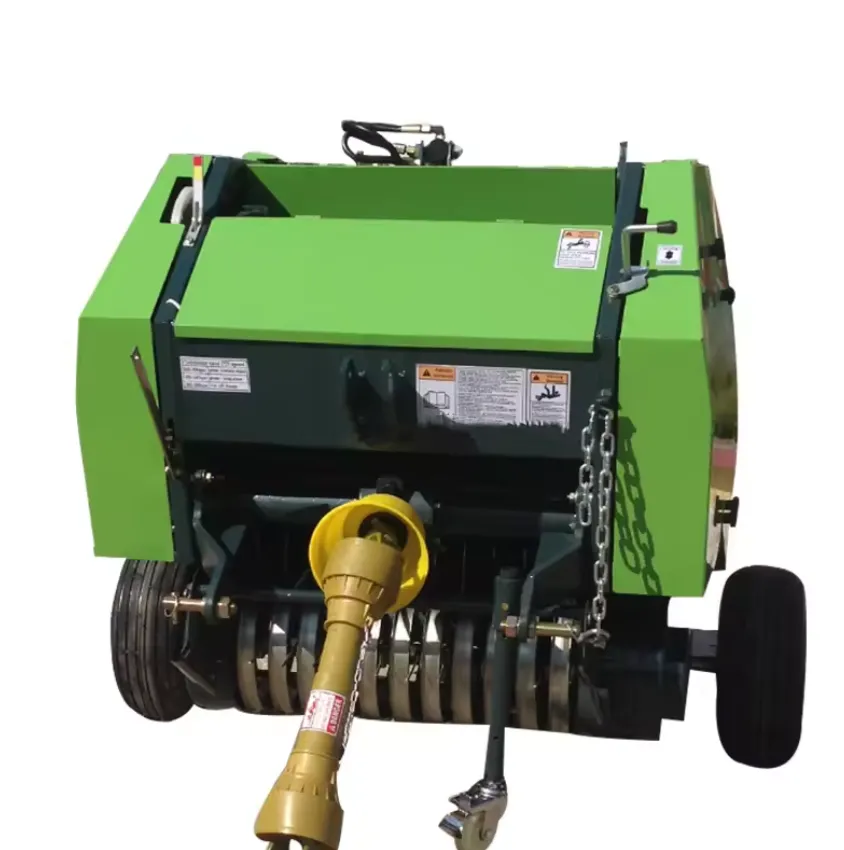

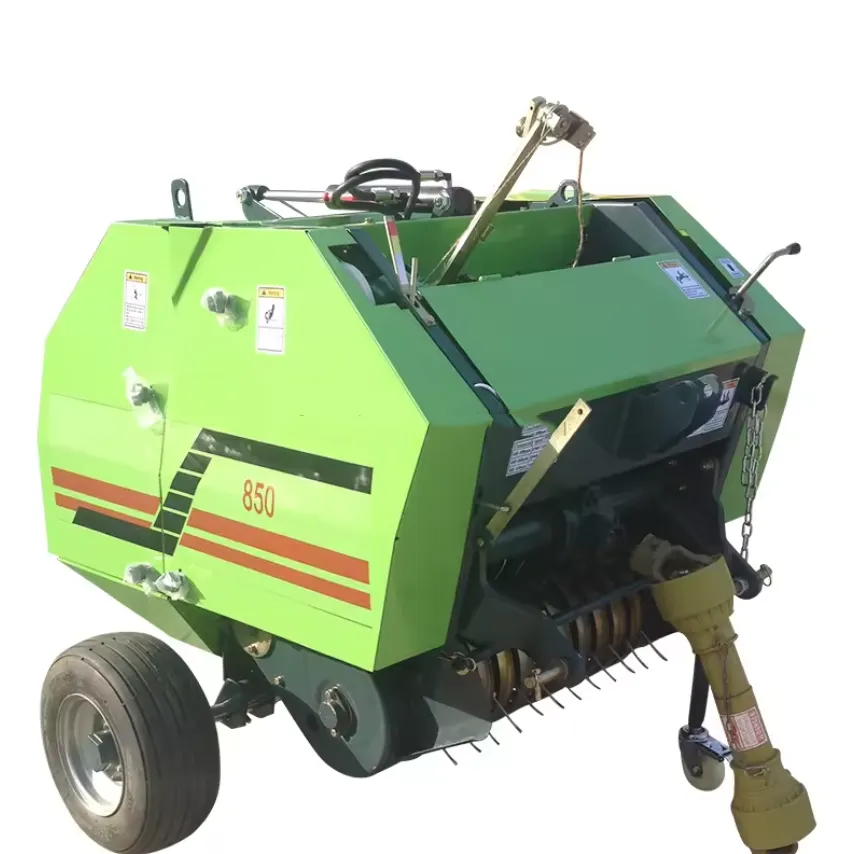

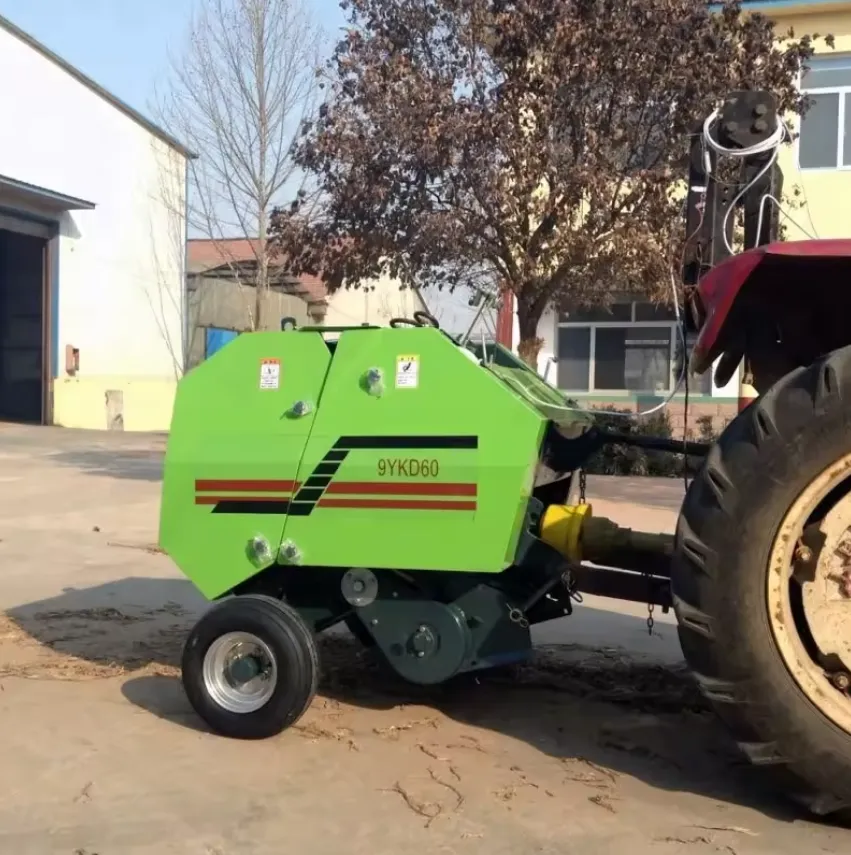

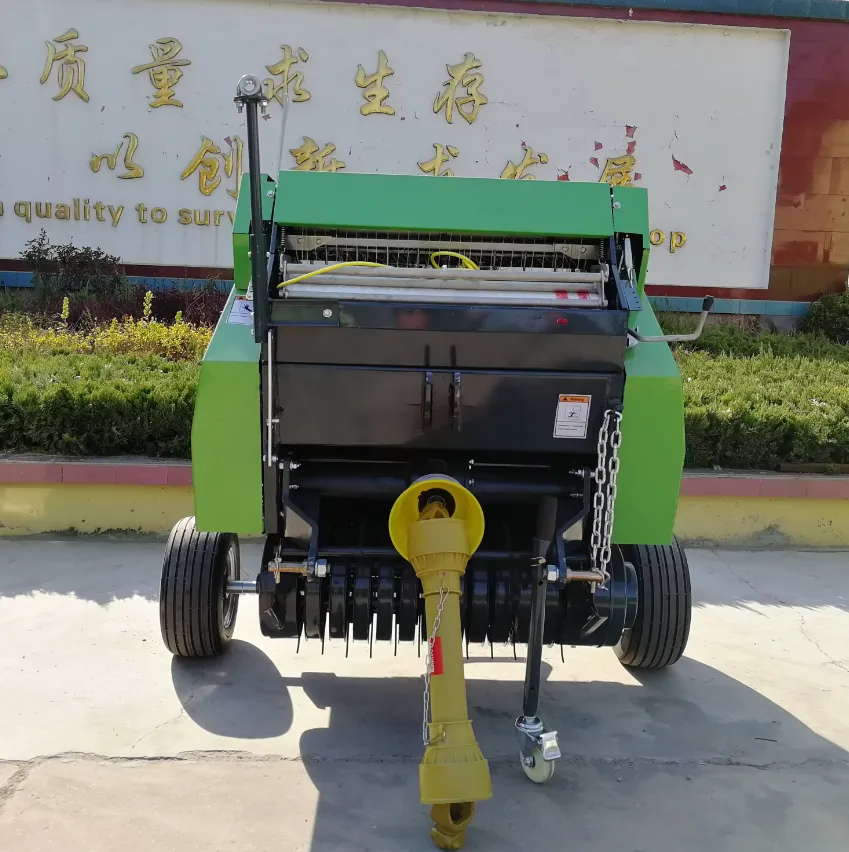

Full-Automatic Mini Hay Round Baler for Agricultural Hay Baling

[embed]https://youtu.be/pihgFul5F-c[/embed] The full-automatic mini hay round baler is a specialized agricultural machine used for baling hay into compact, cylindrical shapes known as round bales. It is designed to automate the process of baling hay, making it more efficient and convenient for farmers and agricultural workers. The mini hay round baler is smaller in size compared to traditional hay balers, allowing it to be easily maneuvered and operated in smaller fields or areas with limited space. It is typically powered by a tractor's power take-off (PTO) and operated by a single person. The full-automatic feature of the mini hay round baler means that it can perform various functions automatically, reducing the manual effort required from the operator. These functions may include picking up the hay from the ground, compressing it into a tight cylindrical shape, tying it with twine or netting, and ejecting the finished bale. In today's agricultural operations, efficiency and versatility are key. One piece of equipment that embodies these attributes is the full-automatic mini hay baler. This baler, notable for its compact size, robust performance, and diverse application, is a game-changer in the field. The mini round hay baler operates at a speed of 2-5km/h and is ideal for baling hay, wheat, rice straw, and Alfalfa. With a weight of 415 kg, it can be easily transported and maneuvered across different terrains.

Product Specifications:

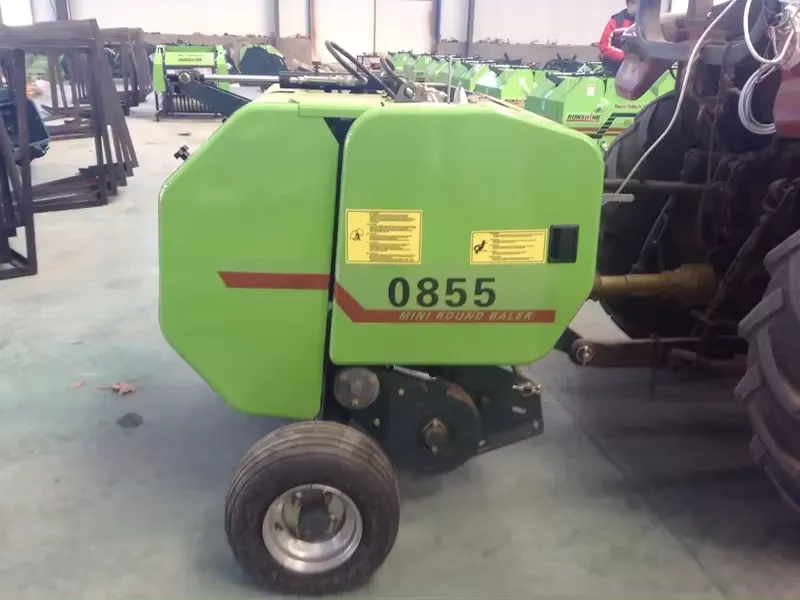

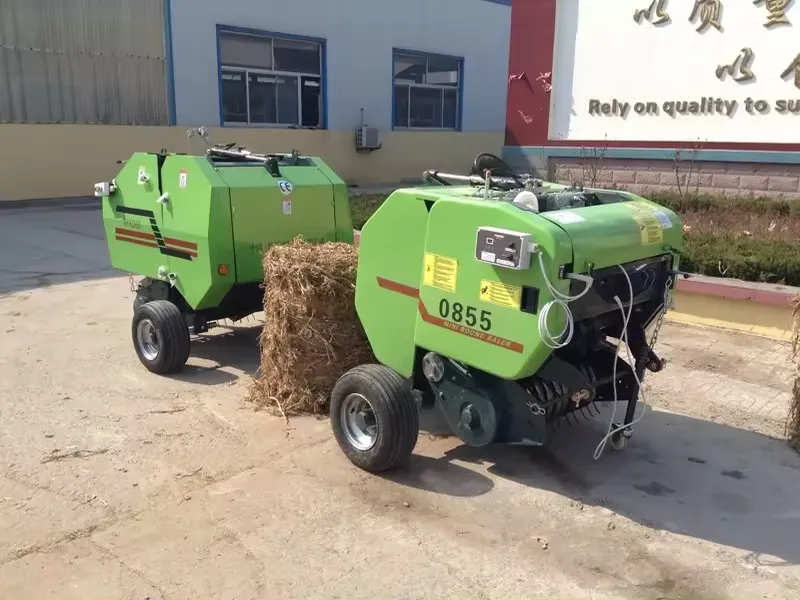

Model	RXYK0855
Type	Mini Round Hay Baler/Round Baler
Bale size (Diameter X Width)	500 X 700mm
Dimensions	1150x1300x1200mm
Weight(Approx)	390kgs
Pickup width	800mm
Working speed	2-5km/h
Efficiency (Bales/hour)	80-120
Tire size	16X6.50-8-4PR
Horsepower Requirement	20-50hp
PTO	540rpm
Capacity	80-120 Bales/Hour
Bundle Method	Twining
Twine Material	Natural Hemp
Application	Hay, Wheat, Rice Straw, Alfalfa

The use of a Full-Automatic Mini Hay Round Baler offers several advantages for farmers and agricultural workers. Here are some of the key benefits: 1. Increased efficiency: The full-automatic feature of the mini hay round baler automates various tasks involved in the baling process, such as picking up the hay, compressing it, tying it, and ejecting the bale. This automation significantly reduces the time and effort required, leading to increased efficiency and productivity. 2. Time savings: By automating baling operations, the mini hay round baler allows farmers to complete the baling process more quickly. This time-saving aspect is particularly beneficial during busy harvest seasons when there is a need to bale large quantities of hay in a limited timeframe. 3. Improved bale quality: The full-automatic mini hay round baler ensures consistent compression and tying of the bales, resulting in improved bale quality. The tight and well-formed round bales are less prone to damage, maintain their shape during storage and transportation, and are easier to handle. 4. Versatility: While the mini hay round baler is primarily used for baling hay, it can also handle other types of forage crops, such as straw, corn stalks, and other biomass materials. This versatility allows farmers to utilize the baler for different purposes, maximizing its value and return on investment. 5. Labor savings: With the automation provided by the full-automatic mini hay round baler, the need for manual labor is significantly reduced. A single operator can efficiently operate the machine, eliminating the requirement for additional personnel and reducing labor costs.

Common Applications:

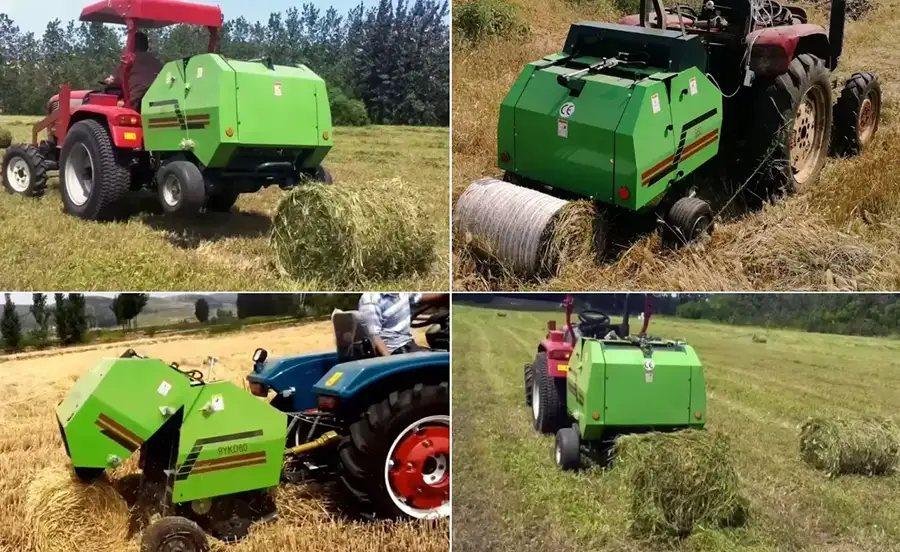

The full-automatic mini hay round baler has versatile applications and can be used for baling various types of forage crops and straw. Here are some common applications of the mini hay round baler:

• Hay baling: The mini hay round baler is primarily designed for baling hay. It can efficiently compress and shape hay into round bales, making it easier to store, transport, and feed livestock. It is suitable for baling different types of hay, including grass hay, legume hay, and mixed hay.
• Wheat straw baling: Wheat straw, which is the crop residue left after harvesting wheat, can also be baled using the mini hay round baler. Baling wheat straw helps in its efficient storage, handling, and utilization for various purposes such as animal bedding, mulching, or biomass feedstock.
• Rice straw baling: Similar to wheat straw, rice straw can be baled using the mini hay round baler. Rice straw bales are useful for animal bedding, composting, or as a source of biomass for energy production.
• Alfalfa baling: Alfalfa, a highly nutritious forage crop, can be baled using the mini hay round baler. Baling alfalfa allows for easy storage and transportation, preserving its nutritional value for livestock feed.
• Other forage crops and biomass materials: Besides hay, wheat straw, rice straw, and alfalfa, the mini hay round baler can also be utilized for baling other forage crops such as rye, oats, barley, or corn stalks. Additionally, it can be used to bale various biomass materials for purposes such as biofuel production, composting, or bedding material.

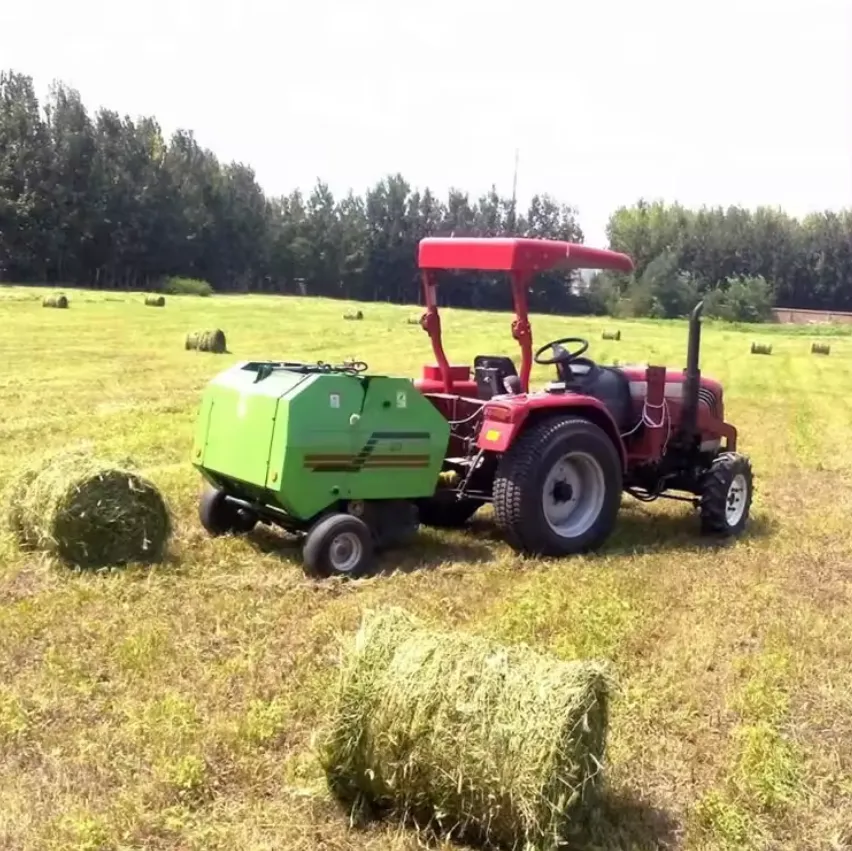

Working Principle of Tractor Mounted PTO Driven Mini Round Baler for Baling Hay

The tractor mounted PTO driven mini hay round baler, a compact and efficient piece of agricultural machinery, is specifically designed to work in tandem with a tractor. This equipment streamlines the process of collecting and baling hay (and other materials) into round bales. Its operation is relatively straightforward but involves a series of mechanical processes coordinated to transform loose hay into tightly bound bales. Here's an overview of how it works: (1) Tractor Connection and Power: The mini round baler is attached to the back of a tractor using a three-point hitch system. This setup ensures the baler is securely connected and can be easily maneuvered across the field. It is powered through the tractor's power take-off (PTO) shaft. When engaged, the PTO transfers power from the tractor's engine to the baler, driving its mechanical components. (2) Hay Collection: As the tractor moves through the field, the baler's pickup mechanism, which includes tines or rollers, collects the hay from the ground. This pickup mechanism is positioned at the front of the baler and is responsible for feeding the hay into the baling chamber. (3) Baling Process: Inside the baler, the hay is rolled into a compact, round shape. This is accomplished through the rotation of the baling chamber, which can be either fixed or variable in size. In a fixed chamber baler, rollers or chains compact the hay against the chamber walls, gradually forming a bale. In a variable chamber baler, belts or a combination of belts and rollers allow the chamber to expand as the bale grows. The hay is continuously fed into the chamber, being rolled and compacted until it reaches the pre-set density and size. (4) Wrapping the Bale: Once the hay bale reaches the desired size and density, the baler automatically or manually wraps the bale. This can be done with twine, netting, or plastic wrap, depending on the baler's design and the farmer's preference. This wrapping process secures the bale, maintaining its shape and density for better storage and handling. Some balers are equipped with a cutting mechanism that slices the wrapping material and secures the end to prevent unwrapping. (5) Ejecting the Bale: After the bale is securely wrapped, the rear gate of the baler opens, and the bale is ejected onto the field. This can be done manually or automatically, depending on the baler's design. The baler is then ready to start the process again for the next bale. (6) Control and Monitoring: Many modern mini round balers come with control systems that allow the operator to monitor and adjust the baling process from the tractor's cabin. This may include settings for bale density, size, and the wrapping material used.

Installation Operation:

Installing a Full-Automatic Mini Hay Round Baler to a tractor involves a series of steps that ensure the baler is properly connected, powered, and ready for operation. Here is a general guideline for installing the round baler:

Pre-Installation Checks

1. Review Manuals: Before starting, review both the tractor and baler manuals for any specific installation instructions or precautions.
2. Inspect Equipment: Ensure both the tractor and baler are in good condition, with no visible damages or defects.
3. Check Compatibility: Verify that the tractor’s horsepower and hydraulics are compatible with the baler’s requirements.

Installation Steps

Step 1: Position the Tractor and Baler

• Park the tractor and baler on a flat, stable surface, ensuring there’s adequate space to maneuver around both pieces of equipment. Engage the tractor's parking brake.

Step 2: Connect the Baler to the Tractor

• Align the tractor's rear hitch with the baler's hitch point. Slowly back up the tractor until the hitch points are close enough to connect.
• Lift the baler’s hitch using the tractor’s rear hydraulics and attach it to the tractor’s three-point hitch system. Secure all pins and locking devices to ensure the baler is firmly attached.

Step 3: Connect the PTO Shaft

• Align the baler’s PTO shaft with the tractor’s PTO stub. Make sure the tractor’s engine is off and the PTO is disengaged before making the connection.
• Slide the PTO shaft onto the tractor’s PTO stub, ensuring it locks into place. Some models have a locking pin or a collar that needs to be secured.

Step 4: Connect Hydraulic Lines

• If the baler requires hydraulic power for operations like gate opening/closing or tension adjustments, connect the hydraulic lines from the baler to the tractor’s hydraulic outputs.
• Ensure all connections are secure and there are no leaks.

Step 5: Electrical Connections

• If the baler has electronic controls or requires an electrical connection to the tractor (for monitors, sensors, or controls), connect the electrical wiring harness to the tractor’s electrical outlet.

Step 6: Safety Checks

• Double-check all connections (hitch, PTO, hydraulic lines, and electrical connections) to ensure they are secure.
• Inspect the area around the tractor and baler to make sure it is clear of people, animals, and obstructions.
• Review safety features and emergency stops.

Step 7: Testing

• Start the tractor and engage the PTO at a low RPM to ensure the baler operates correctly. Check for any unusual noises or movements.
• Perform a test bale in a safe area to verify the baler is functioning as expected.

Common Troubleshooting of Full-Automatic Mini Round Hay Baler

Troubleshooting common issues with a Full-Automatic Mini Hay Round Baler can help maintain its efficiency and prolong its operational life. Here are some frequent problems that might arise and how to address them:

1. Baler Not Starting

• Check Power Source: Ensure the tractor is properly connected to the baler and that the power take-off (PTO) shaft is engaged correctly. Also, verify that the tractor's engine is producing sufficient power and speed for the baler's requirements.
• Inspect Electrical Connections: If the baler uses electrical components for operation, check all electrical connections for proper attachment and signs of wear or damage.

2. Irregular Bale Shape or Size

• Adjust Tension Settings: Uneven or irregular bales often result from incorrect tension settings in the baler's chamber. Adjust these settings according to the manufacturer's recommendations.
• Check for Blockages: Material buildup in the pickup area or chamber can lead to uneven feeding of material into the baler, causing irregular bales. Clear any blockages and ensure the path is free of obstructions.

3. Bale Density Issues

• Bale Too Loose: If bales are coming out too loose, increase the tension or pressure settings on the baler. This adjustment can typically be done from the tractor, depending on the baler model.
• Bale Too Tight: Conversely, if bales are too tight, reduce the tension or pressure settings to avoid overcompaction and potential damage to the baler.

4. Wrapping or Tying Failures

• Inspect Wrapping/Tying Mechanisms: Check the twine, netting, or wrap for proper loading and operation. Ensure there's enough material for wrapping and that it feeds correctly.
• Clean and Lubricate: Debris and residue can cause the wrapping or tying mechanisms to malfunction. Clean these components regularly and lubricate them according to the manufacturer's specifications.

5. Uneven or Missed Pickup of Material

• Adjust Pickup Height: The pickup mechanism might not be properly adjusted to the ground conditions, leading to missed material or uneven pickup. Adjust the height according to the terrain and material density.
• Inspect and Replace Worn Parts: Worn tines or rollers can lead to inefficient pickup. Regularly inspect these parts and replace them as needed.

6. Hydraulic or Mechanical Issues

• Check Hydraulic System: For balers that use hydraulic systems for gate operation or tension control, check the hydraulic fluid levels, lines, and connections for leaks or damage.
• Inspect Mechanical Components: Regularly inspect chains, belts, and bearings for wear and proper tension. Replace or adjust as necessary to ensure smooth operation.

Agricultural PTO Shaft for Mini Round Hay Baler

The PTO shaft is a crucial component in agricultural machinery, serving as the connection between a tractor and various implements, such as a mini round hay baler. Its primary function is to transfer the mechanical power generated by the tractor's engine to the baler, enabling it to perform its operations efficiently. When a mini round hay baler is attached to a tractor via the PTO shaft, the tractor's engine power is converted into rotational energy, which drives the baler's internal mechanisms. This energy powers the pickup mechanism, which gathers loose crop residues like cornstalks, hay, or straw from the field. It also drives the compression chamber, where the material is rolled and compacted into dense, uniform bales. The PTO shaft is designed to handle high torque and rotational speeds, ensuring that the baler operates smoothly under various conditions. Its ability to transmit consistent power is vital for maintaining the baler's performance, especially when dealing with thicker or tougher crop residues. The shaft’s durability and reliability are essential for minimizing downtime and maximizing productivity during the baling process. Additionally, the PTO shaft allows for easy attachment and detachment of the baler, offering flexibility and efficiency in agricultural operations. Its standardized design ensures compatibility with a wide range of tractors and balers, making it a versatile and indispensable component in modern farming. The relationship between the PTO shaft and the mini round hay baler is foundational to effective crop management, enabling farmers to process and store forage efficiently. This system not only enhances operational efficiency but also contributes to sustainable farming practices by allowing for the recycling of agricultural residues.

Why Choose Raydafon's Mini Round Baler?

Raydafon Agricultural Machinery Co., Ltd. is the industry leader when it comes to the production of high-quality and reliable agricultural machinery. The company's full-automatic mini hay baler is no exception, offering a blend of efficiency, versatility, and durability that sets it apart from its competitors. The company prides itself on its professionalism, demonstrated through its adherence to international standards and certifications. All products are manufactured under strict quality control processes, ensuring that they meet the highest standards of performance and reliability. Our main products are PTO shafts, agricultural gearboxes, large round balers, mini round balers, PTO wood chippers, diesel wood chippers, drum mowers, rotary hay rakes, silage harvester, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. In addition to this, Raydafon offers customized services, tailoring its products to meet the specific needs and requirements of its clients. The company boasts advanced production facilities, ensuring that its products are not only of high quality but also innovative and up-to-date with the latest technological advancements in the industry. Raydafon also offers excellent after-sales services, providing its clients with the necessary support and assistance whenever needed. This commitment to customer satisfaction sets Raydafon apart, making it the go-to choice for agricultural machinery.

Professionalism

Raydafon is a company that values professionalism in all its operations. The company employs experienced and skilled staff, who are committed to delivering high-quality products and services. With over 20 technical staff and five senior R&D personnel, Raydafon is at the forefront of innovative and effective solutions in agricultural machinery.

International Certifications

Raydafon holds several international certifications, a testament to its commitment to quality and international standards. The company's products are not only reliable and durable but also safe and efficient, meeting the requirements of various international certifications.

Customized Services

Understanding that each client has unique needs, Raydafon offers customized services to meet these specific requirements. Whether it's a specific color preference or a unique operational requirement, Raydafon is ready to provide a tailored solution.

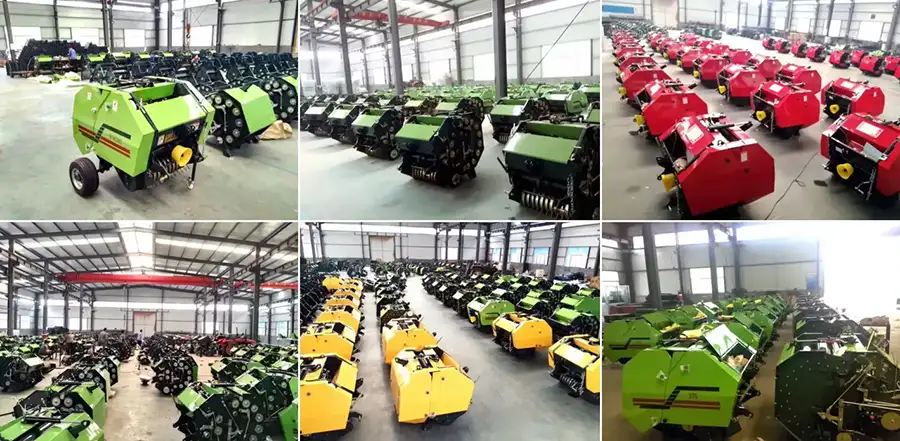

Production Facilities

Raydafon boasts advanced production facilities, which ensure the production of high-quality and innovative products. With facilities such as lathing, milling, planing, stamping, cutting plate, and electric welding, Raydafon is capable of producing a wide range of reliable and efficient agricultural machinery.

After-sales Services

Raydafon understands the importance of after-sales services in enhancing customer satisfaction. The company offers comprehensive after-sales services, providing its clients with the necessary support and assistance whenever they need it. Author: Yjx
