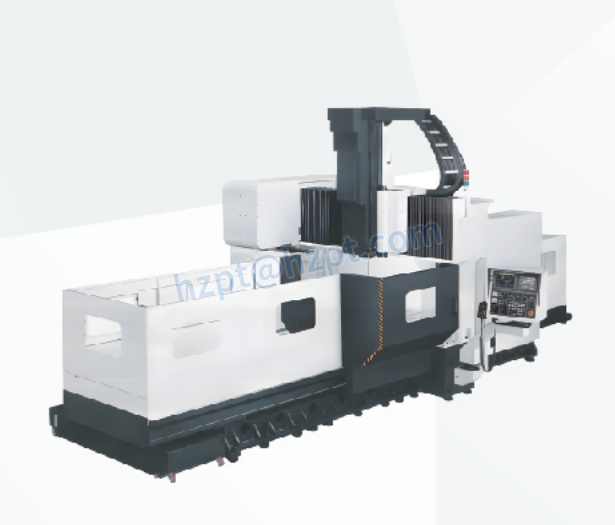

G Series Gantry Machining Center Cnc Lathe CNC Turning

The G series gantry machining center CNC lathe is a miracle in the field of modern machining, combining high rigidity and a wide processing range. This series has been professionally designed to meet the demanding needs of various industries, especially those that require the processing of large and medium-sized parts. Its unique characteristics make it particularly suitable for mold manufacturing, aviation, aerospace, rail transit, automobile manufacturing, household appliances, medical equipment and other industries. G-series gantry machining center CNC lathes stand out for their combination of high rigidity, wide machining range and high-speed capabilities. This series is good at meeting the diverse needs of various industries, and is especially good at applications that require high precision and efficiency in the processing of large and medium-sized parts. The specialization of small gantry machining centers for the new energy automobile industry highlights the series' adaptability and responsiveness to the changing needs of modern manufacturing.

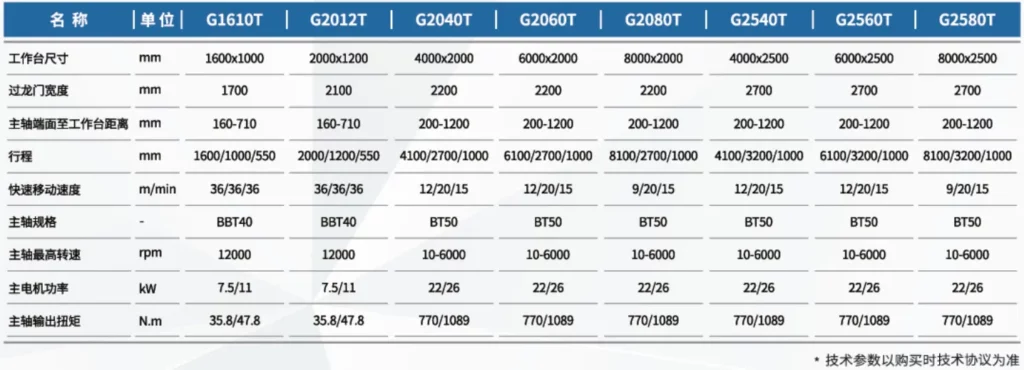

Parameter

11:08 The maximum output torque of the product spindle can reach 1089N.m;The maximum rapid moving speed of the product can reach 20m/min;The product can not only be equipped with manual and automatic attachment heads of various specifications, but the stroke range can be customized according to user needs;

Structural Characteristics

1. High Rigidity: The G series adopts a sturdy and durable structural design to ensure high rigidity. This structural strength is critical to maintaining machining accuracy of large and heavy parts as it minimizes vibration and deflection during operation.
2. Wide Processing Range: Thanks to its gantry design, this series offers a wide machining envelope and can accommodate large and medium-sized workpieces. This feature is critical for industries that use a large number of components.

Applications Across Industries

1. Mold Making: The precision and rigidity of the G series make it ideal for mold manufacturing, where accuracy and fine surface finishes are paramount.
2. Aviation and Aerospace: In these industries, the G series is used for machining critical components that require high precision and reliability.
3. Rail Transit: For manufacturing components of rail systems, the G series offers the necessary precision and capacity to handle large parts.
4. Automotive Manufacturing: The G series supports the automotive industry in creating various parts, from engine components to structural elements of vehicles.
5. Household Appliances: In producing parts for household appliances, the series offers the efficiency and precision needed for high-volume production.
6. Medical Industry: The G series is also suitable for manufacturing medical devices and equipment, where precision and reliability are crucial.

Small-Sized Gantry Machining Center for New Energy Automobile Industry

1. High-Speed Machining: Specifically developed for the new energy automobile industry, the small-sized gantry machining center boasts a high moving speed of up to 48m/min. This speed is particularly beneficial for increasing production efficiency in the fast-paced automotive sector.
2. Fast Tool Change: The machine features a tilt table type inverted warehouse for tool storage, significantly speeding up tool changes. With a C-C tool change time that can be as fast as 1 second, it dramatically reduces non-cutting time and enhances overall productivity.
3. Precision Machining: Despite its high speed, the machine does not compromise on precision, making it ideal for manufacturing intricate components used in new energy vehicles, such as battery frames, electric motor parts, and lightweight structural components.

About Raydafon

Raydafon has complete casting production lines, intelligent machine tool equipment assembly lines, intelligent testing equipment, and professional R&D, manufacturing, and sales teams, aiming to provide high-quality CNC machine tools and intelligent equipment solutions to the industry. Relying on its strong CNC machine tool R&D and manufacturing capabilities, Raydafon not only provides customers with high-quality machine tool equipment but also integrates and optimizes the industrial chain to provide customer partners with shared machine tools, smart tool cabinets, automation integration solutions, tool health monitoring systems, and other comprehensive solutions. Industrial chain equipment and life cycle industrial services empower enterprises in all aspects and become industry leaders with high-quality products and professional services.

The Raydafon manufacturing base has advanced lathe flow assembly lines, standard vertical assembly lines, and medium and large equipment assembly lines. It is also equipped with constant temperature inspection rooms such as three-coordinate inspection and precision inspection, equipped with Zeiss high-performance coordinate measuring machines, Weir profilometers, and Ray High-end inspection equipment such as Nisho laser interferometer provides the industry with high-quality CNC machine tools and automated integration solutions.

While opening up the industrial chain of casting, key components, and complete machine assembly, Raydafon is committed to providing customers with flexible equipment purchase models such as shared machine tools, machine tool leasing, and sales-to-lease-to-purchase.

Accessories of CNC Machine Center

CNC Machine Center comes equipped with an array of standard accessories to meet diverse machining demands. Choose from leading controllers like the Siemens controller (optional for those seeking advanced customization), the GSK controller (a standard feature known for its reliability and user-friendliness), and the Fanuc controller (optional for its high performance in complex machining tasks). Additionally, our machine center is designed with a 24ATC (Automatic Tool Changer), enhancing your productivity by minimizing manual tool changing time.

Understanding the unique needs of our clients, Raydafon also offers an exclusive range of optional accessories. Enhance your machining capabilities with our 4th-axis CNC rotary table, allowing for precise and intricate multi-angle machining. To maintain a clean and efficient workspace, consider integrating the Chain-type chip conveyor, a must-have accessory for efficient chip management and removal.

Choose Raydafon’s CNC Machine Center for its commitment to quality, versatility, and precision. Whether standard or optional, each accessory is designed to elevate your machining process, ensuring optimal performance and outcomes. Trust Raydafon to provide the tools and support you need to keep your operations running smoothly and efficiently.



Application of CNC Machine Center

Raydafon's CNC Machine Center stands as a paradigm of versatility and precision in modern manufacturing. Primarily engineered for machining a diverse range of axial and disc parts, this machine showcases its prowess by adeptly turning various threads, arcs, and cones, and intricately machining both the internal and external surfaces of cylindrical parts. Its capability to meet the high-speed requirements of both ferrous and non-ferrous metals marks it as a preferred choice for industries aiming for utmost precision and efficiency.The machine's high-speed operation is a cornerstone feature, making it an indispensable asset in industries where time is of the essence. It's not just about speed; the CNC Machine Center excels in delivering high-quality, precision-machined parts consistently. With a processing accuracy that reaches up to the 7th level, it sets a high standard for precision.Industries such as agriculture, food, automotive, motorcycle, and electronics find this machine a game-changer, particularly in scenarios that demand high efficiency, large-scale production, and precision part machining. Whether it's creating intricate components for the latest electric vehicles or manufacturing robust parts for agricultural machinery, our CNC Machine Center is designed to deliver top-notch performance, meeting the stringent quality demands of various sectors.Embrace the future of manufacturing with our CNC Machine Center, where speed, precision, and versatility converge to revolutionize your production processes. Discover how our machine can transform your operations, ensuring that every component you create is a testament to excellence and innovation.

Why Choose Us？

 Choose our CNC Machine Center for its unmatched quality and precision, ensured by premium components sourced globally from Taiwan, Japan, and Germany. Each part, from the high-precision HIWIN or PMI Guide Rails and Lead Screws to the top-quality FAG or NSK bearings, is meticulously inspected to guarantee machine accuracy and stability. Our CNC Machine Center features a Sanjie brand tool magazine for efficient tool storage and changes, and a high-performance Taiwan Spindle, ensuring high speed, precision, and low noise operation. Trust in our dedication to excellence and let our machine elevate your manufacturing standards.
