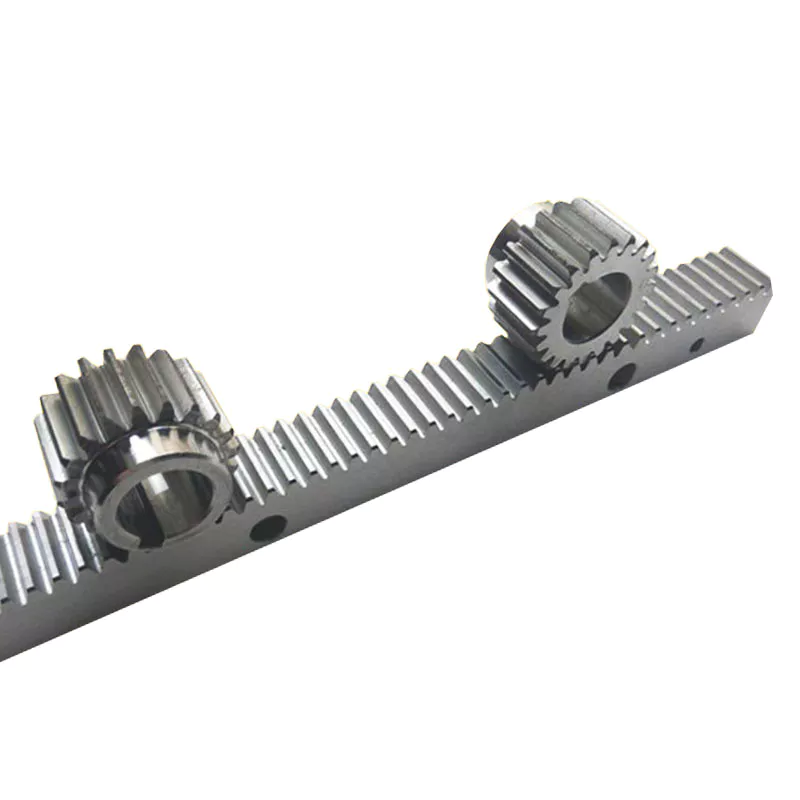

Gear Rack for Construction Lifting Elevator

Description Of Construction Lifting Gear Rack

• Product: helical gear rack and pinion used for CNC cutting machine
• Processing Type: milling and grinding
• Quality Standard: DIN5,DIN6,DIN8
• Certification: ISO9001, SGS, CTI, ROHS
• Hardness: 35-60 HRC
• Used for construction lifting elevator

We can provide these rack gears:

1. Model: 0.4-30M. The outer diameter can reach 6000 mm.
2. Material: cast steel, forged steel, stainless steel, carbon steel, alloy steel, brass, nylon, plastic, etc.
3. Processing: forging, casting, die-casting, investment casting, precision machining, heat treatment or quenching and tempering, carburizing,...
4. Surface treatment: zinc plating, nickel plating, plastic coating, black oxidation, etc.
5. Heat treatment: carburizing and quenching, quenching and tempering, high-frequency quenching, etc.
6. Machine tool: CNC lathe, milling machine, drilling machine, gear shaper, grinder, testing center. Planers, precision CNC machining centers, such as Mazak, CNC lathes, DMG, etc.
7. Quality: high-quality raw materials, precision processing, and strict inspection.
8. Packaging: standard export packaging.
9. Quality inspection: all items pass the inspection and test of the whole production line.

Application:Our products are widely used in automatic doors, window openers, carving machines, elevators, escalators, automatic storage, construction elevators, construction elevators, and other fields. Food machinery, electric tools, machine tools, precision transmission, etc.If you need to find other construction lift parts, please contact us

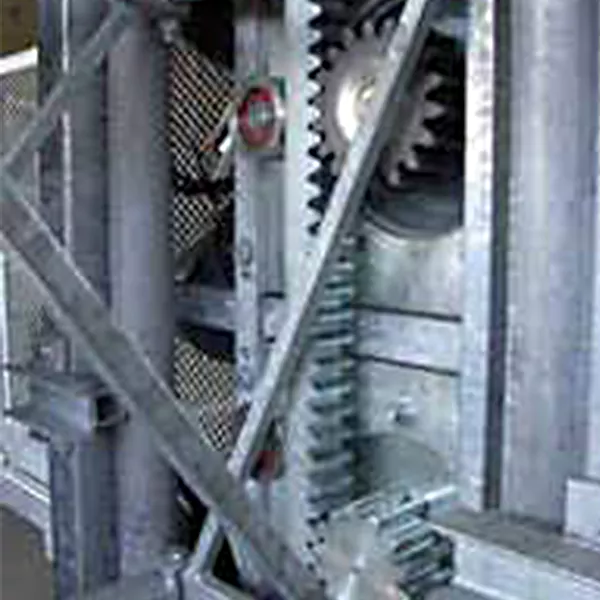

How a Rack-and-Pinion Elevator Works

As the rack and pinion elevator have many advantages, it is a smart vertical transportation option for personnel and materials in a wide range of industrial applications. In addition to lower installation and mechanical costs, rack and pinion lifts eliminate structural costs because they do not require closed hoistways, machine rooms, or overhead loads. They can also be installed entirely in a traditional elevator for a fraction of the time.Structure of rack and pinion lifting systemThe rack and pinion lift system does not include any lifting ropes or cables, such as traction drive lifts unless they have optional counterweights. Instead, the drive assembly is mounted directly on top of the vehicle platform. The drive gear, also called the pinion, is connected to the motor, which drives the pinion and provides power to the system. This construction facilitates the use of permanently mounted gear rails. Therefore, the rack and pinion elevator is an anti-skid system, which is very suitable for use in industrial environments and outdoor applications. The cab dimensions and capacity of the rack and pinion elevator system vary depending on the application.Operation of Rack and Pinion Elevator SystemNow that you have a general understanding of the structure of the rack and pinion elevator system let's talk about how the rack and pinion elevator works. Essentially, a motor connected to the pinion drives the pinion and provides vertical lift to the elevator. This structure allows the operator to move the elevator car up or down according to the command. The elevator can also provide automatic control, such as a single automatic or collective call or remote control. When descending, the rack and pinion elevator usually use resistance or electrical regeneration to control the descending speed. Due to the frequency conversion drive technology, most elevators no longer use friction brake pads to slow down or stop the elevator; Instead, complex electrical technologies are used to save maintenance and reduce the risk of failure.
