Round Gear Racks

Introduction

Round gear racks are a round gear rack with a smooth round profile and precise tooth shape. It is usually made of high-strength alloy steel or other suitable materials and has the characteristics of wear resistance, high strength and long life.

Product name	round gear rack
Gear rack type	round/straight
Module	M1
Length	200mm/500mm/800mm
Precision class	Din8
Tooth treatment	High precise milling
Material	SCM440/S45C
Hardness	55-60HRC
Tolerance	0.082mm/meter
Heat treatment	Tooth surface induction hardens
Hole tolerance	As for drawing
Finishing	No burrs
Surface treatment	Black oxide

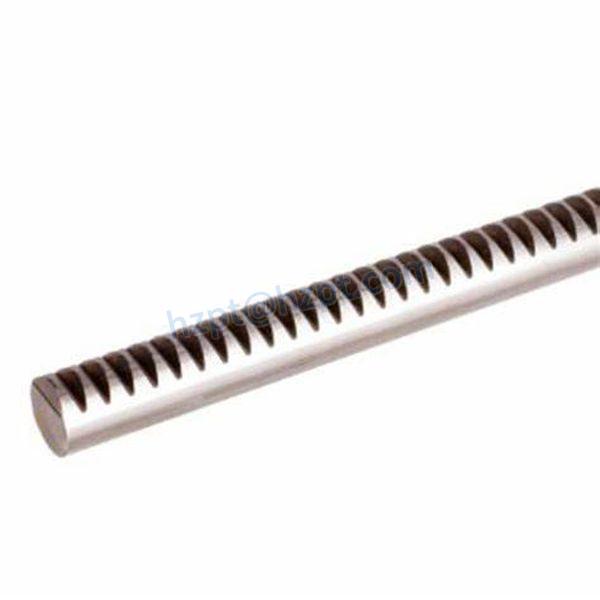

Diameter: φ19mmLength: 200mm/500mm/800mmTooth treatment: High precise millingPressure angle: 20 degMaterial: S45CTooth hardness: 55HRCOur precise round gear rack was used in a wide range of small DC gearboxes, and small electric motor quality classes can be DIN6 and DIN8.

Round gear racks have a wide range of applications in various industries and systems. Here are some common applications for round gear racks:

1. Robotics: Round gear racks are widely used in robotic systems to achieve precise linear motion control. They enable robotic arms and actuators to move precisely along linear paths, facilitating tasks such as pick-and-place operations, assembly, and material handling.2. CNC Machine Tools: Round gear racks can be used in computer numerical control (CNC) machine tools, especially in linear motion systems. They are used to drive the axes of CNC mills, lathes, and milling machines, ensuring precise and repeatable movements of cutting tools or workpieces.3. Conveyors: Round gear racks are used in conveyor systems that require linear motion for material handling. They are used to drive the movement of conveyor belts, enabling smooth and controlled movement of goods in industries such as manufacturing, logistics, and warehousing.4. Positioning Systems: Round gear racks are used in precision positioning systems such as linear stages and slide rails. These systems are used in applications such as microscopy, metrology, and semiconductor manufacturing, where precise and controlled movement along linear axes is critical.5. Industrial Machinery: Round gear racks can be found in various industrial machinery, including printing machines, packaging equipment, and textile machinery. They enable linear motion in these machines for tasks such as feeding materials, adjusting position, and controlling part movement.6. Automotive: Round gear racks are used in automotive applications such as steering systems. They convert the rotational motion of the steering gear into linear motion, allowing precise control and maneuverability of the vehicle.7. Medical Equipment: Round gear racks are used in medical equipment, including diagnostic machines, imaging systems, and surgical robots. They enable precise and controlled linear motion for accurate positioning, imaging, and surgery.These are just a few examples of the wide range of applications of round gear racks. Their ability to provide reliable and precise linear motion makes them an important component of many mechanical systems in different industries.

Installation:

1. Mounting Surface: Ensure that the mounting surface for the gear rack is flat, rigid, and properly aligned with the gear or pinion. Any misalignment can result in uneven wear and reduced performance.2. Alignment: Proper alignment between the gear rack and the mating gear or pinion is crucial for smooth and efficient operation. Align the gear rack parallel to the gear's rotational axis and ensure proper engagement between the teeth.3. Fastening: Securely fasten the gear rack to the mounting surface using appropriate fasteners. Make sure the fasteners are tightened to the recommended torque values provided by the manufacturer.4. Lubrication: Apply a suitable lubricant to the gear rack and mating gear or pinion to reduce friction and wear. Follow the manufacturer's recommendations for the type of lubricant and lubrication intervals.

Maintenance:

1. Regular Inspection: Periodically inspect the gear rack for signs of wear, damage, or misalignment. Look for excessive wear on the teeth, cracks, or deformations. Address any issues promptly to prevent further damage.2. Lubrication: Regularly lubricate the gear rack and mating gear or pinion as per the manufacturer's recommendations. Ensure that the lubricant is evenly distributed along the gear rack to maintain smooth operation.3. Cleaning: Keep the gear rack clean and free from dirt, debris, and contaminants. Regularly clean the gear rack using a soft brush or cloth to remove any buildup that may affect its performance.4. Load Monitoring: Monitor the applied load on the gear rack to ensure it remains within the specified capacity. Avoid overloading, as it can lead to premature wear or failure. If higher loads are required, consider using a larger or stronger gear rack.5. Misalignment Correction: If any misalignment is detected during inspections, take corrective measures to realign the gear rack and mating gear or pinion. Misalignment can cause uneven wear and reduce the gear rack's lifespan.6. Replacement: If the gear rack shows significant wear, damage, or deformation that cannot be repaired, it should be replaced with a new one. Follow the manufacturer's guidelines for proper replacement procedures.

Production Details

Heat treatment:Normalized / Annealed / Quenched / temperedSurface Treatment:painting,plating,polishing,black oxide,transparent anti-rust oilQuality control:UT,MT,RT,PT,chemical composition test,mechanical property test,etc.Inspection:1, Raw material certificate(material chemical composition) 2, Heat treatment sheet report3, Dimension inspection report      4, UT test reportDelivery condition:Hot forged +Rough machined (black surface after Q /T)+ TurnedCompetitive Advantage:Quality control and management of the whole production process, including ingot smelting, forging, heat treatment, machining, and a strictly final inspection before delivery.Excellent product quality and service, competitive price, "in-time" deliveryWe are professional Round Gear Racks(Rack Gear, Rack) factory from china; As per the material, we could supply Mild Steel, Alloy Steel, Harold Steel, Alloy Steel, Hardened and Tempered Steels, Case carburized, Case Hardened Steels, Cast Iron, or as specified. Please send us the drawing or size of Gear Rack, Rack, and Rack Gear that you need; we will be glad to quote the best price for your side.

During the use of Round gear racks, several issues may arise. Here are some common problems and their possible solutions:

1. Wear and Tear: Over time, the teeth of the Round gear rack may experience wear due to the constant engagement with the gear. This can result in decreased performance and increased backlash.Solution: Regular maintenance and lubrication can help reduce wear. Inspect the gear rack periodically and replace it if the wear is excessive. Applying appropriate lubricants can also help reduce friction and prolong the rack's lifespan.2. Backlash: Backlash refers to the clearance or play between the teeth of the gear and the rack, which can lead to imprecise and inconsistent motion.Solution: Minimizing backlash is important for precise motion control. One approach is to select gear racks with smaller tooth pitch or use gear racks with a helical tooth design, as they can help reduce backlash. Additionally, using high-precision gears and maintaining proper gear mesh alignment can also minimize backlash.3. Misalignment: Improper alignment between the gear and the rack can result in increased wear, noise, and decreased efficiency.Solution: Ensure proper alignment during installation. The gear and rack should be aligned concentrically and parallel to each other. Using alignment tools and following manufacturer guidelines can help achieve accurate alignment. Regularly check and adjust the alignment as needed.4. Corrosion and Contamination: Exposure to moisture, chemicals, or contaminants can lead to corrosion or damage to the gear rack's surface.Solution: Select gear racks made from corrosion-resistant materials such as stainless steel or coated with protective finishes. Implement proper sealing measures to prevent moisture and contaminants from reaching the gear rack. Regular cleaning and maintenance can also help prevent corrosion and prolong the rack's lifespan.5. Overloading: Applying excessive loads beyond the rated capacity of the gear rack can lead to premature failure or deformation of the teeth.Solution: Ensure that the gear rack is appropriately sized and rated for the intended load. Avoid exceeding the recommended load capacity. If higher loads are required, consider using a larger or stronger gear rack or implementing additional support mechanisms to distribute the load.6. Insufficient Lubrication: Inadequate lubrication can result in increased friction, wear, and noise.Solution: Apply a suitable lubricant to reduce friction and wear. Follow the manufacturer's recommendations for lubrication intervals and use lubricants specifically designed for gear applications. Regularly inspect and replenish the lubricant as needed.

When selecting the appropriate round gear racks for your application, consider the following factors:

1. Load Requirements: Determine the maximum load that the gear rack will need to support. Consider both the static and dynamic loads that will be applied. Ensure that the selected gear rack has a load capacity that meets or exceeds the requirements of your application.2. Pitch and Module: The pitch and module of the gear rack determine the size and spacing of the gear teeth. Choose a gear rack with a pitch and module that are compatible with the mating gear or pinion. Ensure that the gear rack and gear have the same pitch and module to ensure proper engagement and smooth operation.3. Material: The material of the gear rack affects its strength, durability, and resistance to wear and corrosion. Common materials for gear racks include steel, stainless steel, and plastic. Consider the specific requirements of your application, such as load, environment, and operating conditions, to select an appropriate material.4. Precision Requirements: Evaluate the precision requirements of your application. If precise positioning and motion control are crucial, consider gear racks with high precision and low backlash. Helical gear racks are known for their improved precision and reduced backlash compared to straight gear racks.5. Length and Configuration: Determine the required length of the gear rack based on the linear travel or stroke of your application. Consider whether the gear rack needs to be cut or joined to achieve the desired length. Additionally, consider the configuration of the gear rack, such as straight or curved, based on the specific motion requirements of your application.6. Application Environment: Consider the environmental conditions in which the gear rack will operate. Take into account factors such as temperature, humidity, dust, and chemical exposure. Choose a gear rack with appropriate corrosion resistance and protection measures to ensure its longevity in the specific environment.7. Manufacturer and Quality: Select gear racks from reputable manufacturers with a track record of producing high-quality products. Ensure that the gear racks meet industry standards and certifications, if applicable, to guarantee their performance and reliability.EVER POWER also offers other rack products such as Gear Rack For Door Opener,gear rack for elevator,rack and pinion steering,metric gear rack,etc. Customers are welcome to inquire about customized products.EVER POWER is a professional manufacturer of racks in China. Its products are mainly sold to hundreds of fixed suppliers such as domestic steel rolling mills, shipyards, precision machine tool factories, automation machinery factories and various distribution companies, and exported to Western Europe, the Middle East, and Southeast Asia. and other countries and regions. The developing EVER POWER currently has hundreds of employees, including many engineers, with fixed assets of 20 million yuan and an annual output value of 50 million yuan. It mainly produces 1 to 32 module standard racks, non-standard straight racks, helical racks, double-sided racks, cylindrical racks, and various inch racks, with an accuracy of up to 7 to 9 levels, and is a horizontal directional drilling rig, military industry, various large and medium-sized machine tools, automatic skylights, marine, steel mills, coal mines, petroleum, woodworking machinery, flame cutting machines, engraving machines, various automated assembly lines and other production supporting racks. The company has a complete set of strict quality management systems , equipped with a series of precision measuring instruments such as optical projectors and 16 full-process production monitoring systems. Currently, it has 30 fully automatic precision CNC rack-specific machine tool assembly lines as well as polishing and more than 20 general-purpose machine tools. EVER POWER has considerable competitiveness in the same industry.
