German Warehouse Quick Conversion Kit Small Motor Raydafon P110 Rear Hub Motor Wheel for Ebike

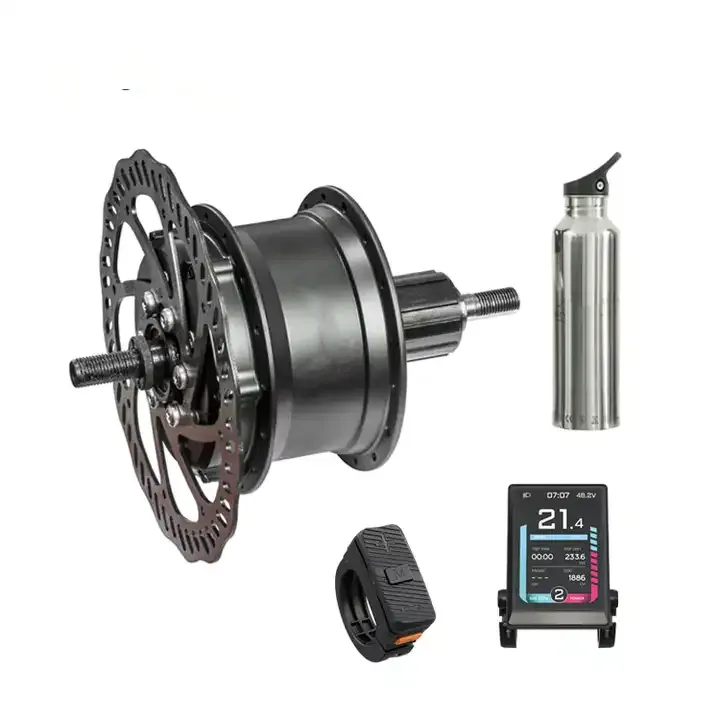

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]Introducing the Raydafon Motor Kit P110, a quick conversion kit for your normal bike, transforming it into an efficient and powerful e-bike. This kit features a P110 rear hub motor wheel perfect for your electric bicycle, designed in Germany and stored in our warehouse, ensuring fast and efficient delivery. The kit includes a built-in controller, brushless non-gear hub motor, with a sleek black & silver design. It offers 1-12 speeds with a maximum power of 750W, making your ride smoother and more enjoyable.

Specifications of P110 Rear Hub Motor for E-bike

Item No.	P110SWXRDC36/P110SWXRC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake
Outlet position	Under the shaft on the right side
Free-wheel types	Cassette & Whirl
Gears	1-12s
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Internal
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.4KG

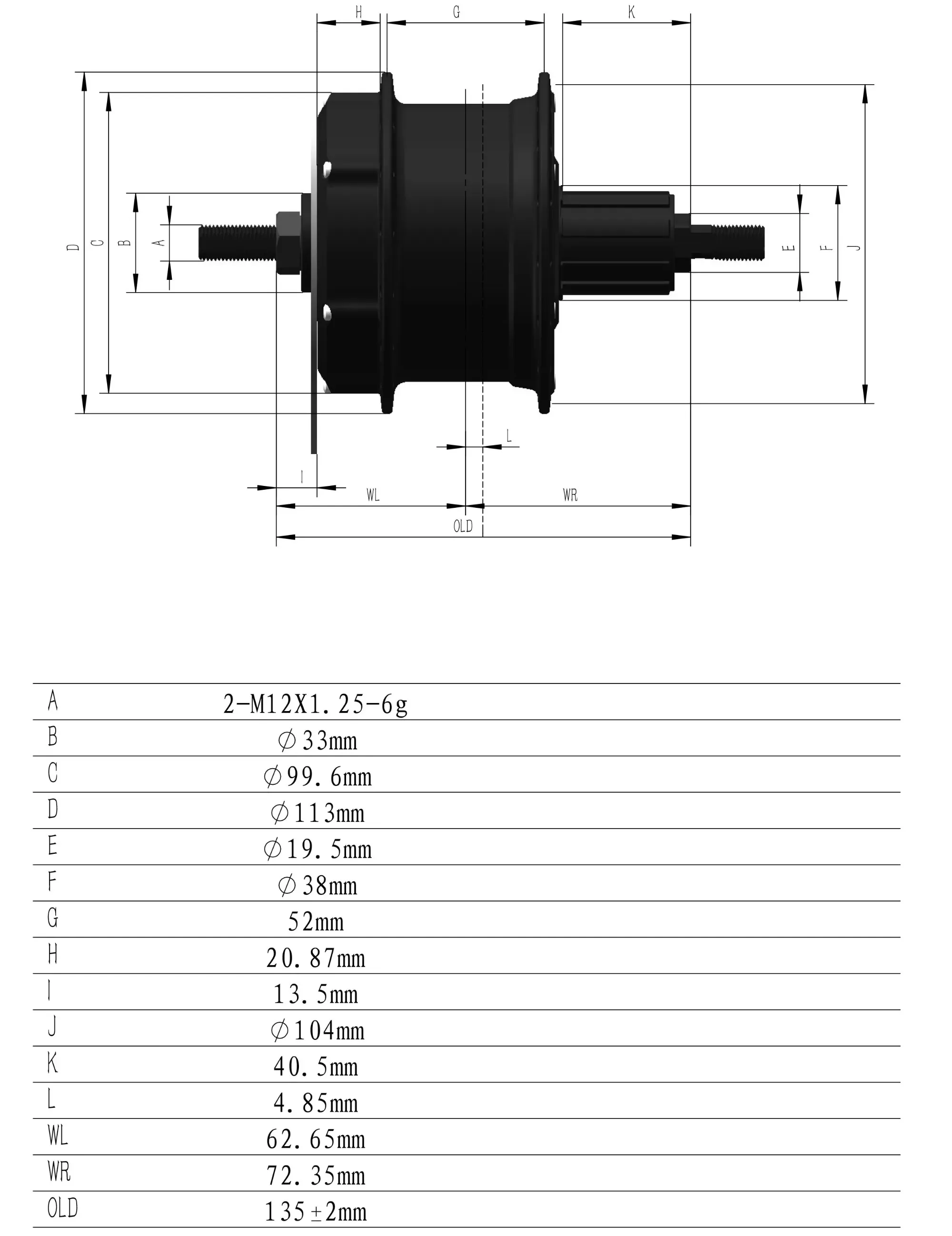

Dimension of P110 Rear Hub Motor for E-bike

Key Features and Benefits of Raydafon Motor Kit P110

The Raydafon Motor Kit P110 comes packed with an array of outstanding features that sets it apart from the competition:

1. 1. Built-in Controller and Sensor: These components provide smooth and responsive power delivery, adjusting the motor output based on your pedaling effort.
   2. Dynamic Torque Sensing System: The system measures the force applied to the pedals and adjusts the motor assistance accordingly, making your ride more comfortable and efficient.
   3. Slope Induction System: This feature detects uphill and downhill slopes and adjusts the motor's power output to maintain a constant speed, reducing the effort required when climbing hills.
   4. Maximum Power 750W: The motor provides up to 750W of power, delivering superior performance for all types of riding conditions.
   5. Torque Exceeds 40N·m: High torque output ensures excellent climbing capabilities and responsive acceleration.
   6. Efficiency Greater Than 90%: High efficiency translates to longer battery life and extended riding range.

Our expertise and dedication to quality ensure that we can manufacture this advanced and efficient product to the highest standards.

Applications of Raydafon Motor Kit P110

The P110 rear hub motor is a popular choice for electric bicycles due to its performance and efficiency. It's suitable for a wide range of applications:

1. Commuting: The P110 rear hub motor provides reliable and efficient power for daily commuting, making the commute easier and faster.
2. Urban Transportation: Electric bicycles equipped with the P110 rear hub motor offer a convenient and eco-friendly alternative to cars.
3. Cargo Bikes: The motor's torque and power provide the necessary assistance for hauling groceries, packages, or other bulky items, making it easier for riders to transport goods.
4. Recreational Riding: The motor enhances the recreational riding experience, making it more enjoyable and less strenuous.
5. Touring and Long-Distance Rides: For long-distance tours or bikepacking adventures, the P110 rear hub motor offers assistance during challenging terrains or when covering vast distances.
6. E-bike Sharing Services: The motor's reliability and efficiency make it suitable for e-bike sharing programs, ensuring a smooth ride for multiple users.

How Does the P110 Rear Hub Motor for Ebike System Work?

The P110 rear hub motor for an e-bike system combines mechanical and electrical components to provide propulsion and assist the rider. Here's a quick overview of how the system works:

1. Motor: Located in the rear wheel hub, it's powered by a battery and controlled by an electronic controller.
2. Battery: The e-bike system is powered by a battery which supplies electrical energy to the motor.
3. Controller: It receives input from various sensors and determines how much assistance to provide based on the rider's input and the selected power mode.
4. Sensors: Sensors monitor the rider's pedaling effort, speed, or torque, providing feedback to the controller.
5. Assistance Modes: The P110 rear hub motor offers multiple assistance modes such as eco, normal, and high power.
6. Operation: When the rider starts pedaling, the sensors detect the input and send signals to the controller. The controller activates the motor and delivers power to the rear hub, providing additional torque and propulsion.

Choose the Right P110 Rear Hub Motor for Electric Bicycle

When choosing the right P110 rear hub motor for your electric bicycle, several factors need to be considered:

1. Power and Torque: This determines how much assistance the motor can provide and how well it can handle various riding conditions.
2. Voltage and Battery Compatibility: The motor and battery should have matching voltage specifications for optimal performance and compatibility.
3. Wheel Size: Ensure that the rear hub motor is compatible with your bicycle's wheel size.
4. Efficiency and Range: A more efficient motor will help maximize your battery's capacity, allowing for longer rides before recharging.
5. Weight and Size: A lighter and more compact motor can contribute to improved handling and maneuverability of your electric bicycle.
6. Riding Style and Terrain: Consider your riding style and the type of terrain you'll be traversing.

How to Maintain the P110 Rear Hub Motor

Proper maintenance of the P110 rear hub motor for an electric bicycle is essential to ensure its longevity and optimal performance. Here are some maintenance tips:

1. Keep it Clean: Regularly clean the motor area to remove dirt, dust, and debris that can affect its performance.
2. Check the Wiring: Periodically inspect the wiring connections of the motor to ensure they are secure and free from any damage.
3. Lubrication: Some rear hub motors may require lubrication for smooth operation. Refer to the manufacturer's guidelines or user manual.
4. Battery Maintenance: The battery plays a crucial role in powering the rear hub motor. Follow the manufacturer's guidelines for battery maintenance.
5. Regular Inspections: Periodically inspect the motor for any signs of damage, such as cracks, dents, or loose parts.
6. Firmware Updates: Some rear hub motors may have firmware that can be updated for improved performance or bug fixes.

Why Choose Raydafon's P110 Rear Hub Motor for Electric Bicycle?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes.Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
