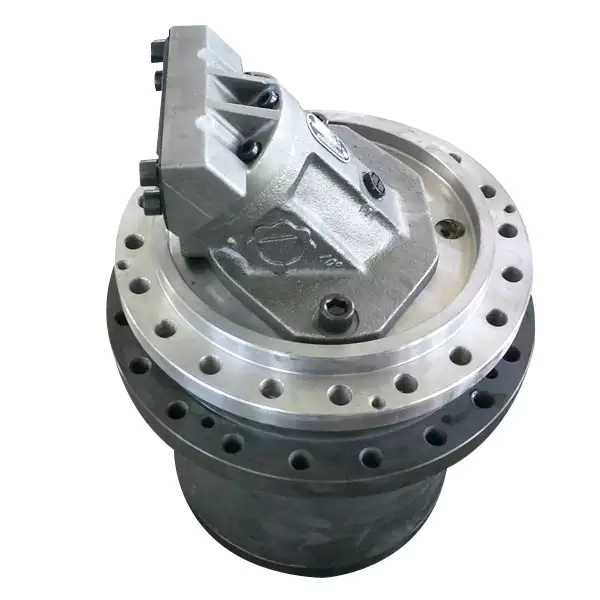

GFT-W Series Planetary Gearbox Replace Replacement of Bosch Rexroth GFT13W2 GFT17W2 GFT17W3 GFT24W2 GFT26W2 GFT36W3 GFT40W2GFT50W3 GFT60W3 GFT80W3 GFT110W3 GFT160W3 GFT220W3 GFT330W3

The Models We Can Replace

BOSCH REXROTH	GFT13W2	GFT17W2	GFT17W3	GFT24W2	GFT26W2	GFT36W3	GFT40W2
Raydafon	RDF-GFT13W2	RDF-GFT17W2	RDF-GFT17W3	RDF-GFT24W2	RDF-GFT26W2	RDF-GFT36W3	RDF-GFT40W2
BOSCH REXROTH	GFT50W3	GFT60W3	GFT80W3	GFT110W3	GFT160W3	GFT220W3	GFT330W3
Raydafon	RDF-GFT50W3	RDF-GFT60W3	RDF-GFT80W3	RDF-GFT110W3	RDF-GFT160W3	RDF-GFT220W3	RDF-GFT330W3

The hydraulic winch driving mobile GFT-W is an ideal driving part of the winch. They work perfectly in the most demanding applications and under harsh operating conditions. Mobile GFT-W winch drives are used for various winches - Mobile and crawler cranes, railway cranes, shipboard, dock, and container cranes. Due to its compact design, the gear unit can be installed in the wire rope drum in a space-saving manner. They are designed to facilitate installation and maintenance. The high-quality manufacturing process and case hardened gears and hardened tempered. Case hardened gear rings ensure excellent load-carrying capacity, operational safety, and low noise operating characteristics.The gear teeth are designed according to the standard specifications, and our strength calculations are developed based on our comprehensive technical knowledge and best adapted to our manufacturing process. Our hydraulic motors provide the best working efficiency for the driving device.

Features of GFT-W Series Planetary Gearbox

• For direct installation in winch drums, e.g., for crane applications
• Two- or three-stage planetary gearbox
• Rope pull force 50 … 684 kN
• Torque output 9500 … 325000 Nm
• Compact and space-saving planetary gearbox design
• The planetary gear adopts a complete set of bearings
• Robust bearing system to absorb the force exerted by the bearing, the rope broke
•  Easy to assemble,  Easy oil change
•  Integrated static multi-disc parking brake
•  Low noise operation

Parameter of  GFT-W Series Planetary Gearbox

Type/designGFT-W	Output torque 1)T2 maxNm	Rope pull max. 2)kN	Gear ratiofrom/toi
GFT 17 W2	14000	67	37,6 - 54
GFT 17 W3	14000	74	77,9 - 102,6
GFT 24 W3	19000	99	90,1 - 137,2
GFT 26 W2	18000	84	42,9 - 62
GFT 36 W2	26000	118	67 - 138,8
GFT 40 W2	27000	108	35,9 - 59,1
GFT 50 W2	37500	150	84,2 - 125,6
GFT 60 W2	42500	164	63,8 - 94,8
GFT 80 W2	67000	231	61,3 - 215
GFT 110 W2	100000	300	79,5 - 173,9
GFT 160 W2	140000	373	133 - 251
GFT 220 W2	200000	471	97,7 - 293
GFT 330 W2	275000	595	168,9 - 252
GFT 450 W2	325000	684	293,4 • 421,7

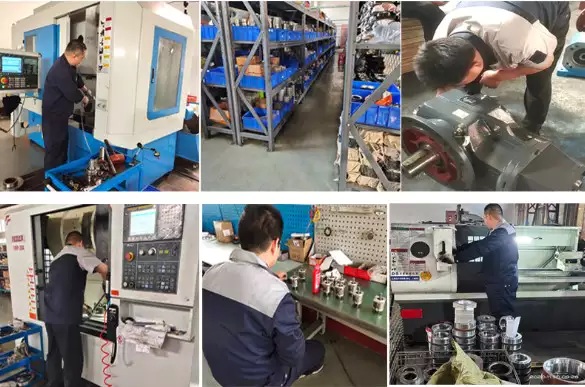

About Us

Raydafon is a professional manufacturer of planetary reducers/gearboxes. Currently, we have developed tens.Thousands of specifications of planetary reducer/gearbox, travel drive, swing drive, and winch drive. The ratio range is 3.3 ~ 9000, and the output torque range is 500 ~ 1200000n. M. Installation, size, and performance parameters of reducer.It is identical to famous European brands and can be replaced entirely and interchanged.Details are as follows:Replacement of Bonfiglioli (300 series, 700C series, 700T series, 600W Series)Brevini (EM, ED, et, EQ, EC, PD, PDA, CTD, CTU, SL type)Dinami oil (re, GB, RA, GBA type)Regiana ridutori (RR, RA type)Angle (PG, PGA, PGR, PGW type)Rexroth (GFT, gft-w, GFB type)Replacement of Rossi (R2E, R3E, r4e, rce, rc2e, rc3e, mr2e, mr3e, Mr 4E, MRCE, mrc2e, mrc3e)Zolen (zhp3.13, zhp3-15, zhp1.19, zhp2.20, zhp4.22, zhp6.24, zhp5.25, zhp8.26, zhp7.27, zhp9.29, zhp31, zhp13.32)FAIRFIELD、AUBURN GEAR、Replacement of OMNI GEAR、O& K et al. Therefore, our planetary reducers/gearboxes can be used to replace the gearboxes of these brands.
