GH3201 Crane Gearbox Reducer for wire rope lifting drive with Double Speed Motor

Boost your industrial lifting efficiency with the Raydafon Group GH3201 Crane Gearbox Reducer, featuring a Double Speed Motor designed for precise wire rope lifting drives. Engineered with robust materials and advanced technology, it ensures reliable performance, reducing maintenance needs and enhancing safety for construction and manufacturing operations. Experience smoother operations and increased productivity—ideal for professionals seeking durable, high-performance solutions.

Send Inquiry

Product Description

Unveiling the GH3201 Crane Gearbox Reducer for Wire Rope Lifting Drive with Double Speed Motor

When it comes to the world of industrial-grade lifting mechanisms, the GH3201 Crane Gearbox Reducer for Wire Rope Lifting Drive with Double Speed Motor is a game-changer. This state-of-the-art component is a groundbreaking advancement in the mechanical engineering sector, specifically designed for wire rope lifting drives.

Technical Parameter

Safe working load	up to 3.2 tons
Lifting speed	4/5/6.3/8 at pulley ratio of 4/1
Drum diameter	140 mm
Rated power	0.37/2.5-0.6/4.0 kW (12/2-pole @ 50Hz)
Output shaft output shaft	output shaft DIN 5480- W40x2x18x8f
Protection level	motor IP65, brake IP54 (option IP65)
Standard	PTC thermistors and temperature switch sensorsMoisture and corrosion protection
Options	CSA certificationOther FEM levels and pulley ratios, please inquire separately!

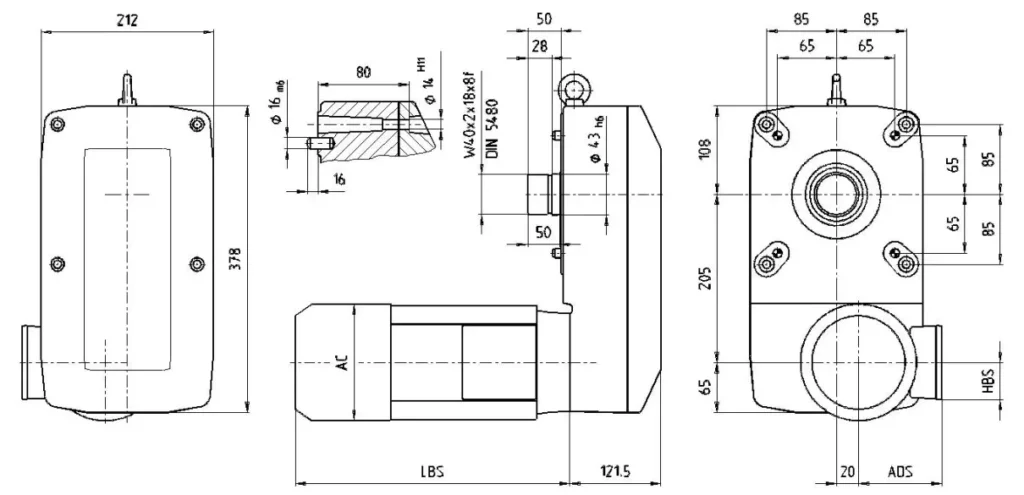

Installation Size and Weight

Model	AC	LBS	ADS	HBS	Weight
ZFB40/GH3201/4D100Lb4x-12/2 UL TT	195	372	141	61.5	48
ZFB40/GH3201/4D100Lc4x-12/2 UL TT	195	372	141	61.5	50
ZFB40/GH3201/4D100L4x-12/2 UL TT	195	401.5	141	61.5	56

Drum diameter 140 mm | Pulley magnification 4/1

Rated power 2.5 (3.0) kW
Model	Load [t]	ISO	FEM	speed [m/min]	Power [kW]	Frequency [Hz]	Speed ratio	Braking torque [Nm]
ZFB40/GH3201/4D100Lb4x-12/2 UL TT	3.2	M5	2m	0.7 / 4.0 (0.8 / 4.8)	0.37 / 2.5 (0.44 / 3.0)	50 (60)	78.6	28
	2.5	M6	3m
	2.0	M7	4m
Rated power 3.2 (3.8) kW
Model	Load [t]	ISO	FEM	speed [m/min]	Power [kW]	Frequency [Hz]	Speed ratio	Braking torque [Nm]
ZFB40/GH3201/4D100Lc4x-12/2 UL TT	3.2	M5	2m	0.8 / 5.0 (1.0 / 6.0)	0.45 / 3.2 (0.54/ 3.8)	50 (60)	62.6	28
	2.5	M6	3m
	2.0	M7	4m
Rated power 4.0 (4.8) kW
Model	Load [t]	ISO	FEM	speed [m/min]	Power [kW]	Frequency [Hz]	Speed ratio	Braking torque [Nm]
ZFB40/GH3201/4D100L4x-12/2 UL TT	3.2	M5	2m	1.0 / 6.3 (1.2 / 7.6)	0.6 / 4.0 (0.72/ 4.8)	50 (60)	49.5	40
	2.5	M6	3m
	2.0	M7	4m
ZFB40/GH3201/4D100L4x-12/2 UL TT	2.5	M5	2m	1.3 / 8.0 (1.6 / 9.6)	0.6 / 4.0 (0.72 / 4.8)	50 (60)	39.4	40
	2.0	M6	3m
	1.6	M7	4m

Key Features of the GH3201 Crane Gearbox Reducer

The GH3201 Crane Gearbox Reducer is packed with a plethora of features that have been designed to maximize performance, reliability, and efficiency. Here are five of its standout features:

Exceptional Torque Output: This gearbox reducer offers high torque output, enabling heavy lifting operations with ease.
Double Speed Motor: The inclusion of a double speed motor allows for precise control over lifting and lowering speeds.
Durable Build: Constructed with top-tier materials, the GH3201 Crane Gearbox Reducer is built to withstand the rigors of industrial use.
Low Maintenance: This gearbox reducer is designed for longevity with minimal maintenance requirements.
Easy Installation: Its compact design and clear instructions make installation a breeze.

Application of the Gearbox Reducer in Cranes

The GH3201 Crane Gearbox Reducer is typically installed in the crane's hoisting mechanism. Its primary function is to reduce the speed of the motor, thereby increasing the torque for lifting heavy loads. The double speed motor allows the crane operator to control the lifting and lowering speeds, ensuring safe and efficient operations.

Other Application Scenarios for the GH3201 Gearbox Reducer

While the GH3201 Crane Gearbox Reducer is tailor-made for crane mechanisms, its versatility makes it suitable for other applications as well. These include:

Winches: The gearbox reducer can be used in winches to control the winding and unwinding of the wire rope.
Elevators: It can be incorporated into elevator systems for efficient and smooth movement of the elevator car.
Conveyor Systems: The GH3201 can be used in conveyor systems to regulate the speed of the conveyor belt.
