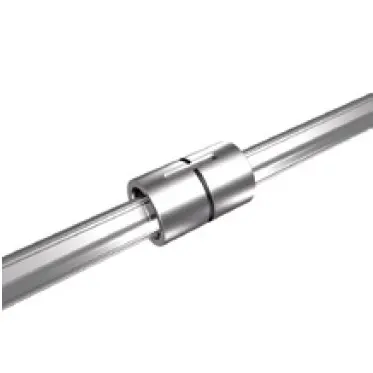

GJZA Convex Type Linear Motion Spline Series

GJZA Convex Type Linear Motion Spline Series

The GJZA convex type linear motion spline series is an exceptional product that brings precision and efficiency to motion control applications. With its advanced design and high-quality construction, this spline series offers smooth and accurate linear motion, making it an ideal choice for various industrial and automation systems.The GJZA convex type linear motion spline series offers precision and efficiency in motion control applications. With its unparalleled precision, versatile applications, smooth operation, and high load capacity, this spline series provides a reliable and efficient solution for various industrial and automation systems. By following the recommended usage method and maintenance guidelines, you can maximize the benefits of the GJZA convex type linear motion spline series, leading to improved productivity, enhanced performance, and increased operational efficiency in your applications.

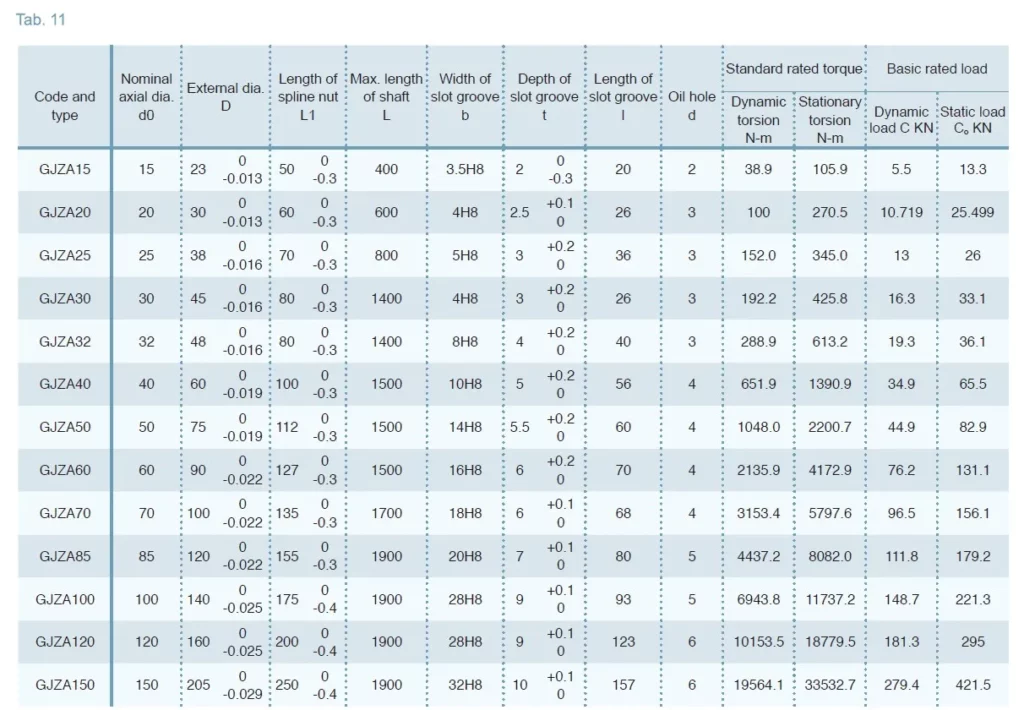

Parameter of GJZA Convex Type Linear Motion Spline Series:



Maintenance Guidelines of GJZ Convex Type Linear Motion Spline Series:

To ensure the durability and consistent performance of the GJZA Convex Type Linear Motion Spline Series, follow these maintenance guidelines:Regular Cleaning: Periodically clean the spline series to remove dirt, dust, and debris. Use a soft cloth or brush to gently clean the surface, ensuring smooth operation and preventing potential damage.Lubrication Maintenance: Adhere to the manufacturer's recommendations for lubrication maintenance. Regularly apply the recommended lubricant to the spline series to minimize wear, reduce friction, and extend its lifespan.Inspection and Maintenance: Regularly inspect the spline series for signs of wear, misalignment, or damage. Check for loose connections or abnormalities during operation. Address any issues promptly to prevent further damage or performance degradation.Component Replacement: If any components show significant wear or damage, replace them with genuine parts from the manufacturer. Using genuine parts ensures compatibility and maintains optimal performance.

Configuration and Features:

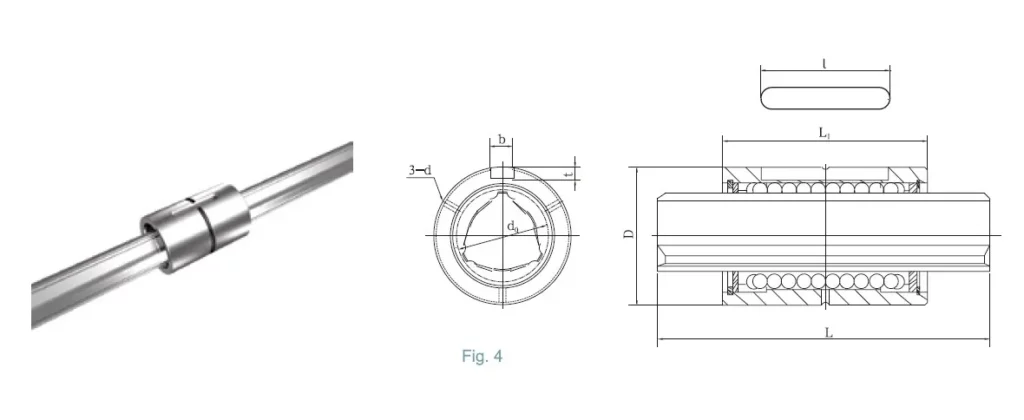

The spline is a kind of linear motion system. The torque is transferred when spline motions are made along the precision ground shaft by balls. The spline had a compact structure. It can transfer the overload and motive power. It has a longer lifetime.Currently, the factory manufactures two kinds of spline: convex and concave. Usually, the convex spline can take a more enormous radial load and torque than the concave spline.Linear motion rolling spline,(shown as Fig.1)has three rails sharing in excircle of spline shaft, balls are running in specific six loading paths formed by bulge outs of the three rails and the respective sections of spline nut.After the finished process, the radius of roller track slots is nearly the R-value of balls. When torsion force is pressed between the spline nut and the shaft, three torsion-oriented loading ball lines transform the force steadily and equally. When the orientation reverses, three other rows work. If a relative motion occurs between the shaft and the spline nut, balls will move back and forth between roller tracks and unload zone.The spline shaft is made of high-grade alloy steel quenching HRC 58, and the spline nut is made of high-grade alloy cementite steel quenching HRC 58, so long service life and hard intensity can be obtained.Clearance of rotating direction can be controlled to zero value or interfere state, high-speed motion, and spinning can be available; in addition, linear motion spline with compact structure is easy to assemble.

Code Rule and Connotation:

Accuracy Grade:

Spline series is divided into three accuracy grades,such as super as super-grade C,precision grade D and common grade E.Accuracy items see Fig.2.Allowable varaiation requirements of both axle necks of spline shaft are recommended for users.

Service Life Calculation:

Note Items:

Special Requirements For Shaft End

The fracture surface of the spline shaft is shown in Fig 10. When the axle neck of the spline needs some processing, make sure that:d<D(see tab.17;18;19)

Configuration and Mounting of Spline Nut

The correct mounting method is to keep the slot groove of the spline nut horizontal with mounting holes of the flange.Spline nut's slot grooves of GJZ, GJZA, and GJZG types, Shown as Fig.9(a), lie right two bearing ball lines.(a)GJZ, GJZA, GJZG type mounting section(b)GJF, GJFG type flange mounting section(c)GJZD mounting sectionMounting of Spline NutWhen fitting the spline nut to the mounting base, please push it in with proper tooling. Do not touch the side plate and sealing gasket—tool di front end faceoff angle 2*30°.

Size of Proper Tooling:

Assemble the axle with a spline nutWhen fit spline shaft with spline nut, pay attention to watch that matchmarks to avoid mistake.No permission fitting with reckless force. Lubrication oil is recommended for external diameter of main axle. Shown in Fig.13.
