Grader Driven Rake Gearbox EP100 for Rotary Tillers

Grader Driven Rake Gearbox EP100 for Rotary Tillers

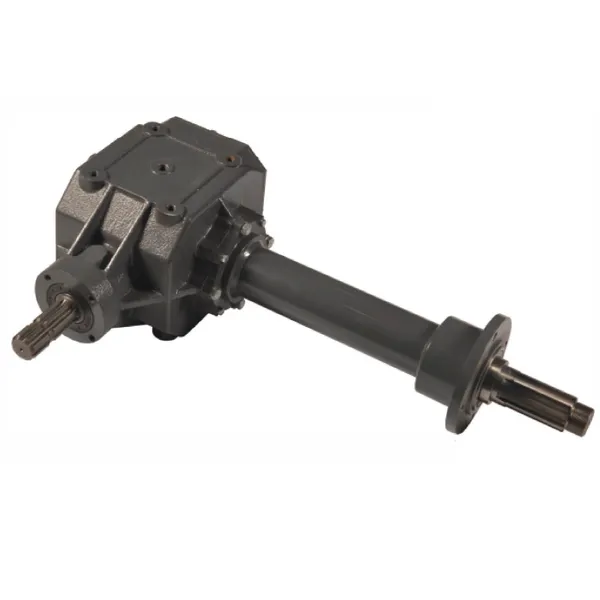

The Grader Driven Rake Gearbox EP100 is a specialized gearbox designed for rotary tillers and similar agricultural machinery. This gearbox plays a crucial role in powering the raking mechanism of rotary tillers, allowing them to perform a range of essential tasks in agriculture and land preparation. Here's an introduction to the Grader Driven Rake Gearbox EP100:Key Components of the Grader Driven Rake Gearbox EP100:The Grader Driven Rake Gearbox EP100 consists of several key components that work together to achieve specific functions:Input Shaft: This shaft connects to the power source, typically the rotary tiller's engine or Power Take-Off (PTO) shaft.Gear Mechanism: The gearbox contains a set of gears that transmit power from the input shaft to the output shaft. The gear ratio determines the speed and torque of the output.Output Shaft: The output shaft is connected to the raking mechanism of the rotary tiller, which includes rakes or blades. It receives power from the gearbox and drives the raking action.Housing: All gearbox components are enclosed within a sturdy housing, which serves to protect them from external elements and provide structural support.

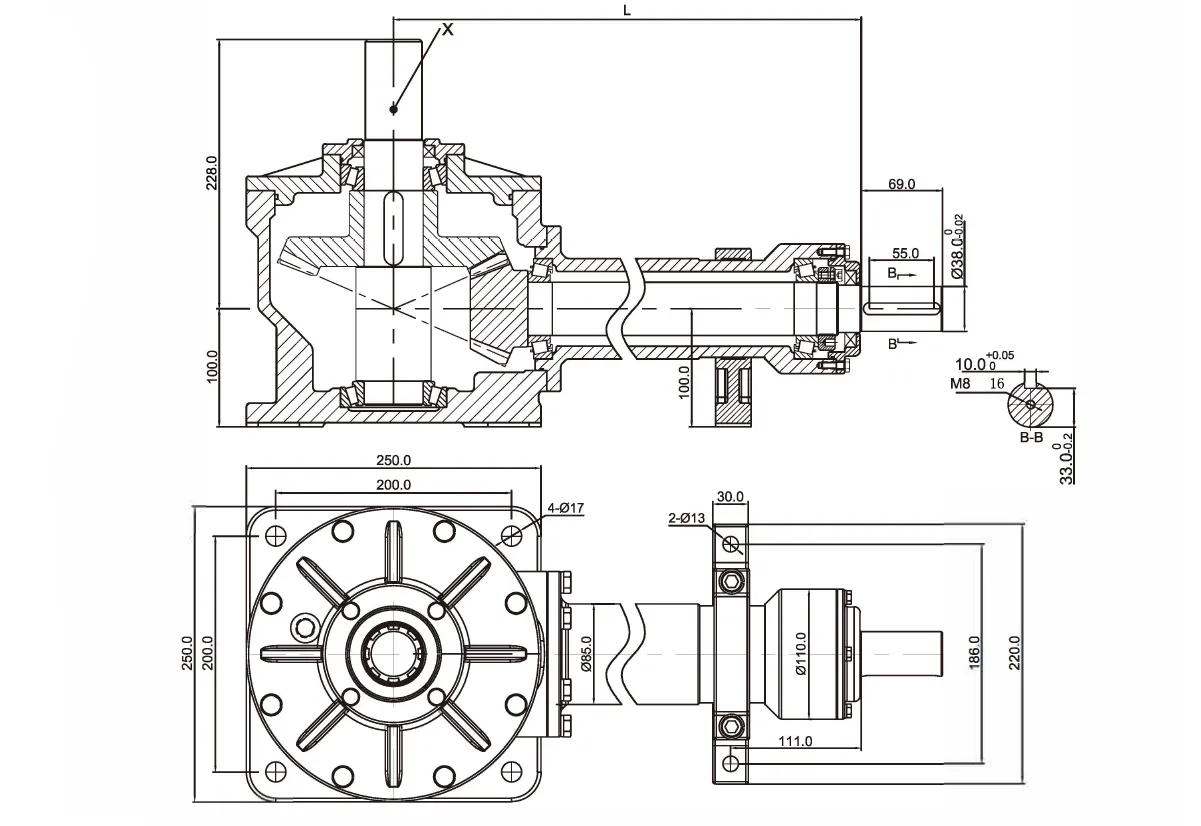

Grader Driven Rake Gearbox EP100 Dimensions

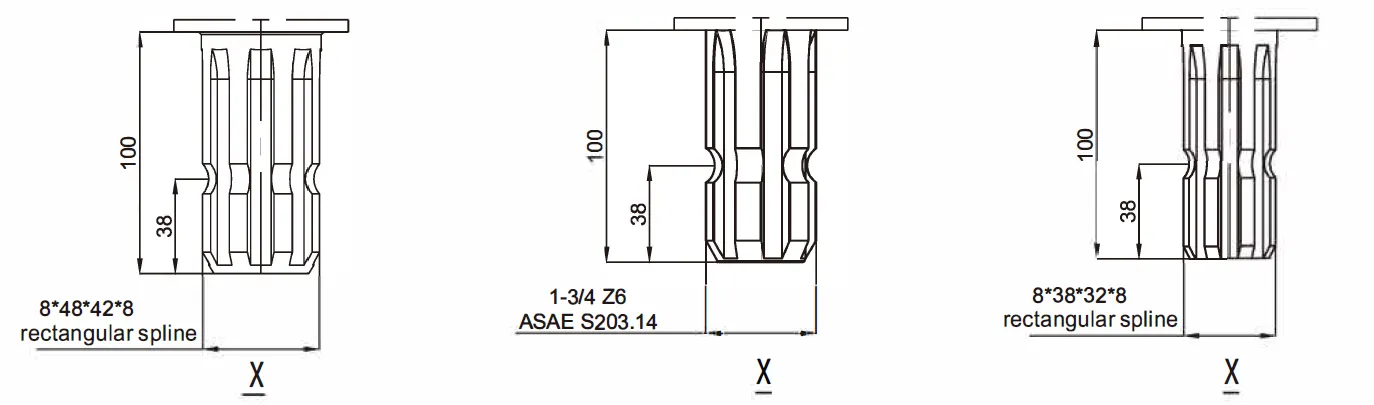

Grader Driven Rake Gearbox EP100 Shaft Dimensions

Grader Driven Rake Gearbox EP100 Technical Data

i		Suitable	Rpm input	Rpm output	KW(Nom)	KW(Max)	L
			r/min	r/min	hp	hp	mm
Speed increase	1 :2.31	Rotary Tillers, etc	540	1250	100	140	397	226
Remark: If you have any special require feel free let me know, we also accept custom.

Grader Driven Rake Gearbox EP100 Working Principle

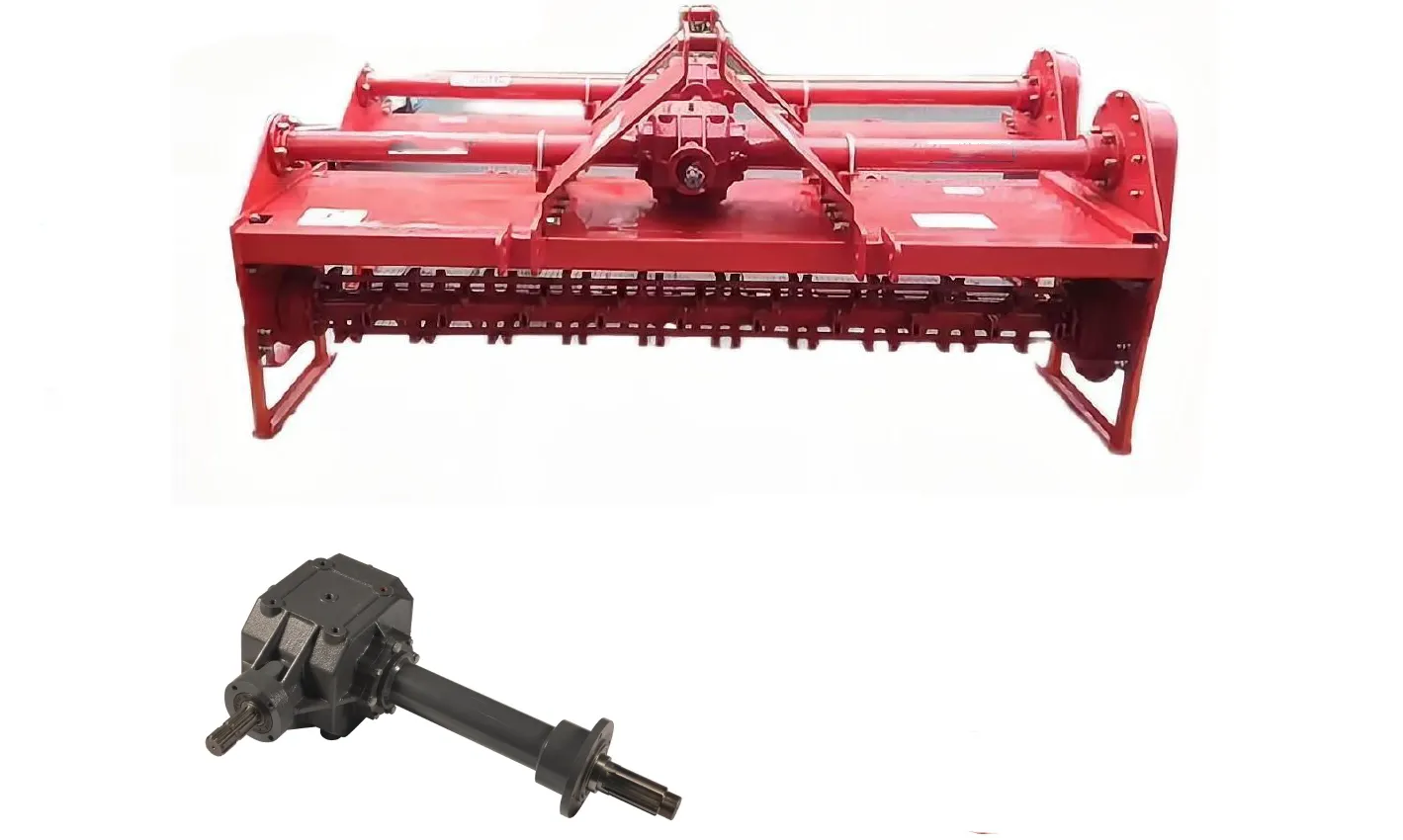

The working principle of the Grader Driven Rake Gearbox EP100 involves the transmission of power from an input source, typically a tractor's Power Take-Off (PTO) shaft or engine, to the output shaft, which drives the raking mechanism of a rotary tiller or similar agricultural equipment. Here's how it works:1. Power Input: The gearbox is connected to a power source, which is usually the PTO shaft of a tractor or another engine. This input shaft delivers rotational power to the gearbox.2. Gear Mechanism: Inside the gearbox, there is a system of gears, including bevel gears and reduction gears. These gears work together to transmit and adjust the rotational speed and torque of the input shaft.3. Speed and Torque Adjustment: The gear mechanism allows for the adjustment of both speed and torque. Depending on the gear ratio and configuration, the gearbox can increase the torque while reducing the speed or vice versa. This adjustment is crucial to match the power requirements of the raking mechanism.4. Output Shaft: The output shaft of the gearbox receives the power from the gear mechanism. It is connected to the raking mechanism of the rotary tiller or similar equipment.5. Raking Mechanism: The output shaft drives the raking mechanism, typically consisting of rakes, blades, or tines. These components perform the actual raking action by rotating and engaging with the soil or crop residues.6. Agricultural Tasks: The raking mechanism is responsible for performing various agricultural tasks, such as seedbed preparation, weed control, soil aeration, and residue management. Depending on the specific application, the raking mechanism may have different configurations and attachments.7. Operator Control: The operator of the tractor or equipment can control the engagement and disengagement of the gearbox and raking mechanism. This control allows for precise timing and adjustment of the raking action according to the specific task at hand.

Grader Driven Rake Gearbox EP100 Common Applications

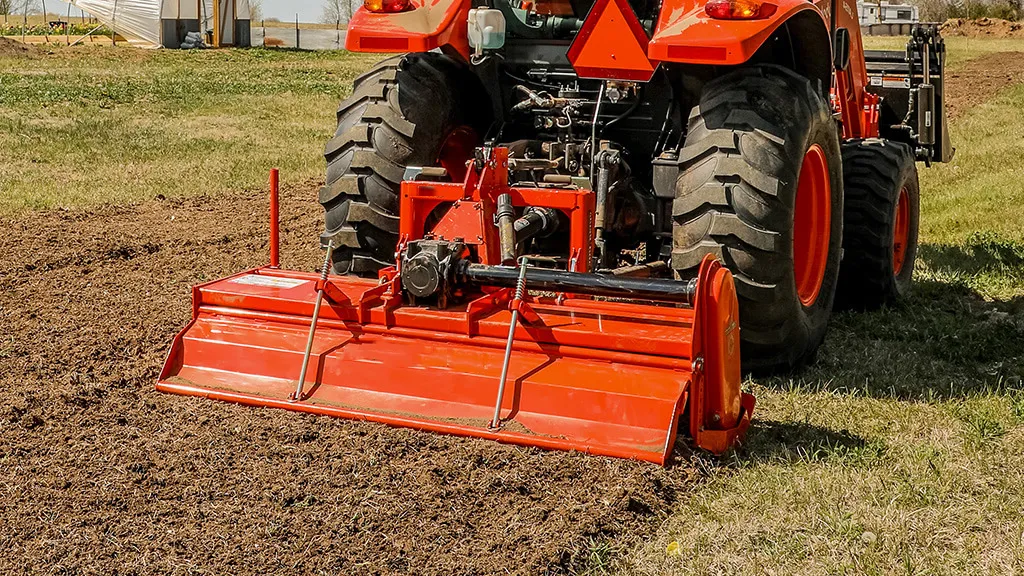

The Grader Driven Rake Gearbox EP100 is a versatile component commonly used in various agricultural applications. Its primary function is to transmit power from a tractor's Power Take-Off (PTO) or engine to the raking mechanism of rotary tillers and similar equipment. Here are some common applications of the Grader Driven Rake Gearbox EP100 in agriculture:1. Seedbed Preparation: The gearbox is often used in rotary tillers for seedbed preparation. It helps break up and cultivate the soil, creating a suitable environment for planting seeds or seedlings.2. Weed Control: Rotary tillers equipped with the EP100 Grader Driven Rake Gearbox are effective at controlling weeds. The raking mechanism can uproot or bury weeds, reducing competition with crops.3. Soil Aeration: Aeration is crucial for soil health. The gearbox assists in soil aeration by tilling the soil and improving its structure, allowing for better root growth and nutrient absorption.4. Residue Management: After harvesting crops, there may be crop residues left in the field. The gearbox-equipped rotary tillers can incorporate these residues into the soil, promoting decomposition and enhancing soil fertility.5. Ground Preparation for Planting: Prior to planting crops, the EP100 Grader Driven Rake Gearbox helps prepare the ground by creating a fine seedbed. This is essential for optimal seed germination and crop establishment.6. Cultivation and Tillage: It is used in various cultivation and tillage operations, including land preparation for row crops, vegetables, and specialty crops.7. Erosion Control: The raking action of rotary tillers with the Grader Driven Rake Gearbox EP100 can help prevent soil erosion by breaking up compacted soil and improving water infiltration.8. Pasture Management: In livestock farming, the gearbox can be used to prepare pastures for improved forage growth and weed management.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
