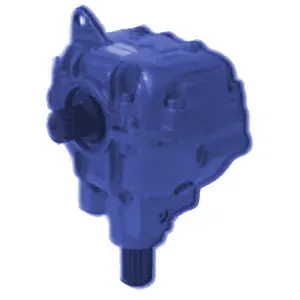

Grain & Sunflower Headers Gearbox – Replacement of Comer Code OS784

Grain & Sunflower Headers Gearbox – Replacement of Comer Code OS784

The grain and sunflower header gearbox is a component in agricultural machinery used for harvesting crops. It functions to transfer power from the main drive shaft to the header, which contains the cutting and threshing mechanisms. The gearbox allows for the adjustment of cutting and threshing speeds to optimize crop yield and reduce damage. It also provides a safety mechanism to prevent damage to the machinery in the event of obstructions or overload. Regular maintenance and lubrication of the gearbox are essential to ensure proper function and prolong its lifespan.

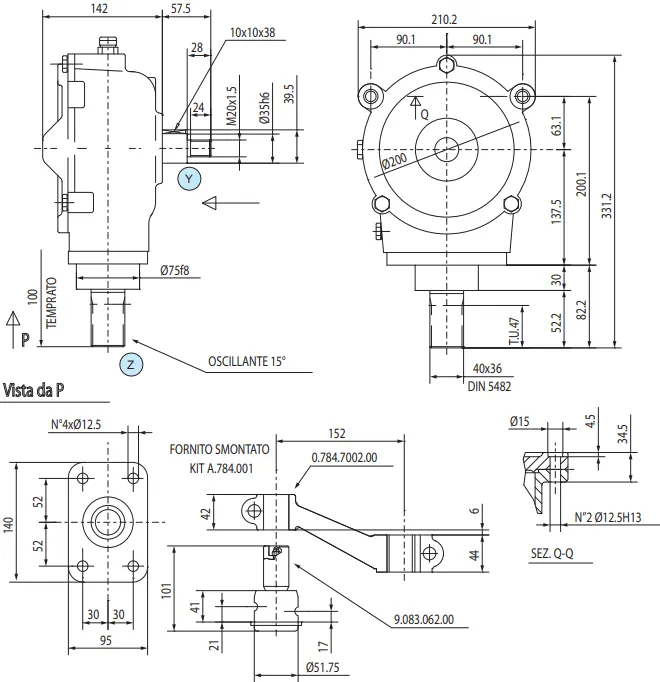

Grain & Sunflower Headers Gearbox OS784 Details

N1[rpm]	550÷600
P1[kW]	-
M2[Nm]	-
Shaft Y	L28 ∅35
Shaft Z	40*36
Input	Y



PTO Shafts in Stock

A PTO shaft is an extremely sophisticated mechanism that allows implements to draw energy from an engine. It works with a mechanical agricultural gearbox. A PTO shaft can be mounted on a vehicle's transmission and is an essential part of the system. A high-quality PTO shaft should be durable enough to withstand torsion and minimize vibration. Raydafon, Ningbo Raydafon Transmission, also manufactures a wide range of durable PTO shafts to meet all your requirements.
