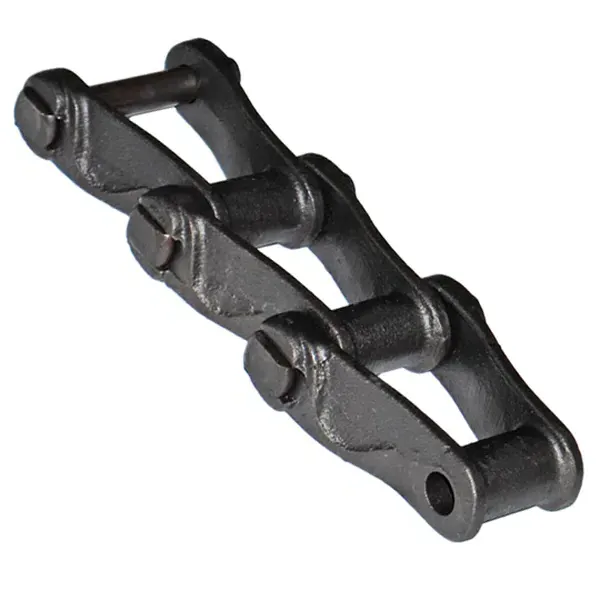

H124 Mill Chain

H124 Mill Chain for Paper Mills

The H124 Mill Chain is made from pearlitic malleable iron, which makes it strong and durable. It also has a strengthened sidebar cross-section, which provides a wear surface to prolong chain service life when operating in troughs or over floors and slider beds. The H124 Mill Chain is available in both riveted and cottered construction. Riveted construction is more common, but cottered construction is more durable and can withstand higher loads. The H124 Mill Chain is a versatile and reliable chain that can be used in a variety of demanding applications. It is a good choice for applications where strength, durability, and wear resistance are important.

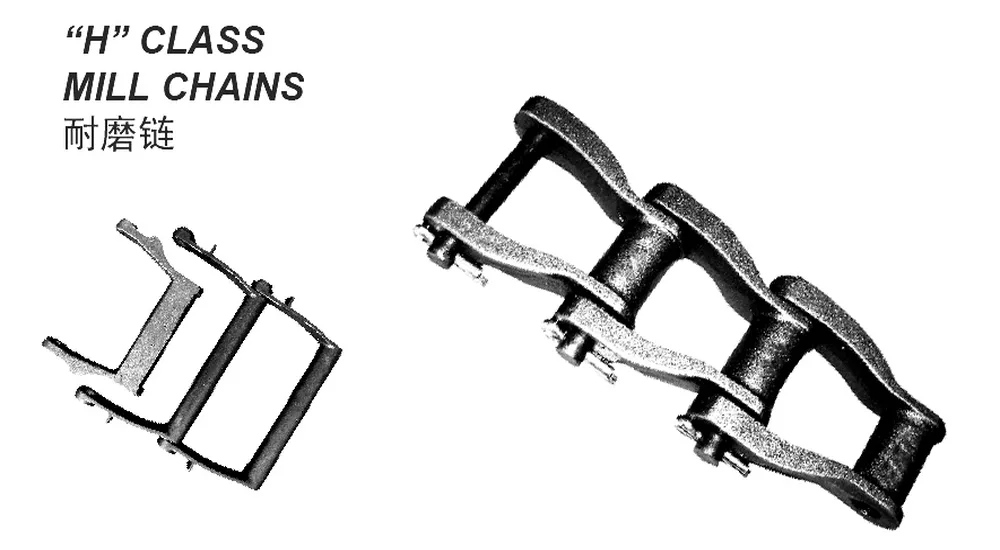

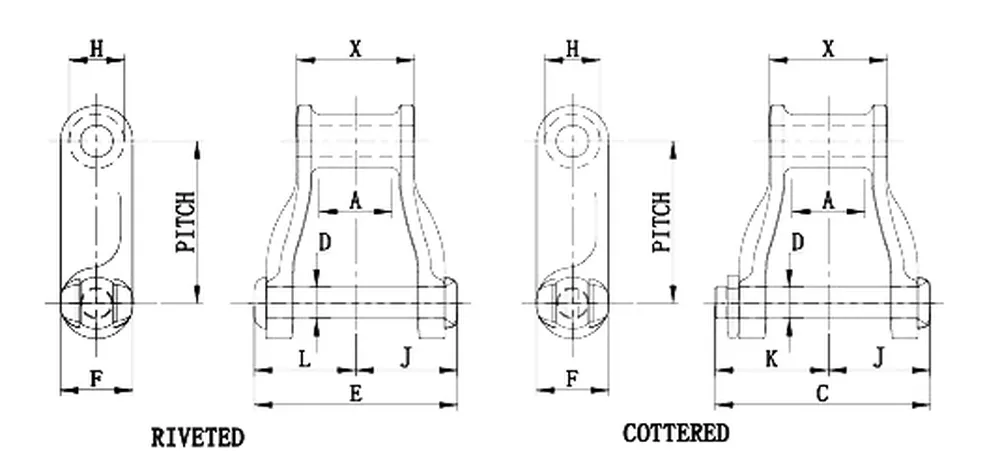

H124 Mill Chain Dimensions:

Chain No.	H124 Mill Chain
Pitch in Inches	4.000
Weight Per Foot LBS.	8.8
Average Ultimate Strength LBS.	30000
Maximum Working Load LBS.	6180
A	1.62
C	4.88
D	0.750
E	4.75
F	1.56
H	1.44
X	2.75
Available Attachments	K2

H124 Mill Chain Attachments:

This H124 K2 attachment is a high-quality precision attachment that is a common stock item and can be assembled onto the H124 chain in any configuration needed or sold as an individual H124 K2 attachment link.

H124 Mill Chain K2 Attachment?

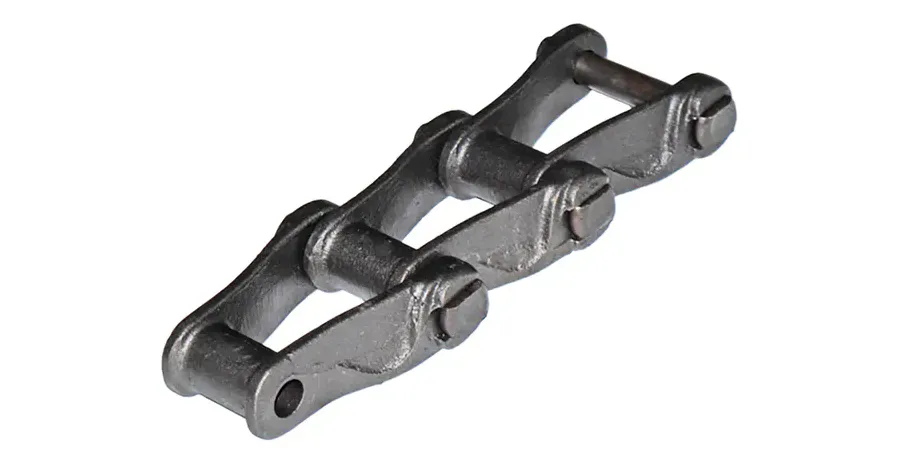

Advantages of H124 Mill Chain:

H124 Mill Chain is a heavy-duty chain that is designed for use in a variety of applications, including:

• Transfer conveyors
• Mining
• Woodworking
• Construction
• Material Handling

H124 Mill Chain has a number of advantages over other types of chains, including:

• High tensile strength: H124 Mill Chain has a tensile strength of 30000 pounds, making it ideal for use in applications where high loads are present.
• Durability: The H124 Mill Chain is made from pearlitic malleable iron, which is a very strong and durable material. This makes the chain resistant to wear and tear, even in harsh environments.
• Abrasion resistance: The sidebars of the H124 chain are strengthened to provide added wear resistance. This makes the chain ideal for use in applications where there is a lot of abrasion, such as in mining and woodworking.
• Low maintenance: H124 Mill Chain requires very little maintenance. The chain is self-lubricating, which helps to extend its life.
• Cost-effective: The H124 Mill Chain is a cost-effective solution for a variety of applications. The chain is durable and long-lasting, which saves money on replacement costs.

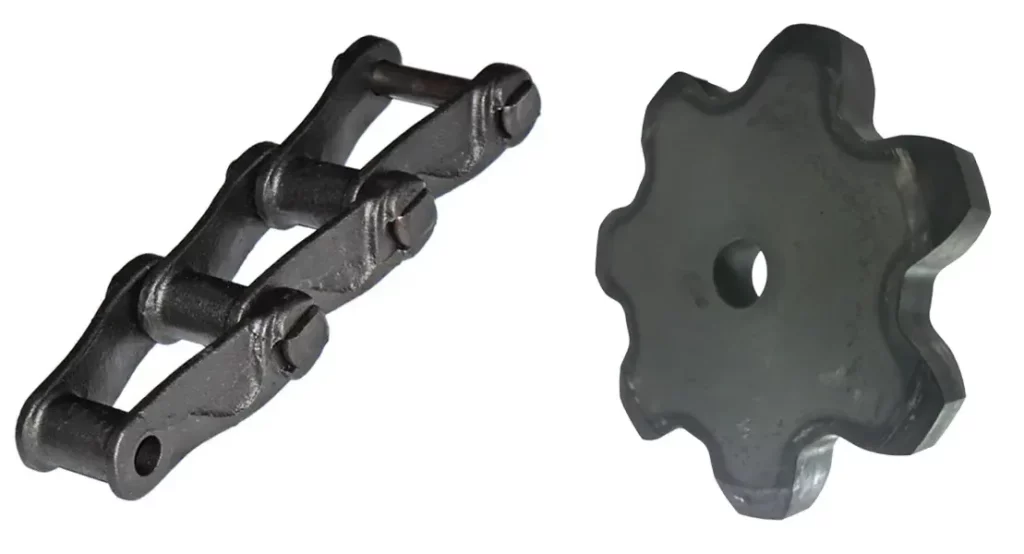

H124 Chain Sprockets for H124 Mill Chain:

H124 chain sprockets and H124 Mill Chains are specific components used in industrial machinery and equipment, particularly in milling and grain processing applications. H124 chain sprockets are toothed wheels with evenly spaced teeth that mesh with a chain, enabling rotary motion and power transmission. H124 chain sprockets are a specific type of sprockets designed to work with H124 chains. The "H124" designation refers to the size and pitch of the chain.The H124 chain sprockets are typically made from durable materials such as steel or cast iron. They come in various configurations, including different numbers of teeth, bore sizes, and hub designs, depending on the specific application requirements. These sprockets are commonly used in milling equipment, conveyors, and other machinery used in the grain processing industry.The H124 Mill Chain is a type of roller chain that is commonly used in grain milling and processing equipment. Roller chains consist of a series of cylindrical rollers held together by link plates, forming a continuous chain. The rollers engage with the teeth of the sprockets to transmit power and facilitate smooth movement. The "H124" designation for the Mill Chain refers to the chain size and pitch. The H124 Mill Chain is typically designed to withstand heavy loads, resist wear, and operate efficiently in harsh environments such as grain mills. It is constructed using high-quality materials and precise manufacturing techniques to ensure durability and reliable performance.Both H124 chain sprockets and H124 Mill Chain are often used together in milling equipment to drive the various components involved in grain processing, such as conveyors, elevators, and roller mills. They form an integral part of the machinery and are selected based on the specific requirements of the application, including load capacity, speed, and environmental conditions.

China H Class Mill Chains?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains,?agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
