H87 Mill Chain

H87 Mill Chain for Wood Processing

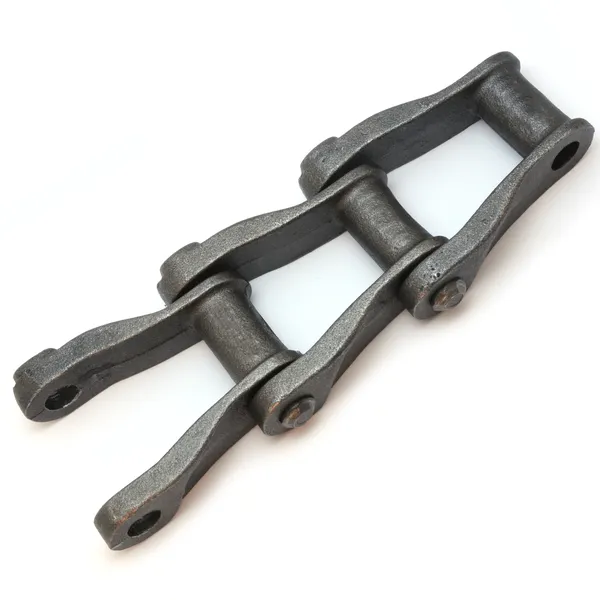

H87 Mill Chain is manufactured out of Pearlitic Malleable iron and is a common in-stock item. This H87 chain is a heavy-duty, extremely durable, and high-quality mill-duty chain with a tensile strength of 33,750 LBS. Our H87 Mill Chains are manufactured to perform and hold up in heavy drives, transfer conveyors, as well as abrasive atmospheres. The sidebars of the H87 chain feature a strengthened cross section providing an added benefit of a wear surface to prolong chain service life when operating in troughs or over floors and slider beds. In addition to the H87 chain, we also have a full line of H87 chain attachments and H87 chain sprockets for sale.

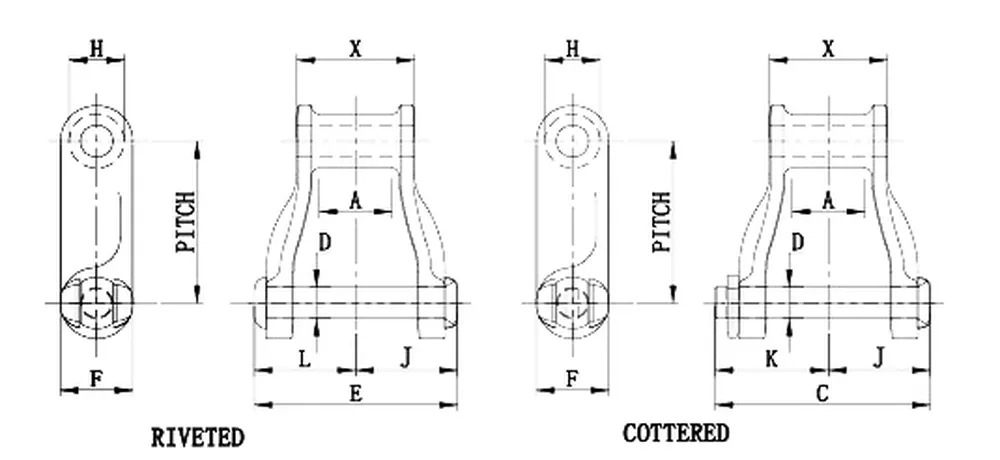

H87 Mill Chain Dimensions:

Chain No.	H87 Mill Chain
Pitch in Inches	4.000
Weight Per Foot LBS.	6.5
Average Ultimate Strength LBS.	27500
Maximum Working Load LBS.	4450
A	1.50
C	4.38
D	0.625
E	4.19
F	1.38
H	1.38
X	2.38
Available Attachments	None

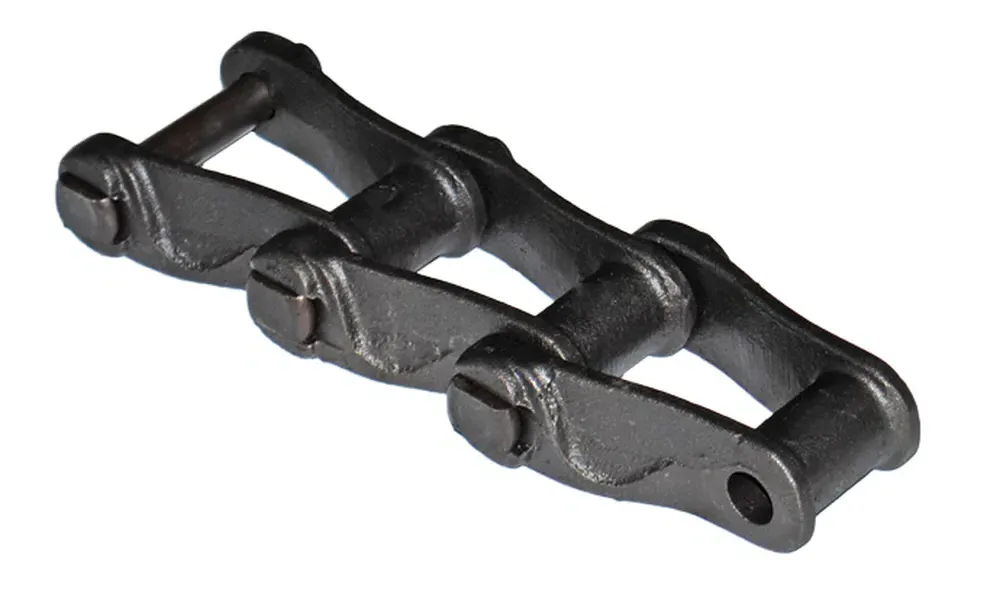

H87 Mill Chain Advantages:

The H87 Mill Chain is a type of roller chain commonly used in industrial applications, particularly in sawmills and lumber processing. Here are some advantages of the H87 mill chain:1. Durability: The H87 Mill Chain is designed to withstand heavy loads and high-speed operations. It is constructed using high-quality materials and precise manufacturing techniques, resulting in a durable and robust chain that can withstand the demanding conditions of lumber processing.2. Strength: The H87 Mill Chain has a high tensile strength, which means it can handle heavy loads without stretching or breaking. This is crucial in applications where large logs or heavy machinery are involved, as it ensures the chain can effectively transmit power and withstand the forces exerted on it.3. Precision: The H87 Mill Chain is engineered with precision to ensure smooth and efficient operation. Its rollers, pins, and bushings are manufactured to tight tolerances, allowing the chain to move smoothly over sprockets and reducing friction and wear. This precision contributes to the overall reliability and longevity of the chain.4. Versatility: The H87 Mill Chain is designed to be compatible with various types of sprockets and can be used in different configurations, making it highly versatile. It can be easily incorporated into existing machinery or systems, providing flexibility in design and implementation.5. Ease of maintenance: While regular maintenance is necessary for any chain, the H87 Mill Chain is designed for easy maintenance. It typically features removable pins or easy disassembly mechanisms, allowing for quick replacement or repair of damaged links. This reduces downtime and ensures the chain can be kept in optimal working condition with minimal effort.6. Cost-effective: Considering its durability, strength, and versatility, the H87 Mill Chain offers a cost-effective solution for industrial applications. Its long service life and ability to handle heavy loads contribute to lower maintenance costs and reduced downtime, resulting in increased productivity and efficiency.

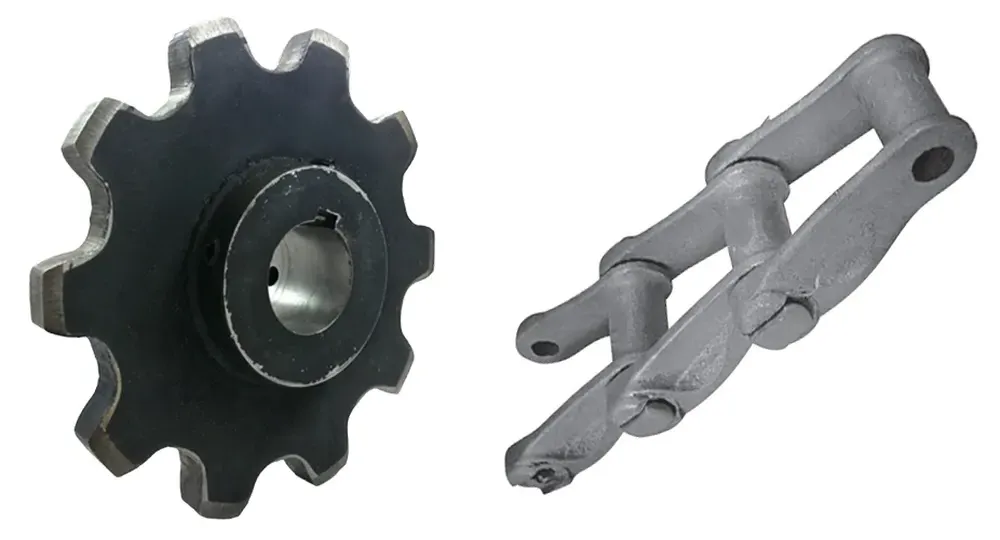

H87 Chain Sprockets for H87 Mill Chains:

H87 chain sprockets are specifically designed to be used with H87 mill chains. The H87 designation refers to the specific chain size and pitch. The sprockets are matched to the chain size and have teeth that engage with the chain links, enabling the transmission of power and motion.When selecting H87 chain sprockets for H87 mill chains, it's important to consider a few factors:

1. Pitch: The pitch refers to the distance between the centers of two adjacent chain links. H87 mill chains typically have a specific pitch measurement, such as 4.000 inches. Ensure that the sprocket you choose matches the pitch of the chain.
2. Number of Teeth: The number of teeth on the sprocket determines the speed ratio and the power transmission capability. The sprocket should have a suitable number of teeth for your application, considering factors like desired speed, torque, and load requirements.
3. Bore Size: The bore size of the chain sprocket refers to the diameter of the central hole where the sprocket mounts onto the shaft. Ensure that the sprocket's bore size matches the diameter of your mill's shaft.
4. Material and Construction: Consider the material and construction of the sprocket based on the specific requirements of your mill application. Sprockets are commonly made from materials like steel or cast iron, and their construction can vary in terms of design and durability.

To find the appropriate H87 chain sprockets for your H87 mill chains, you can consult manufacturers or suppliers who specialize in industrial chains and sprockets. Provide them with the required specifications, such as chain pitch, number of teeth, and bore size, to ensure a proper match for your mill application.

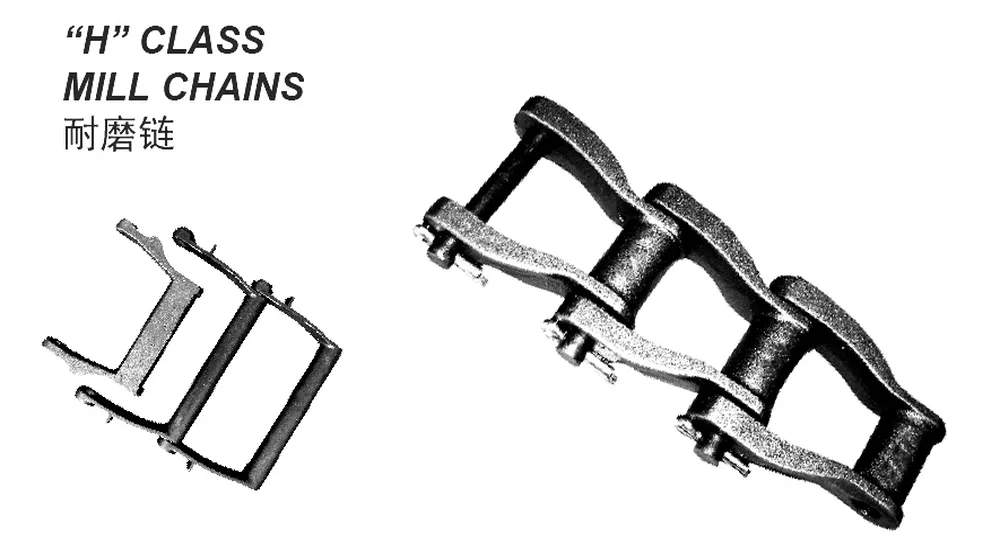

China H Class Mill Chains?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
