harvester hydraulic gear pumps replacement YH4.60.37(16T)

Harvester Hydraulic Gear Pumps Replacement YH4.60.37(16T)

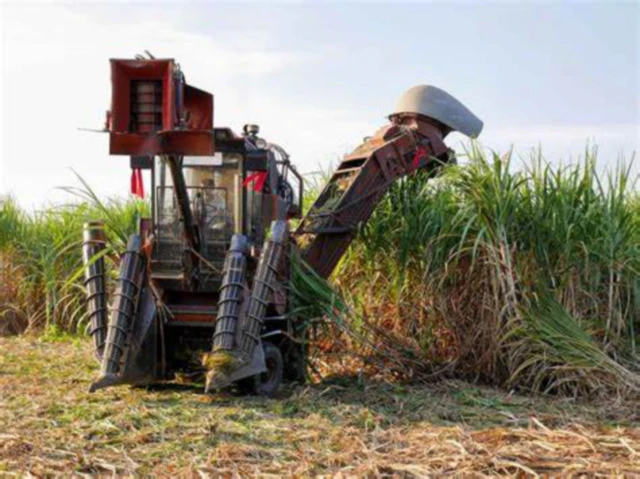

A harvester hydraulic gear pump is a gear pump specially designed for the hydraulic system of agricultural harvesting machinery (such as combine harvesters, corn harvesters, etc.). Its main function is to provide a stable power source for various hydraulic operations of the harvester.

Introduction

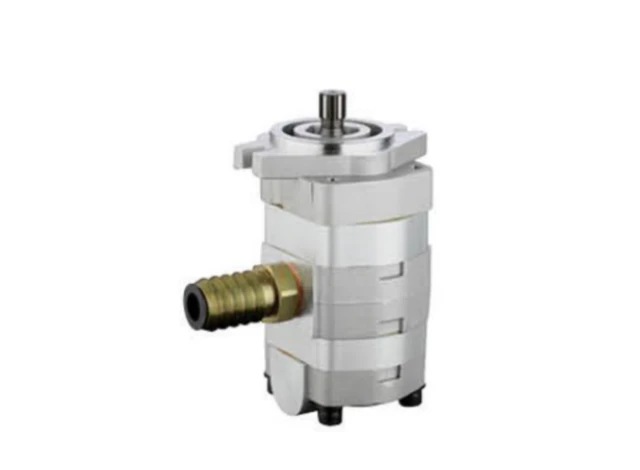

The Harvester Hydraulic Gear Pumps Replacement YH4.60.37(16T)A is a high-quality gear pump designed for agricultural machinery. It is the perfect solution to provide the necessary hydraulic power for combine harvesters, corn harvesters, and other agricultural machines. This gear pump is reliable, efficient, and designed to provide stable flow rates under heavy loads.

Functions and Importance

The Harvester Hydraulic Gear Pump is an essential component of agricultural machinery. It provides hydraulic power for various operations, including the lifting and lowering of the header, reel, and unloading auger. The hydraulic system of the harvester cannot function without a reliable gear pump. Therefore, the Harvester Hydraulic Gear Pumps Replacement YH4.60.37(16T)A is an essential component for the smooth operation of agricultural machinery.

Unique Features and Advantages

• High reliability
• High efficiency
• Low noise
• Designed for heavy-load applications
• Stable flow rates
• Low energy consumption

Harvester hydraulic gear pumps working principle

Harvester Hydraulic Gear Pumps operate on a simple yet effective working principle based on positive displacement mechanics, commonly known as gear pump technology. These pumps consist of two intermeshing gears (the drive gear and the driven gear) enclosed within a casing.

Working Principle:

1. Fluid Intake: The pump is powered by a mechanical drive (typically from the engine of the harvester), which rotates the drive gear. As the drive gear rotates, it moves the driven gear in the opposite direction. The meshing of these gears creates a void or space at the inlet of the pump.
2. Fluid Movement: This void causes hydraulic fluid (usually oil) to be drawn into the pump from the reservoir through the inlet port. The rotating gears trap the fluid between the teeth and the pump housing.
3. Pressurization: As the gears continue to rotate, they move the fluid from the inlet side towards the outlet. The space between the teeth of the gears is reduced as they mesh, forcing the hydraulic fluid to move under pressure towards the outlet port. This generates the required hydraulic pressure for various systems like steering, lifting, and conveyor mechanisms in the harvester.
4. Fluid Discharge: The fluid is then discharged at high pressure through the outlet port into the hydraulic system, powering the necessary components, such as hydraulic cylinders, motors, and valves, that control the harvester's operations.
5. Constant Flow: Since the pump is a positive displacement pump, it delivers a constant flow of hydraulic fluid regardless of pressure changes (within design limits). This ensures consistent operation of hydraulic systems.

Harvester hydraulic gear pumps specific applications

1. Hydraulic Steering SystemsApplication: Hydraulic gear pumps power the steering system of the harvester, allowing for smooth and responsive control of the vehicle. This is especially important when navigating large fields or making sharp turns.Benefit: Provides precise control, reducing operator fatigue and improving the maneuverability of large machines in tight or uneven terrain.2. Header and Cutter Bar OperationApplication: Hydraulic gear pumps power the hydraulic cylinders that control the movement and adjustment of the harvester’s header and cutting mechanisms (e.g., cutter bars, reels).Benefit: Enables precise height adjustments and tilt control, optimizing cutting efficiency and crop collection.3. Grain Unloading SystemsApplication: In combines, the hydraulic gear pump powers the grain unloading system, which includes augers or conveyor belts that move harvested grain from the hopper to the unloading area.Benefit: Ensures continuous and efficient unloading of grain without delays, improving overall harvest throughput.4. Conveyor and Auger SystemsApplication: Hydraulic gear pumps drive the conveyor and auger systems that transport harvested material (e.g., grain, corn, or hay) within the harvester or to external collection points.Benefit: Maintains smooth operation and consistent material flow, reducing the risk of blockages or delays during harvesting.5. Lift and Tilt MechanismsApplication: Hydraulic gear pumps are used to power the lift and tilt mechanisms, allowing the operator to adjust the height and angle of the harvester's cutting equipment and header.Benefit: Facilitates easy adjustments to match field conditions, crop height, and terrain, optimizing cutting performance and minimizing crop loss.

Materials and Performance for Harvester hydraulic gear pumps

• Pump Housing Material:
  • Material: Cast iron, aluminum, or steel alloys.
  • Purpose: The pump housing needs to be strong and durable to contain the internal components and withstand high operating pressures.
  • Benefits:
    • Cast Iron: Offers excellent strength, wear resistance, and vibration dampening properties.
    • Aluminum: Lighter than cast iron, it is used in applications where weight reduction is critical without sacrificing strength.
    • Steel Alloys: Used for heavy-duty applications, offering superior strength and resistance to wear and fatigue.
• Gear Materials:
  • Material: Hardened steel, alloy steel, or bronze.
  • Purpose: The gears need to withstand high loads and abrasive conditions, as well as maintain smooth meshing under pressure.
  • Benefits:
    • Hardened Steel: Provides excellent strength and wear resistance, ideal for high-pressure applications.
    • Alloy Steel: Offers improved toughness and resistance to wear and corrosion, making it suitable for heavy-duty applications.
    • Bronze: Used in some designs for its self-lubricating properties, reducing friction and extending the lifespan of the gears.
• Seals and O-Rings:
  • Material: Nitrile rubber (NBR), fluoroelastomers (FKM), or polyurethane.
  • Purpose: Seals and O-rings prevent hydraulic fluid leakage and contamination from external elements.
  • Benefits:
    • Nitrile Rubber (NBR): Known for excellent oil and fuel resistance, making it ideal for agricultural environments.
    • Fluoroelastomers (FKM): Used for higher temperature and chemical resistance applications.
    • Polyurethane: Offers excellent wear resistance and is suitable for high-pressure environments.
• Shaft Materials:
  • Material: Hardened steel, stainless steel.
  • Purpose: The shaft transmits mechanical power to the gears. It needs to withstand high torque and resist wear and corrosion.
  • Benefits:
    • Hardened Steel: Provides superior strength, hardness, and durability under high stress.
    • Stainless Steel: Offers excellent resistance to corrosion, especially in harsh outdoor environments.
• Bearings and Bushings:
  • Material: High-grade steel, bronze, or composite materials.
  • Purpose: Bearings support the rotating components (gears and shaft) and reduce friction, ensuring smooth operation.
  • Benefits:
    • High-Grade Steel: Used for its durability and wear resistance in high-stress applications.
    • Bronze: Provides self-lubricating properties, making it ideal for high-load conditions.
    • Composite Materials: Used for lightweight and high-performance bearings in some designs.

Installation and Maintenance

Installation of Harvester Hydraulic Gear Pumps

1. Preparation:
   • Check Compatibility: Ensure the pump is compatible with the harvester’s hydraulic system in terms of pressure ratings, flow capacity, and mounting configuration.
   • Cleanliness: Clean the pump mounting area and hydraulic system before installation to avoid contaminating the pump with debris or dirt.
   • Inspect the Pump: Check for any damage or defects before installation. Make sure the pump rotates freely and the shaft is not bent.
2. Mounting the Pump:
   • Positioning: Ensure the hydraulic pump is correctly aligned with the drive shaft or motor. Align the pump to avoid unnecessary strain on the bearings and seals.
   • Fastening: Use the appropriate fasteners to mount the pump securely. Tighten all bolts to the recommended torque specifications to prevent loosening during operation.
3. Connecting the Hydraulic Lines:
   • Inlet and Outlet Connections: Ensure the inlet and outlet hydraulic lines are properly connected to the pump. Use suitable seals or O-rings to prevent leaks.
   • Check Hoses: Inspect the hoses for any signs of wear, cracking, or kinking. Replace any damaged hoses before connecting them.
4. Priming the Pump:
   • Avoid Dry Running: Before starting the pump, ensure it is primed to avoid damage due to running dry. Some hydraulic pumps may require manual priming by filling the pump with oil or operating it without load for a brief period to fill the pump with fluid.
5. System Checks:
   • Pressure Relief Valve: Check that the pressure relief valve is set to the correct pressure level for the system.
   • Fluid Levels: Ensure the hydraulic fluid level is adequate and meets the manufacturer's specifications.
6. Testing:
   • Start-Up: Once everything is installed and connected, start the hydraulic system and monitor the pump for smooth operation.
   • Leaks and Noise: Check for leaks around the connections and ensure the pump runs without excessive noise or vibration.

Maintenance of Harvester Hydraulic Gear Pumps

1. Regular Inspection:
   • Fluid Checks: Regularly inspect the hydraulic fluid levels and ensure they remain at the correct levels. Contaminated or low fluid levels can cause pump failure.
   • Fluid Quality: Change the hydraulic fluid as recommended by the manufacturer. Ensure that the fluid is clean and free of contaminants.
   • Visually Inspect Hoses and Seals: Look for signs of wear, cracks, or leaks in hydraulic hoses and seals, replacing them promptly to prevent fluid leakage.
2. Monitor Operating Conditions:
   • Temperature Monitoring: Overheating can lead to pump failure. Monitor the temperature of the hydraulic fluid and ensure it remains within the recommended range.
   • Check for Unusual Noise or Vibration: Any unusual sound or vibration could indicate wear on the gears or bearings. Address these issues immediately to prevent further damage.
3. Clean the System:
   • Filter Replacement: Check and replace the hydraulic filters periodically to ensure that the fluid is clean and free of contaminants that could damage the pump.
   • Flush the System: Periodically flush the hydraulic system to remove contaminants or debris from the pump and lines.
4. Lubrication:
   • Greasing Bearings: Lubricate the bearings or seals of the hydraulic pump as per the manufacturer’s recommendations.
   • Avoid Over-Greasing: Over-greasing can lead to fluid contamination and reduced efficiency, so ensure the correct amount of grease is applied.
5. Pressure Settings:
   • Adjust Pressure Relief Valve: Periodically check and adjust the pressure relief valve to ensure it operates correctly. If the valve is set too high or low, it can affect pump performance and system safety.
6. Pump Overhaul:
   • If the pump is not performing optimally or shows signs of wear, it may need to be disassembled, cleaned, and inspected. Replace worn-out components, such as gears, seals, or shafts, as needed.
7. Record Keeping:
   • Maintain detailed records of maintenance activities, fluid changes, inspections, and any repairs performed. This helps in scheduling future maintenance and tracking the condition of the pump.

Company Information

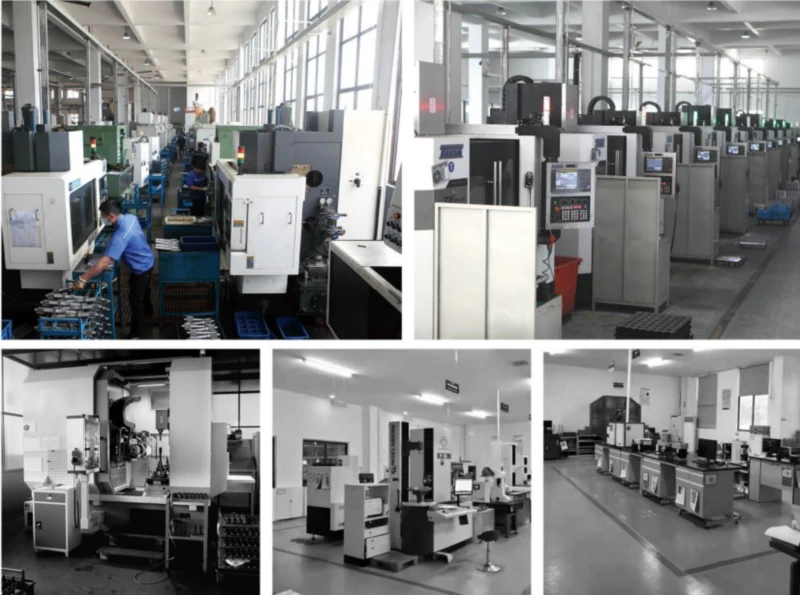

Raydafon is a leading manufacturer of hydraulic components in China. Our range of products includes harvester hydraulic gear pumps, forklift hydraulic gear pumps, tractor hydraulic gear pumps, hydraulic control valves, and more. We use state-of-the-art manufacturing and assembly equipment to ensure that our products are of the highest quality. We pride ourselves on providing high-quality products at competitive prices, and we offer exceptional customer service to all our clients. We welcome custom orders and can accommodate bespoke requests to suit your specific needs.

Promotion

Find the perfect solution for your agricultural machinery with the Harvester Hydraulic Gear Pumps Replacement YH4.60.37(16T)A. Our gear pumps are reliable, efficient, and designed for heavy-load applications. Contact us today to learn more about our range of hydraulic products, and take advantage of our competitive prices and exceptional customer service. We welcome custom orders, so whether you need a single pump or a large quantity, we can accommodate your needs. Come visit us and tour our state-of-the-art factory to learn more about our manufacturing process.
