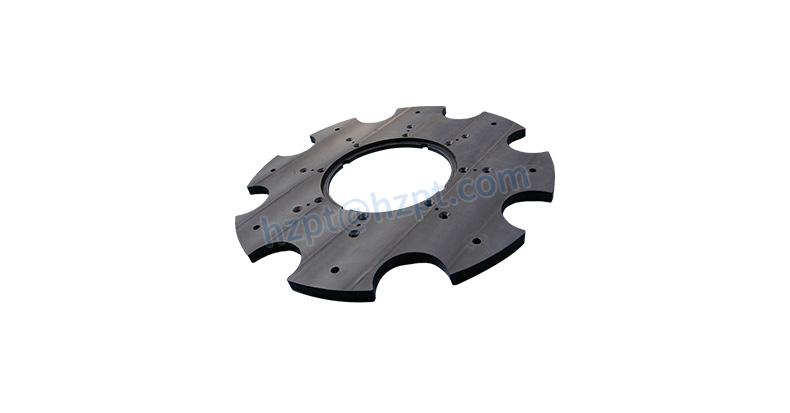

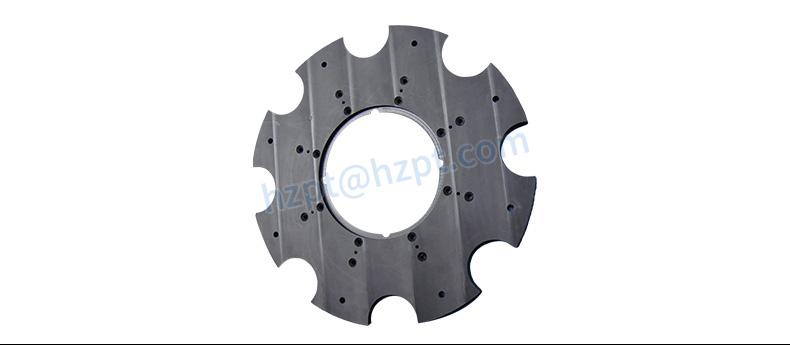

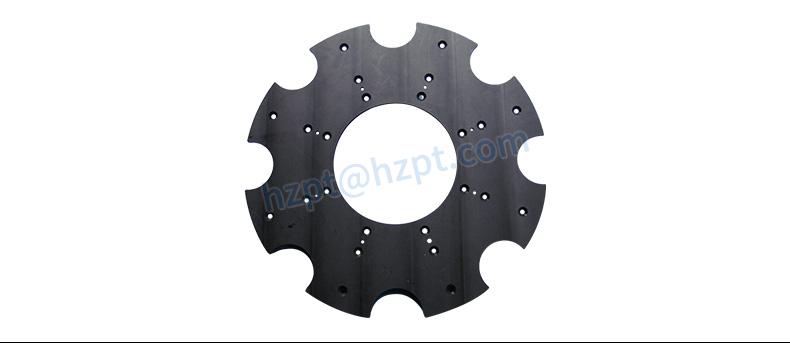

High Impact Resistance Derlin Gear Pom Plastic Star Wheel Plastic Gear

High Impact Resistance Derlin Gear Pom Plastic Star Wheel Plastic Gear

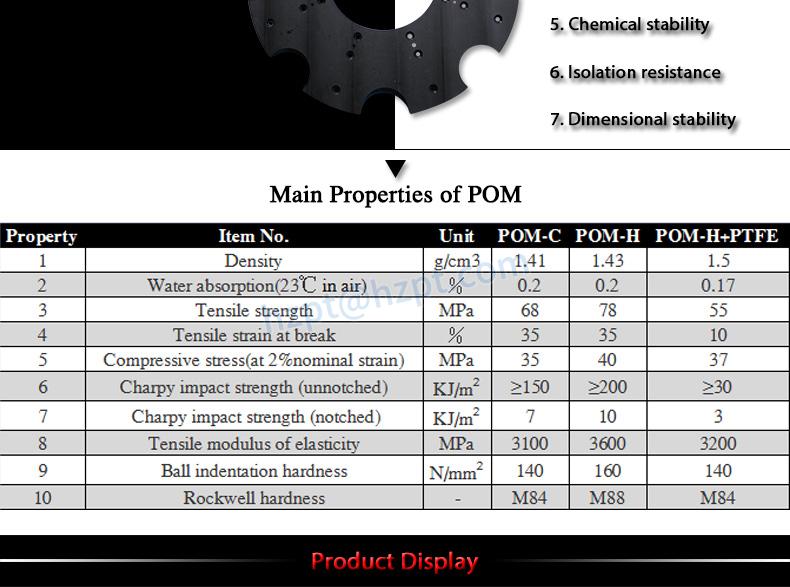

POM (Polyformaldehyde)

POM (full name: Polyformaldehyde) is an engineering plastic with no side chain, high density, high crystallinity, and linear polymer. It is known as "plastic steel" and has comprehensive and excellent properties, such as wear resistance, high hardness, and impregnation resistance. , Good rigidity (tensile elastic modulus), chemical stability, anti-segregation, and dimensional stability. POM is widely used in the automotive industry, electronic and electrical products, daily necessities, pipes and accessories, precision instruments, etc., and can replace metals such as bronze, zinc, and tin.Automotive industry: POM is widely used in the automotive industry because the mechanical parts made of POM have the advantages of high mechanical strength, hardness, good wear resistance, low friction coefficient, easy maintenance, cost reduction, etc., and can be used in automobiles. Instead of the brass half-shank and planetary gears. It not only saves copper but also improves the service life.Electrical and electronic industry: POM has the advantages of low power consumption, high dielectric strength, insulation resistance, and high arc resistance and is widely used in the electrical and electronic industry.Agricultural Machinery: Hand sprayer parts, planter joints, transport parts, milking machine parts, irrigation housings, valves, joints, water bushings, etc.

Item name	High-Quality POM STAR WHEEL
Material	POM, delrin, Acetal, Polyacetal
Characteristic	1. High Heat-resistance,2. Good chemical stability3. Good Tensile strength
Brand Name	GZ-Plastics / OEM
Color	Nature color / Customized
Size	Custom made as your artwork or sample
Manufacture way	Molding Injection and CNC Machinery process
MOQ	Accept the Sample order, and we will supply the customers with a good price for the big quantity order!
Sample	Free the molding injection sample for customers after paying the mold Cost.
Sample time	30 Days for manufacturing the injection mold and finishing the samples for Customers.
Mass production time	10-30 days based on the order quantity.



How to Design Plastic Gears

Plastic gears are made of thermoplastic resin that changes shape when heated. This process, called injection molding, is commonly used to produce gears for various applications. Experts recommend that you consider the application for which you are designing the gear before beginning the design process. For example, if you're making gears for a machine, make sure you know the torque and speed of the machine. Then, gears are designed according to these characteristics.Then, the tooth flanks are designed to minimize the effects of molding stress and maximize load-carrying capacity. The tooth size of plastic gears is essential for load carrying capacity. However, smaller teeth are more prone to dental errors and may experience more stress. To avoid these problems, choose plastic gears with a slightly narrower face than steel gears. This will reduce the chance of mechanical interference. Finally, design gears with a diameter greater than 1.Plastic gears have several advantages over metal gears. They are easy to process and have excellent strength and elasticity. Plastic gears can be made from unfilled nylon, acetal, or polyamide. Many of these come in standard shapes, including rectangles, squares, and circles. If you need a lot of plastic gears, it's cheaper to make them by molding. These plastic gears are also an excellent choice for various applications.

Where are plastic gears used?

While there are many uses for plastic gears, the automotive industry has seen the most significant growth in recent years. As amenities and competitive advantage become increasingly important to automakers, they attempt to integrate gears and motors into vehicle subsystems. These components range from liftgates and seats to electronic throttle bodies and turbo controls.The first consideration in choosing a plastic gear material is its strength. The material must be rigid enough to withstand the expected loads and resist dimensional changes due to changes in environmental conditions. Vendors can provide helpful information about these properties. Additionally, prototype gears must be tested under realistic conditions before being used in production. In addition to plastic gears, other materials can be used for these applications.The advantage of plastic gears is that they are inexpensive to manufacture. They are also easy to process and can be done in the short run. However, the disadvantage of plastic gears is that they have high dimensional tolerances. Fortunately, plastic gears can be designed with a low coefficient of friction. Plastic gears can handle higher loads and speeds and are less likely to break or jam. The key is to choose an experienced and reliable manufacturer.

Q&A

Q1. When can I get the price?A: We usually quote within 24 hours after receiving your inquiry. If you are urgent, Please call us or let us know in your email so we can prioritize your inquiry.Q2. How long is the lead time for the mold?A: It all depends on the size and complexity of the mold. Usually, the delivery time is 25-35 days. If the mold is simple and insignificant, we can do it within 15 days.Q3. I don't have drawings; how should I start a new project?A: You can provide us with samples, and we will help complete the drawing design.Q4. How to ensure product quality before delivery?A: If you do not come to our factory and there is no third-party inspection, We will be your inspector. We will give you a video with details of the production process, including process reports, product dimensions, structural and surface details, packaging details, etc.As a plastic gear rack and plastic gear supplier, we always aim to provide the highest quality products and the most comprehensive services and look forward to cooperating with you.
