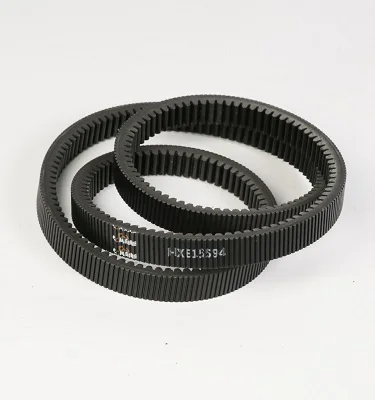

High power transmission efficiency HDJ/HI/HJ/HK/HL/HM/HO belt .New design with tooth on both sides agricultural belt HEXE15594

High power transmission efficiency HDJ/HI/HJ/HK/HL/HM/HO Belt .New design with tooth on both sides agricultural belt HEXE15594

Agricultural Belt and Its Role in Agricultural Machinery

Agricultural Belt is a type of power transmission belt used in agricultural machinery to transfer power from the engine to different parts of the machinery. The belt operates on the principle of friction, and its primary role is to convert the rotational force of the engine into linear motion, which drives different parts of the machinery.

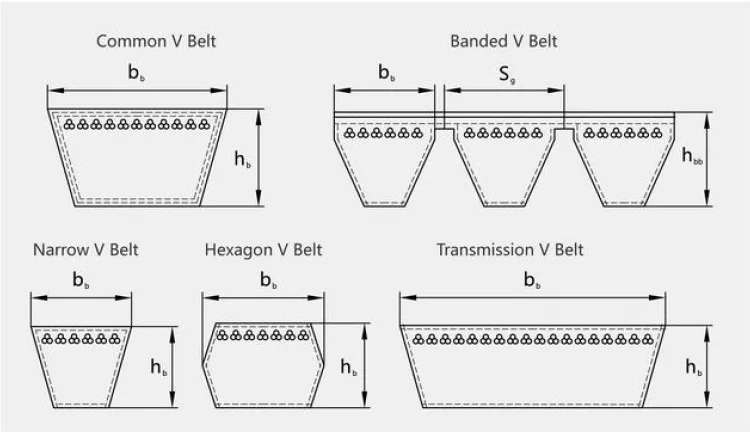

V belt	Type	Bb	Hb	Hbb	Sg
Common V Belt	HA	0.5	0.31	0.41	0.625
	HB	0.66	0.41	0.50	0.750
	HC	0.88	0.53	0.66	1.000
	HD	1.25	0.75	0.84	1.438
Narrow V Belt	H3V	0.38	0.31	0.38	0.406
	H5V	0.62	0.53	0.62	0.688
	H8V	1.00	0.91	1.00	1.125
Hexagon V Belt	HAA	0.50	0.41
	HBB	0.66	0.53
	HCC	0.88	0.69
	HDD	1.26	0.98

1. Material is CR and Aramid (Kevlar) cord. Quality the same as original.
2. Unique design with teeth on both sides for better performance.
3. Significant transverse stiffness and flexibility to prevent the risk of abrasion with a minimum diameter where the belt is loaded
   the most.
4. HB-2HB-3HB-4HB
   -Solid ground grip provides positive traction and precise speed control.

   -High bearing capacity.

   -Longer service life.

   Item No.	Replace	Type	Weight/kg
   AH163931	4G3208	HC	0.7
   H155998	4G3213	2HC	3.54
   H156541	4G3041	2HC	4.26
   H160654	4G3214	HC	1.62
   H171386	4G3215	HB	0.557
   H209507	4G3218	2HC	2.11
   H218726	4G3219	HL	4.188
   H241212	4G3223	2HC	2.39
   HXE10556	4G3224	2HC	0.92
   HXE12425	4G3225	3HB	4.45
   HXE12426	4G3226	3HB	2.06

Agricultural Belt Application in Different Agricultural Machinery

1. Tractor Power Transmission System: Agricultural Belt is mainly used in the Power Take-Off (PTO) section of the tractor to connect the tractor with external farming equipment such as plows, seeders, harvesters, crushers, water pumps, etc. 2. Combine Harvester: Agricultural Belt is used in the main transmission system to transfer the engine's power to the threshing drum, cutting platform, cleaning system, and other moving components. 3. Tillage Equipment: Agricultural Belt is used to transfer the tractor's power to the working parts of tillage equipment such as rotary tillers, plows, deep tillers, etc. 4. Irrigation Equipment: In power-driven water pumping machines and pivot irrigation systems, Agricultural Belt transmits the tractor's power to the water pump or other driving components. 5. Feed Processing Machinery: Agricultural Belt is used to drive mixing and cutting function modules in feed mixers, silage cutters, and other equipment.

Agricultural Belt Compatibility with Different Agricultural Machinery Brands and Models

The HEXE15594 Agricultural Belt is compatible with various brands and models of agricultural machinery. The table below shows the details of some of the major brands and models that the HEXE15594 belt can fit. | Brand | Model | | --- | --- | | John Deere | 1020, 2020, 2030, 2040, 2240, 2350, 2355, 2440, 2550, 2555, 2630, 2640, 2750, 2755, 2840, 2855, 2940, 2950, 2955, 3030, 3040, 3055, 3140, 3150, 3155, 3255, 3350, 3640, 3650, 4030, 4040, 4230, 4240, 4250, 4255, 4350, 4440, 4450, 4455, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4840, 4850, 4955, 4960, 8430, 8440, 8450, 8560, 8570, 8630, 8640, 8650, 8760, 8770, 8850, 8870, 8960, 8970, 9100, 9200, 9300, 9400 | | Massey Ferguson | 135, 150, 165, 175, 180, 185, 230, 235, 245, 255, 265, 275, 285, 1080, 1085, 1100, 1105, 1130, 1135, 1150, 1155, 1500, 1800, 2675, 2705, 2745, 2775, 2805 | | Case IH | 385, 395, 485, 495, 585, 595, 685, 695, 885, 895, 995, 3210, 3220, 3230, 4210, 4220, 4230, 4240 | | New Holland | 70-56, 70-66, 70-76, 70-86, 80-66, 80-76, 80-86, 90-66, 90-76, 90-86, TN55, TN65, TN70, TN75, TN85, TN95, TS90, TS100, TS110, TS115 | | Ford | 2000, 3000, 4000, 4600, 5000, 5600, 6600, 7600, 7700, 8000, 8600, 9000, 9600, 9700 |

Other Agricultural Machinery Parts Offered by Us

Besides the HEXE15594 Agricultural Belt, we offer a wide range of other agricultural machinery parts such as agricultural chains, agricultural gearbox, pulley, sprocket, coupling, PTO shaft, concave, etc. We are a one-stop-shop for all your agricultural machinery parts needs.

Signs That Indicate You Need to Replace Your Agricultural Belt

1. Obvious Wear and Tear: Check the surface of the Agricultural Belt for cracks, frayed edges, thinning, rubber block shedding, or exposed fabric layers. Any of these signs indicate that the Agricultural Belt has serious wear and tear, and its strength and stability have significantly reduced. 2. Looseness: A properly functioning Agricultural Belt should operate under appropriate tension. If the belt is too loose and sags beyond the specified value when pressed, or if the belt lengthens due to continuous use, it has lost its elasticity and tension and requires replacement. 3. Slipping: If you hear a sharp screeching sound at the Agricultural Belt's location while the agricultural machinery is operating or feel that the machine's power output is insufficient and the speed is decreasing, it might be due to belt slippage. In this situation, you need to check the tension and ensure that there is sufficient friction on the belt to operate. Otherwise, you need to replace the belt. 4. Heating: A properly functioning Agricultural Belt will have some temperature rise, but if it feels very hot or even too hot to touch, it might be due to excessive fatigue, internal structural damage, or excessive tension leading to heat accumulation. This situation is likely to accelerate the aging and damage of the belt, and you must stop the operation immediately, inspect, and replace the belt. 5. Unusual Smell or Burning Marks: If you smell burnt rubber or see melting and scorch marks on the Agricultural Belt, this indicates that the belt is in a serious overload state, and partial or complete damage may already have occurred. You must replace the belt immediately. 6. Abnormal Vibration or Noise: Belt failure or imminent belt failure can sometimes cause additional vibration or noise when the machine is running. This is due to the uneven transmission, and you must stop the machine, identify the cause and replace the problematic Agricultural Belt.

How to Choose the Right Agricultural Belt

1. Belt Type: Agricultural machinery commonly uses V-belts (also known as triangular belts), which come in various models, such as A, B, C, D, depending on the width and thickness. When choosing, ensure that it is consistent with the original equipment manufacturer's specification or refer to the equipment manufacturer's guidelines. 2. Length: Measure or calculate the required accurate length of the Agricultural Belt according to the agricultural machinery manual to ensure that the new belt can be easily installed and maintain appropriate tension. 3. Horsepower/Power Requirements: Agricultural Belt needs to bear the engine output power of the agricultural machine, so ensure that the new belt's rated power is greater than or equal to the power requirement of the transmission system. 4. Material: Agricultural Belt made of high-quality rubber compound has better wear resistance, high-temperature resistance, oil resistance, aging resistance performance. 5. Belt Pulley Groove Size: The Agricultural Belt must match the groove width and depth of the belt pulley to ensure good meshing, avoid slipping, or premature wear. Author: Miya
