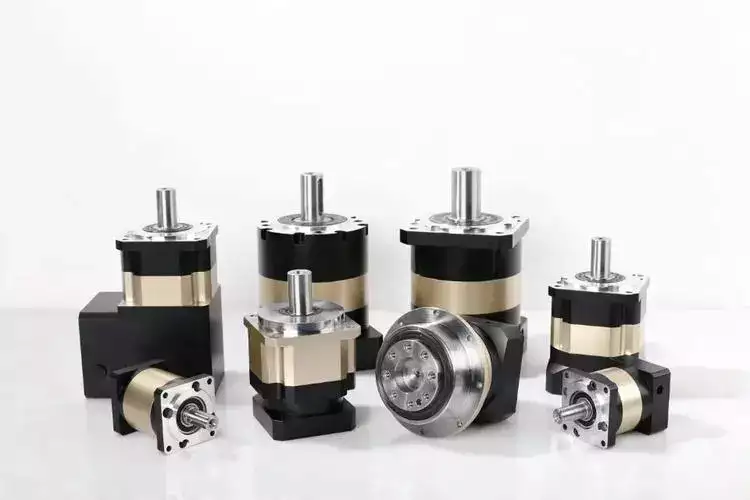

High Precision Planetary Gearbox Replacement of APEX AF042, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a highly precise gearbox used in various industries. It features a compact structure and high torque transmission efficiency.
Our High Precision Planetary Gearbox can perfectly replace APEX brand gearboxes. It has a similar installation method, external dimensions, and technical parameters as the APEX brand. However, we do not sell APEX brand products. We mention APEX models only to help customers choose the right product. We also offer customization services for different sizes.
| Parameters | Values |
|---|---|
| Output torque (1-stage) | 40 Nm - 950 Nm |
| Output torque (2-stage) | 100 Nm - 2100 Nm |
| Ratios (1-stage) | 3; 4; 5; 7; 10 |
| Ratios (2-stage) | 15; 20; 25; 28; 35; 40; 50; 70; 100 |
| Emergency stop torque | 2.5 times of rated torque |
| Nominal input speed | 3000 rpm |
| Max input speed | 6000 rpm |
| Micro backlash | ≤1 arcmin |
| Reduced backlash | ≤3 arcmin |
| Standard backlash | ≤5 arcmin |
| Torsional rigidity | ≥14 Nm/arcmin |
| Max radial load | 5000 N |
| Max axial load | 9800 N |
| Service life | ≥20000 hours |
| Efficiency | ≥97% |
| Weight | 1.7 kg - 54 kg |
| Operating temp | -10°C to 90°C |
| Lubrication | Lubrication for life |
| Degree of gearbox protection | IP65 |
| Mounting position | Any direction |
| Noise | ≤65 dB(A) |
Our High Precision Planetary Gearbox is manufactured using advanced technology and high-quality materials. It provides superior performance compared to other brands and is ideal for various industries.
Our High Precision Planetary Gearbox is widely used in robotics for its precise control and high torque transmission efficiency. It can improve the accuracy and speed of robotic movements and reduce energy consumption.
Our High Precision Planetary Gearbox is also used in machine tools for its high torsional rigidity and low backlash. It can improve the precision and stability of machine tool movements and reduce vibration and noise.
Our High Precision Planetary Gearbox is ideal for packaging machinery due to its compact structure and high torque transmission efficiency. It can improve the packaging speed and accuracy and reduce downtime and maintenance costs.
Our High Precision Planetary Gearbox is suitable for textile machinery due to its low backlash and wide range of sizes and customization options. It can improve the precision and stability of textile machinery movements and reduce energy consumption and maintenance costs.
We, Raydafon, are a professional manufacturer of transmission equipment located in Ningbo, Zhejiang. We strictly follow the international quality management system standard ISO9001:2015 and our products have passed the mandatory CCC certification in China and the CE certification of the European Community. Our products are produced according to international IC standards and have reached the advanced level of similar products internationally.
