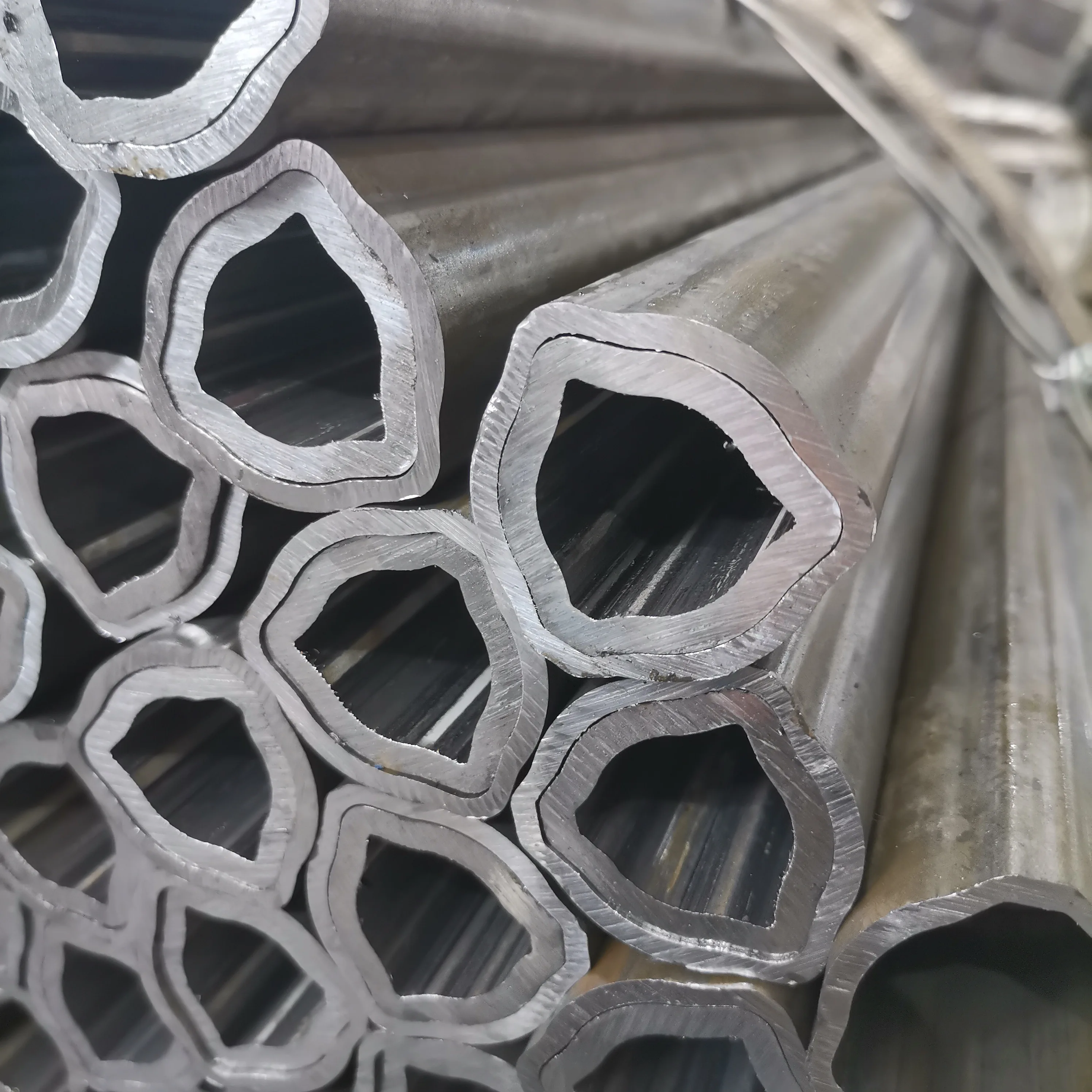

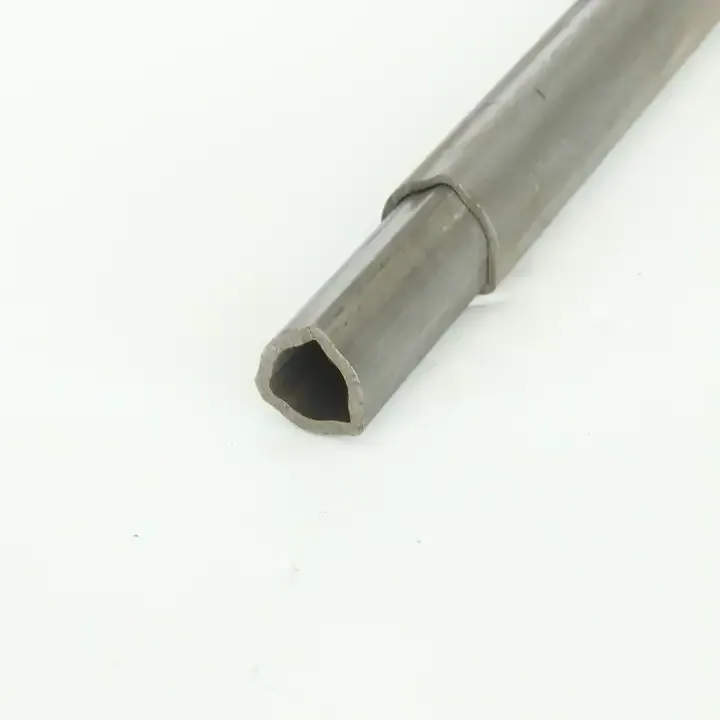

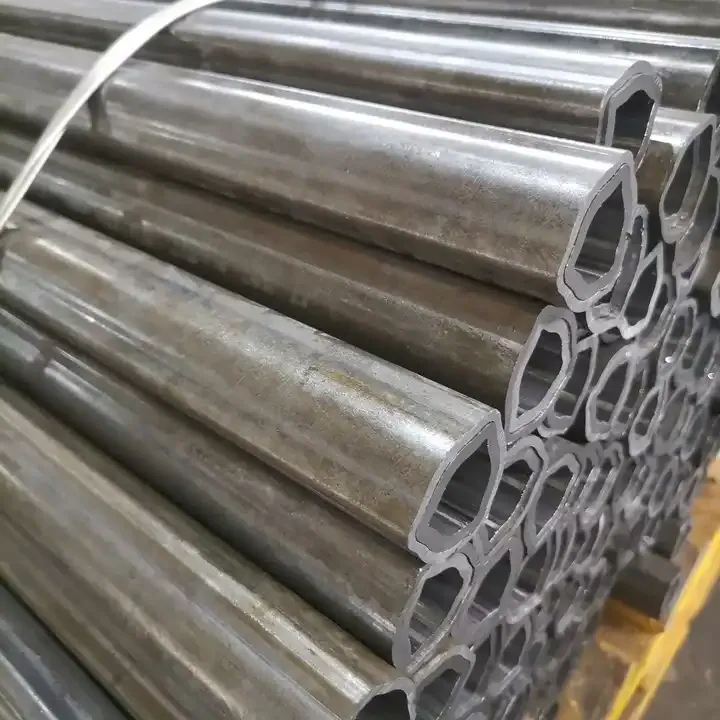

High Quality Triangular Tube PTO Shaft Tube Steel Pipe for Agricultural Tractor Parts

[embed]https://youtu.be/zmwW0-sbEgo[/embed]As a crucial component for agricultural equipment, the Triangular Tube Pto Shaft Steel Pipe offers efficient power transfer, robust construction, protective shielding, and easy servicing for a wide range of machinery. Manufactured by Raydafon, this high-quality tube is made from 16Mn steel, ensuring durability and longevity. It is carefully designed for use with PTO shafts and is specifically tailored for agricultural machinery equipment. This tube is available in natural colour and can be customized according to customer-specific lengths. All products come with a 1-year warranty and are certified by ISO, CE, and TS.

PTO Shaft Triangular Tube Specifications

Model Number	Triangular Tube
Function	Drive Shaft Parts & Power Transmission
Use	Kinds of Tractors & Farm Implements
Brand Name	EP
Yoke Type	Double push pin,Bolt pins,Split pins,Push pin,Quick release,Ball attachment,Collar.....
Processing Of Yoke	Forging
Plastic Cover	YW;BW;YS;BS;Etc
Color	Green;Orange;Yellow;Black Ect.
Series	T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Type	Lemon,Trianglar,Star,Square,Hexangular,Spline,Special Ect
Processing Of Tube	Cold drawn
Spline Type	1 1/8" Z6;1 3/8" Z6; 1 3/8" Z21 ;1 3/4" Z20; 1 3/4" Z6; 8-38*32*6 8-42*36*7; 8-48*42*8;
Place of Origin	Haining, China (Mainland)

Advantages of Agricultural PTO Shaft Triangular Tube

Agricultural Power Take-Off (PTO) shaft tubes are essential components in farm machinery, connecting tractors to various implements like mowers, balers, tillers, and more. These tubes play a crucial role in the efficient and safe operation of agricultural equipment. Here are some of the key advantages of agricultural PTO shaft tubes:

• Effective Power Delivery: PTO shaft tubes are designed to transfer power from the tractor to the implement efficiently, ensuring optimal performance of the machinery.
• Robust Construction: These tubes are typically made from high-strength materials, making them durable and capable of withstanding the rigors of agricultural work. The construction material often has properties that resist wear, corrosion, and damage from environmental factors.
• Protective Shielding: Most PTO shaft tubes come with protective coverings or guards, which help prevent accidents and injuries caused by entanglement with the rotating shaft. They are often designed to meet specific safety standards, reducing the risk of accidents during operation.

• Accommodates Various Equipment: PTO shaft tubes are adaptable to a wide range of agricultural machinery, offering flexibility in connecting different types of implements. Many PTO shafts have telescopic designs, allowing them to accommodate different distances between the tractor and the implement.
• Easy to Service: They are generally designed for easy maintenance, with the ability to replace worn or damaged parts like bearings or u-joints. Many PTO shaft tubes have standardized components, making it easier to find replacement parts.
• Variety of Sizes and Types: PTO shaft tubes come in various sizes and types to match specific torque and speed requirements, offering customization options for different farming needs.

Applications of Agricultural PTO Shaft Triangular Tube

Agricultural Power Take-Off (PTO) shaft tubes are essential components in a wide range of farm machinery, playing a critical role in the transmission of power from a tractor to various implements. Here are some key applications of agricultural PTO shaft tubes:

1. Rotary Cutters and Mowers: Used to transfer power to rotary cutters and mowers for cutting grass, crops, and other vegetation.
2. Balers: Vital in operating balers, especially for hay or straw baling. PTO shaft tubes ensure the efficient functioning of these machines during the compacting and binding process.
3. Tillage Equipment: Essential for powering tillage tools like plows, harrows, and cultivators, which are used for soil preparation and weed control.
4. Seeders and Planters: Facilitate the operation of seed drills and planters, ensuring seeds are sown effectively and at the right depth.
5. Harvesting Machinery: Crucial in the operation of harvesting equipment, such as combines and forage harvesters.
6. Manure Spreaders: Enable the functioning of manure spreaders, crucial for distributing organic fertilizers evenly across fields.

Agricultural PTO Shaft Tube Types

Agricultural Power Take-Off (PTO) shaft tubes are essential components in farm machinery, connecting the tractor to various implements. There are several types of PTO shaft tubes, each designed to meet specific requirements and applications in agriculture. Here are some PTO shaft tube types:

1. Standard Duty Tubes: Ideal for light-duty work and smaller implements. They are typically lighter and used with equipment that doesn't require high torque or power transfer.
2. Heavy-Duty Tubes: Suited for heavy-duty applications, demanding higher torque and power transmission. These tubes are more robust and capable of handling the stress of more intensive tasks like deep plowing or heavy-duty mowing.
3. Lemon-Shaped or Star-Shaped Tubes: Designed for specific torque transmission requirements. These tubes have unique profiles (lemon or star-shaped) to provide different levels of flexibility and torque handling capabilities.
4. Wide-Angle Tubes: Ideal for situations where the PTO shaft needs to operate at greater angles. They allow for wider operating angles between the tractor and implement, useful in uneven terrain.
5. Splined Tubes: Common in most agricultural applications for secure attachment. These tubes feature internal and external splines for a secure fit and efficient power transmission.
6. Telescopic Tubes: Used when a variable distance between the tractor and implement needs to be accommodated. These shafts can extend or retract to adjust the length, providing flexibility and convenience in operation.

Agricultural PTO Shaft Tube Replacement Steps

Replacing an Agricultural Power Take-Off (PTO) shaft tube is an important maintenance task that ensures the effective and safe operation of your farm machinery. Here's a step-by-step guide on how to replace a PTO shaft tube:

1. Disconnect Power: Ensure the tractor or any power source is turned off. Remove the key to prevent accidental starting. Make sure the implement attached to the PTO is properly supported and stable.
2. Remove the Old PTO Shaft: Detach the PTO shaft from the implement and the tractor. This usually involves removing a locking pin or clip at each end. Carefully slide the PTO shaft off the tractor's PTO stub and then away from the implement.
3. Disassemble the PTO Shaft: Secure the PTO shaft in a vise or lay it on a flat surface. Remove any guards or chains. Locate and remove the fasteners or pins that hold the tube in place on the shaft assembly.
4. Remove the Old Tube: Slide the old tube off the shaft. You may need to tap it gently with a hammer if it's stuck.
5. Prepare the New Tube: Apply grease to the inside of the new tube and to any moving parts to ensure smooth operation.
6. Install the New Tube: Slide the new tube onto the shaft. Ensure it aligns correctly with the yokes and any other components. Secure the tube with the original fasteners or pins.
7. Reassemble the PTO Shaft: Replace any guards or chains that were removed. Ensure all components are secured properly. Carefully align and attach one end of the PTO shaft to the implement and then the other end to the tractor's PTO stub. Secure both ends with locking pins or clips.
8. Test the Installation: Engage the PTO at a low speed while stationary to ensure the shaft rotates freely without wobbling or noise. Perform a functional test under normal operating conditions.

How to Choose the Right PTO Shaft Tube for PTO Shaft?

Choosing the right PTO (Power Take-Off) shaft tube for your agricultural equipment is crucial for efficient and safe operation. Here are some key factors to consider when selecting a PTO shaft tube:

1. Length of the Shaft: Measure the distance between the tractor's PTO stub and the implement's input shaft. Consider the required length when the implement is in operation, as some implements may move further away from the tractor during use. Ensure the shaft can extend and retract. A telescopic shaft allows for flexibility in length, accommodating movement during operation.
2. Shaft Diameter and Spline Specification: Determine the size and type of the PTO stub on the tractor. Common sizes are 540 RPM (6 splines, 1 3/8 inch diameter) and 1000 RPM (21 splines, 1 3/8 inch diameter or 20 splines, 1 3/4 inch diameter). Check the implement's input shaft size and spline count to ensure compatibility with the PTO shaft.
3. Torque and Horsepower Requirements: Review the tractor and implement specifications for torque and horsepower requirements. The PTO shaft should be capable of handling the maximum torque and horsepower output of the tractor.
4. Safety Features: Ensure the PTO shaft comes with appropriate safety guards to protect against entanglement and other accidents. Look for shafts that comply with recognized safety standards.
5. Type of Work: The type of implement (e.g., mower, baler, tiller) often dictates the type of PTO shaft needed. Some implements require specific types of shafts for optimal performance. Consider the intensity and duration of the work. Frequent, heavy use requires a more robust shaft.
6. Material and Build Quality: Opt for high-quality materials that offer durability and resistance to wear and corrosion.

Maintenance of Agricultural PTO Shaft Triangular Tube

Maintaining an agricultural PTO (Power Take-Off) shaft tube is crucial for the safe and efficient operation of farm machinery. Regular maintenance ensures the longevity of the PTO shaft and helps prevent accidents. Here are key steps in maintaining an agricultural PTO shaft tube:

1. Regular Inspection: Regularly inspect the PTO shaft tube for any signs of wear, cracks, bends, or other damage. Ensure that all safety guards are in place and in good condition. They are essential for preventing entanglement injuries.
2. Lubrication: Lubricate the shaft regularly, focusing on universal joints, yokes, and the telescoping parts of the shaft. Use a high-quality grease that's suitable for agricultural equipment.
3. Cleaning: Keep the shaft clean from dirt, crop residue, and other debris. Dirt accumulation can hinder the telescopic action of the shaft and hide potential damage.
4. Checking and Adjusting Length: Ensure the shaft is the correct length for the tractor-implement combination. A shaft that's too short can disconnect, while one that's too long can compress and cause damage. Check the telescoping parts of the shaft for smooth operation. If they're difficult to slide, they may need cleaning or lubrication.
5. Inspect and Replace Worn Parts: Look for signs of wear in the yokes, universal joints, and tubing. Replace any worn or damaged parts promptly. Check and replace shear bolts and pins as necessary. These are designed to break under excess load to protect the tractor and implement.
6. Storage: When not in use, store the PTO shaft in a dry, covered area to prevent rust and corrosion. Hanging the shaft can prevent bending and warping.

Why Choose Raydafon's PTO Shaft Tubes?

With a proven track record of excellence, Raydafon Drive Shaft Co., Ltd. stands as a leading manufacturer of PTO shaft tubes. Our company is located in Ningbo Zhejiang City, which is conveniently close to Pudong Airport and Xiaoshan Airport, as well as the East of Ningbo Station. Our manufacturing facility spans over 12,000 m2, and we have a dedicated team of over 100 staff members.We specialize in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, and more. Our annual turnover is 60 million RMB, 9 Million Dollars, and this figure continues to grow year after year.Our products have gained a great reputation from customers in Europe, America, Asia, Australia, and North America. Additionally, we are the top professional OEM supplier for many agricultural implement factories in the domestic market. Our company operates under the principles of Quality first, Delivery quickly, and Price Competitive. We hold the CE, TS/16949, and ISO9001 certificates and have a systematic manufacturing setup and a dedicated QC team to guarantee our quality and delivery.We warmly invite all our friends to visit us and establish a mutually beneficial long-term relationship. Our company exports its products to valued customers in more than 50 countries across 5 continents of the world. With the best-in-class brands in our product range, Raydafon continues its activities with the aim of becoming a global company in the fields it works in.

Professionalism and International Certifications

At Raydafon, we take pride in our professionalism and adherence to international standards. Our products are designed and manufactured in strict compliance with ISO, CE, and TS quality system certifications. We place utmost importance on quality control and adhere to stringent quality inspection procedures in every stage of our production process. Our commitment to quality has earned us the trust and confidence of our customers worldwide.

Customized Services

We understand that every customer's requirements are unique. Therefore, we offer customized services to meet your specific needs. From product design, development, to manufacturing, we work closely with our customers to deliver products that meet their specific requirements. Our team of experienced engineers is capable of designing and developing products that meet the most demanding specifications.

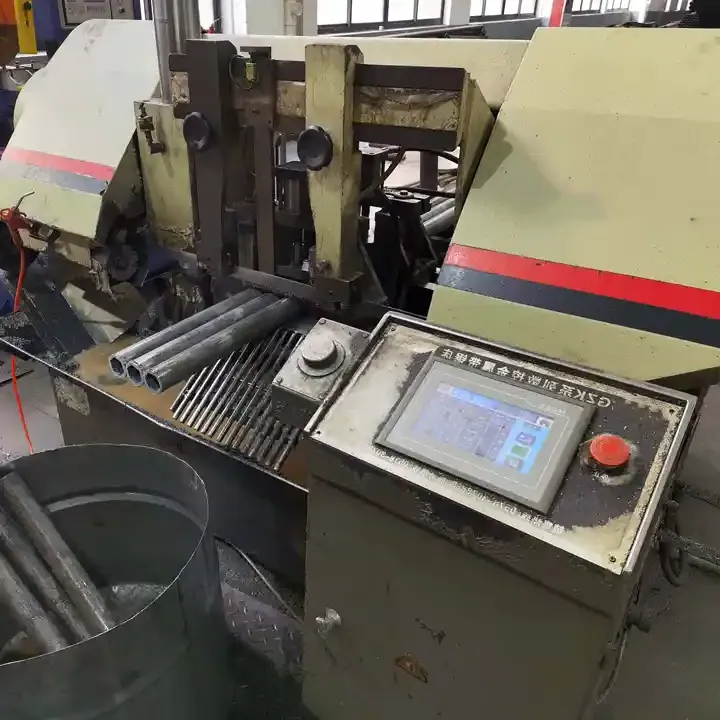

Production Facilities

Our state-of-the-art production facilities are equipped with advanced machinery and technology. We continuously invest in upgrading our facilities to stay at the forefront of technology. Our manufacturing process is streamlined and optimized for efficiency, ensuring that we can deliver high-quality products on time, every time.

After-Sales Services

We believe in building long-term relationships with our customers. Our after-sales service team is always ready to assist our customers with any issues related to our products. We provide prompt and efficient after-sales service, ensuring that our customers receive the support they need when they need it.Author: Yjx
