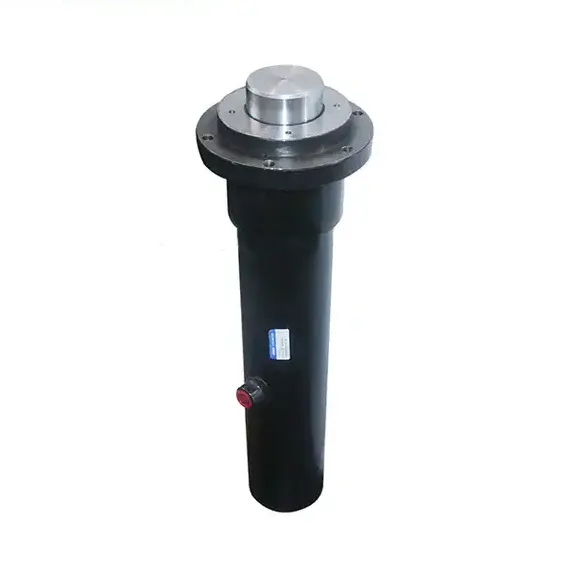

HRO Type Circular Hydraulic Cylinder

HRO Type Circular Hydraulic Cylinder

The HRO type circular hydraulic cylinder is a state-of-the-art hydraulic component that delivers reliable and efficient power transmission in various industrial applications. With its innovative design, superior performance, and robust construction, this hydraulic cylinder offers precise control, durability, and versatility. Whether used in manufacturing, construction, or material handling, the HRO type circular hydraulic cylinder is engineered to optimize hydraulic operations and enhance overall productivity.Our company has advanced processing equipment, including vertical and horizontal machining center, gantry machining center, and high-precision CNC grinding machine, specializing in the production of various types of hydraulic Angle cylinders, thin cylinders, pull rod cylinders, engineering cylinders, metallurgical cylinders, non-standard cylinder, custom cylinder, hydraulic system, hydraulic pump station, hydraulic valve, hydraulic machinery, and other systematic hydraulic products, suitable for various industries. Cost-effective, complete supporting products, welcome manufacturers nationwide to negotiate cooperation.HRO series round cylinder safe and stable, output, easy maintenance, beautiful appearance, high quality, suitable for all kinds of press.Hro Circular Cylinder Features:1) The circular cylinder has the advantages of safety and stability, large output and easy maintenance;2) Maximum cylinder diameter 350MM;3) Travel can be 5 meters;4) Use pressure: 14~21Mpa

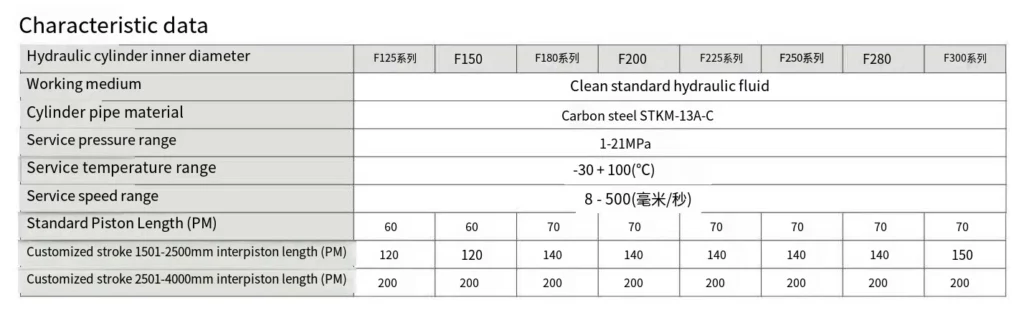

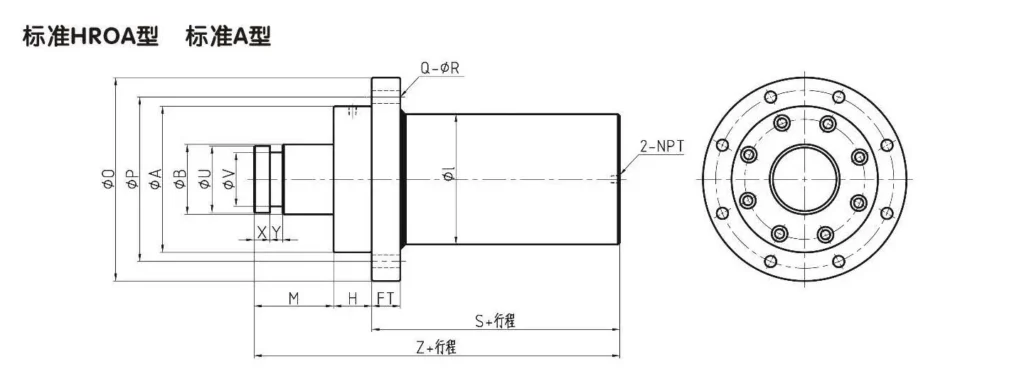

HROA Type Circular Hydraulic Cylinder Characteristic Data:

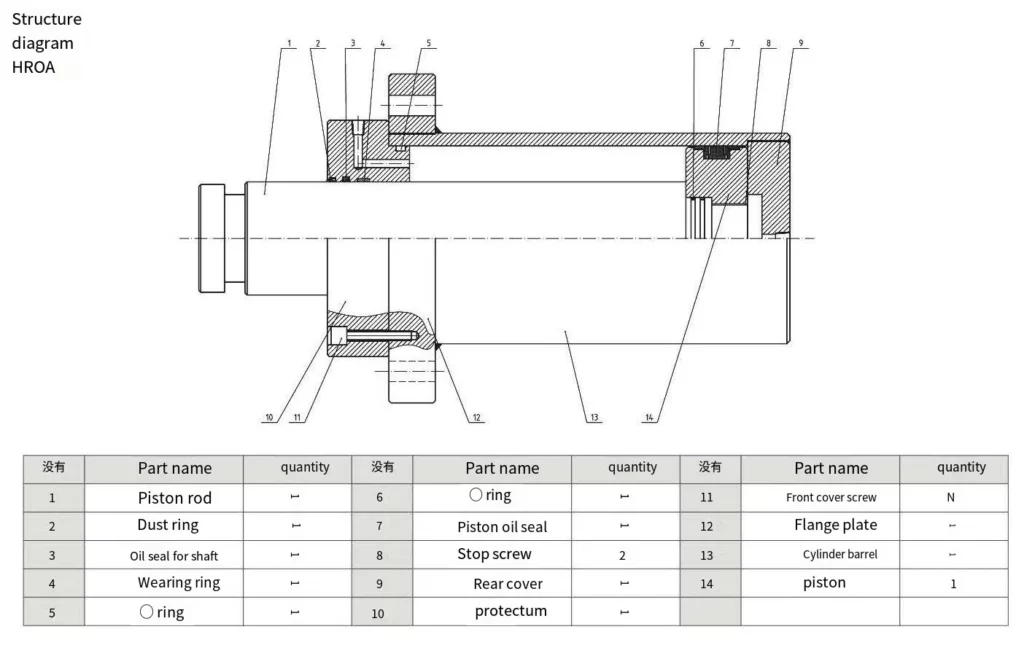

HROA Type Circular Hydraulic Cylinder Structure Diagram:

HRO Type Circular Hydraulic Cylinder Parameter:

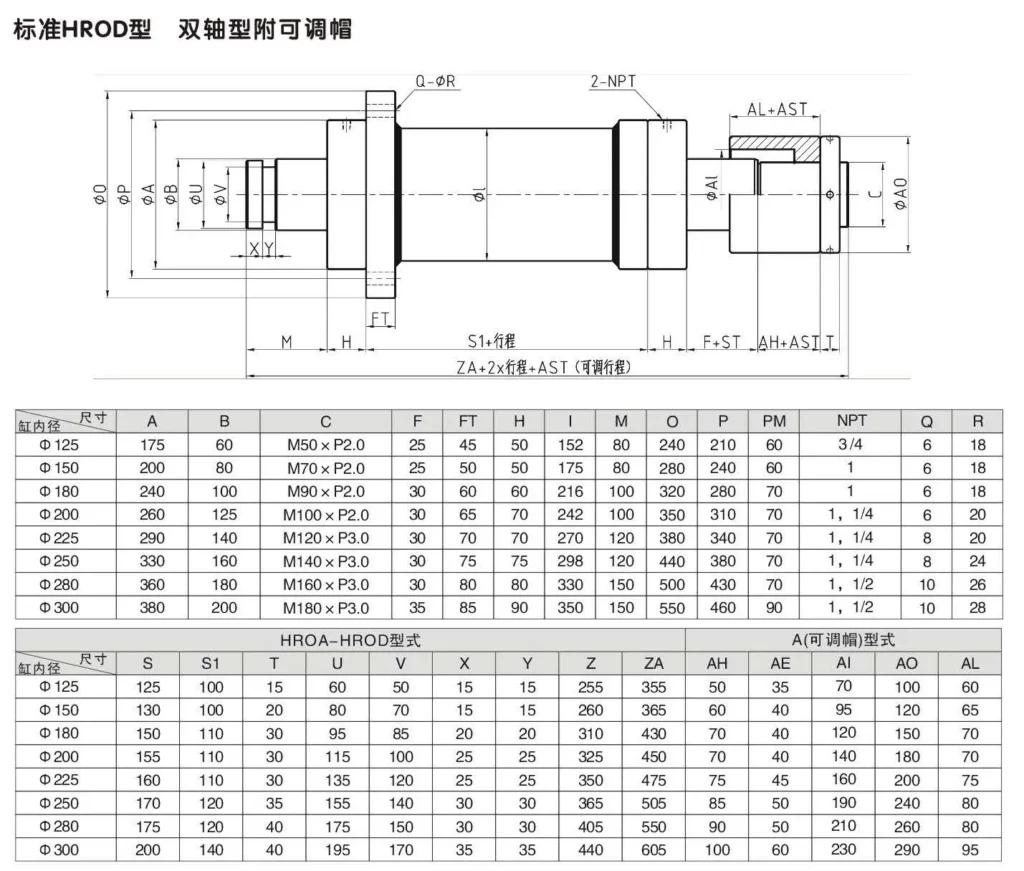

（1）HROD Biaxial Type With Adjustable Cap Circular Hydraulic Cylinder

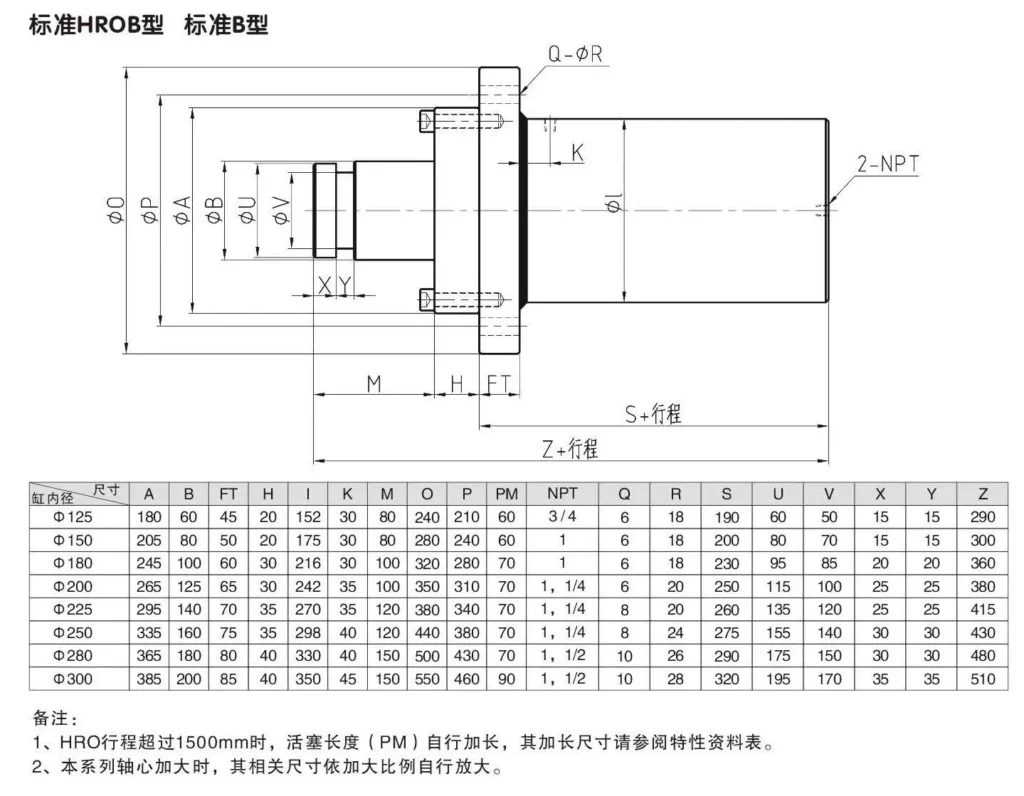

（2）HROB Type Standard B Type Circular Hydraulic Cylinder

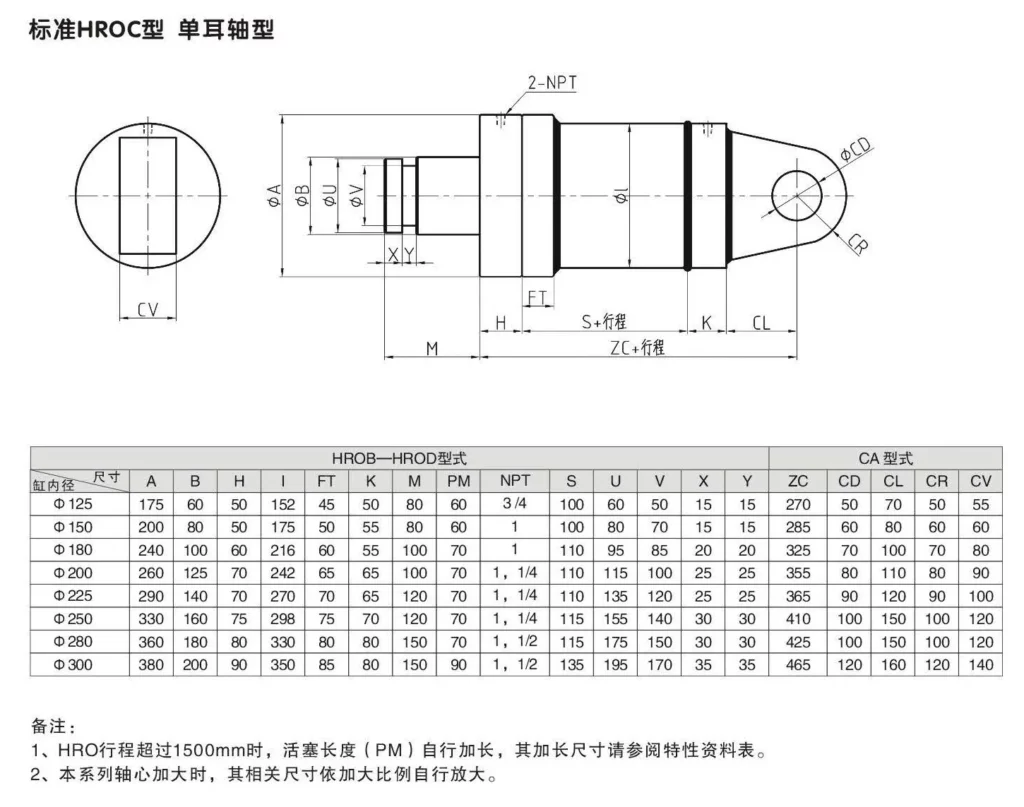

（3）HROC Single Trunnion Type Circular Hydraulic Cylinder

（4）HROE Rear Flange Type Circular Hydraulic Cylinder

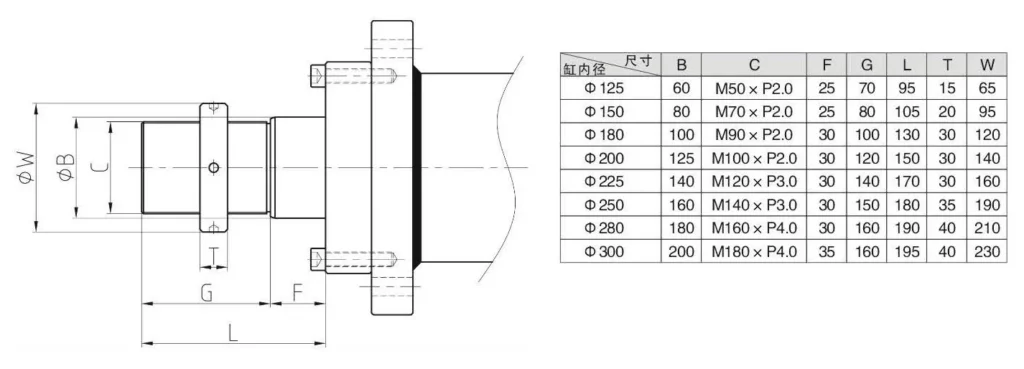

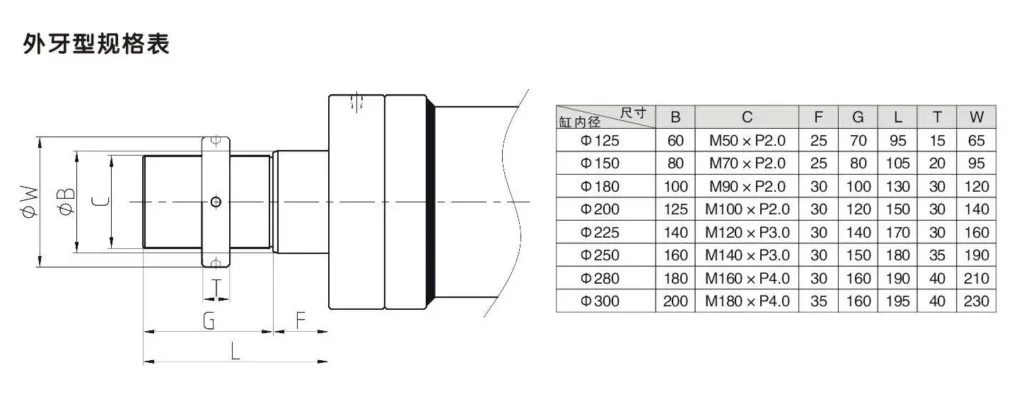

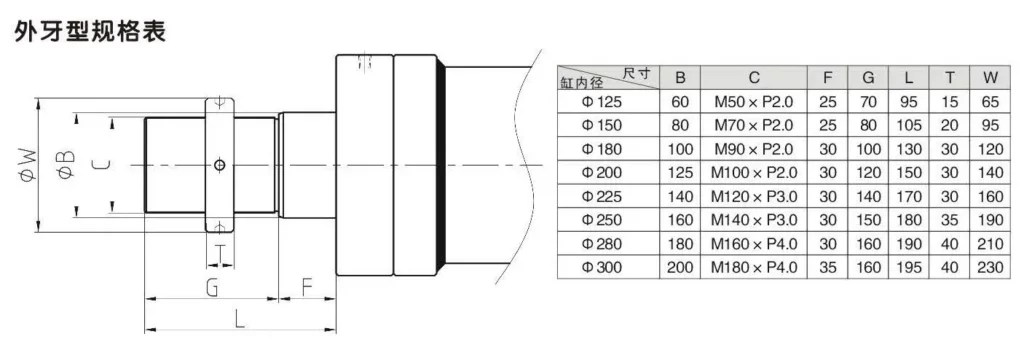

HRO Type Circular Hydraulic Cylinder External Tooth Type Specification Sheet:

（1）HROB Type Standard B Type Circular Hydraulic Cylinder

（2）HROC Single Trunnion Type Circular Hydraulic Cylinder

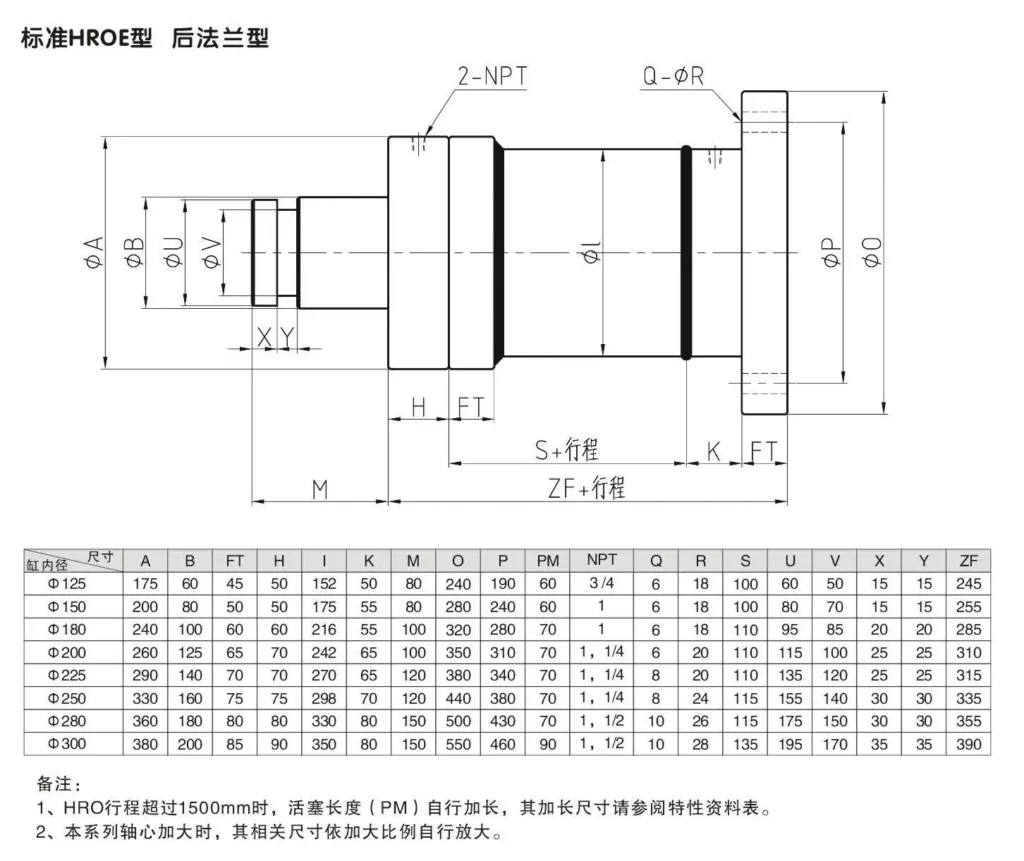

（3）HROE Rear Flange Type Circular Hydraulic Cylinder

Large Hydraulic Cylinder Model Description:

HROA-125/60*100+Y+DMHROA -- Type: HROA= Oil port in front of flange HROB= Oil port in back of flange HROC=CA type HROD= biaxial type HROE= flange in back125-- Cylinder diameter: Φ125, Φ150, Φ180, Φ200, Φ225, Φ250, Φ280, Φ30060-- Axis ROD standard: Φ60, Φ80, Φ100, Φ120, Φ140, Φ160, Φ180, Φ200Axis ROD maximum: Φ80, Φ100, Φ120, Φ140, Φ160, Φ200, Φ220, Φ250100 -- Travel: Standard maximum travel 4 metersY-- Cylinder block fixed type: YP=Y with PIN I=I type joint TW= half moon sleeve + welding sleeve A= adjustable nutsDM -- No mark =DM core wheel type

Large Circular Hydraulic Cylinder Shaft Fittings Size Diagram:

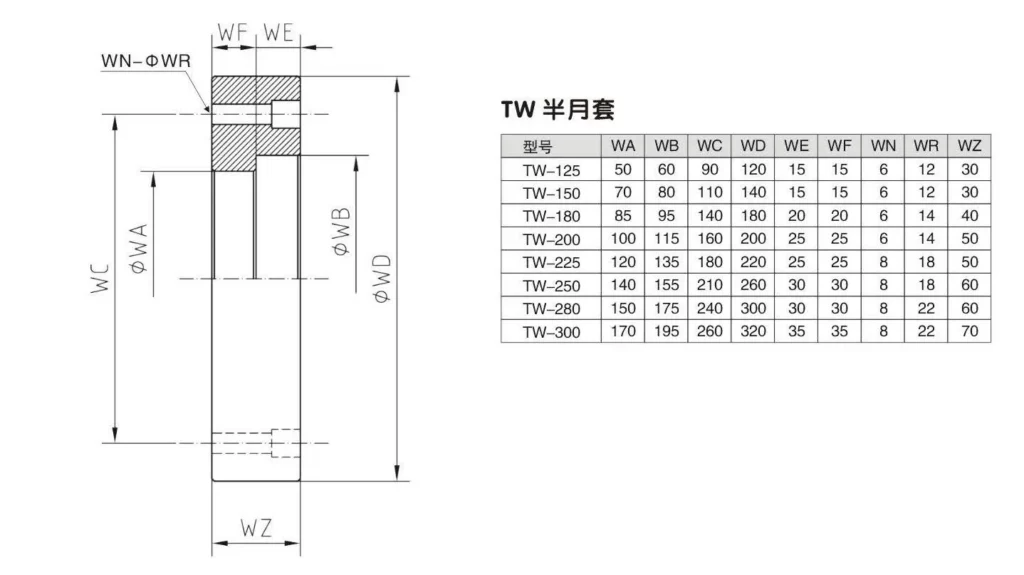

（1）Tw Half Moon Sleeve

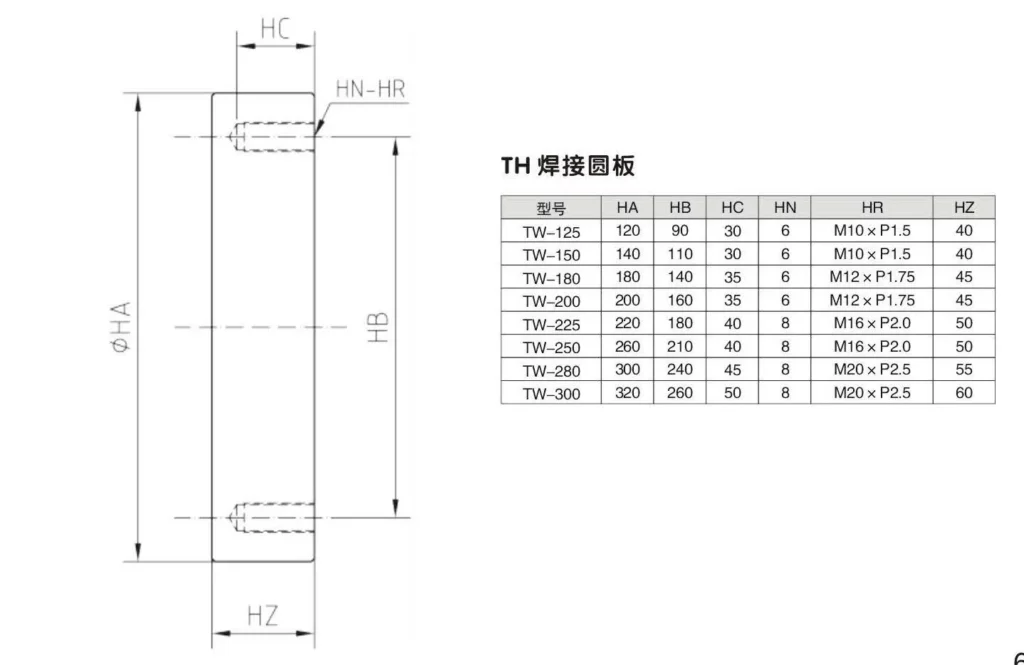

（2）Welded Round Plate

How To Remove Hydraulic Cylinder From Front End Loader?

Removing a hydraulic cylinder from a front-end loader requires careful preparation and execution. Here's a step-by-step guide to help you through the process:

1. Safety First:
   • Before starting work, ensure the front-end loader is parked on a level surface and the engine is turned off.
   • Engage the parking brake and place wheel chocks behind the rear wheels to prevent accidental movement.
   • Wear appropriate personal protective equipment (PPE), including gloves and safety glasses.
2. Identify the Cylinder:
   • Locate the hydraulic cylinder you intend to remove. It will be connected to the loader's hydraulic system and attached to specific mounting points.
3. Relieve Hydraulic Pressure:
   • To avoid sudden movements or potential injury, relieve the hydraulic pressure in the system before disconnecting the cylinder.
   • Start the engine and operate the loader's hydraulic controls to move the bucket or attachment to a fully extended or raised position.
   • Shut off the engine and release any remaining pressure by operating the hydraulic controls a few times.
4. Disconnect Hydraulic Connections:
   • Locate the hydraulic hoses or lines connected to the cylinder. These are typically secured with fittings, bolts, or quick-release couplings.
   • Carefully loosen and disconnect the hydraulic connections, using appropriate tools as needed.
   • Be prepared for some hydraulic fluid to leak, so have a catch basin or absorbent material ready to minimize spills.
5. Remove Mounting Hardware:
   • Identify the mounting points where the cylinder is attached to the loader's structure. These may include pins, bolts, or brackets.
   • Remove any retaining pins or bolts securing the cylinder to the loader using the appropriate tools.
   • Keep track of the hardware as you remove it, ensuring it isn't misplaced or lost.
6. Detach the Cylinder:
   • With the hydraulic connections and mounting hardware removed, the cylinder should now be free to be detached.
   • Carefully slide or maneuver the cylinder out of its mounting position, not damaging any surrounding components or hydraulic lines.
   • Use lifting equipment or assistance to handle and remove the cylinder from the loader safely.
7. Proper Storage and Maintenance:
   • Once the cylinder is removed, inspect it for any signs of damage or wear. Replace any worn-out seals or components, if required.
   • Store the hydraulic cylinder in a clean and dry area, protected from dust, moisture, and extreme temperatures.
   • If the cylinder requires further servicing, consult the manufacturer's guidelines or seek professional assistance.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of circular hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle circular hydraulic cylinders, Aerial work vehicle circular hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The circular hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
