HROB Type Standard B Type Circular Hydraulic Cylinder

HROB Type Standard B Type Circular Hydraulic Cylinder

The hrob type standard b type circular hydraulic cylinder is a versatile and reliable hydraulic component that provides efficient power and precise control in various industrial applications. Engineered with advanced technology and built to high-quality standards, this hydraulic cylinder offers exceptional performance and durability. Whether in manufacturing, construction, or material handling, the hrob type standard b type cylinder ensures smooth and efficient hydraulic operations.HRO series round cylinder safe and stable, output, easy maintenance, beautiful appearance, high quality, suitable for all kinds of press.

HROA Type Circular Hydraulic Cylinder Characteristic Data:

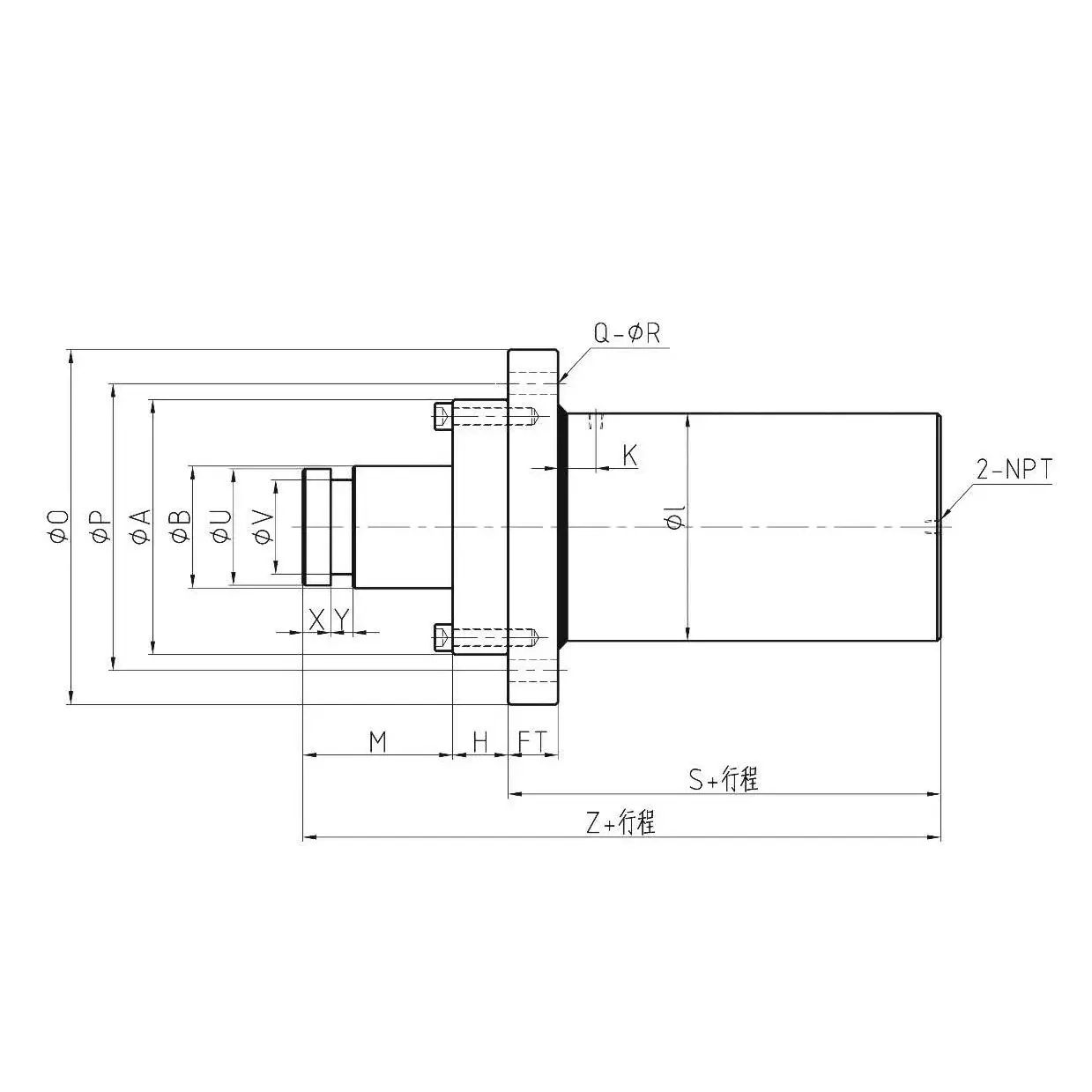

HROA Type Circular Hydraulic Cylinder Structure Diagram:

HROB Type Standard B Type Circular Hydraulic Cylinder Parameter:

HROB Type Standard B Type Circular Hydraulic Cylinder External Tooth Type Specification Sheet:

Usage Method Of HROB Type Standard B Type Circular Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the suitable mounting location for the HROB Type Standard B Type Cylinder based on your equipment or machinery requirements.
   • Ensure that the mounting surface is clean, flat, and capable of supporting the cylinder's weight and load.
2. Connection to Hydraulic System:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks and optimize performance.
3. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the HROB Type Standard B Type Cylinder.
   • Utilize the hydraulic control system to precisely control the cylinder's extension, retraction, and positioning for efficient operations.

Characteristics Of HROB Type Standard B Type Circular Hydraulic Cylinder:

• Robust Construction: The HROB Type Standard B Type Cylinder is built with high-quality materials, ensuring durability and longevity in demanding industrial environments.
• Precision and Control: This hydraulic cylinder offers precise control over movement and positioning, allowing for accurate and efficient operations.
• Versatile Applications: With its universal design, the HROB Type Standard B Type Cylinder suits various industries, including manufacturing, construction, and material handling.
• Efficient Power Transmission: The cylinder efficiently converts hydraulic energy into mechanical force, providing reliable and consistent power output.
• Smooth Operation: The HROB Type Standard B Type Cylinder ensures smooth and reliable operation, minimizing vibrations and noise during hydraulic movements.

How Does A One Way Hydraulic Cylinder Work?

A one-way, single-acting hydraulic cylinder operates using a hydraulic system to generate linear motion in one direction. It consists of a cylinder barrel, piston, piston rod, and hydraulic fluid. Here's how it works:

1. Hydraulic Fluid Supply:
   • The hydraulic system supplies pressurized fluid, typically oil, to the cylinder through a hydraulic pump or power source.
2. Cylinder Extension:
   • When hydraulic fluid is supplied to the cylinder, it enters the cylinder barrel through an inlet port.
   • The pressurized fluid pushes against the piston, causing it to move in the desired direction (typically extending the piston rod).
   • As the fluid pressure increases, it overcomes the resistance or load on the piston, resulting in the extension of the piston rod.
3. Sealing Mechanism:
   • The cylinder barrel is sealed to prevent fluid leakage. It typically incorporates seals around the piston and piston rod, such as O-rings or lip seals.
   • These seals ensure that the pressurized fluid acts only on one side of the piston, creating a pressure imbalance that drives the piston in the desired direction.
4. Return Stroke:
   • After the extension stroke, the hydraulic fluid is released or vented from the cylinder.
   • The hydraulic system may use gravity, a spring, or an external force to retract the piston and piston rod to their initial positions.
   • During the return stroke, the hydraulic fluid flows out of the cylinder through an outlet port.
5. Load Support:
   • The piston rod of the hydraulic cylinder is often connected to a load or mechanism that requires linear motion or force.
   • As the piston extends or retracts, it provides the necessary force to move or support the load.
6. Control and Valves:
   • To control the extension and retraction of the one-way hydraulic cylinder, the hydraulic system incorporates valves, such as check valves or directional control valves.
   • These valves regulate the flow of hydraulic fluid, allowing it to enter and exit the cylinder in the desired direction.
7. Application Specifics:
   • One-way hydraulic cylinders are commonly used in applications where force or motion is required in only one direction, such as lifting, pushing, or clamping.
   • They are often found in hydraulic jacks, hydraulic presses, dump trucks, and various other industrial and mobile equipment.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of circular hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle circular hydraulic cylinders, Aerial work vehicle circular hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The circular hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
