HROC Single Trunnion Type Circular Hydraulic Cylinder

HROC Single Trunnion Type Circular Hydraulic Cylinder

The HROC single trunnion type circular hydraulic cylinder is a cutting-edge hydraulic component designed to provide reliable and efficient power transmission in various industrial applications. With its innovative design and superior performance, this hydraulic cylinder offers precise control, durability, and versatility. Whether in manufacturing, construction, or material handling, the HROC single trunnion type cylinder is engineered to optimize hydraulic operations and enhance productivity.HRO series round cylinder safe and stable, output, easy maintenance, beautiful appearance, high quality, suitable for all kinds of press.

HROA Type Circular Hydraulic Cylinder Characteristic Data:

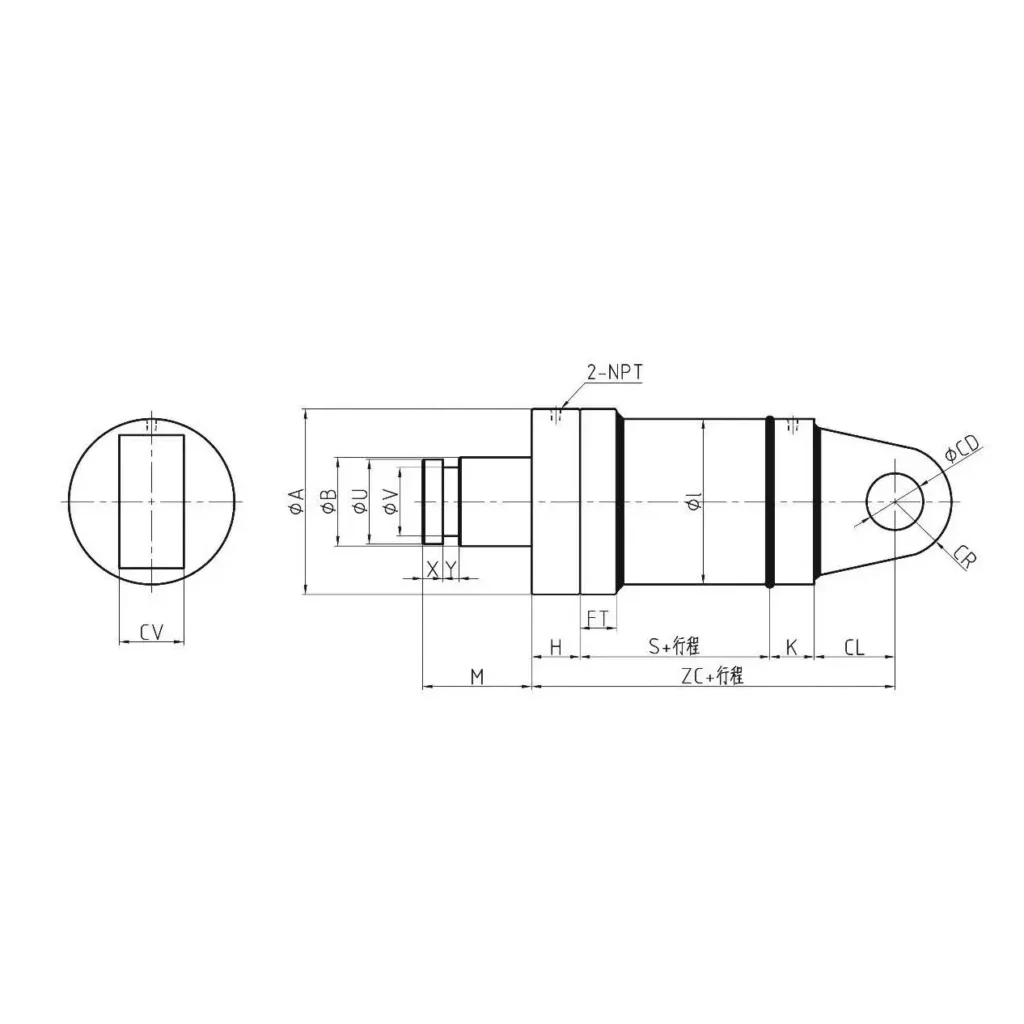

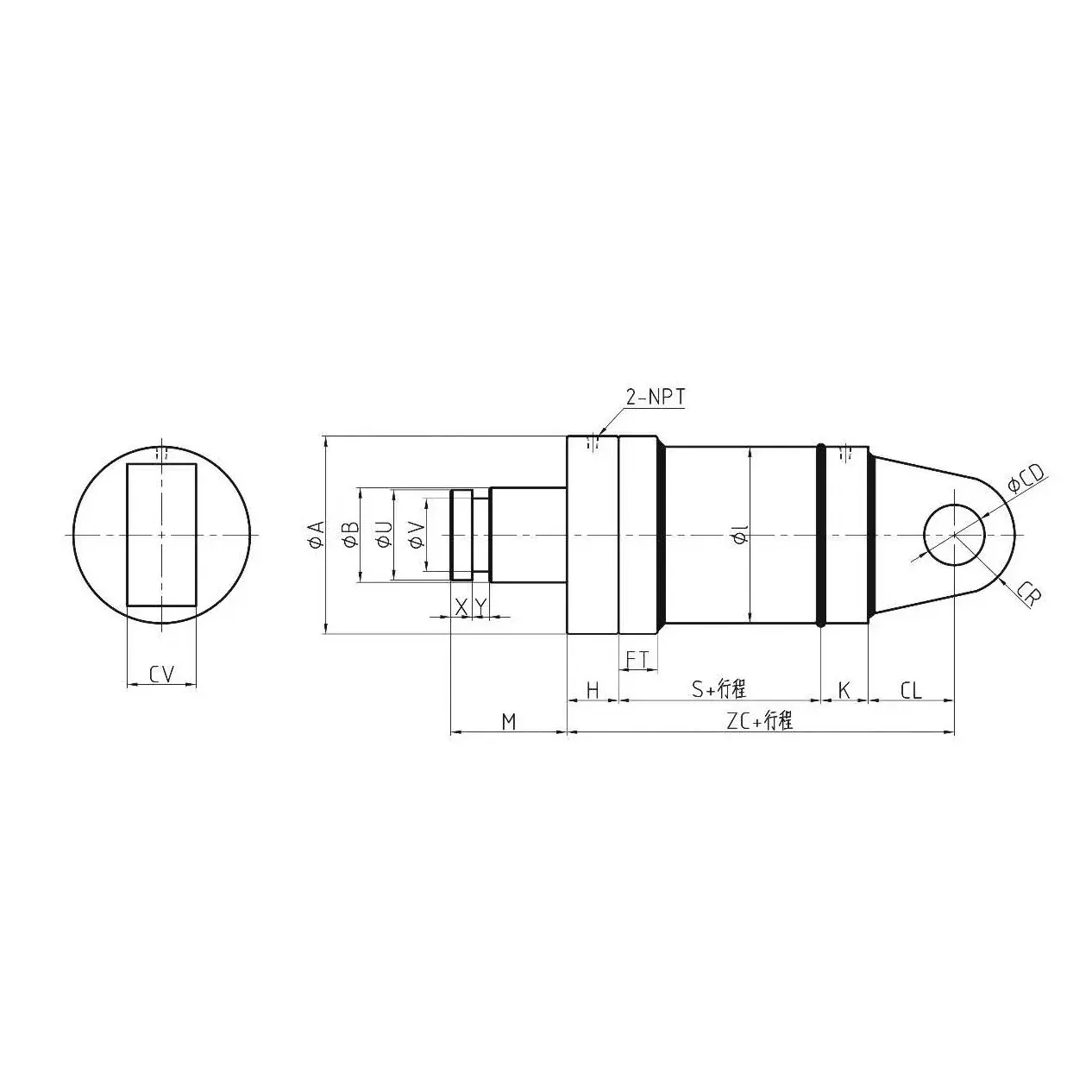

HROA Type Circular Hydraulic Cylinder Structure Diagram:

HROC Single Trunnion Type Circular Hydraulic Cylinder Parameter:

HROC Single Trunnion Type Circular Hydraulic Cylinder External Tooth Type Specification Sheet:

Usage Method Of HROC Single Trunnion Type Circular Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting position for the HROC Single Trunnion Type Cylinder based on the specific requirements of your equipment or machinery.
   • Ensure that the mounting surface is sturdy, level, and capable of securely supporting the weight and load of the cylinder.
2. Hydraulic System Connection:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks and ensure optimal performance.
3. Operating the Cylinder:
   • Activate the hydraulic system to initiate the movement of the HROC Single Trunnion Type Cylinder.
   • Utilize the hydraulic control system to precisely control the extension, retraction, and positioning of the cylinder for efficient operations.

Characteristics Of HROC Single Trunnion Type Circular Hydraulic Cylinder:

• Innovative Design: The HROC Single Trunnion Type Cylinder features a state-of-the-art design that maximizes performance, efficiency, and durability.
• Precise Control: This hydraulic cylinder offers exceptional control over movement and positioning, allowing for accurate and efficient operations.
• High Load Capacity: The HROC Single Trunnion Type Cylinder is engineered to handle heavy loads and withstand demanding industrial applications.
• Versatile Applications: With its versatile design, this hydraulic cylinder is suitable for a broad range of industries, including manufacturing, construction, and material handling.
• Reliability and Durability: The HROC Single Trunnion Type Cylinder is built to withstand harsh operating conditions, providing long-lasting performance and minimizing downtime.
• Smooth Operation: This cylinder ensures smooth and reliable operation, minimizing vibrations and noise during hydraulic movements.

How Hard Is It To Rebuild A Hydraulic Cylinder?

Rebuilding a hydraulic cylinder can be a complex task that requires mechanical knowledge, experience, and the right tools. The difficulty level involved in the process can vary depending on the specific design and condition of the cylinder. Here are some factors to consider:

1. Expertise and Experience:Rebuilding a hydraulic cylinder requires a good understanding of its components, functionality, and assembly. The process may be more manageable if you have experience working with hydraulic systems or have previously rebuilt hydraulic cylinders. However, if you're new to hydraulic systems, seeking professional assistance or guidance is recommended.
2. Cylinder Design:The complexity of rebuilding a hydraulic cylinder can depend on its design. Some cylinders have more straightforward construction with fewer internal components, making them relatively easier to rebuild. However, more advanced techniques, such as those with multiple stages or integrated features, can be more intricate and challenging to disassemble, reseal, and reassemble correctly.
3. Condition of the Cylinder:The overall condition of the hydraulic cylinder also affects the rebuilding process. If the cylinder has severe damage, extensive wear, or corrosion, it may require additional repairs or part replacements, which can add complexity to the rebuild. Assessing the cylinder's condition beforehand will help determine the level of work needed.
4. Tools and Equipment:Rebuilding a hydraulic cylinder often requires specialized tools and equipment. These include hydraulic presses, seal installation tools, snap ring pliers and torque wrenches. Having the necessary tools and knowing how to use them properly is crucial for a successful rebuild.
5. Seal Replacement and Assembly:One of the critical steps in rebuilding a hydraulic cylinder is replacing the seals. Ensuring the correct selection and installation of seals is critical for proper functioning and preventing leaks. It requires precision and attention to detail. Additionally, reassembling the cylinder components in the correct order and alignment is crucial for its optimal performance.
6. Testing and Verification:After rebuilding the hydraulic cylinder, it's essential to perform thorough testing to ensure it operates as intended. This can involve pressure testing, checking for leaks, and verifying the cylinder's range of motion and performance. Proper testing helps identify issues and ensures the cylinder is safe and reliable.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of circular hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle circular hydraulic cylinders, Aerial work vehicle circular hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The circular hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
