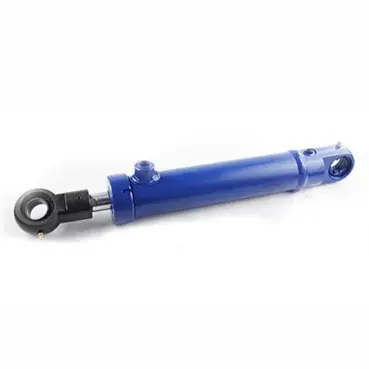

HSG Engineering Hydraulic Cylinder

HSG Engineering Hydraulic Cylinder

HSG series engineering hydraulic cylinder is a double-acting piston rod hydraulic cylinder. The installation method adopts earring type; according to the connection method of cylinder head and cylinder block, there are three kinds of external thread connection, internal card critical connection, and flange connection. Engineering hydraulic cylinder is mainly used in construction, lifting, mining, and other hydraulic systems.Front And Back Earring Installation Features:The tail single earring installation is suitable for the piston rod end of the working process along the same moving plane curve movement; the piston rod will not exceed 3° on both sides of an actual satisfying plane path conditions or structural design requirements of the single earring installation conditions; At this time, the tail and rod end spherical bearings can be installed, but attention should be paid to the pressure load allowed for the installation of spherical bearings.

Scope Of Application Of HSG Engineering Hydraulic Cylinder:

Most of them are used in hydraulic cylinders in hydraulic systems such as construction machinery, heavy machinery, lifting machinery, and mining machinery, but are not limited to the above aspects—pressure rating 16Mpa.When the force of the cylinder is relatively large (such as 20 tons), and the stroke is rather long (such as 2 meters), the drawbar cylinder is not suitable for use because of the force limitation of the screw rod, and the engineering cylinder can be used instead.Due to the immense pressure of the engineering cylinder and the manufacturing process, the material cost and processing costs are higher than that of the drawbar cylinder.

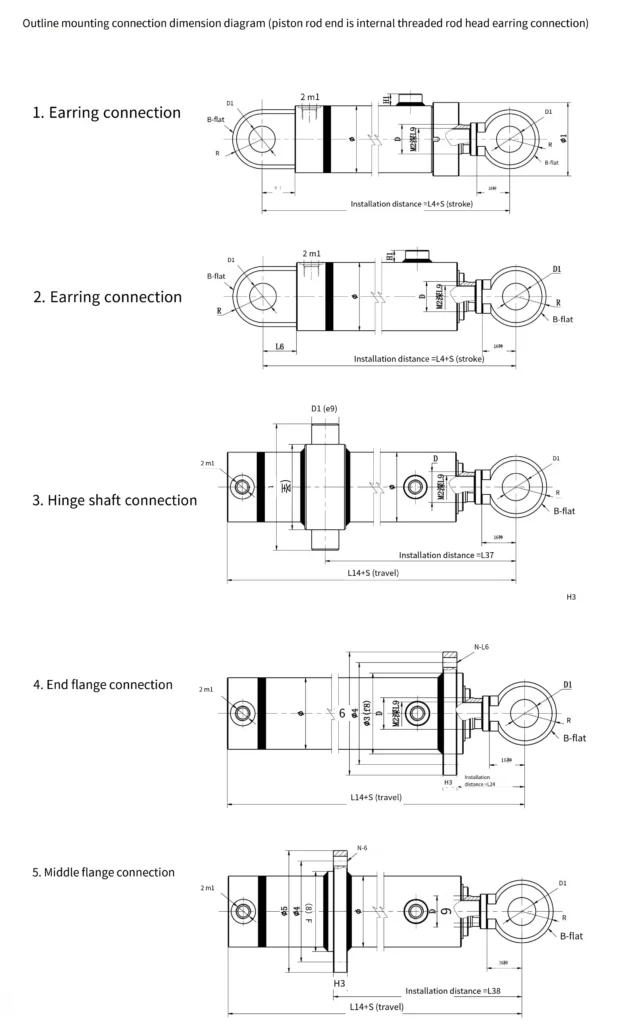

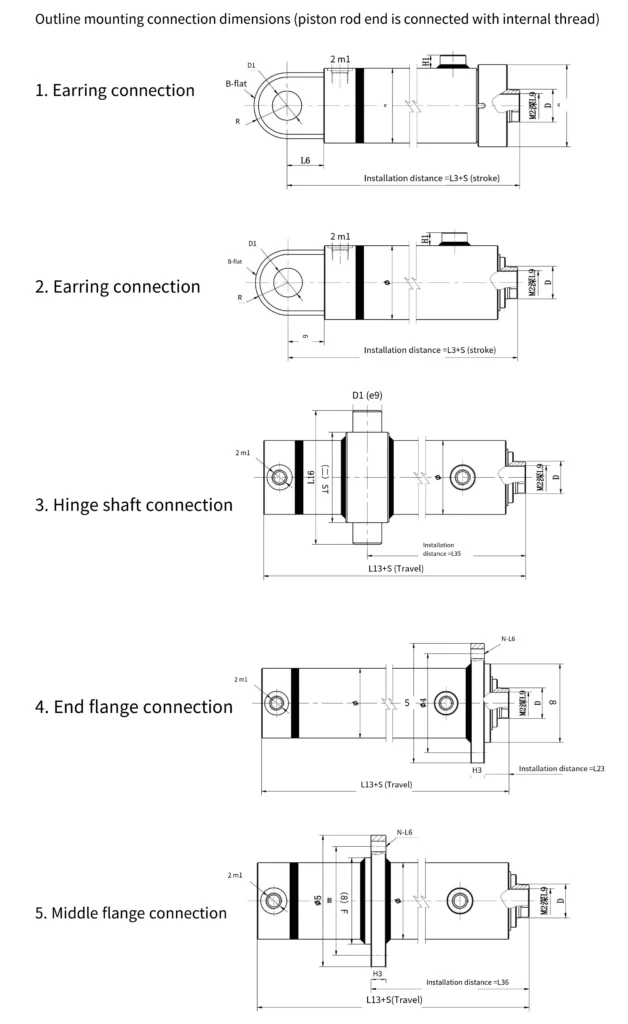

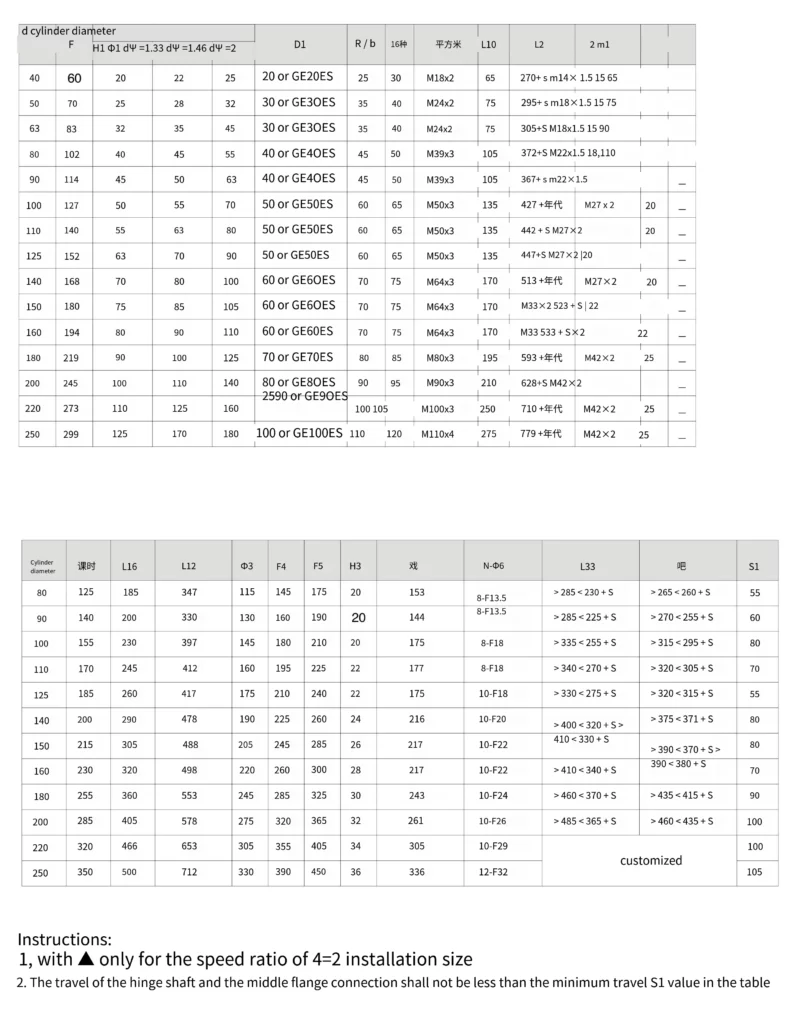

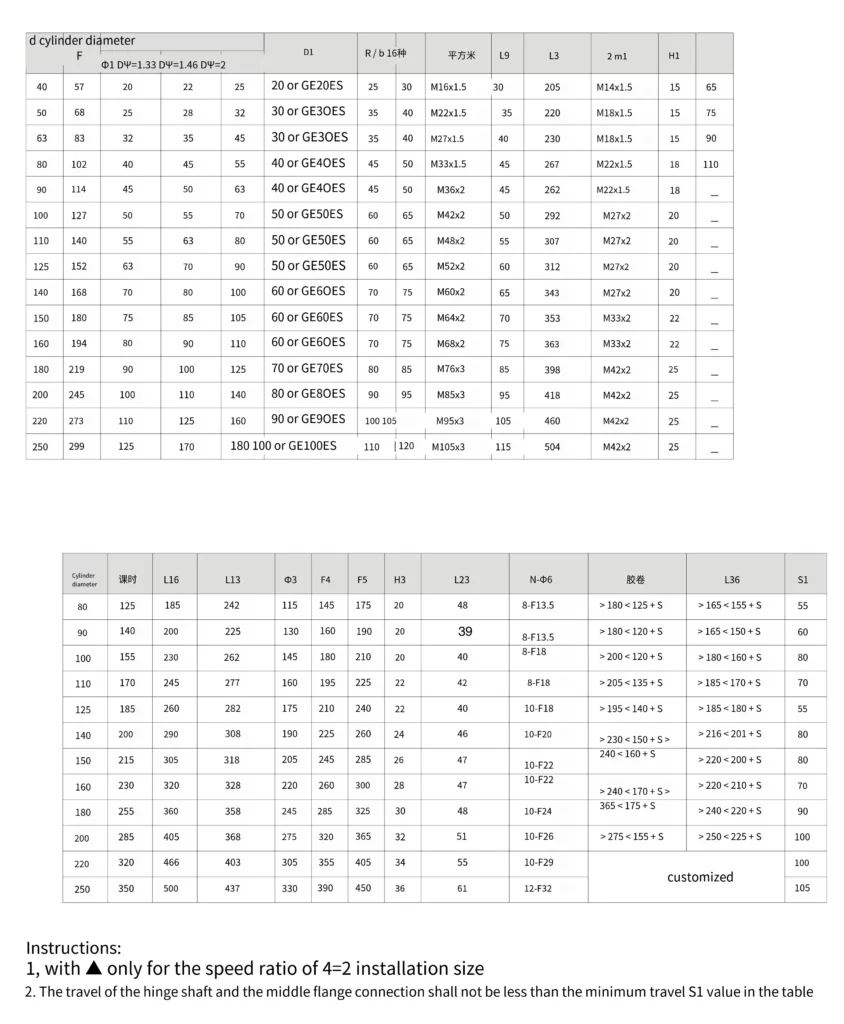

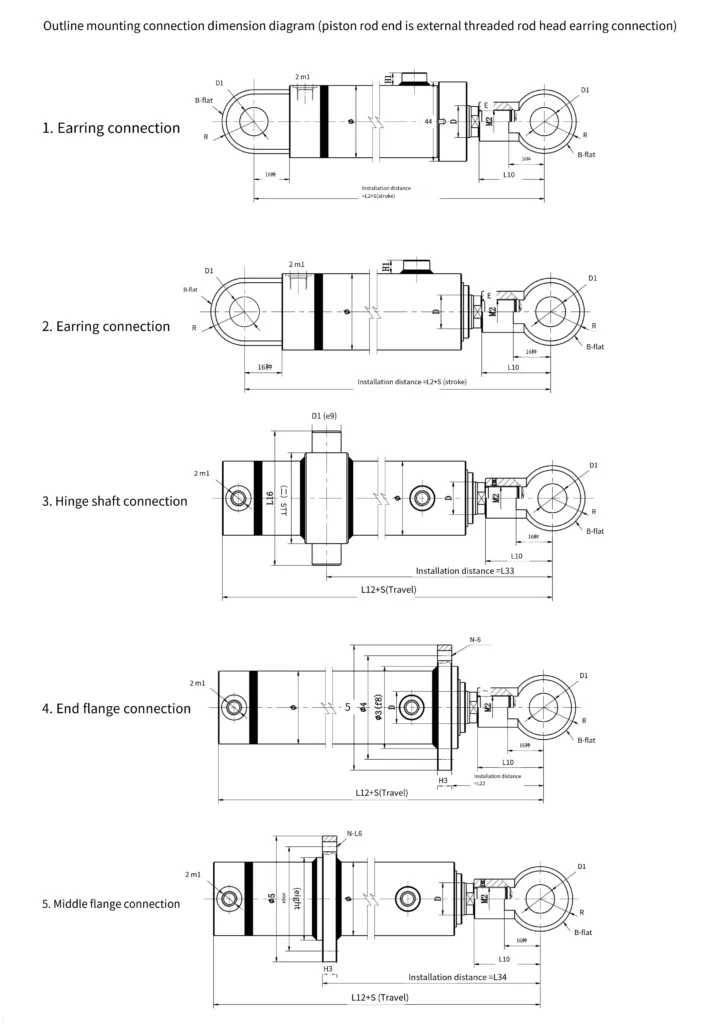

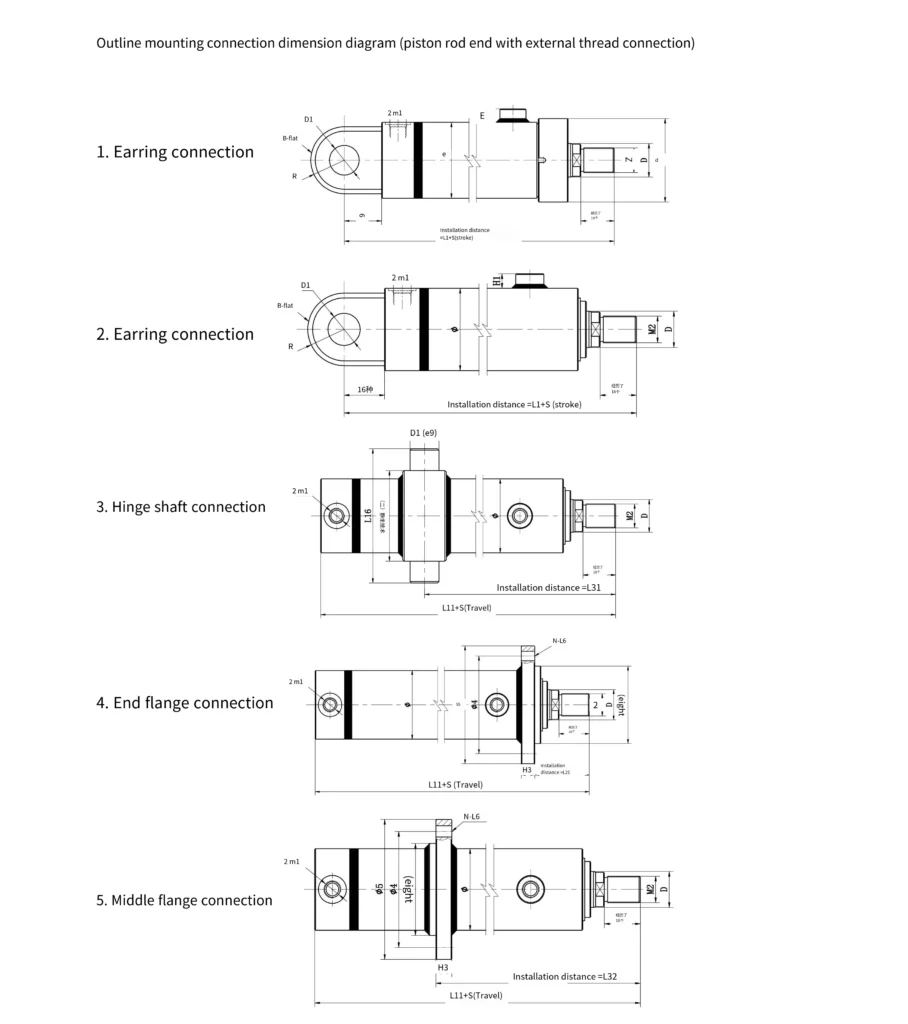

HSG Engineering Hydraulic Cylinder Parameter:

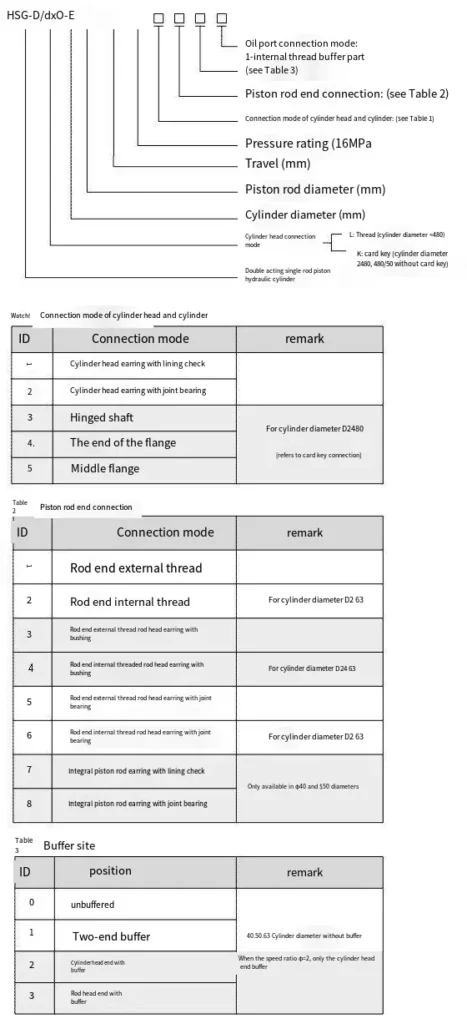

Model Selection Of HSG Engineering Hydraulic Cylinder:

HG-L-01-D/DX100-E2501HG-Double acting hydraulic cylinderL-cylinder head connection mode: L= thread type (cylinder diameter <080); K= clamp type (cylinder diameter >080)01- Design No.D/d cylinder diameter mm/ piston rod mm100- hydraulic cylinder strokeE-pressure grade: E=16MPa G=21MPa2- cylinder head, cylinder connection :1= cylinder head earring with bushing; 2= cylinder head earring with joint bearing; 3= hinge shaft (for cylinder diameter >Φ80 card key connection); 4= end flange (for cylinder diameter >Φ80 card key connection) 5= middle flange (for cylinder diameter >Φ80 card key connection)5- piston rod end connection:1= rod end external thread; 2= rod end internal thread (cylinder diameter >Φ63); 3= rod end external thread rod head earring with bushing; 4= rod end internal thread rod head earring with bushing (cylinder diameter >Φ63); 5= rod end external thread rod head earring with joint bearing; 6= rod end internal thread rod head earring with joint bearing (cylinder diameter >Φ63); 7= integral piston rod earring with bushing (only for cylinder diameter =Φ40, diameter 50); 8= integral piston rod earring with joint bearing (only for cylinder diameter = 40, with 50)0- buffer part:0= no buffer; 1= buffer at both ends; 2= cylinder head end with buffer; 3= rod head end with buffer 1- oil port connection mode :1= metric internal thread; 2= English internal threadL1- piston rod end connection mode: L1= rod end external thread; L2= rod end internal thread0- working medium: 0= oil, hydraulic oil; W= High water base (emulsion) Note: Those marked with A in the model description are currently treated as non-standard.

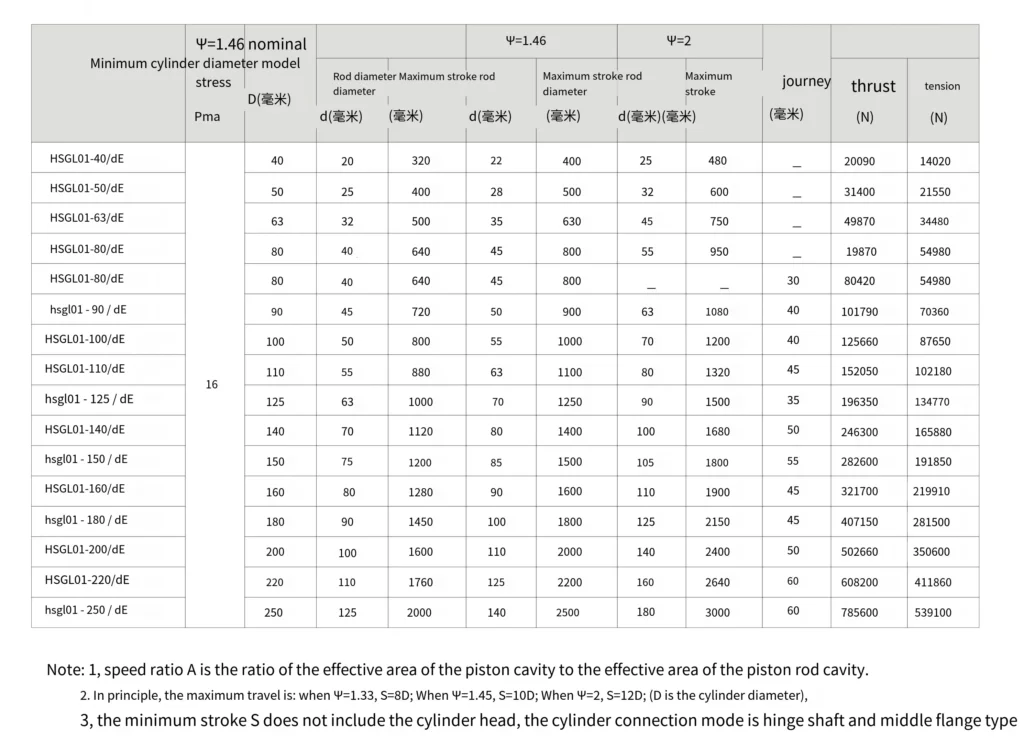

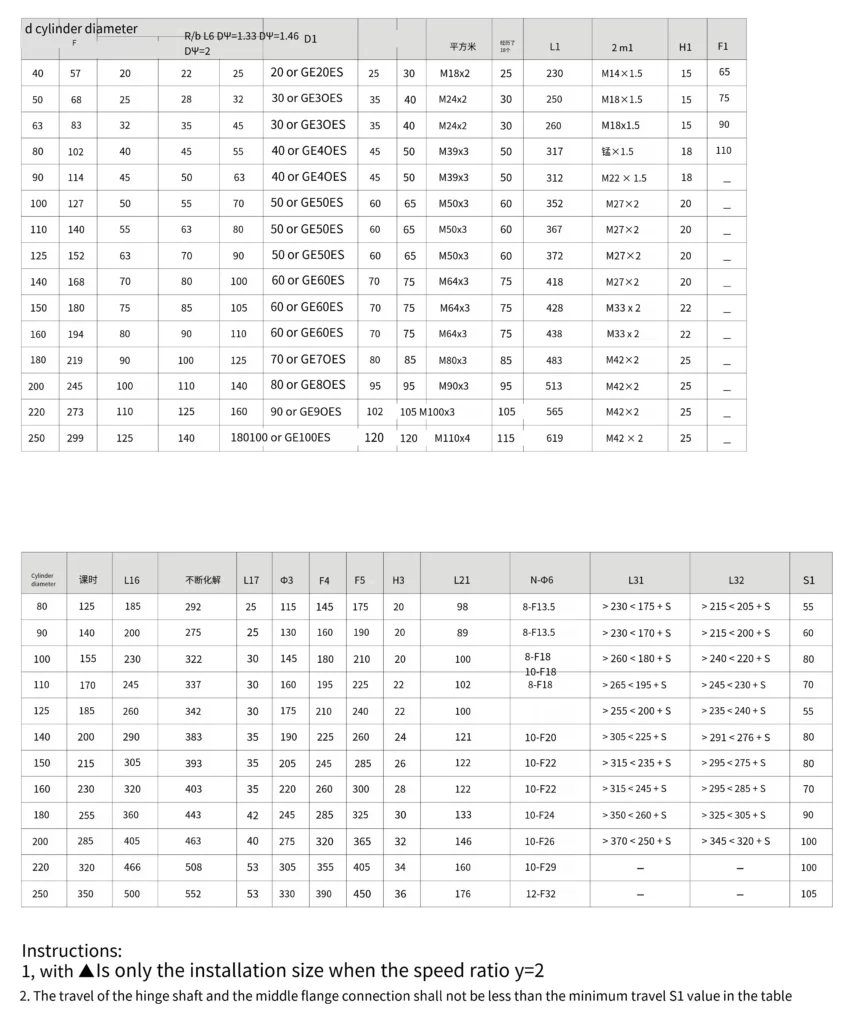

Technical Parameter Of HSG Engineering Hydraulic Cylinder:

You can use the following model notation to select the product you want. Model example: HG-L-50/40 *100-2501HSG series engineering hydraulic cylinder basic parameters, including cylinder diameter, rod diameter, maximum stroke.1, the speed ratio is the ratio of the effective area of the piston cavity to the effective area of the piston rod cavity.2, the maximum stroke is in principle: when the speed ratio =1.33, S=8D; When the ratio =1.45, S=10D; When the ratio is equal to 2, S is equal to 12D

How To Find Seal Kit For Hydraulic Cylinder?

To find a seal kit for a hydraulic cylinder, follow these steps:

1. Identify the Hydraulic Cylinder:
   • Determine the make and model of the hydraulic cylinder for which you need a seal kit.
   • Note any specific details, such as the cylinder's bore diameter, rod diameter, and stroke length, as these specifications will help in finding the correct seal kit.
2. Manufacturer's Documentation:
   • Consult the manufacturer's documentation or product manual for the hydraulic cylinder. The documentation may provide information about compatible seal kits or part numbers that can be used to identify the appropriate kit.
3. Online Search:
   • Conduct an online search using the manufacturer's name, model number, and the keywords "hydraulic cylinder seal kit."
   • Visit the manufacturer's official website or authorized distributors' websites to explore their product catalogs and search for seal kits specific to your hydraulic cylinder model.
4. Hydraulic Parts Suppliers:
   • Look for reputable hydraulic parts suppliers or distributors that offer a wide range of seals and seal kits.
   • Provide them with the details of your hydraulic cylinder, including make, model, and specifications, and inquire about the availability of compatible seal kits.
5. Seal Kit Manufacturers:
   • Some manufacturers specialize in producing seal kits for hydraulic cylinders. Search for well-known seal kit manufacturers and check if they offer seal kits for your specific cylinder model.
   • Visit their websites or contact them directly to inquire about seal kit options.
6. Local Hydraulic Service Centers:
   • Reach out to local hydraulic service centers or repair shops that deal with hydraulic cylinders.
   • They may have access to a variety of seal kits or can guide you in finding the right one for your hydraulic cylinder.
7. Cross-Reference Resources:
   • Utilize cross-reference resources or online databases that match hydraulic cylinder models with compatible seal kits.
   • These resources can help you find seal kits from different manufacturers that are equivalent or compatible with your hydraulic cylinder.
8. Seek Expert Assistance:
   • If you are unable to find the appropriate seal kit on your own, consider seeking assistance from hydraulic specialists or technicians.
   • They have experience and expertise in hydraulic systems and can provide guidance in finding the correct seal kit for your hydraulic cylinder.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of engineering hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle engineering hydraulic cylinders, Aerial work vehicle Engineering hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The engineering hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
