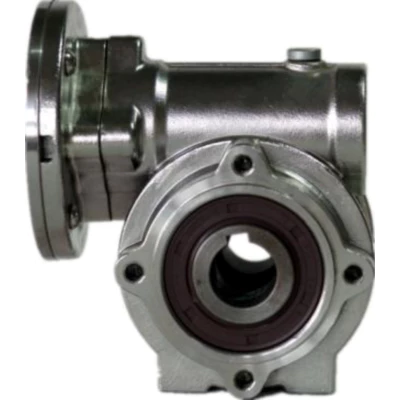

HSRV050 Worm Gear Reducer for Car Washing Machine

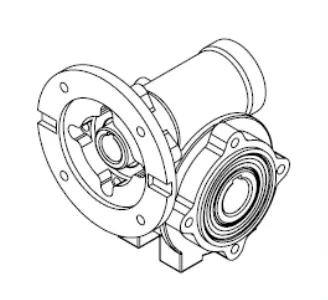

HSRV050 Stainless Steel Car Wash Gearmotor

The HSRV050 series worm gear reducer is a robust and efficient solution specifically designed for car wash systems. The stainless steel body ensures durability and resistance to rust and corrosion, making it an ideal choice for environments exposed to water and chemicals. This series is similar to the MRV car wash gearmotor series, but its unique design and features set it apart.

Technical Specifications of HSRV050 Stainless Steel Car Wash Gearmotor

Type	Ratio	Power
HSRV050	5 7.5 10 15 20 25 30 40 50 60 80 100	0.06KW 0.09KW 0.12KW 0.18KW 0.25KW 0.37KW 0.55KW 0.75KW 1.1KW 1.5KW 2.2KW 3KW 4KW



Unique Features of HSRV050 Worm Gearboxes for Car Washing Machine

• Stainless steel body for enhanced corrosion resistance
• Fully synthetic lubricating oil ensures a longer service life
• Simple structure with high transmission efficiency
• Stable operation with a good noise reduction effect
• Compact size with strong corrosion resistance for a long service life

Applications of HSRV050 Car Wash Worm Gear Reducer

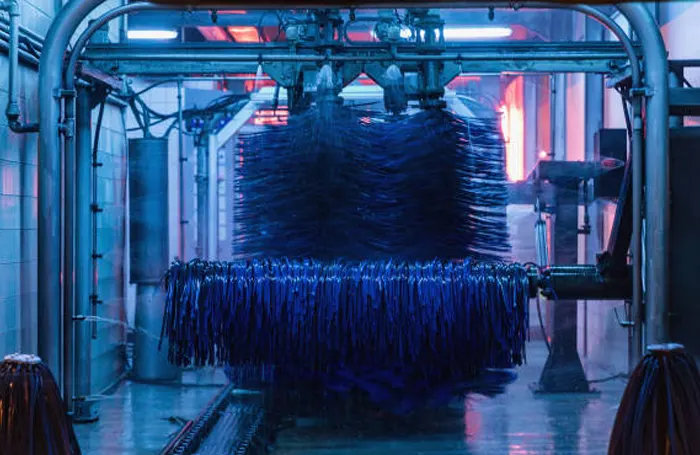

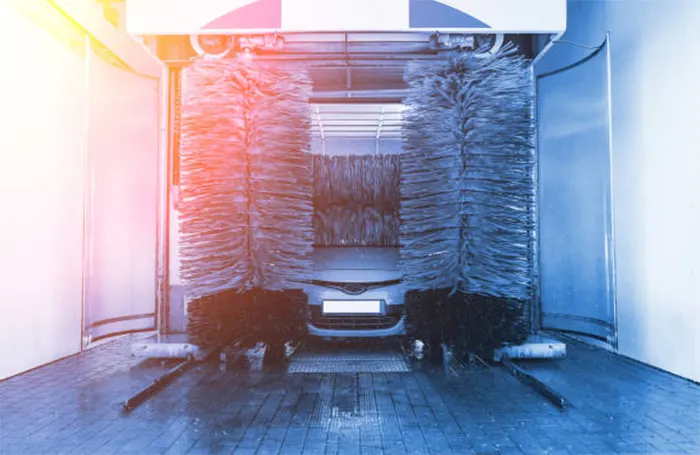

Brush Adjustment: In car wash systems, brushes are altered and repositioned to fit various vehicle dimensions and designs. This is achieved using worm gearboxes, which control the brush movements, allowing for precise placement that ensures thorough cleaning without damaging the vehicle. This adjustment is crucial for the side and top brushes, which need to adapt to the height and contours of different vehicles.Gantry Operation: In a car wash, the gantry is the structure that moves over the vehicle, equipped with nozzles, brushes, and dryers. Worm gearboxes facilitate this movement, moving the gantry back and forth across the vehicle. Thanks to their high torque and the ability to maintain position under load without additional braking mechanisms, worm gearboxes are perfect for this role, providing consistent and smooth operation during the wash cycle.Drying System Operation: Following the wash and rinse stages, vehicles enter a drying zone equipped with strong fans. Worm gearboxes power these fans, delivering the speed and strength needed for efficient drying before vehicles leave the system. The durability of worm gearboxes allows them to sustain the high speeds required by drying fans, effectively managing the load and maintaining energy efficiency.

Choosing the Right Worm Gear Reducer for Car Washer

Choosing the right worm gear reducer for a car wash system is crucial to ensure efficient, reliable, and safe operation. Worm gear reducers are integral in controlling the motion of brushes and gantries, and in driving the fans in drying systems. When selecting a worm gear reducer, one must consider several key factors:

1. Torque Requirements: It’s essential to select a worm gear reducer that can handle the required torque. This is especially important for moving heavy gantries and spinning large brushes. The reducer should provide sufficient torque to perform tasks without overexertion, which can lead to wear and tear.
2. Load Capacity and Durability: The gear reducer should be capable of withstanding continuous operation under varying loads, characteristic of car wash cycles that frequently start and stop. Durability is crucial as the gear reducer must endure wet conditions and potential chemical exposure from cleaning agents.

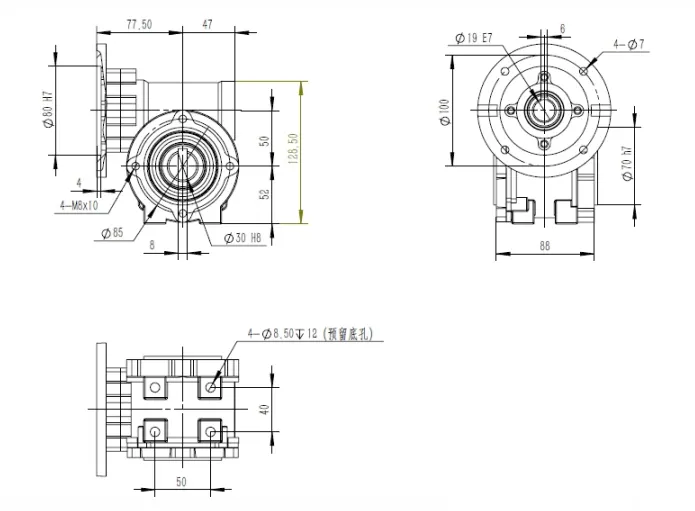

3. Size and Compatibility: The physical size and the mounting configuration of the worm gear reducer should match the space constraints and attachment points of the car wash machinery. Compatibility with existing systems minimizes the need for additional modifications.
4. Efficiency and Maintenance: Energy efficiency is vital for keeping operational costs low. A gear reducer with high efficiency will consume less power and generate less heat. Additionally, the chosen model should be easy to maintain, with readily available spare parts.

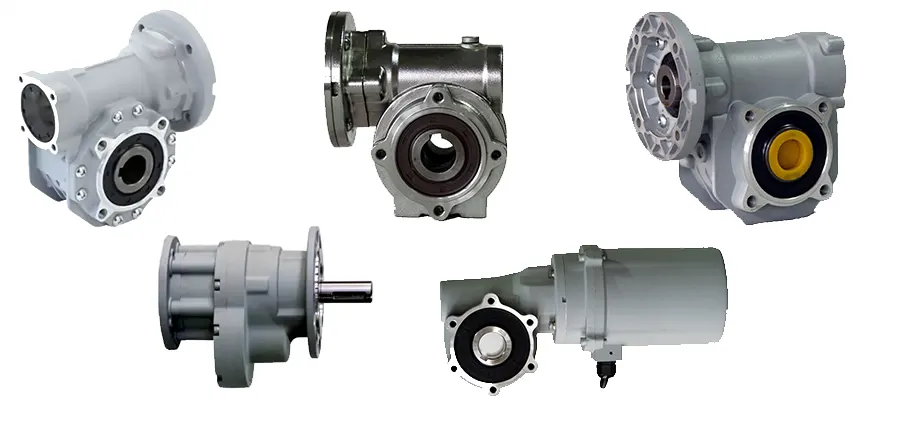

Motors for Worm Gear Reducers

The synergy between motors and worm gear reducers is paramount as they collectively provide precise and efficient power transmission. Choosing the right motor is crucial in ensuring that the reducer operates at its optimum capacity, enhancing overall equipment performance and reliability in any industrial application. At Raydafon, we specialize in offering a variety of motors, including high-efficiency AC motors, durable DC motors, and motors for special applications. Whether you require high torque, low maintenance, or energy-efficient motors, Raydafon caters to diverse needs. Our motors are designed to seamlessly integrate with worm gear reducers, driving your business forward with efficiency and effectiveness. To ensure optimal performance, worm gear reducers require compatible motors. We also offer a range of electric motors that pair perfectly with our worm gear reducers for enhanced efficiency and longevity.

About Raydafon

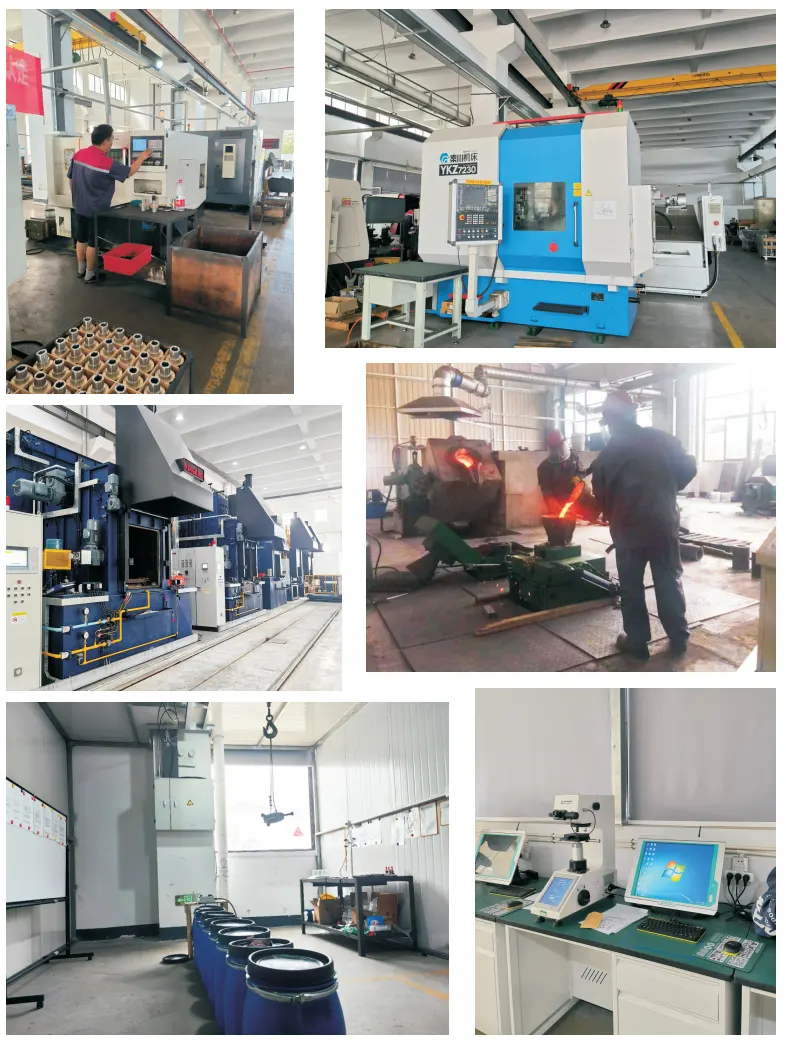

At Raydafon, we are a leading manufacturer of transmission equipment with over 15 years of experience. We serve customers worldwide, offering top-quality products at competitive prices. Our extensive product range includes the HSRV050 series worm gear reducer and many other models, all designed to meet diverse application requirements.We encourage you to explore our products and contact us for any inquiries or purchases. Trust us for quality and efficiency.

FAQs

1. 1. What is the service life of the HSRV050 series worm gear reducer?With proper maintenance, the HSRV050 series worm gear reducer can have a long service life. The use of fully synthetic lubricating oil further enhances its longevity.
   2. Is the HSRV050 series resistant to rust and corrosion?Yes, the HSRV050 series worm gear reducer is made of stainless steel, ensuring excellent resistance to rust and corrosion.
   3. Can I use the HSRV050 series worm gear reducer for applications other than car wash systems?Absolutely, the HSRV050 series is versatile and can be used in various applications such as water treatment equipment, marine vessels, and the chemical industry.
