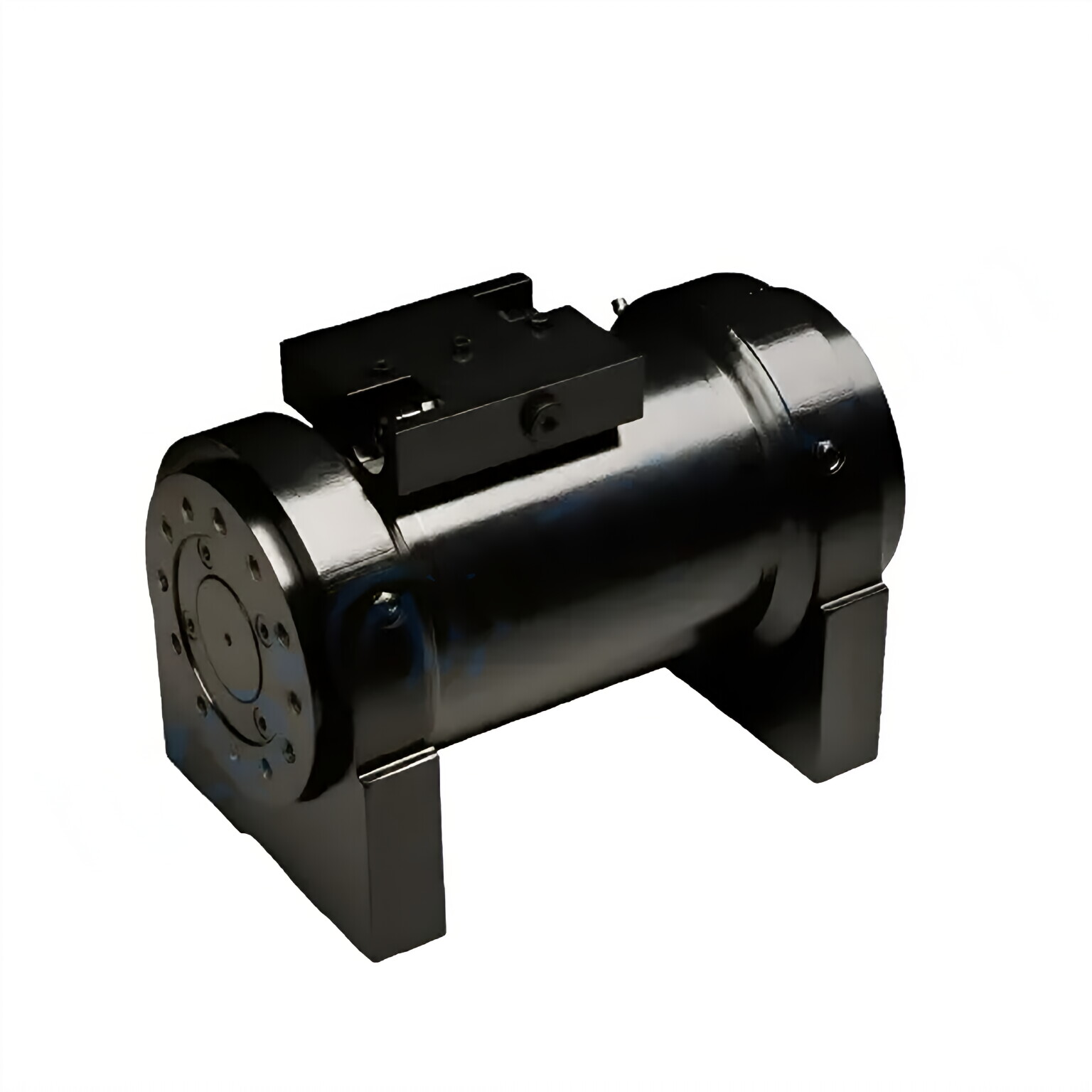

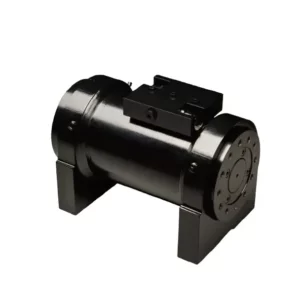

Hydraulic Direction Cylinder

Hydraulic Direction Cylinder

The Hydraulic Direction Cylinder plays a vital role in various hydraulic systems, providing precise control over fluid flow and direction. This component is essential for applications that include industrial machinery and agricultural equipment, where accurate movement is crucial for optimal performance. By gaining a deeper understanding of the features, usage, and maintenance of hydraulic direction cylinders, you can significantly improve the efficiency and longevity of your hydraulic systems.As a fundamental component in modern hydraulic configurations, the Hydraulic Direction Cylinder ensures dependable control and accuracy. Understanding its characteristics and adhering to proper usage and maintenance practices will help keep your hydraulic systems functioning smoothly and efficiently. Investing in high-quality hydraulic direction cylinders not only enhances performance but also prolongs their lifespan across diverse applications. Leverage the precision offered by hydraulic direction cylinders to elevate your operational capabilities and drive success.

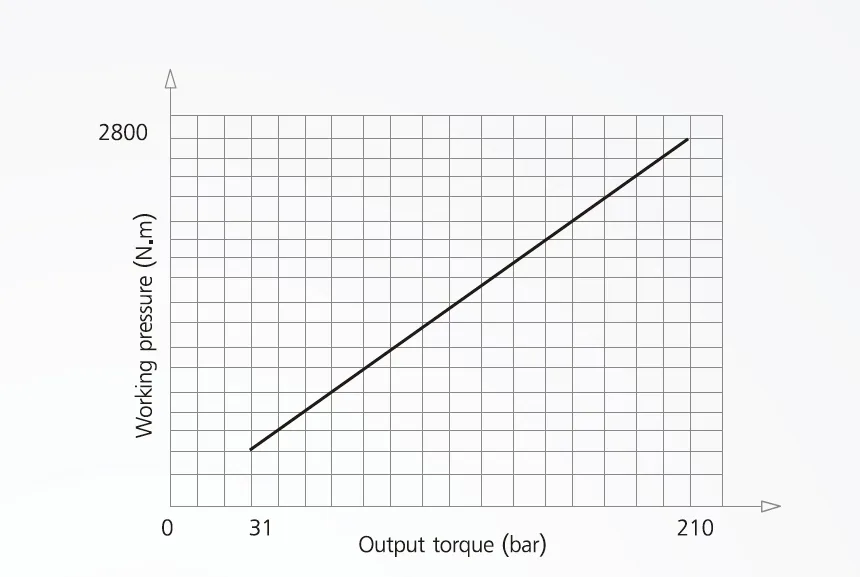

Hydraulic Direction Cylinder Parameter:

• Rated Torque: 2800 N.m
• Rated Pressure: 21 MPa
• Rotation Angle: 180°
• Displacement: 688 c
• Starting Pressure: Max 3.1 MPa
• Maximum Bending Torque for Cross Over Installation: 16900 N.m
• Maximum Bending Torque for Cantilever Installation: 7100 N.m
• Load in the Diameter Direction: 2300 kg
• Load in the Length Direction: 1800 kg

Key Features of Hydraulic Direction Cylinder:

Exceptional Versatility

Hydraulic direction cylinders are designed for versatility, making them an essential component across various industries such as construction, agriculture, and manufacturing. Their adaptability allows them to tackle a wide range of tasks—from lifting heavy machinery to controlling agricultural implements—enhancing overall productivity. This flexibility ensures that operators can rely on these cylinders for diverse applications, making them indispensable tools in any operational setting.

Robust Durability

Constructed from high-strength materials, these hydraulic direction cylinders exhibit remarkable durability. They are engineered to resist wear and tear, allowing for consistent performance even in the most demanding environments. This resilience translates to fewer replacements and repairs, providing operators with peace of mind as they depend on their machinery day in and day out.

Advanced Corrosion Protection

Featuring advanced protective coatings, hydraulic direction cylinders are equipped to fend off rust and environmental damage. This is particularly valuable in outdoor applications where exposure to moisture, chemicals, and fluctuating temperatures is common. With superior corrosion resistance, operators can trust that their cylinders will maintain structural integrity and performance over time, regardless of harsh conditions.

High Load Capacity

These cylinders are specifically engineered to endure significant forces, excelling under heavy loads without sacrificing performance. Their robust design ensures reliable power for lifting, pushing, or pulling, making them ideal for high-stress applications across various industries.

Precision Engineering

Manufactured to stringent standards, hydraulic direction cylinders guarantee compatibility with a wide range of hydraulic systems. This precision engineering minimizes the risk of malfunction and maximizes operational efficiency, allowing for seamless integration into existing setups. Operators can enjoy dependable performance, knowing these cylinders meet rigorous industry specifications.

How Does The Corrosion Resistance Of A Hydraulic Direction Cylinder Enhance Its Performance In Outdoor Environments?

The corrosion resistance of Hydraulic Direction Cylinders plays a crucial role in enhancing their performance in outdoor environments through several key factors:

Maintaining Structural Integrity:

Protective coatings shield the cylinders from rust and deterioration caused by moisture and environmental exposure. This preservation of structural integrity ensures that the cylinders continue to function effectively over time, minimizing the risk of unexpected failures and maintaining operational efficiency.

Reducing Maintenance Needs:

With effective corrosion protection, the frequency of repairs and replacements is significantly lowered. This reduction in maintenance needs translates to cost savings and less downtime, allowing operators to focus on their core tasks rather than recurring equipment issues. It also extends the intervals between necessary inspections, further enhancing productivity.

Ensuring Reliable Performance:

Corrosion-resistant cylinders are designed to function consistently under varying weather conditions, from extreme heat to heavy rain and snow. This reliability is essential for outdoor applications where equipment must perform optimally regardless of environmental challenges, thereby enhancing overall operational effectiveness.

Extending Lifespan:

By minimizing wear and deterioration due to corrosion, these cylinders enjoy a longer lifespan. This longevity not only represents a more cost-effective investment over time but also reduces the ecological impact associated with manufacturing and disposing of replacement cylinders, contributing to sustainability efforts.

Improving Safety:

Corrosion-related failures can lead to dangerous situations, especially in high-stress applications. By preventing such failures, corrosion-resistant Hydraulic Direction Cylinders contribute to safer operations. This reliability reduces the risk of accidents and enhances the overall safety of the work environment, protecting both operators and equipment.In summary, the corrosion resistance of Hydraulic Direction Cylinders is vital for ensuring optimal performance, longevity, and safety in outdoor applications. It enables these cylinders to meet the demands of challenging environments while providing peace of mind to operators.

Cylinders Production Area:

We have developed a top-tier independent R&D platform for assembly. Our forklift cylinder production workshop features four semi-automatic assembly lines and one fully automatic tilting cylinder assembly line, capable of producing up to one million units annually. Additionally, our special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, designed to produce 200,000 units per year.Our facility boasts state-of-the-art CNC machining equipment, machining centers, specialized tools for high-precision cylinder processing, robotic welding machines, automatic cleaning systems, automatic assembly machines, and automated paint production lines. Over 300 key pieces of equipment are operational, allowing for optimized resource allocation and efficient utilization to meet precise product specifications and high-quality standards.In the machining shop, we utilize custom tilt guiderail turning centers, machining centers, high-speed honing machines, welding robots, and other essential equipment. This setup enables us to handle machining tasks for cylinder tubes with a maximum inner diameter of 400mm and lengths of up to 6 meters.

We operate a fully automatic water-based paint coating line for small and medium cylinders, featuring automatic loading and unloading systems and robotic spraying capabilities, with a production capacity of 4,000 units per shift. Additionally, we have a semi-automatic painting line for larger cylinders, powered by a chain drive, designed to handle 60 crates per shift.To enhance product performance and solidify our leadership in the hydraulic cylinder industry, we have partnered with Zjimee to establish a comprehensive performance laboratory focused on hydraulic cylinders, valves, and pumps. This lab employs computer-assisted testing using advanced electro-hydraulic technology, allowing for preset test conditions that improve accuracy and versatility in testing.The lab utilizes sensors for automatic data collection, enabling direct processing of output metrics, such as internal leakage and load efficiency, converted into standard units (ml/min%). To ensure the safety of hydraulic systems, we monitor key performance parameters, including oil temperature, liquid levels, and filter conditions. The hydraulic cylinder test stand evaluates "load efficiency" and "internal leakage" through precise readings, and is equipped with a grating ruler measuring instrument that complies with national standards for all hydraulic cylinder testing requirements.
