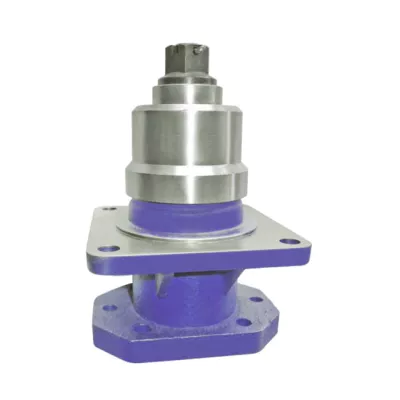

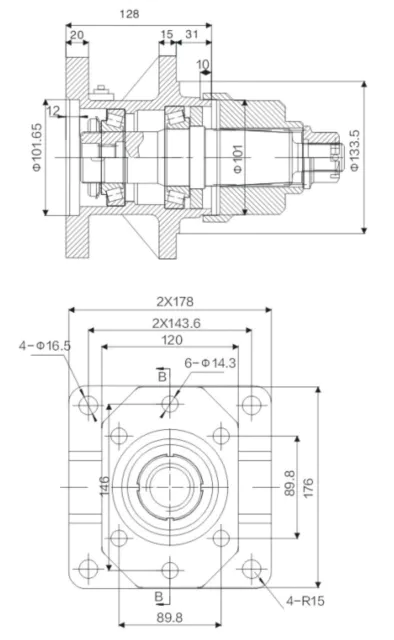

Hydraulic Drive Spindle RDF-MDH-40 for Gearbox

Hydraulic Drive Spindle RDF-MDH-40 for Gearbox

The hydraulic drive spindle, also known as bearing housing, is a part of the gearbox of agricultural machineryMain applied forAgriculture and foodBuilding and constructionForest and paperMetal processingChemical industry and environmental protection

Housing material	Cast iron/Ductile iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58~62
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	Accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	tempering, cementing, quenching, etc.
Efficiency	98%
Noise (MAX)	60~68dB
Vibration	≤20µm
Backlash	≤20Arcmin
Brand of bearings	China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal	NAK --- Taiwan or other brands requested

Customized service of agricultural gearbox

◆ Can according to your Drawings or samples to manufacturing the exact products as your requirements.◆ Imported our products to many countries, we have advanced technical support with strict quality control.◆ Small quantities can be accepted with a fast delivery time.

PTO Shaft for Agricultural Gearbox

Agricultural equipment such as tractors combines, and harvesters use PTO shafts. These components are subjected to high loads and stress, and it is vital to find out why they failed in the first place. Constant shaft compression can damage connecting shafts and even the tractor and implement. A PTO shaft for an agricultural gearbox is an integral part of an agricultural implement or tractor. And PTO shaft for the agricultural gearbox is secured with a safety shield at both ends and can be found on implements and tractors. A PTO shaft can be welded to the drive end using a universal joint, while the rear shaft can be welded directly to the tractor.If you also need the PTO drive shafts, please contact us!
